Control Module: Service and Repair

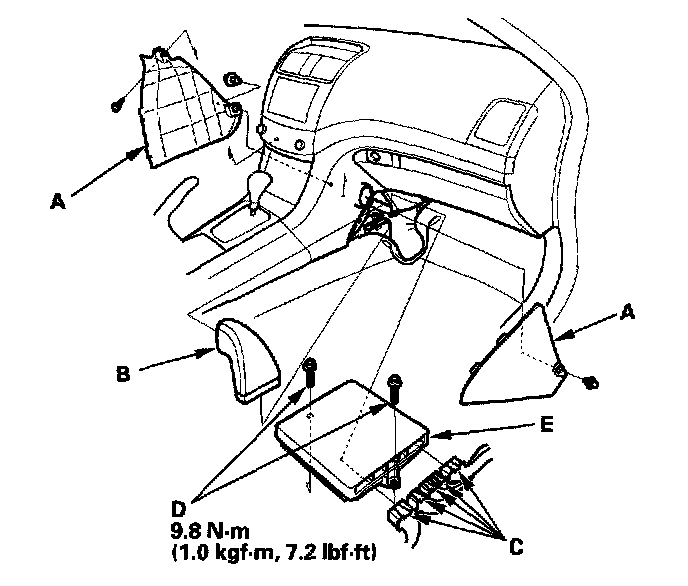

How to Remove and Install the PCM
1. Jump the SCS line with the HDS.





2. Remove the center lower covers (A).
3. Remove the duct (B).
4. Disconnect the PCM connectors (C).
5. Remove the bolts (D), then remove the PCM (E).
6. Install the PCM in the reverse order of removal.
7. Open the SCS line with the HDS.
