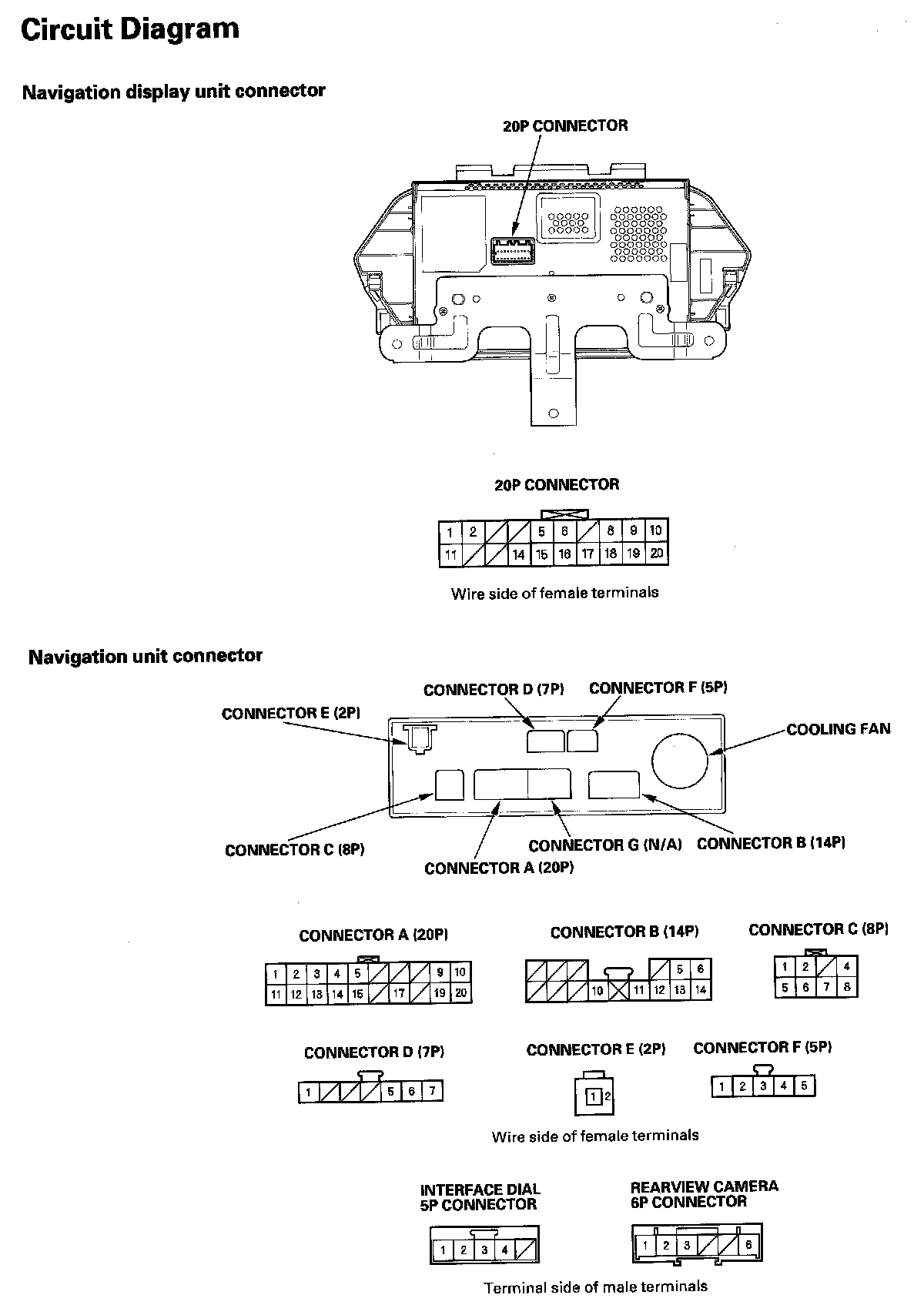

System Diagram

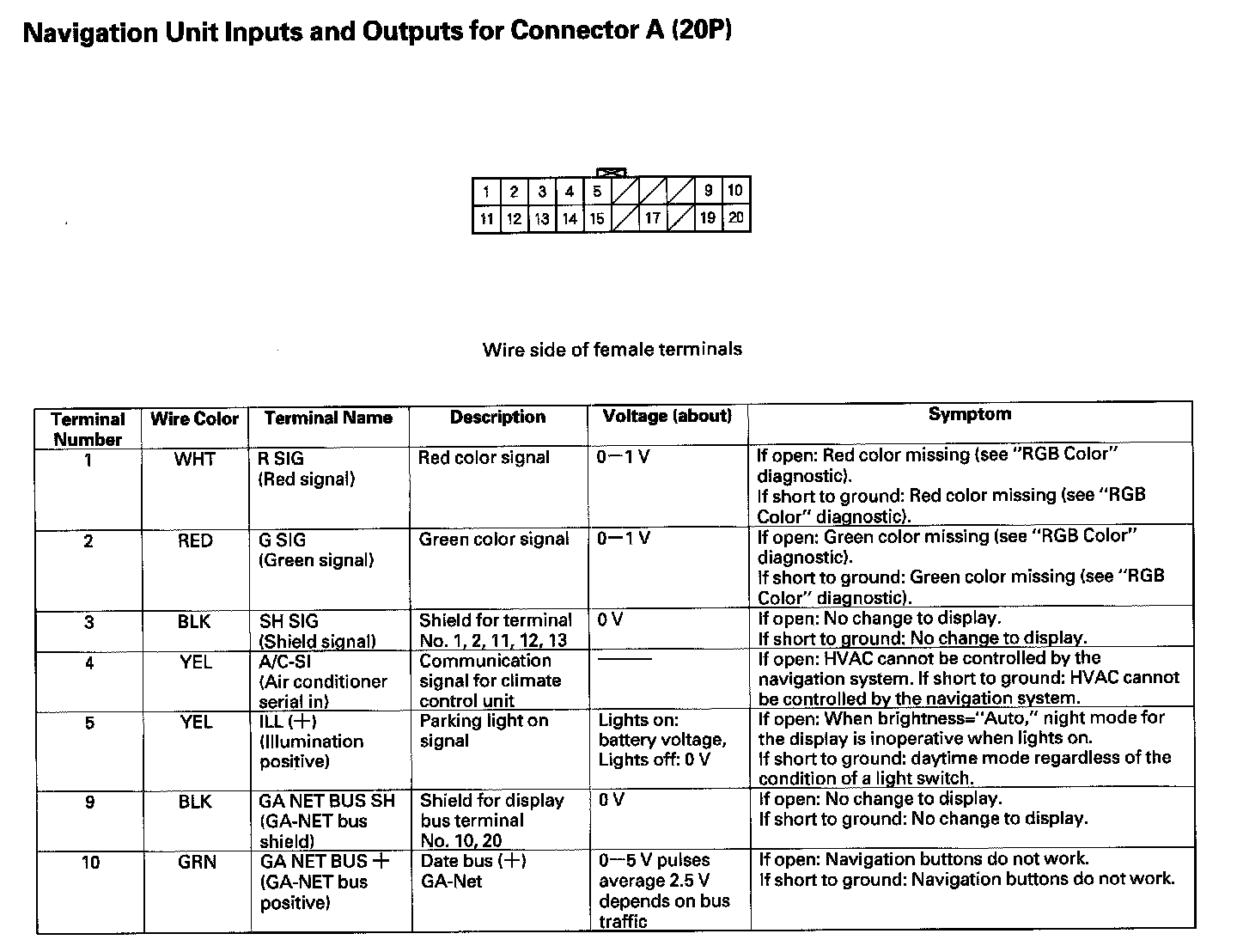

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:



Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

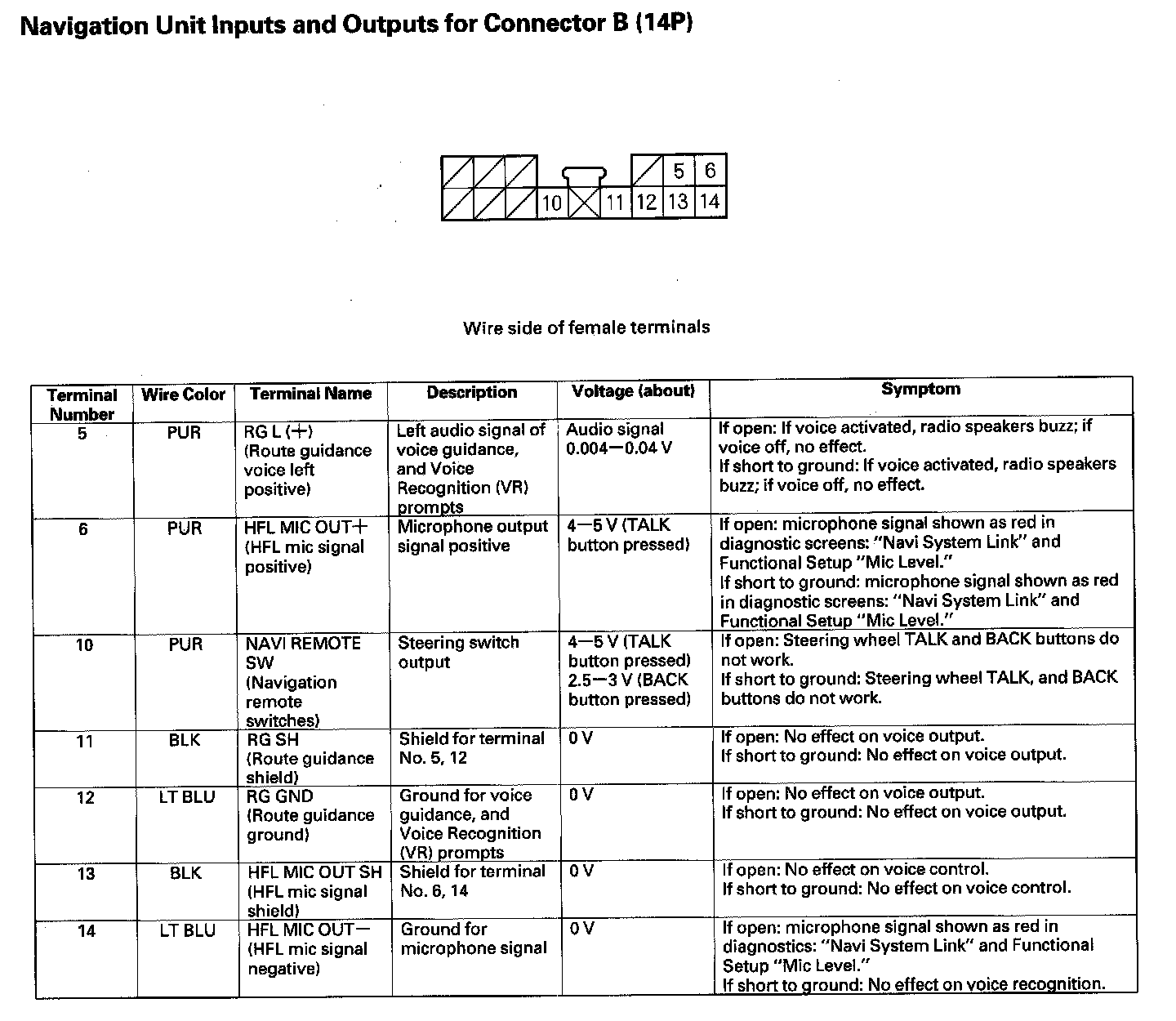

Navigation Unit Inputs And Outputs For Connector B (14P):

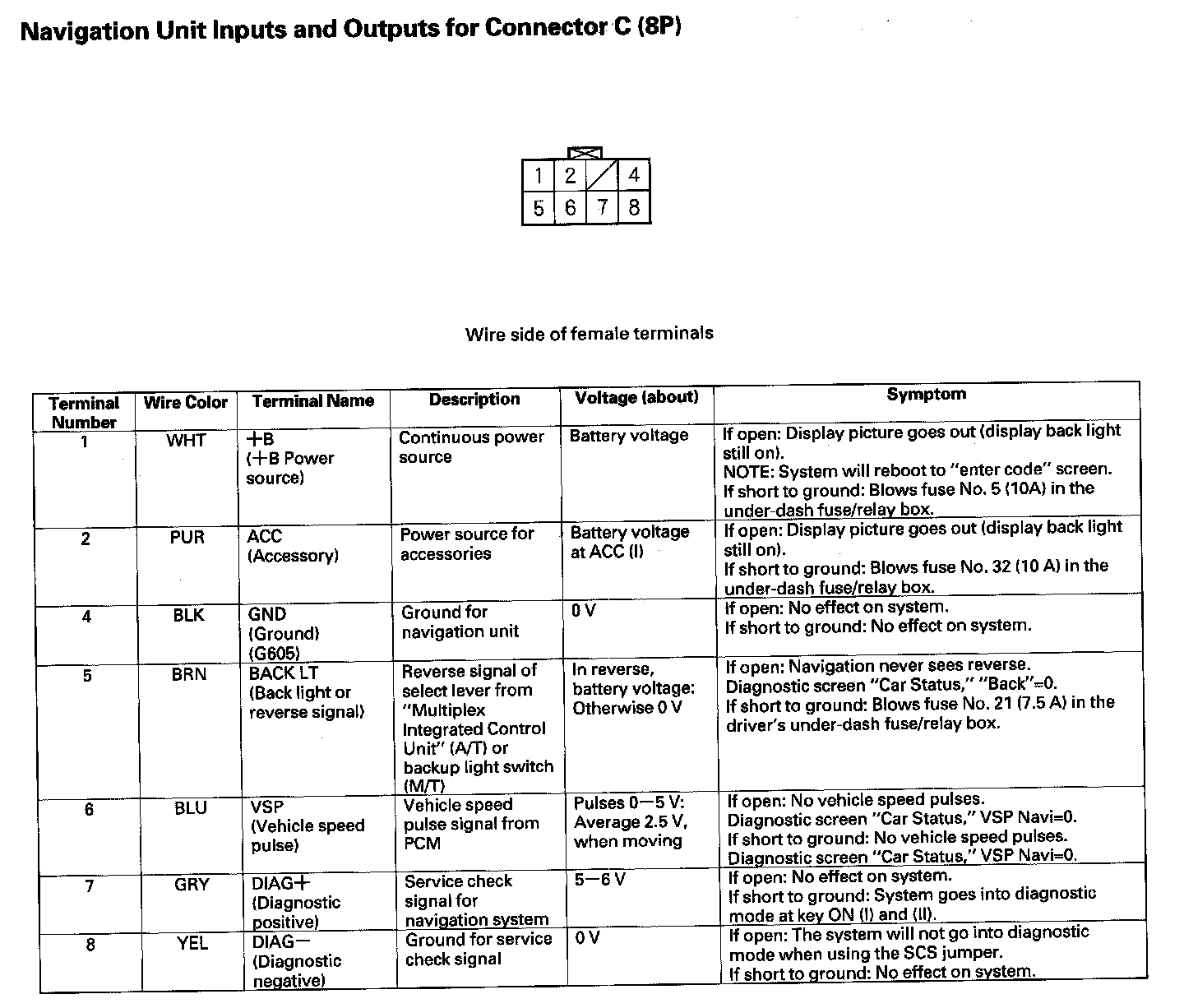

Navigation Unit Inputs And Outputs For Connector C (8P):

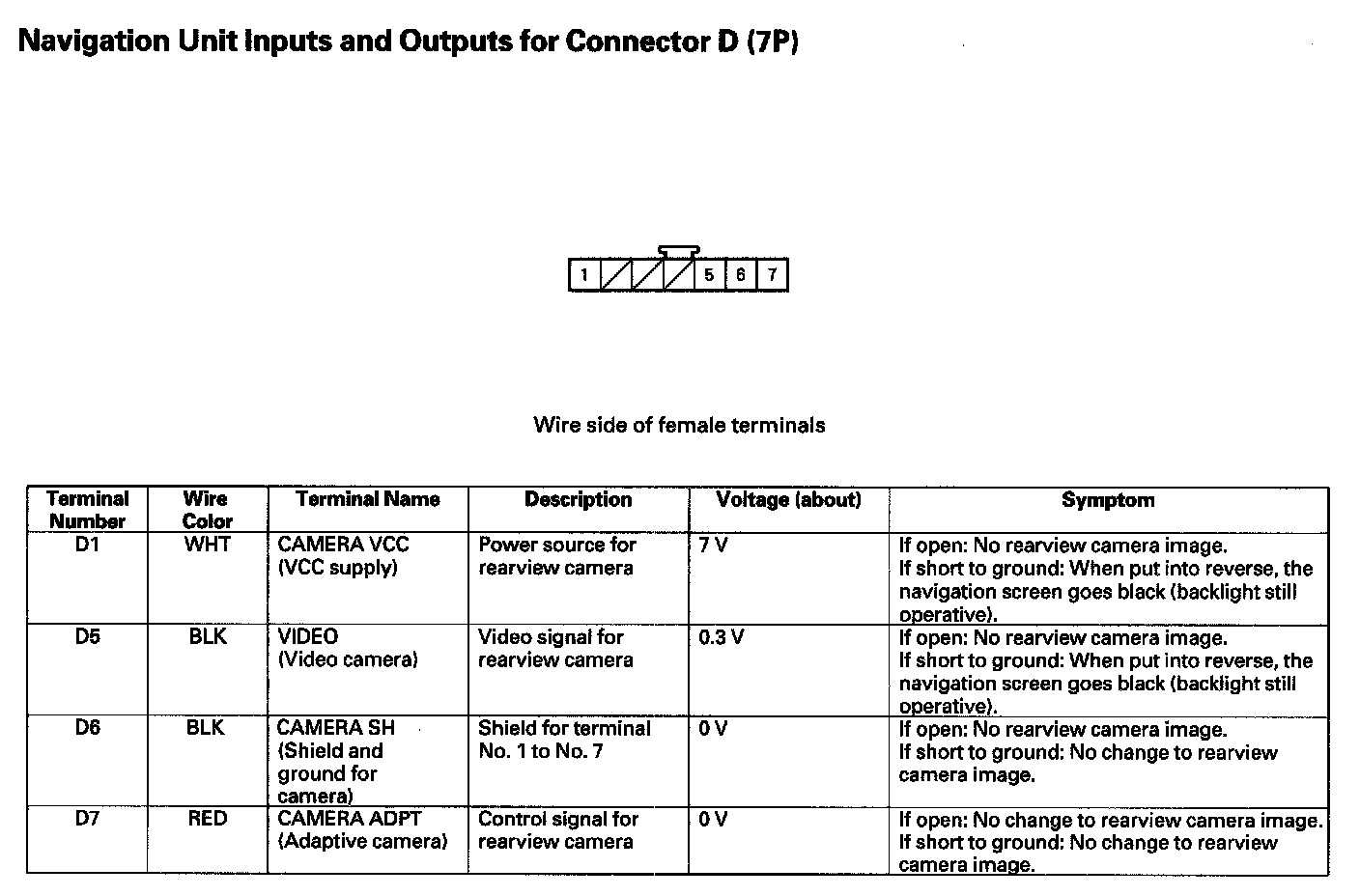

Navigation Unit Inputs And Outputs For Connector D (7P):



Navigation Unit Inputs And Outputs For Connector E (2P):

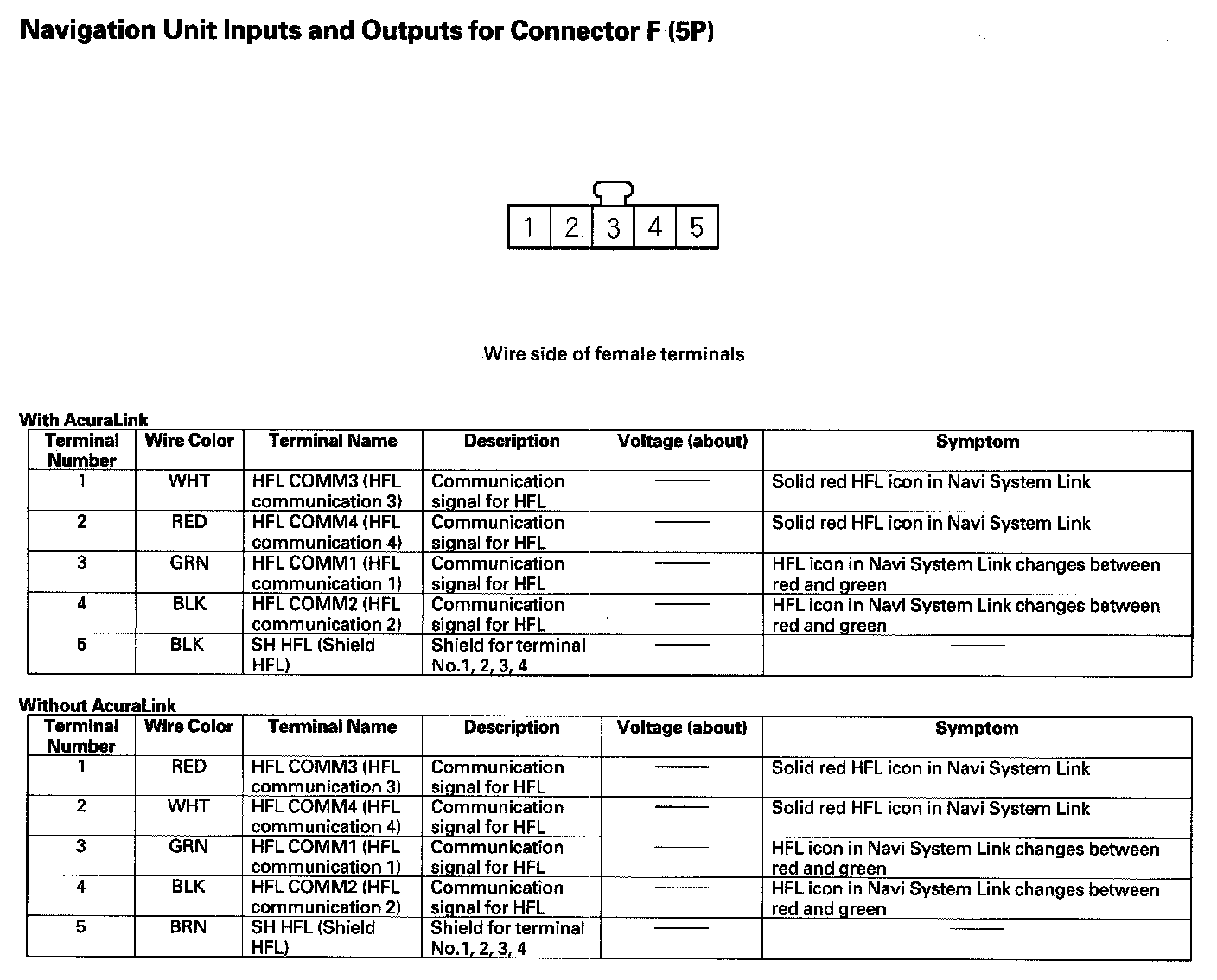

Navigation Unit Inputs And Outputs For Connector F (5P):

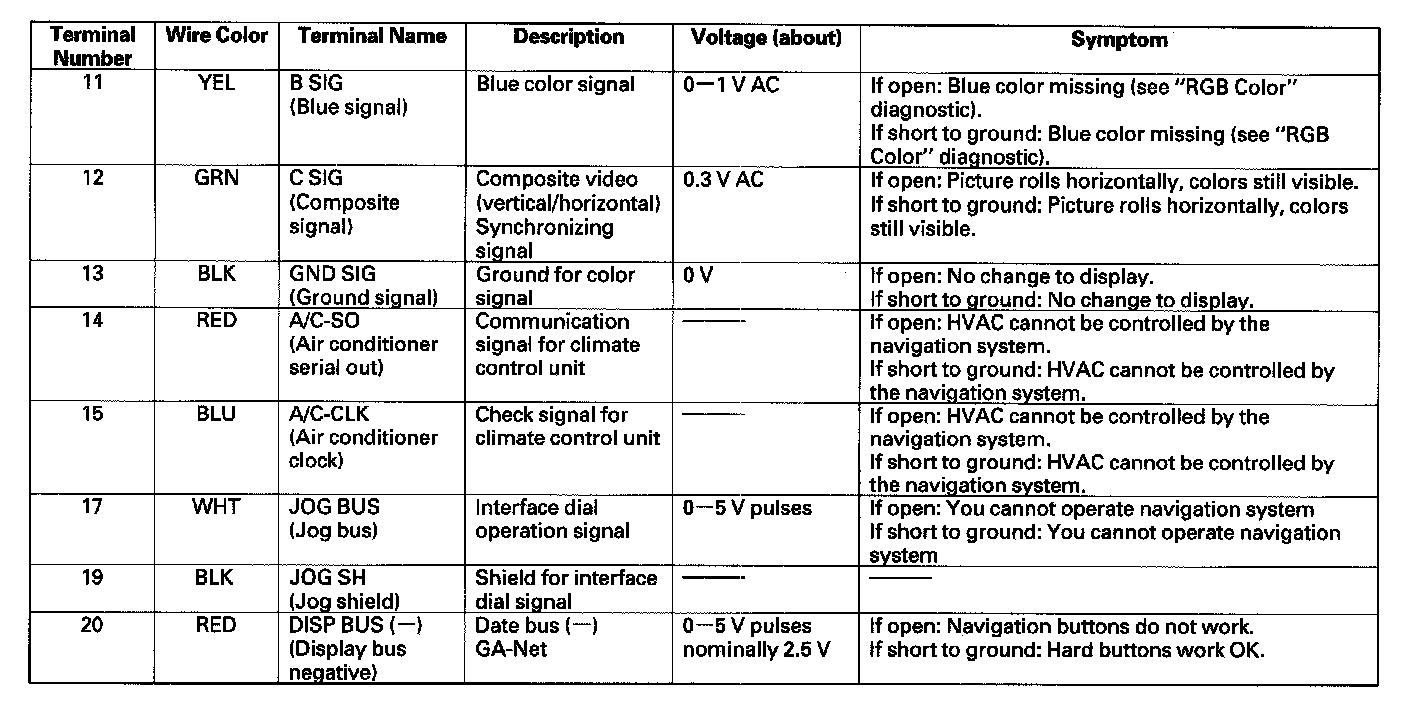

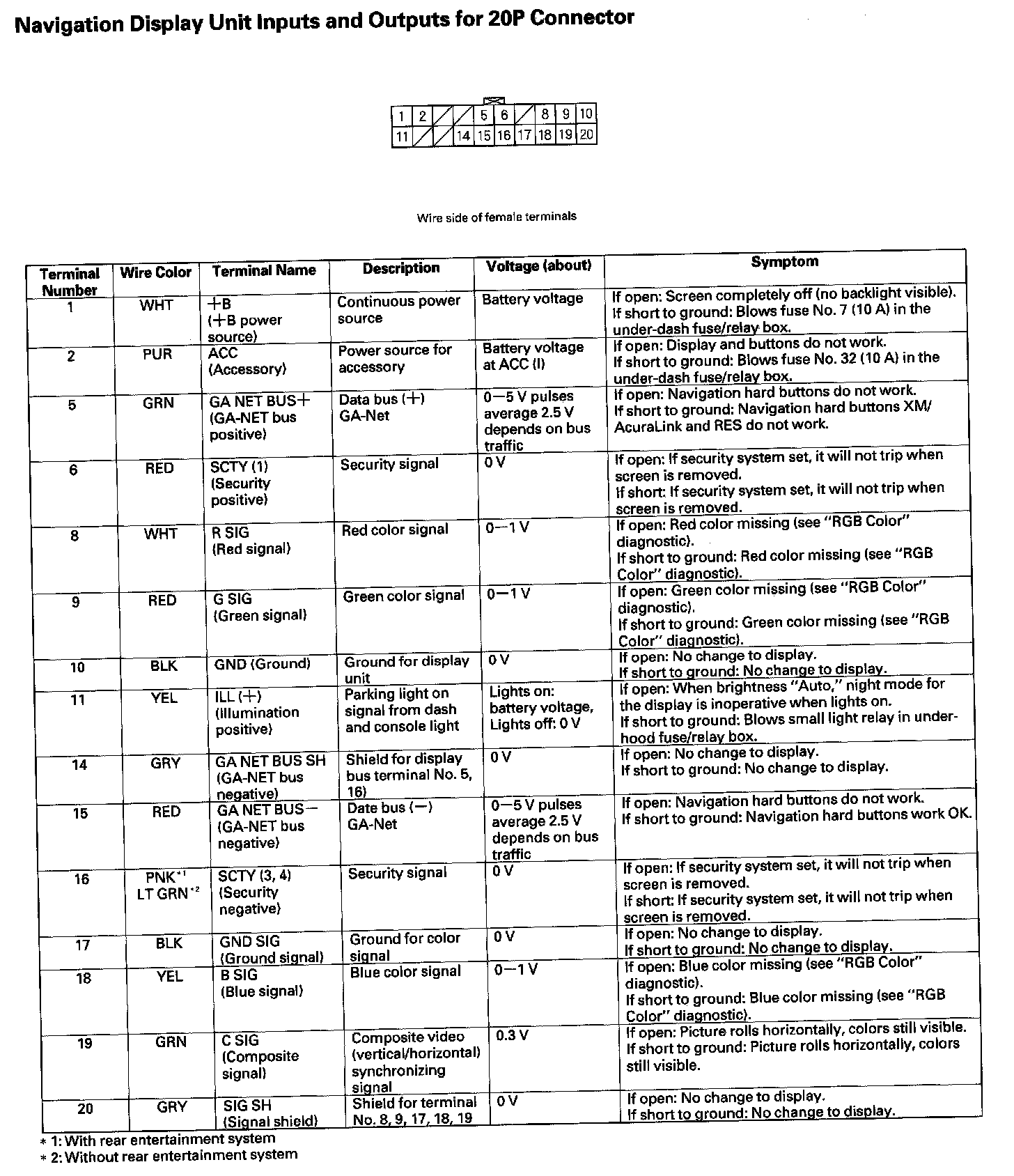

Navigation Display Unit Inputs And Outputs For 20P Connector:

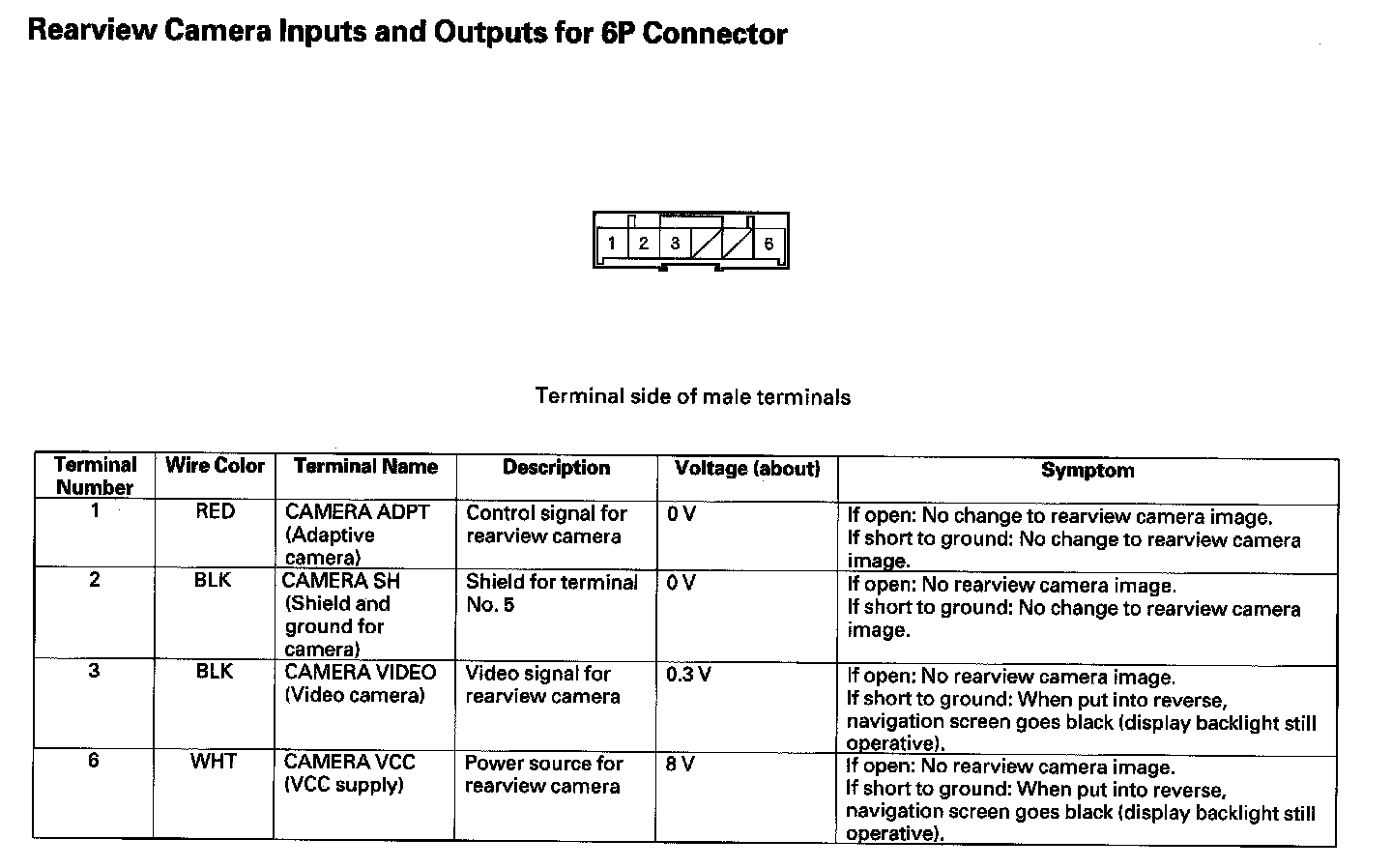

Rearview Camera Inputs And Outputs For 6P Connector:

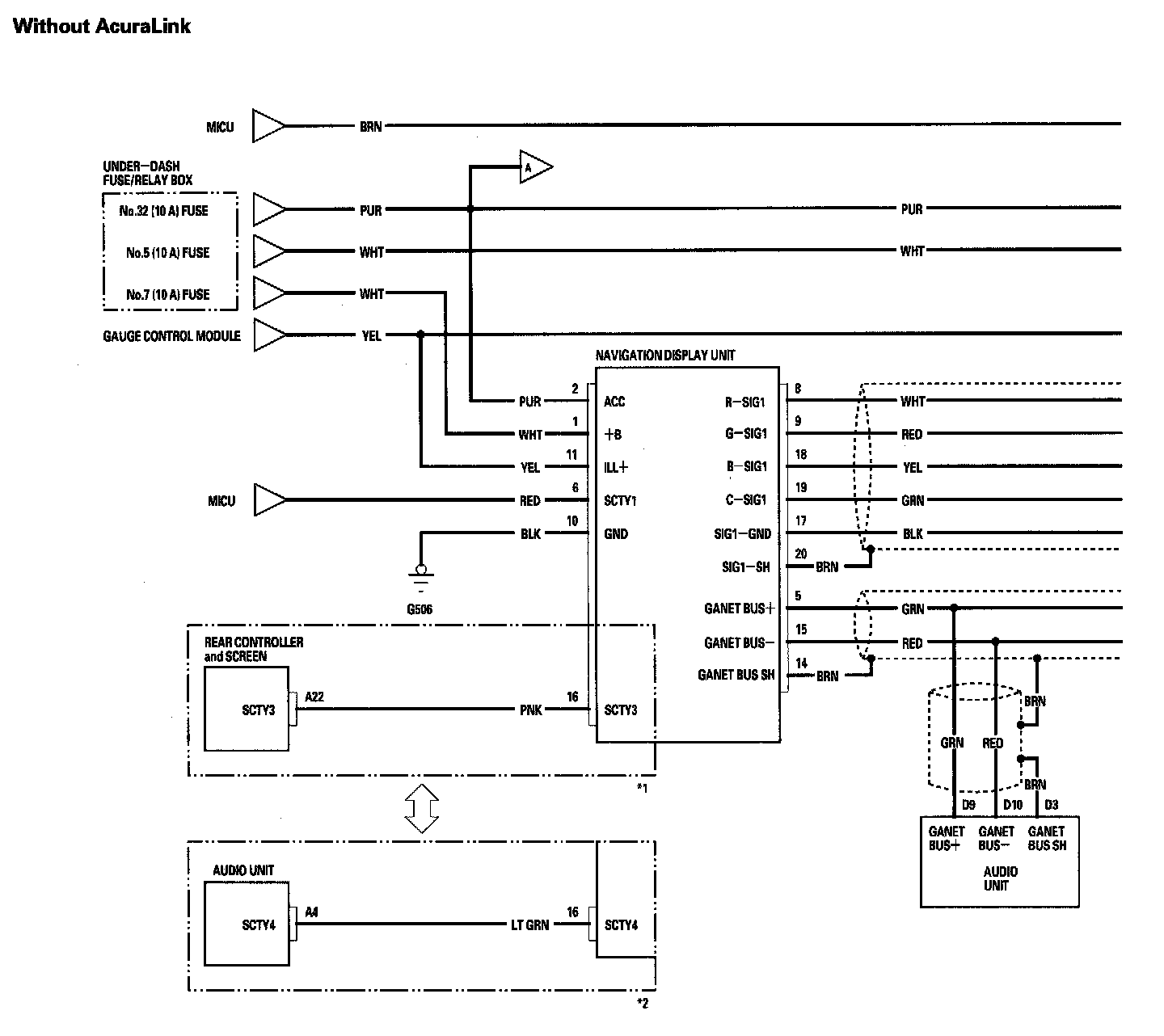

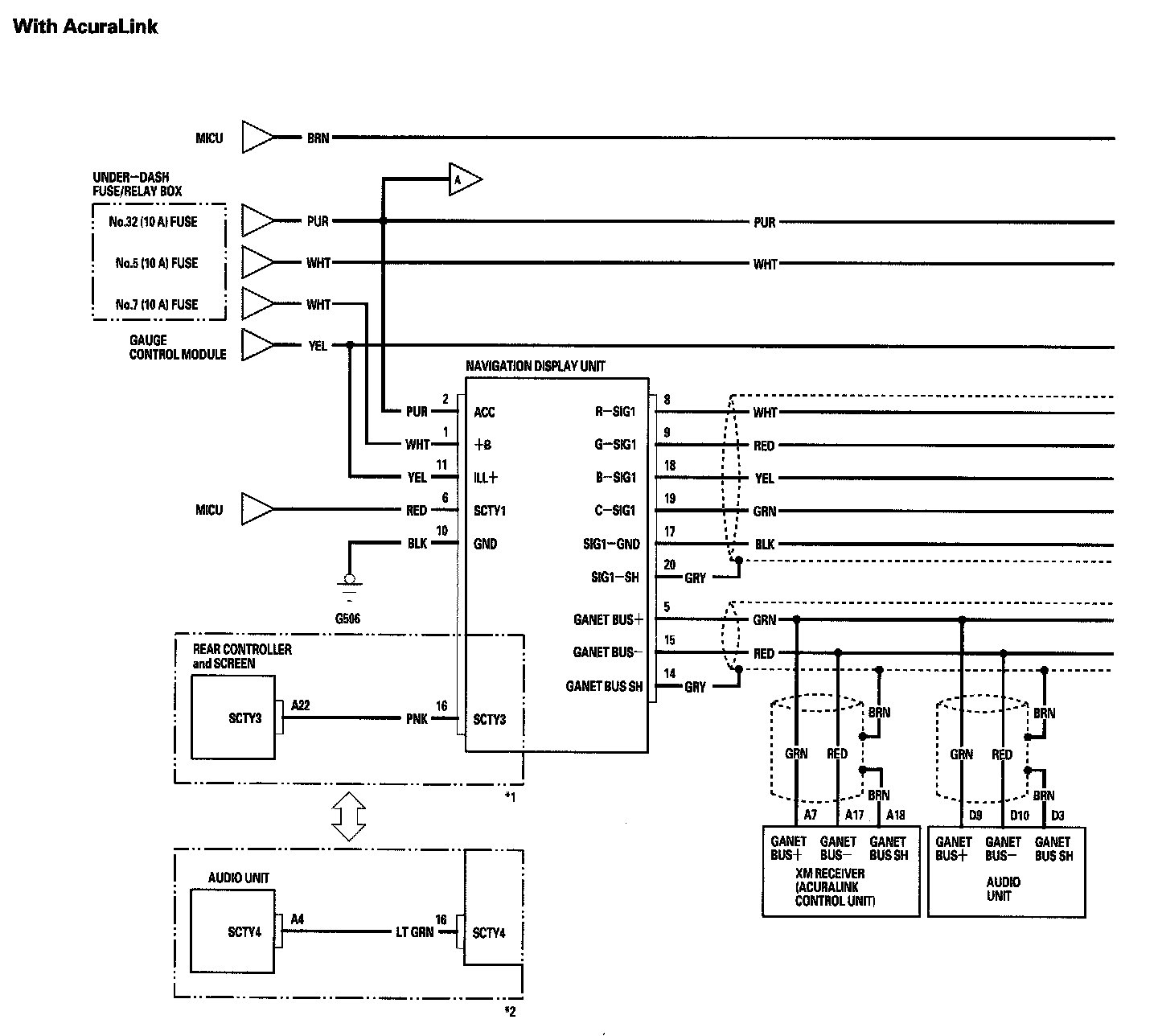

Navigation System Circuit Diagram Part 1:

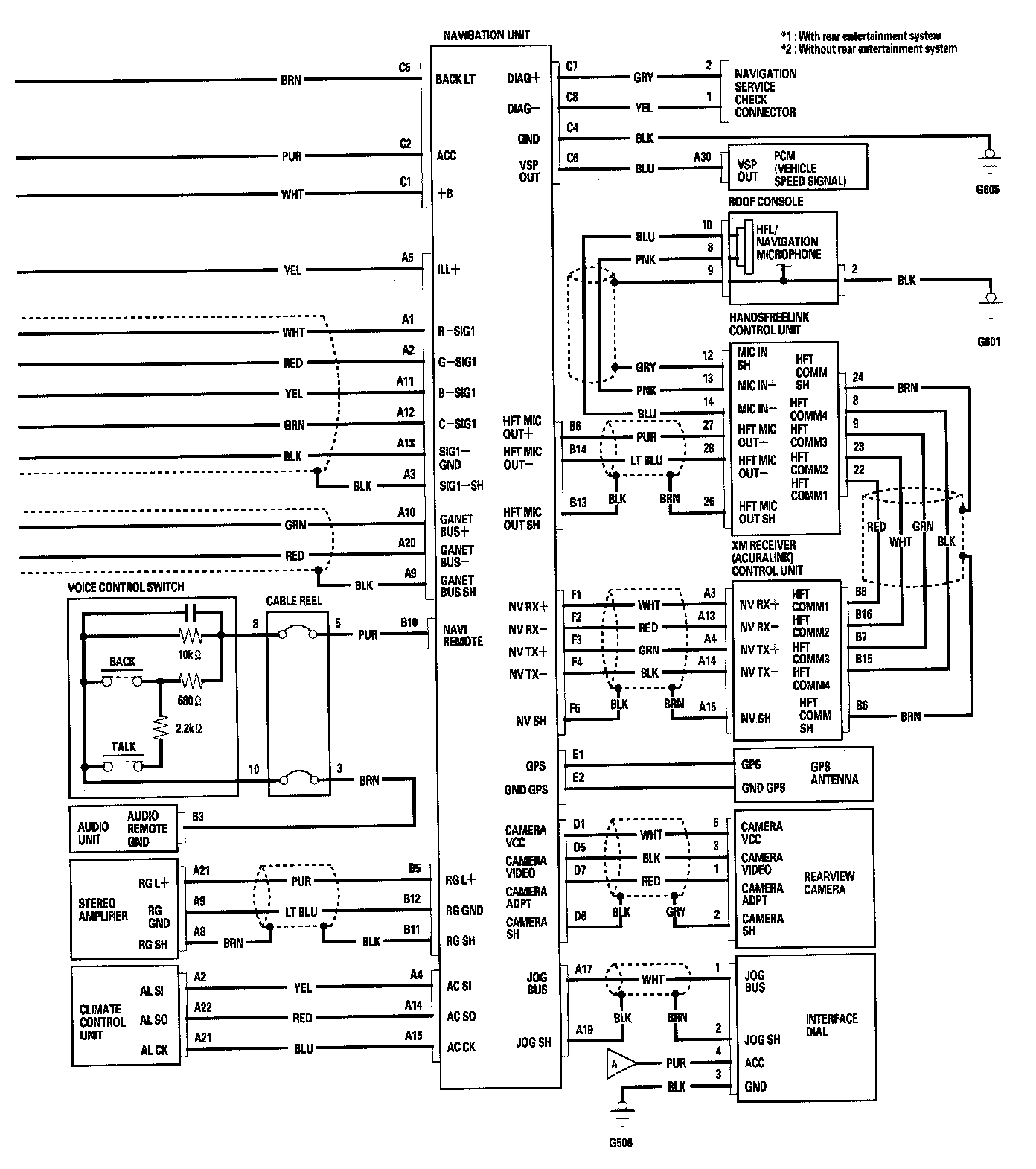

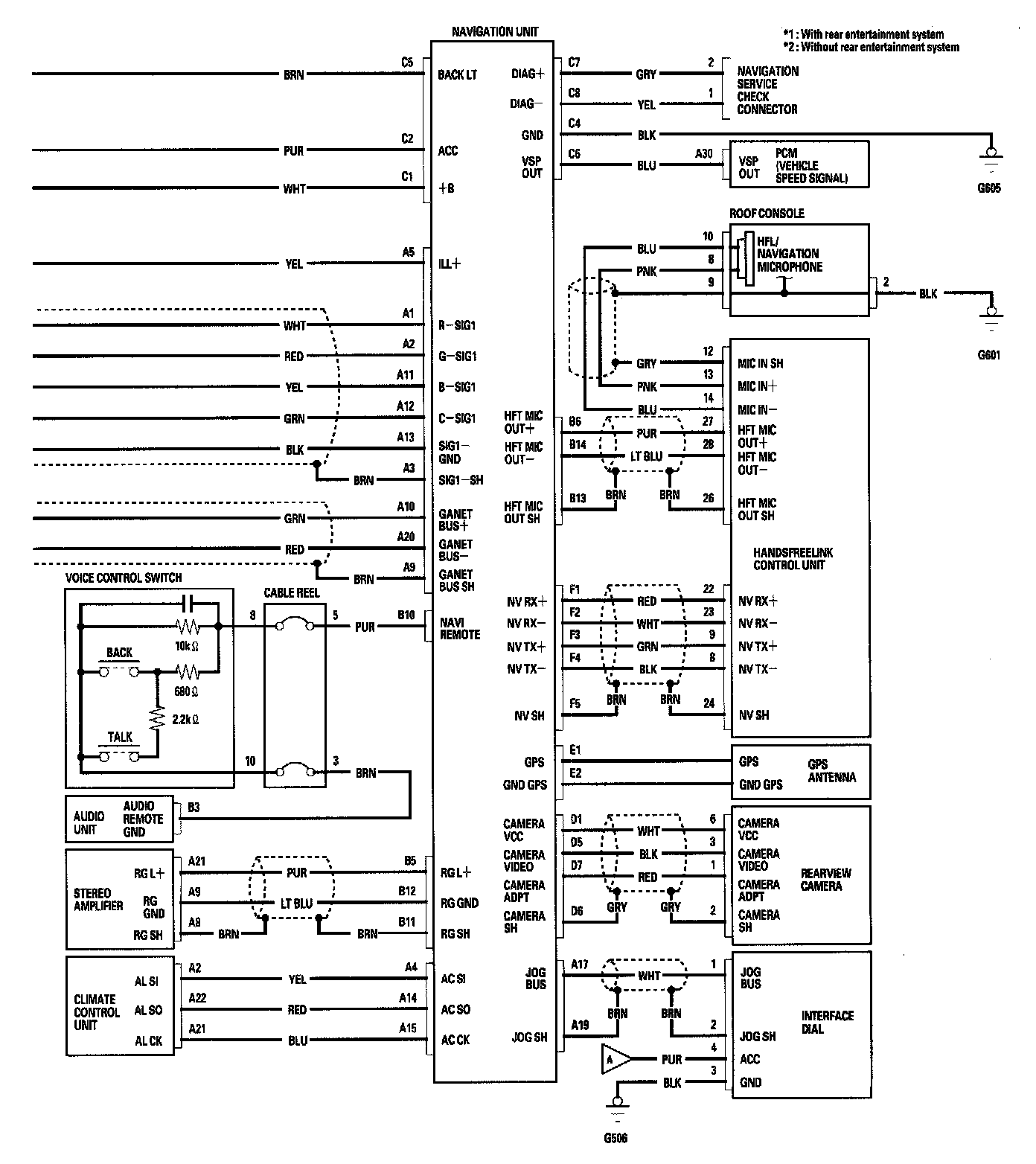

Navigation System Circuit Diagram Part 2:



Navigation System Circuit Diagram Part 3:



Navigation System Circuit Diagram Part 4:



Navigation System Circuit Diagram Part 5:
