Pinout Values and Diagnostic Parameters

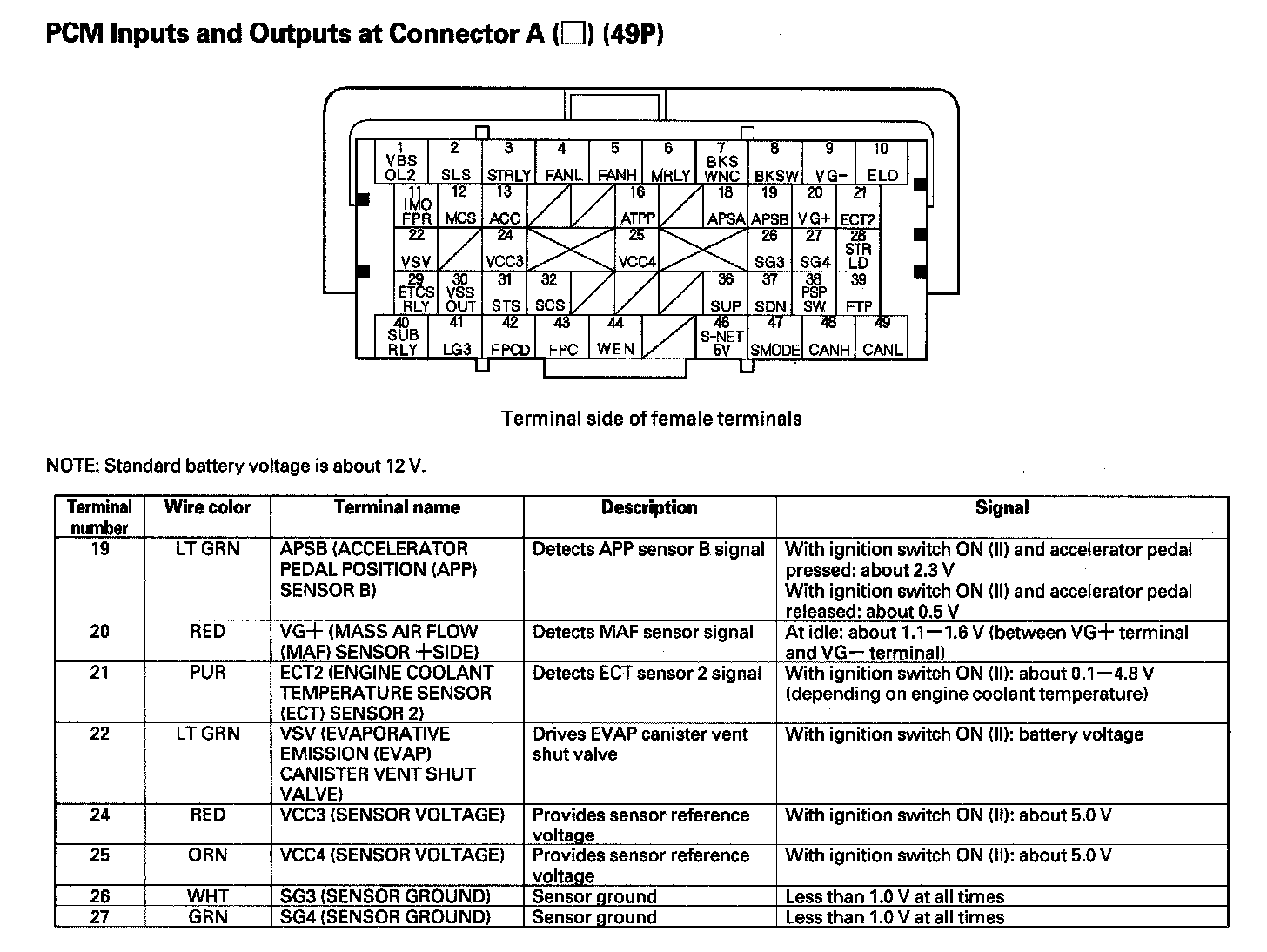

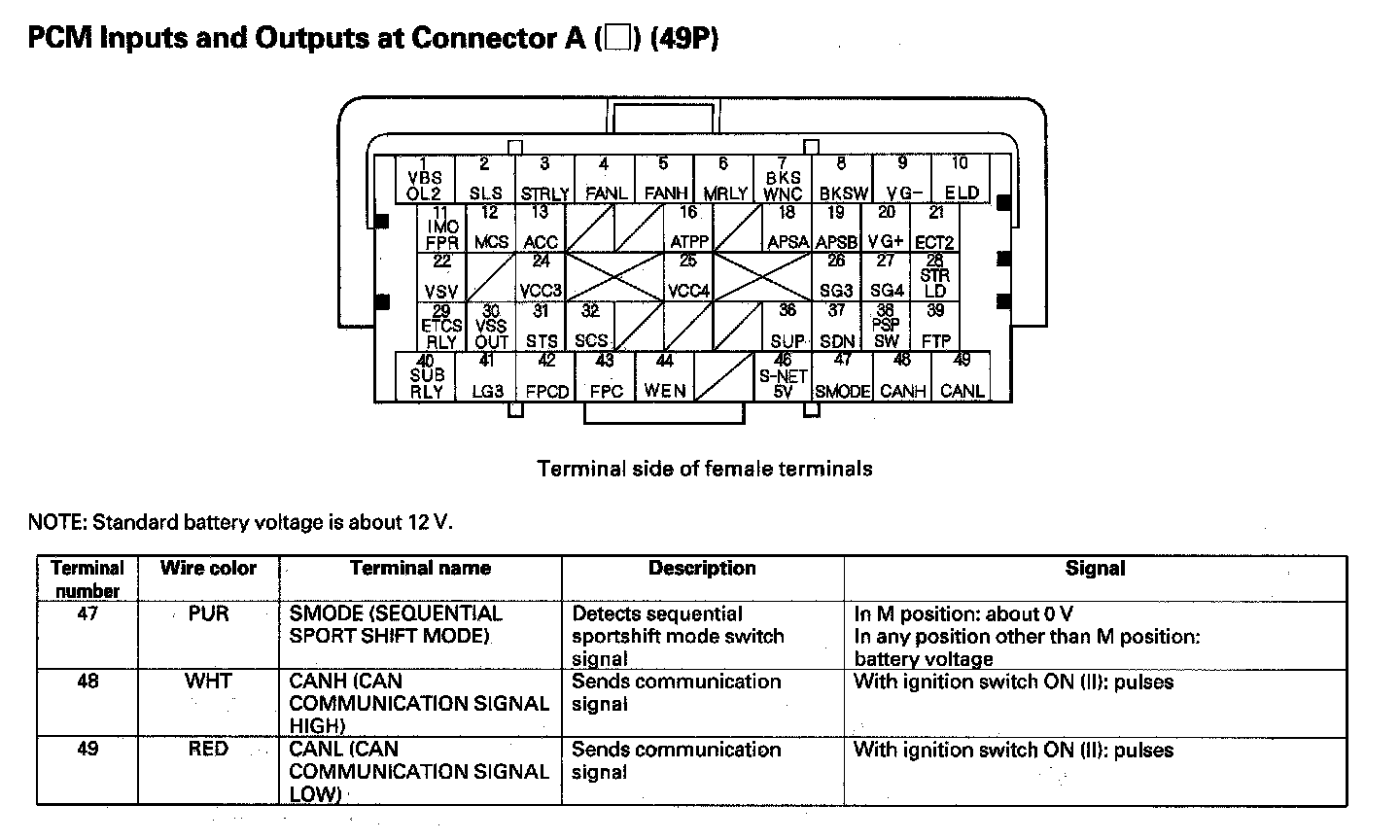

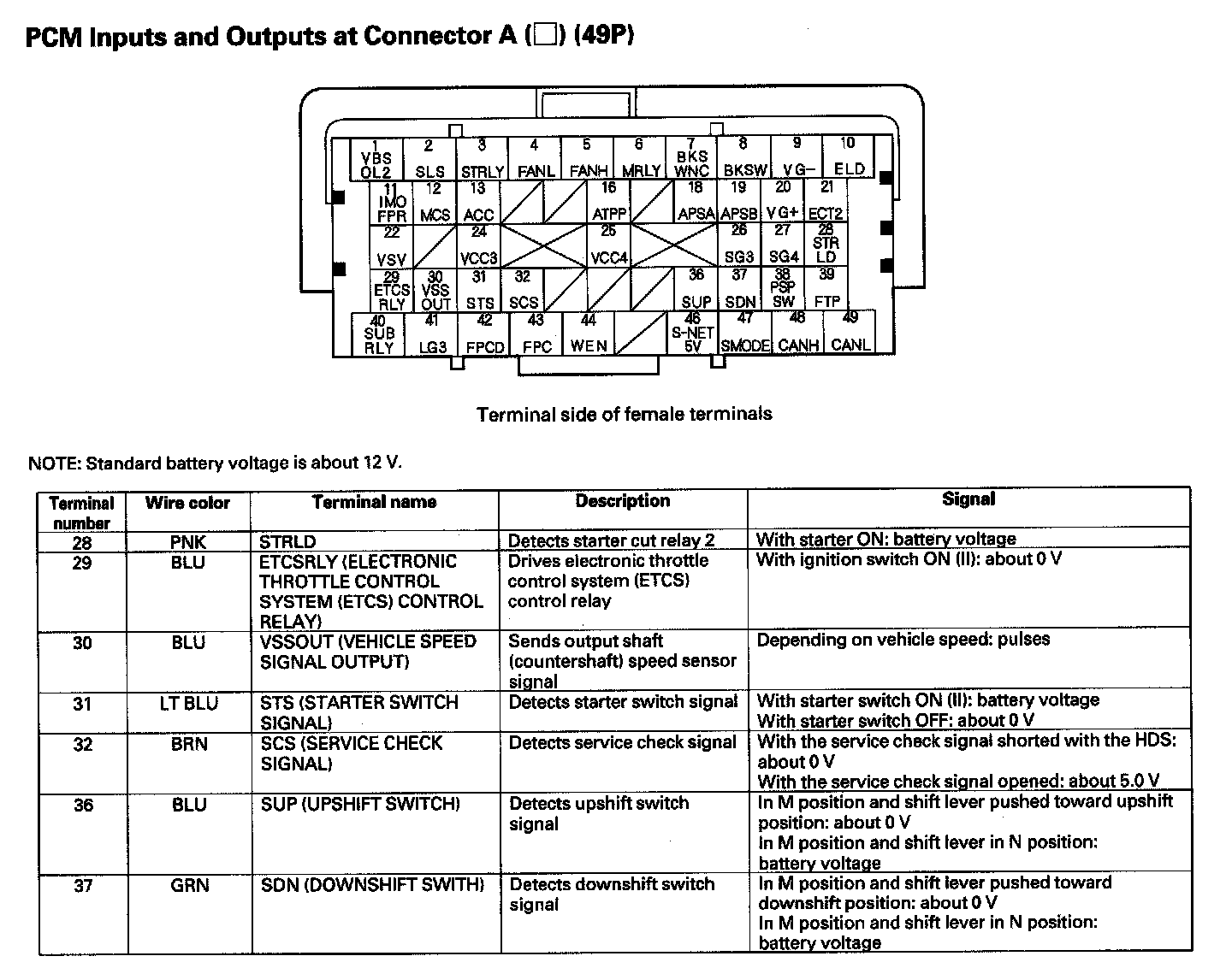

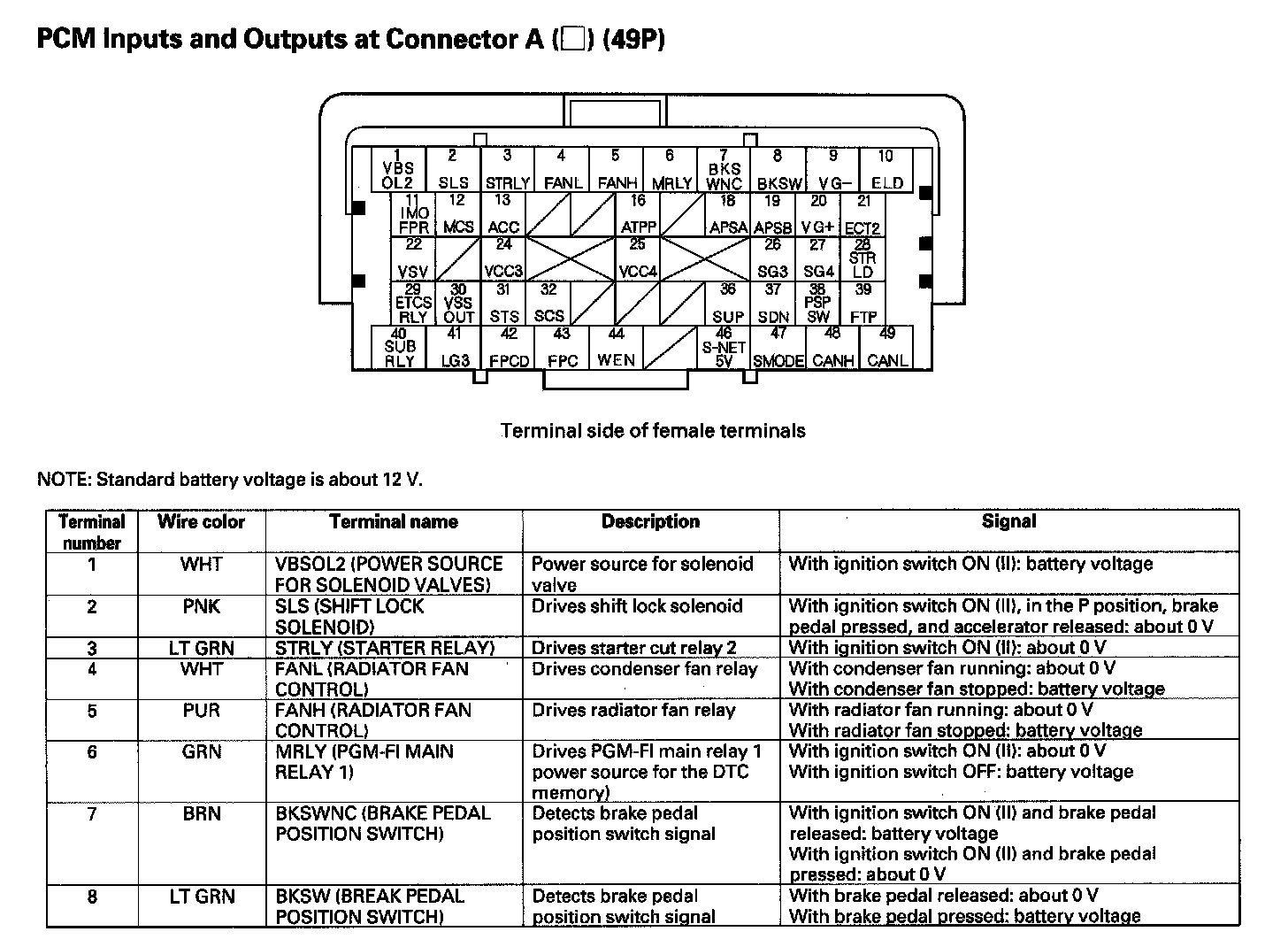

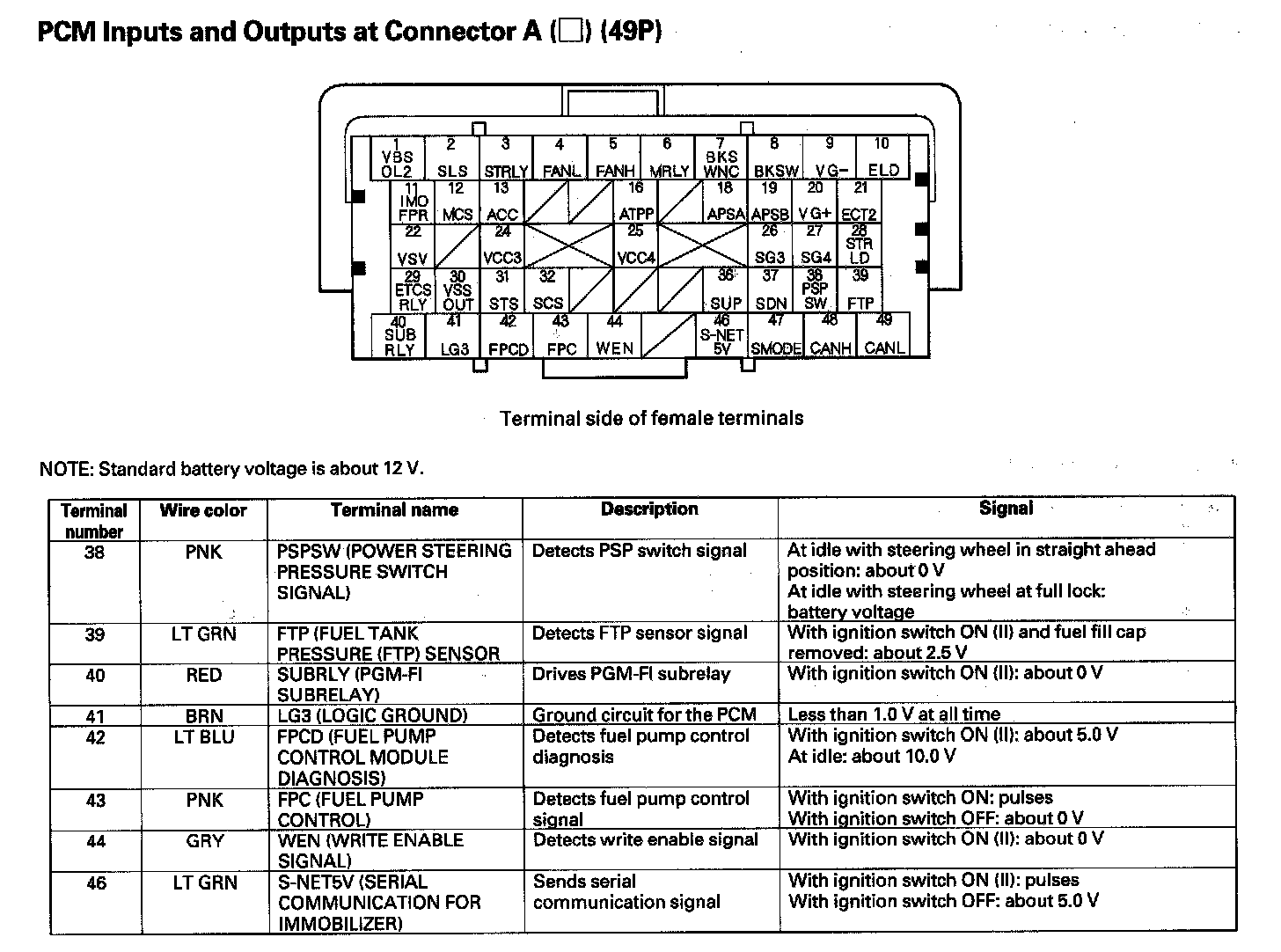

PCM Inputs And Outputs At Connector A (49P) Part 1:

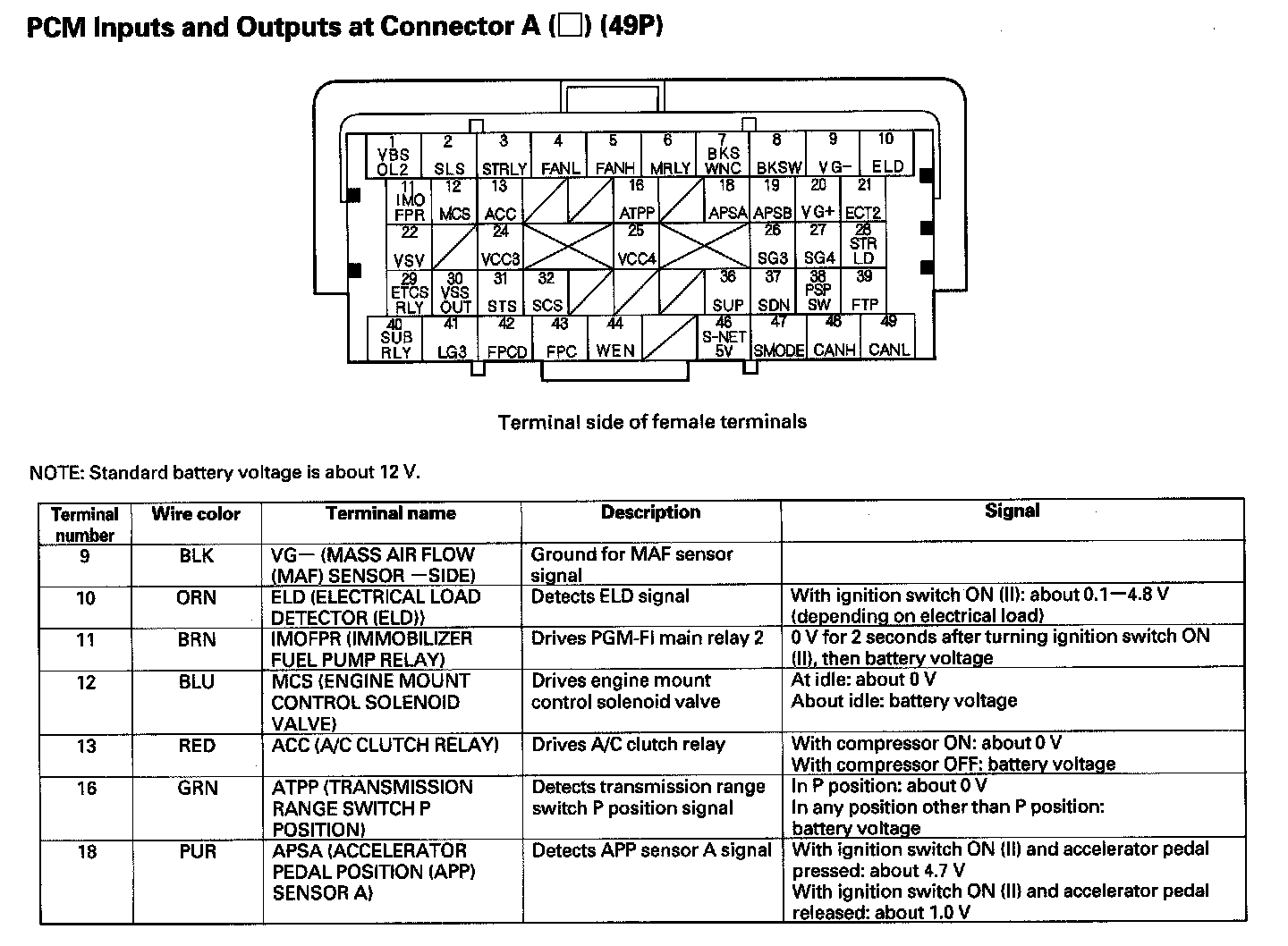

PCM Inputs And Outputs At Connector A (49P) Part 2:



PCM Inputs And Outputs At Connector A (49P) Part 3:



PCM Inputs And Outputs At Connector A (49P) Part 4:



PCM Inputs And Outputs At Connector A (49P) Part 5:



PCM Inputs And Outputs At Connector A (49P) Part 6:

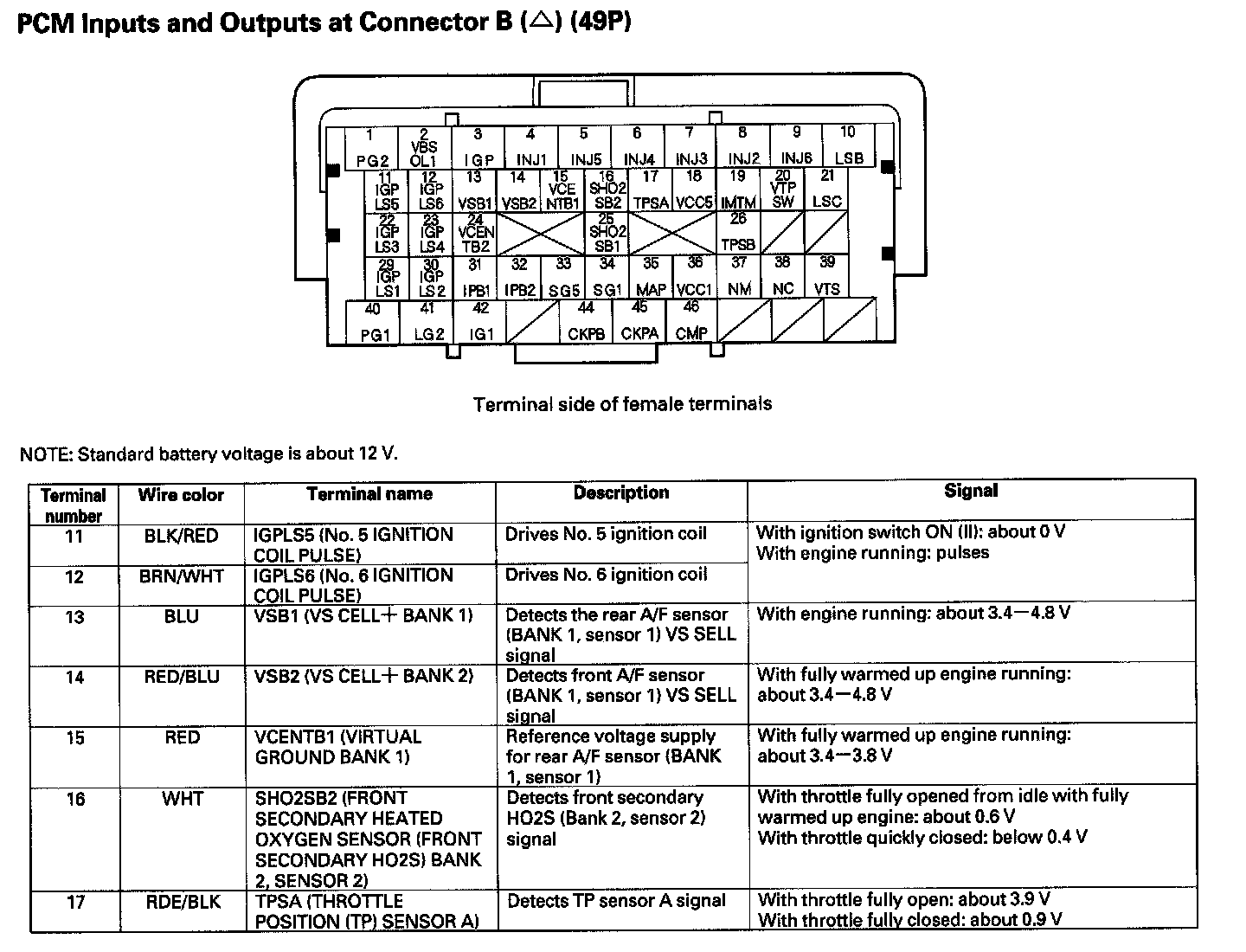

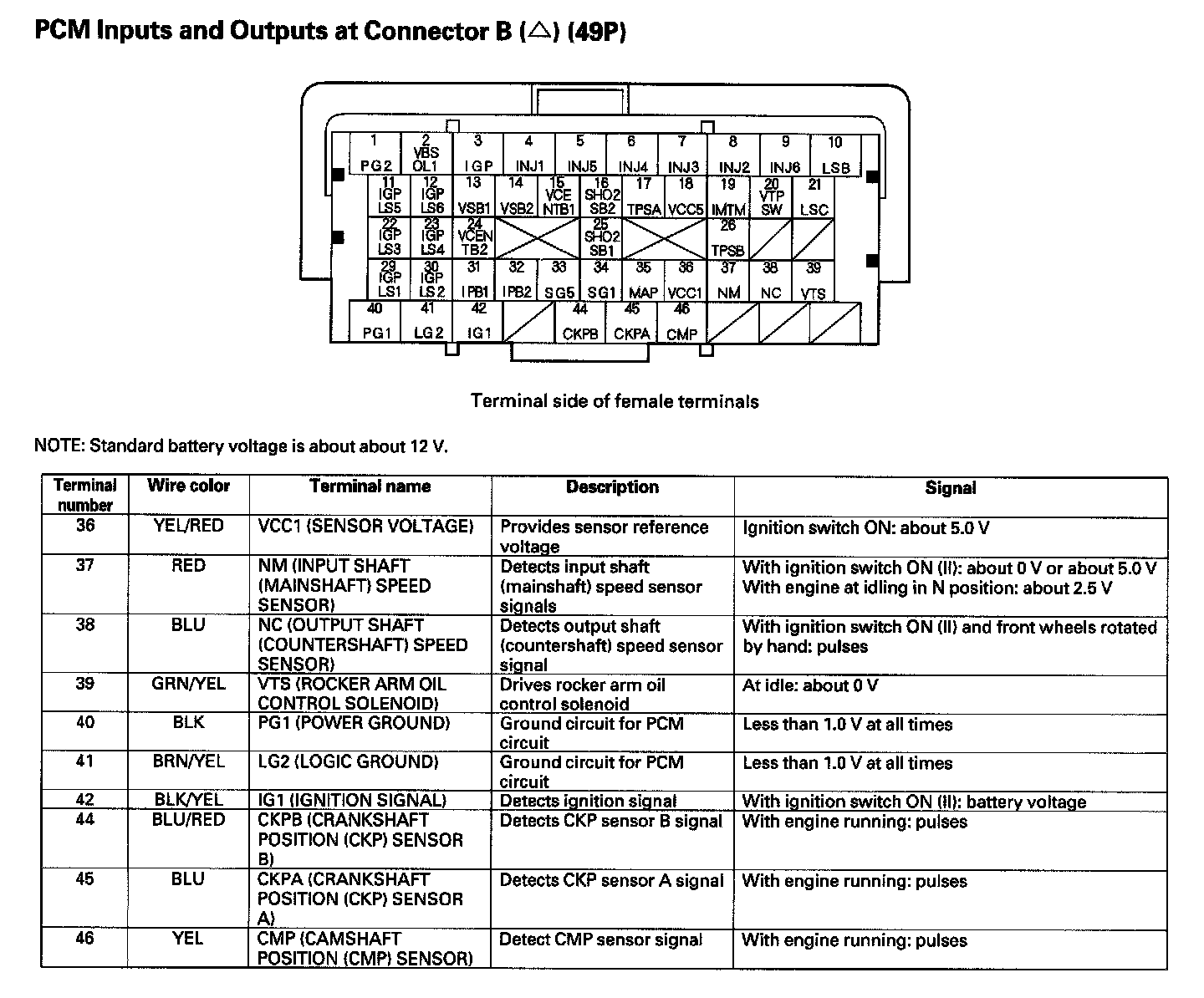

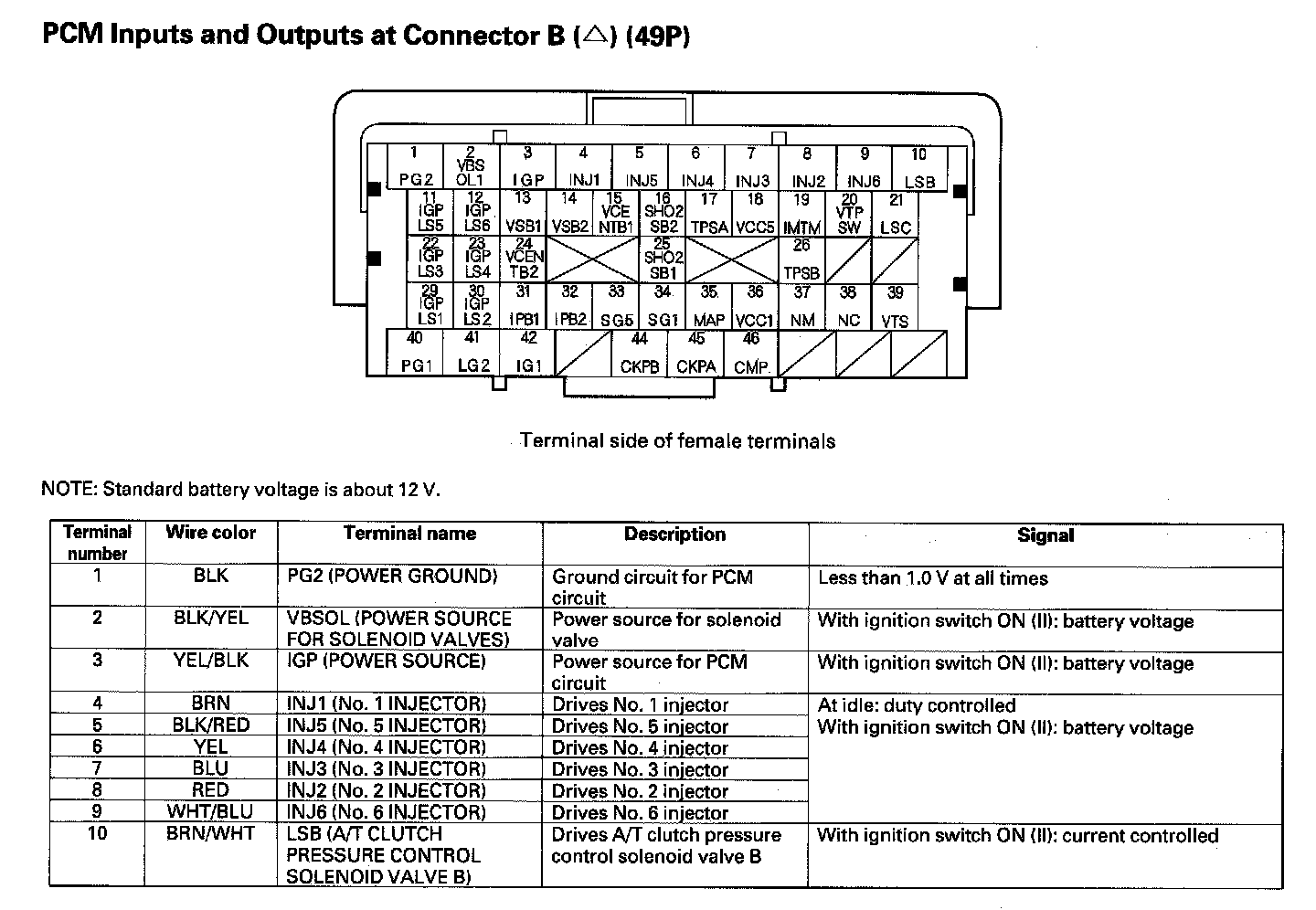

PCM Inputs And Outputs At Connector B (49P) Part 1:



PCM Inputs And Outputs At Connector B (49P) Part 2:

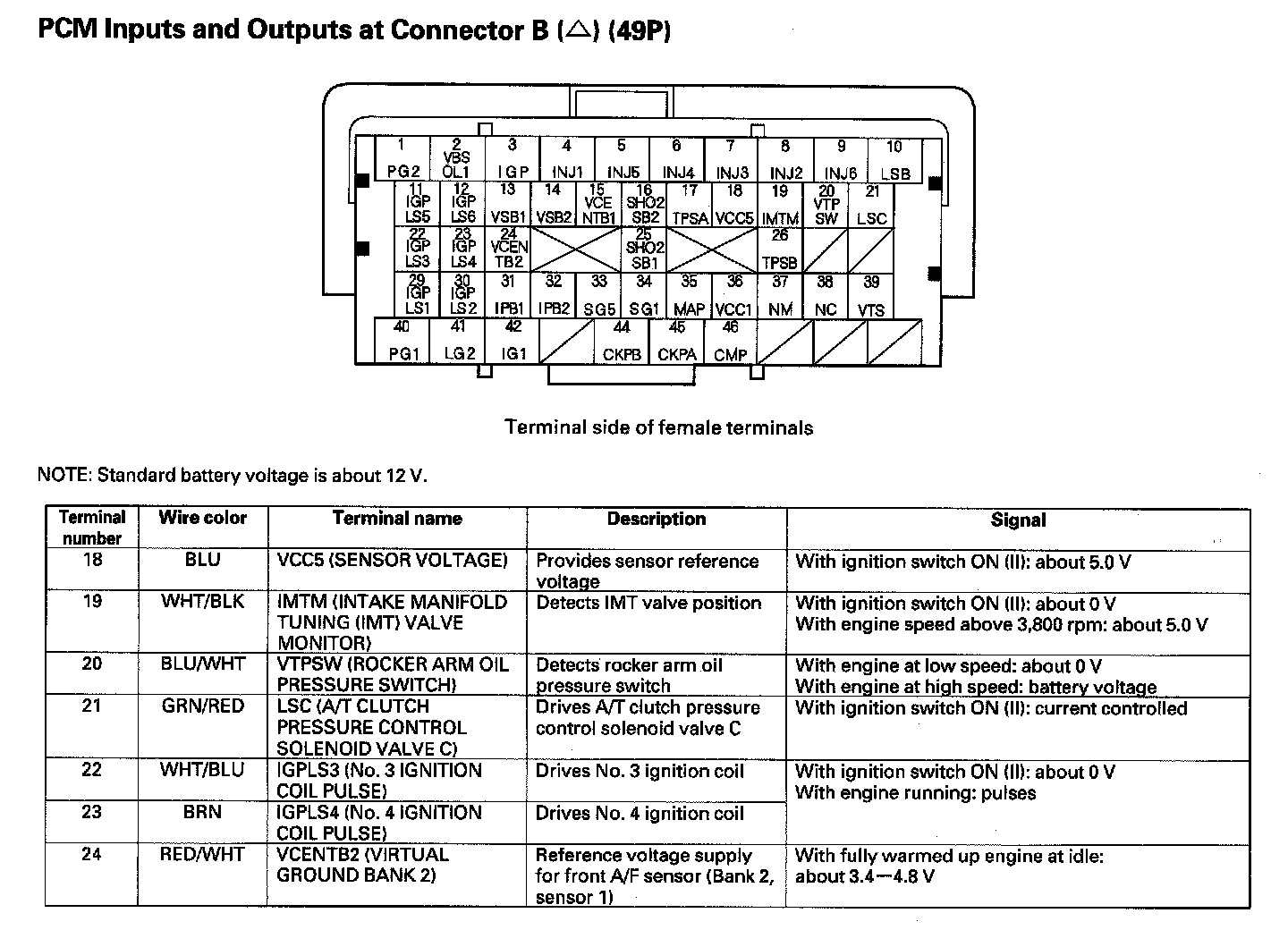

PCM Inputs And Outputs At Connector B (49P) Part 3:

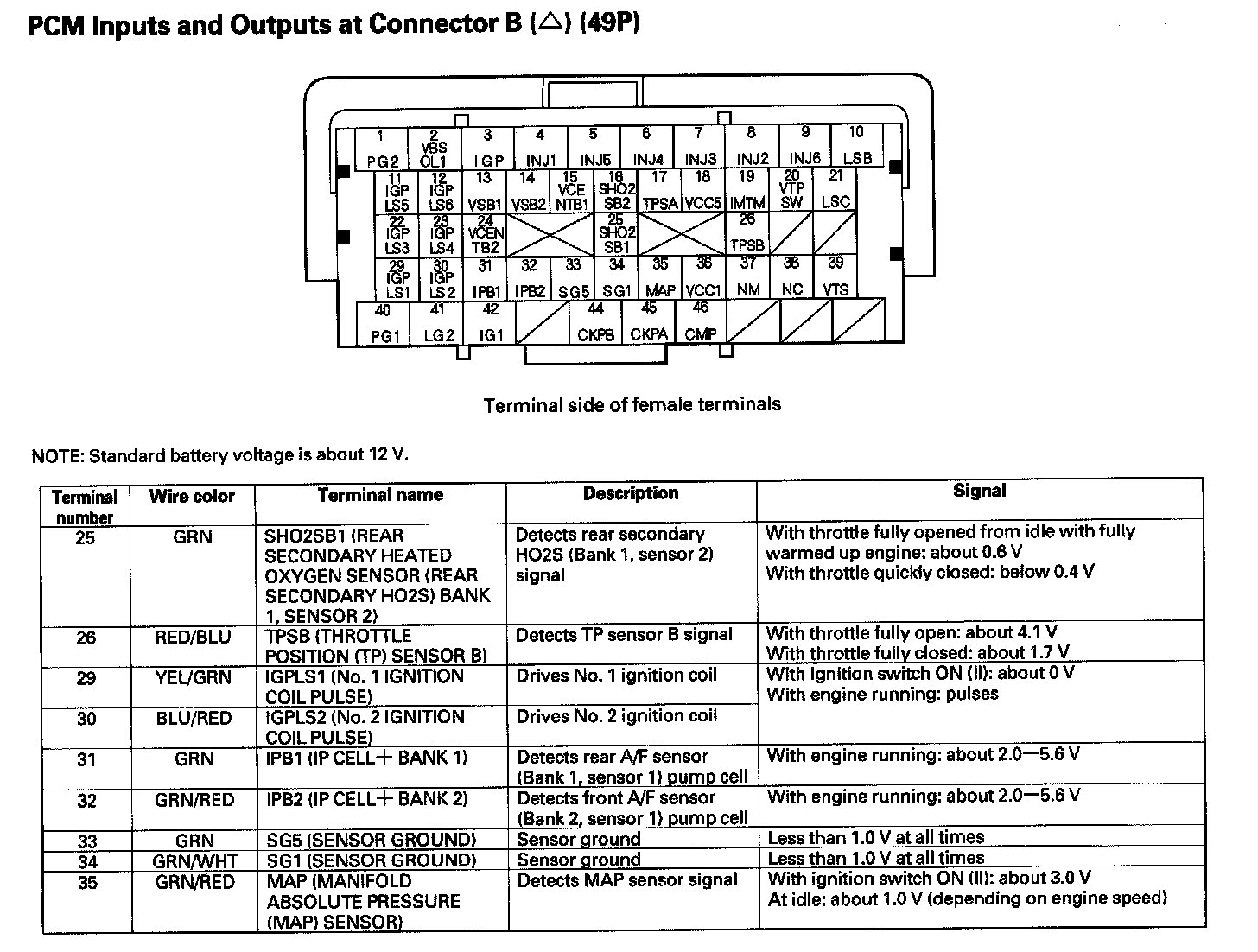

PCM Inputs And Outputs At Connector B (49P) Part 4:



PCM Inputs And Outputs At Connector B (49P) Part 5:

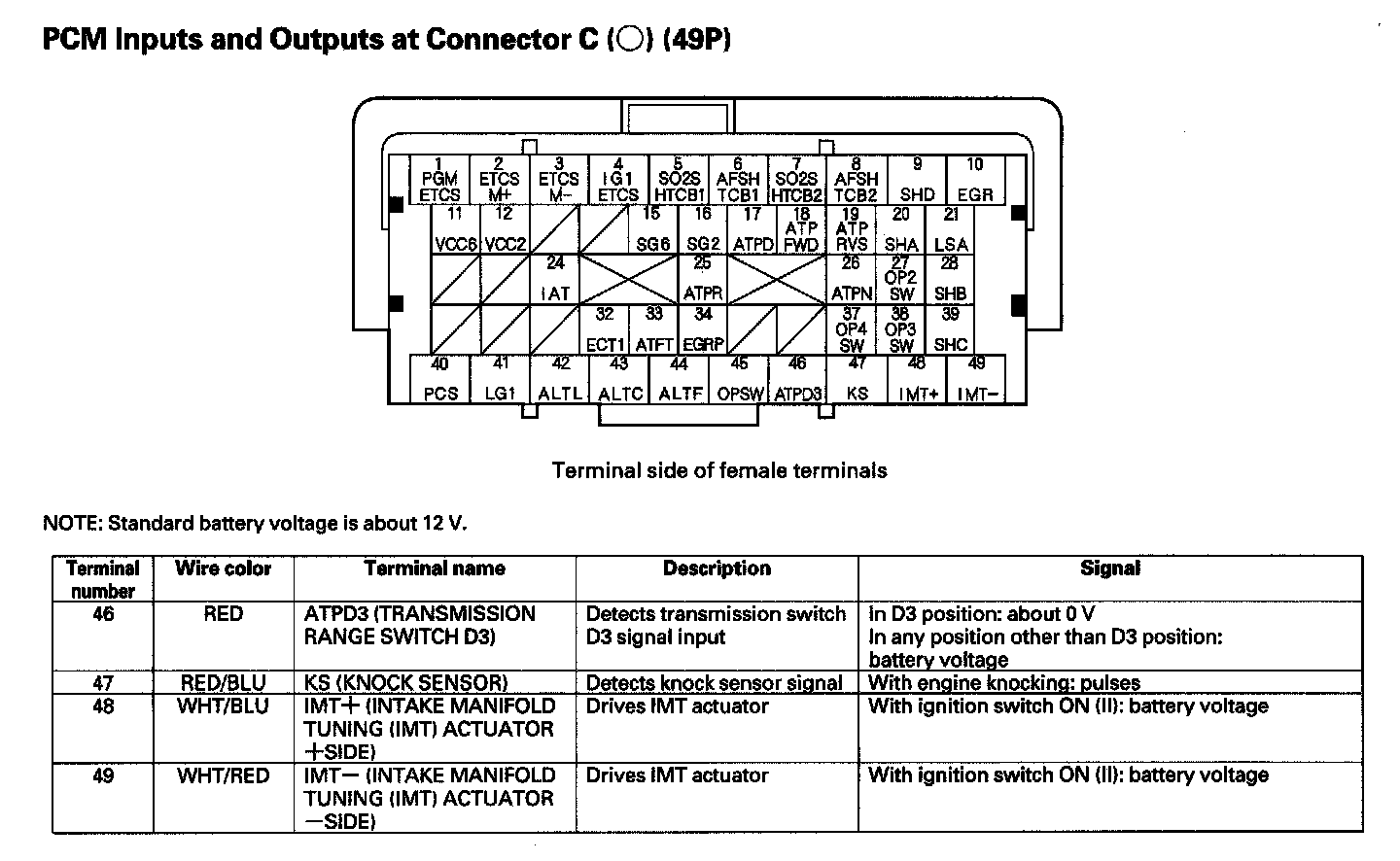

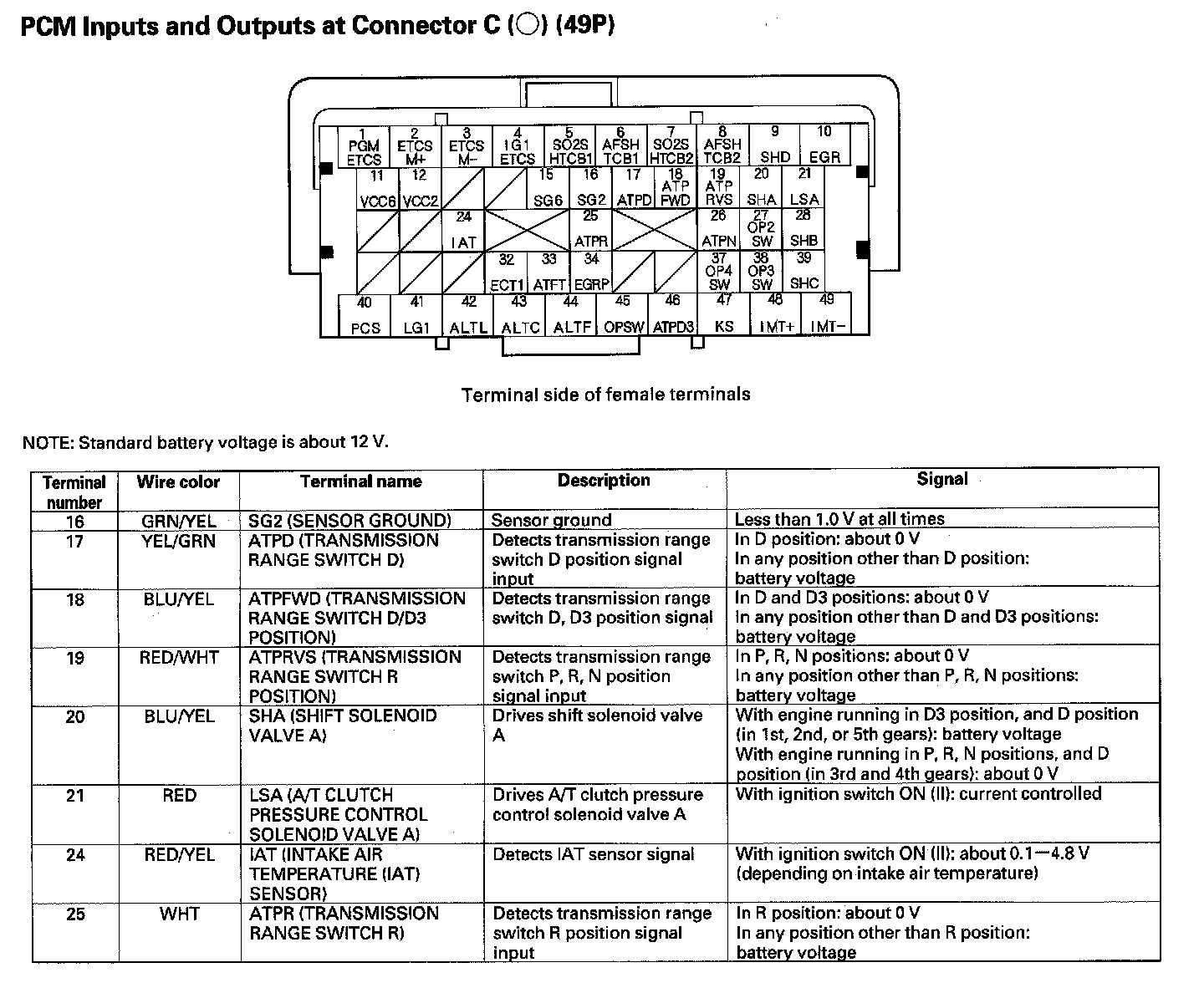

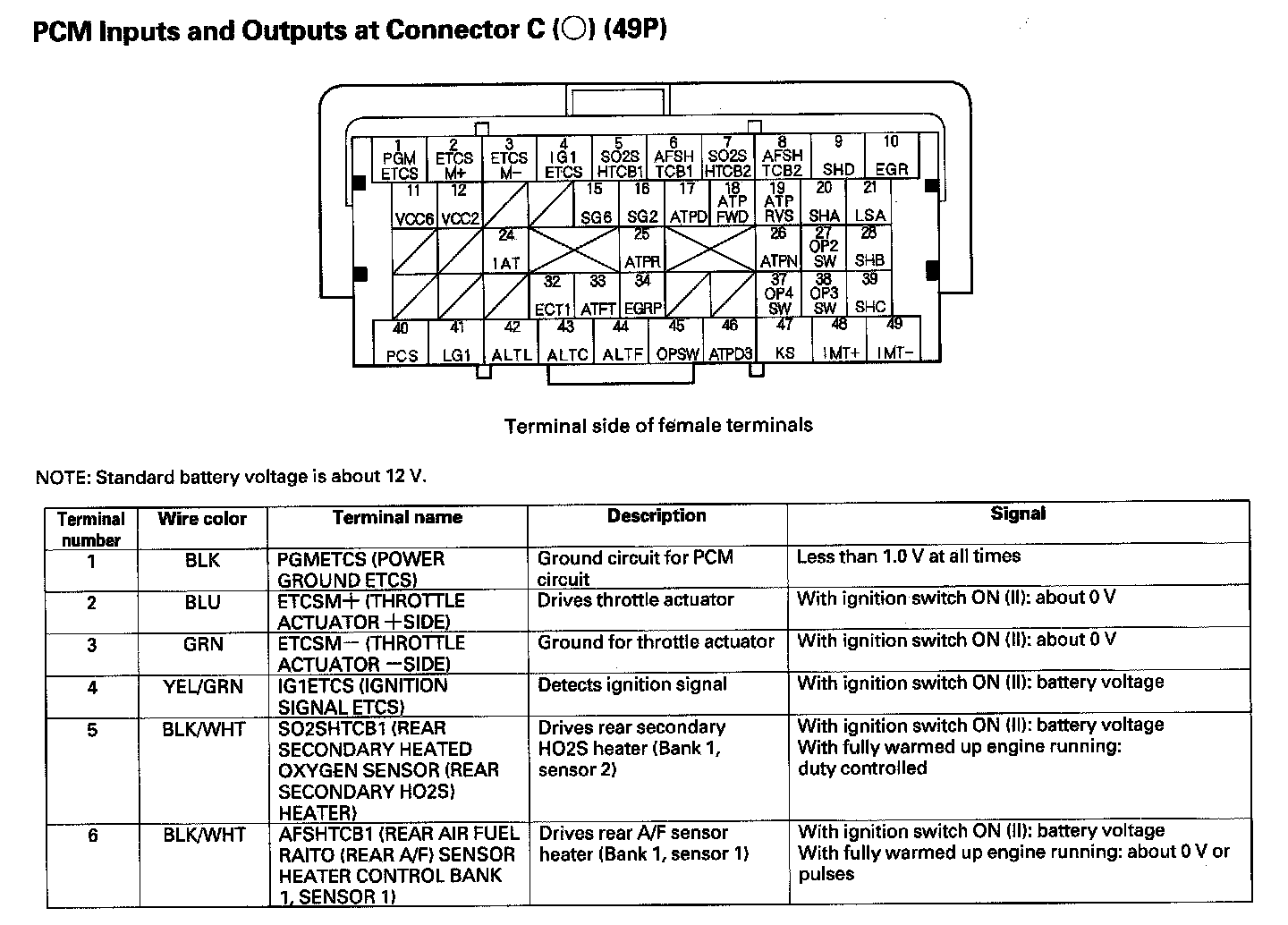

PCM Inputs And Outputs At Connector C (49P) Part 1:

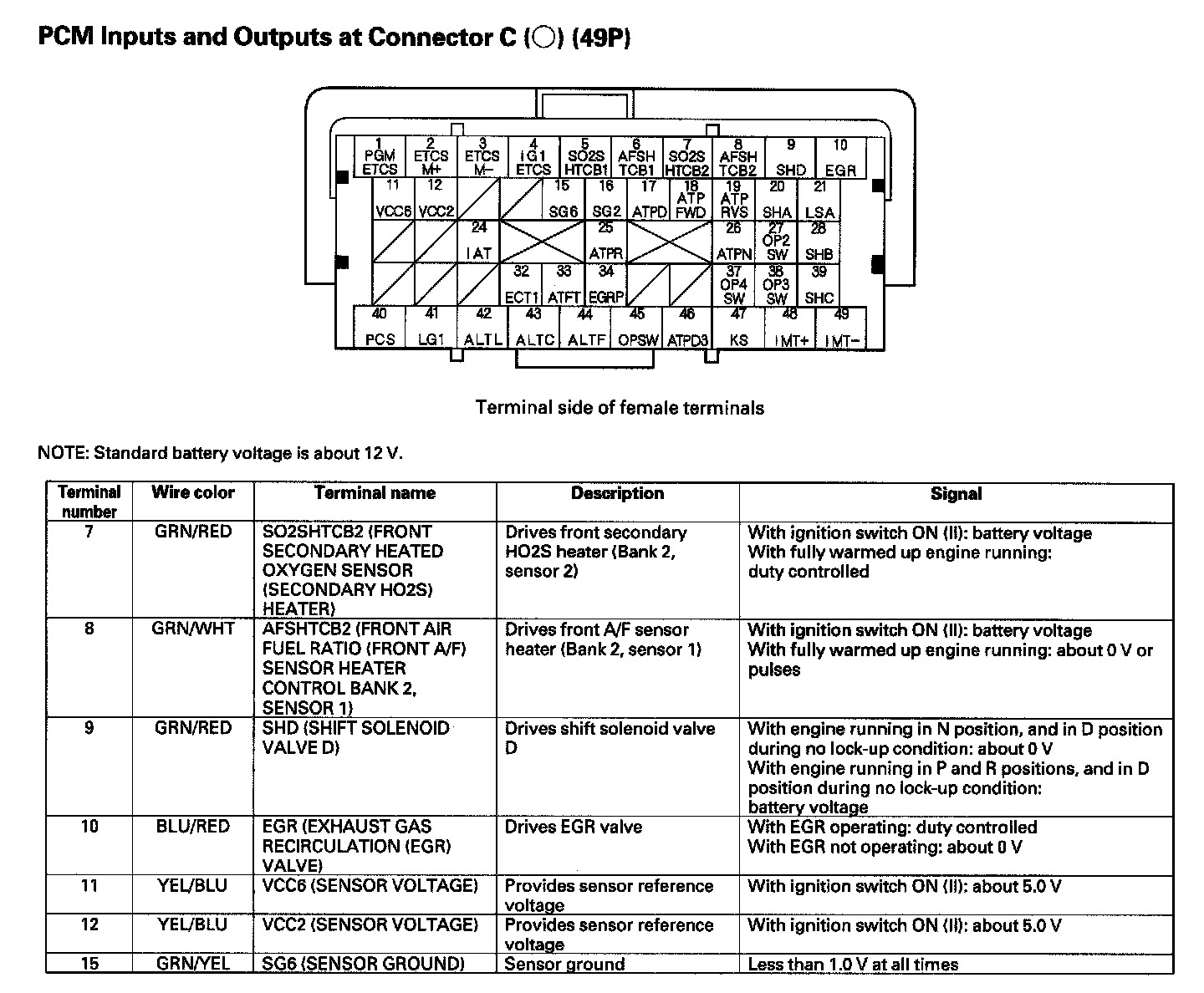

PCM Inputs And Outputs At Connector C (49P) Part 2:



PCM Inputs And Outputs At Connector C (49P) Part 3:

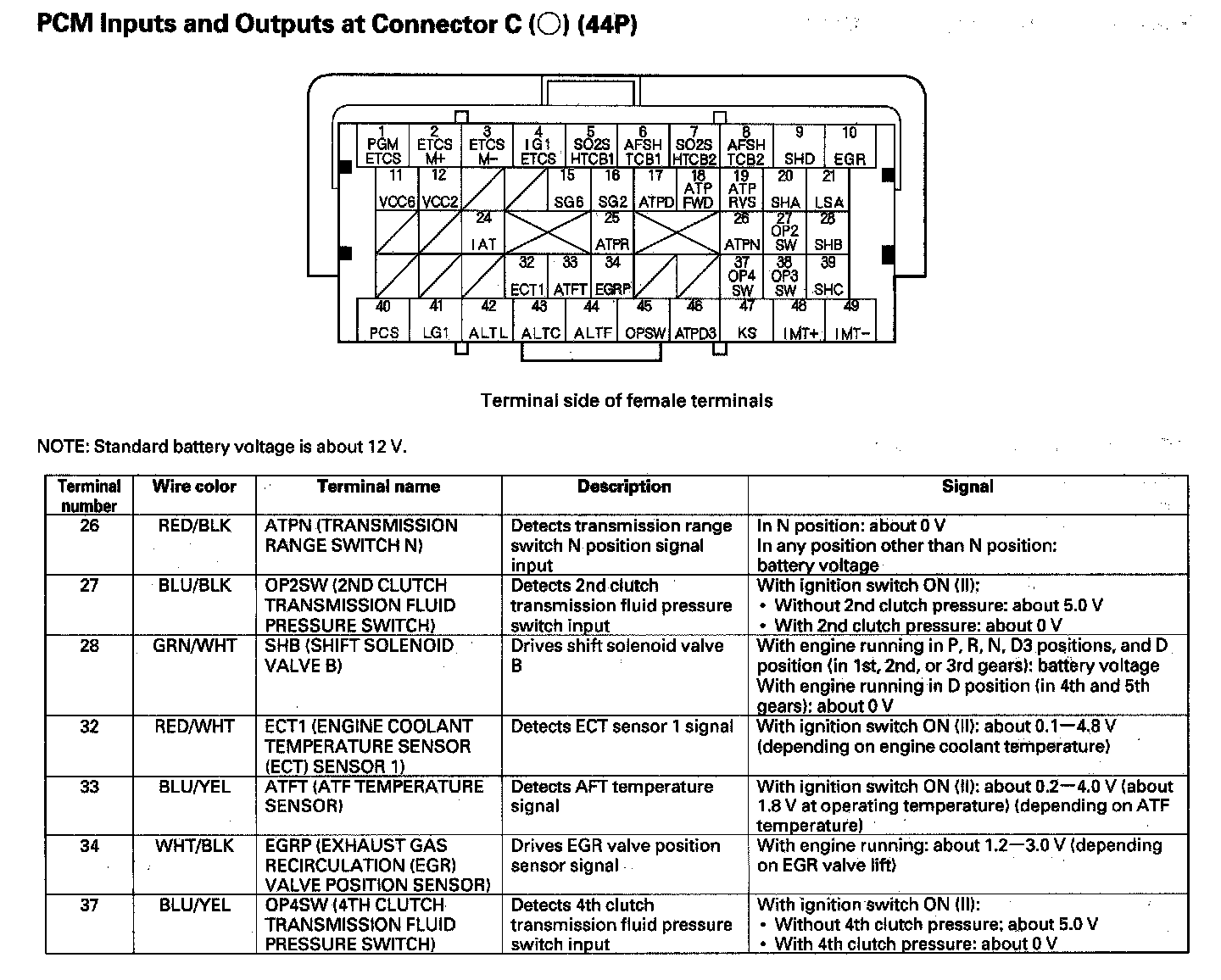

PCM Inputs And Outputs At Connector C (44P):

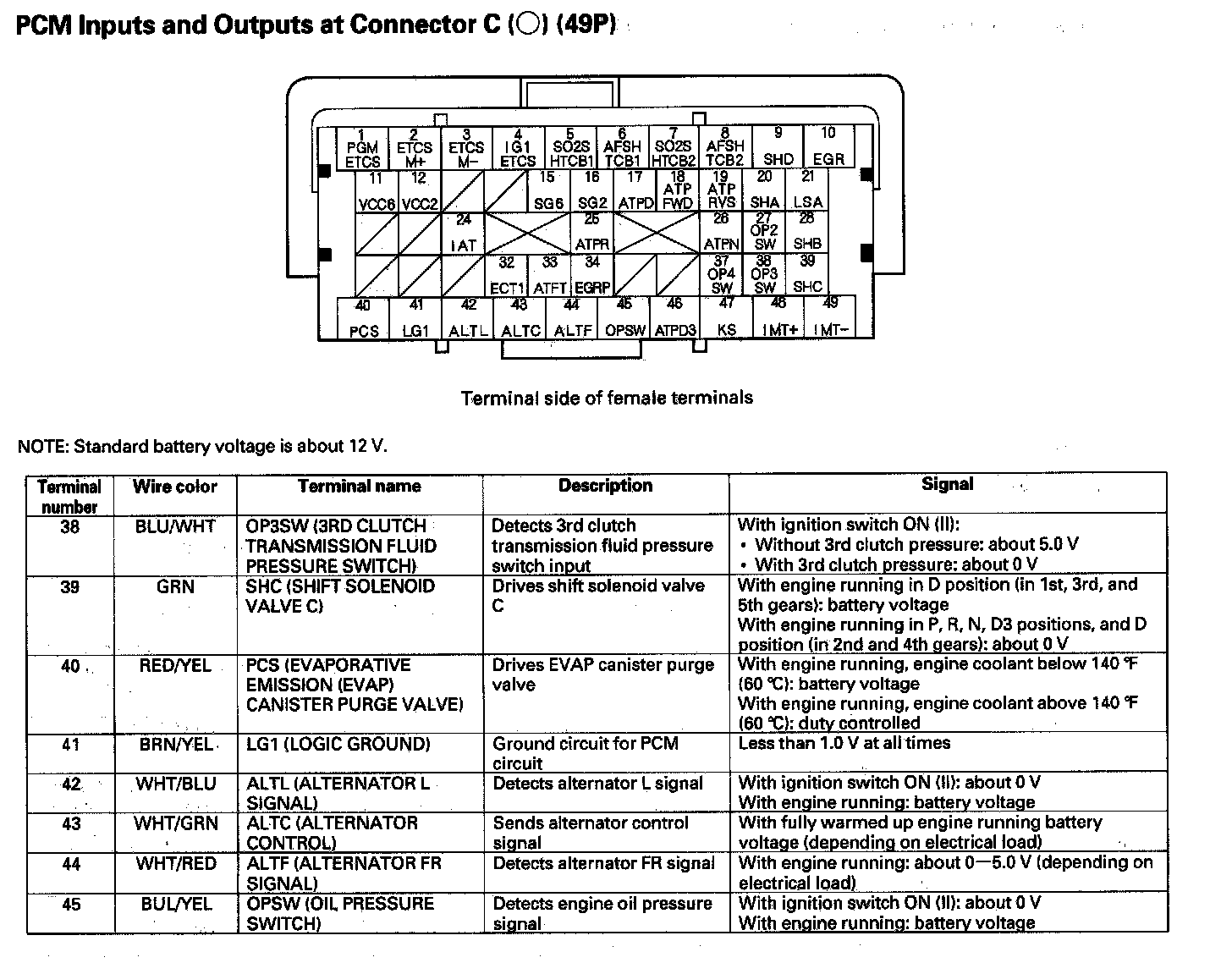

PCM Inputs And Outputs At Connector C (49P) Part 4:



PCM Inputs And Outputs At Connector C (49P) Part 5:
