Circuit Diagram - Power Seat

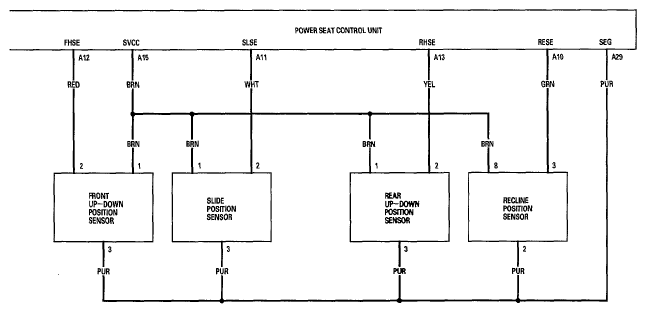

Fig 1: Circuit Diagram - Power Seat (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

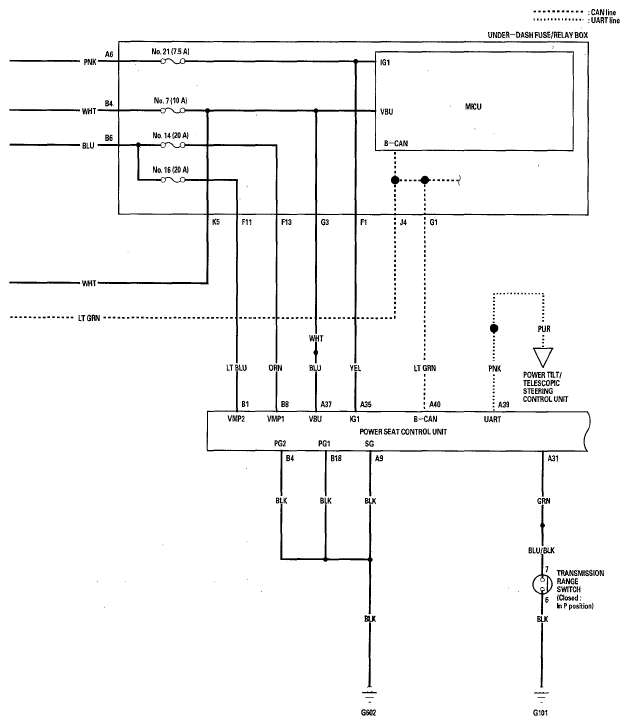

Fig 2: Circuit Diagram - Power Seat (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

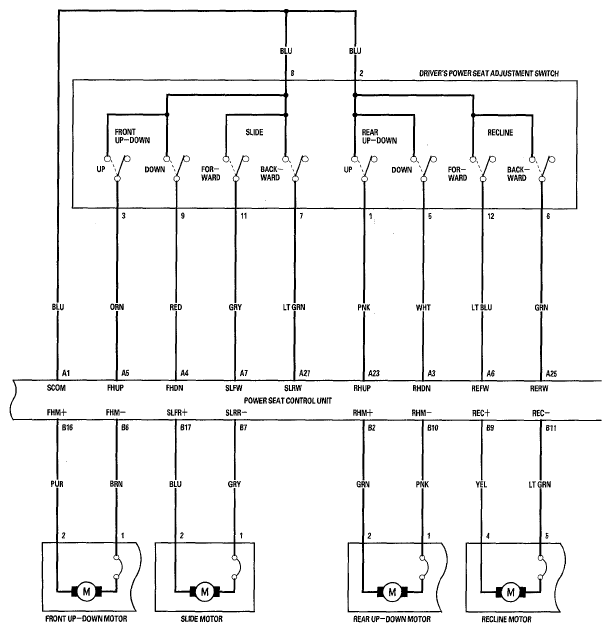

Fig 3: Circuit Diagram - Power Seat (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Circuit Diagram - Power Seat (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
