Rocker Arm Oil Control Solenoid Replacement

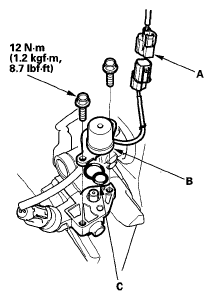

- Disconnect the rocker arm oil control solenoid connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the rocker arm oil control solenoid (B).
- Install the parts in the reverse order of removal with a new O-ring (C).
