Shift Lever Disassembly/Reassembly

Apply silicon grease to movable joints of the shift lock mechanism and shift lever.

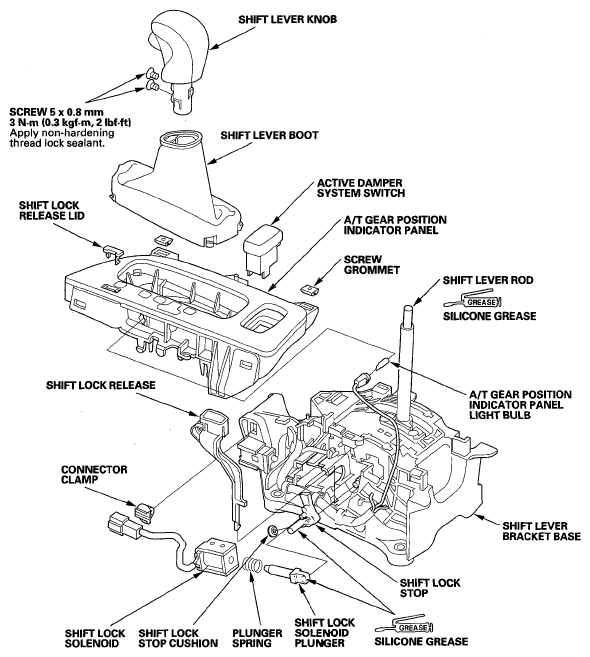

Fig 1: Exploded View Of Shift Lever Assembly With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
