View 126-150: 142

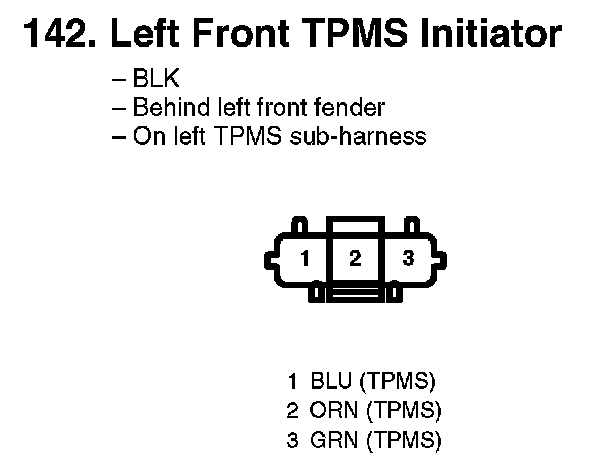

142. Left Front TPMS Initiator:

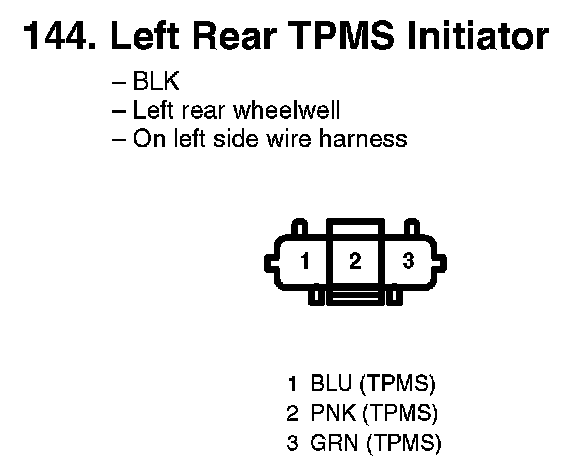

144. Left Rear TPMS Initiator:

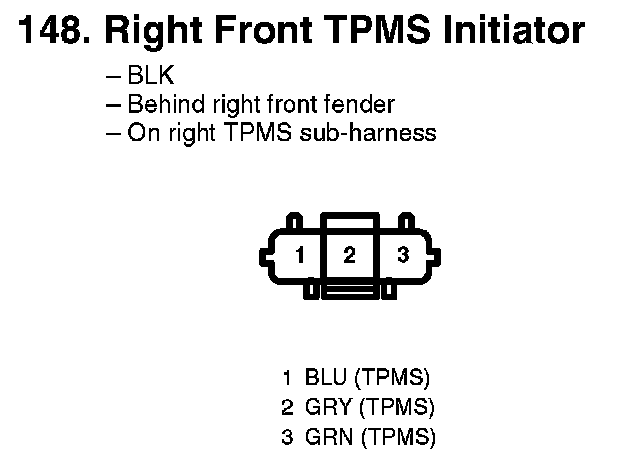

148. Right Front TPMS Initiator:

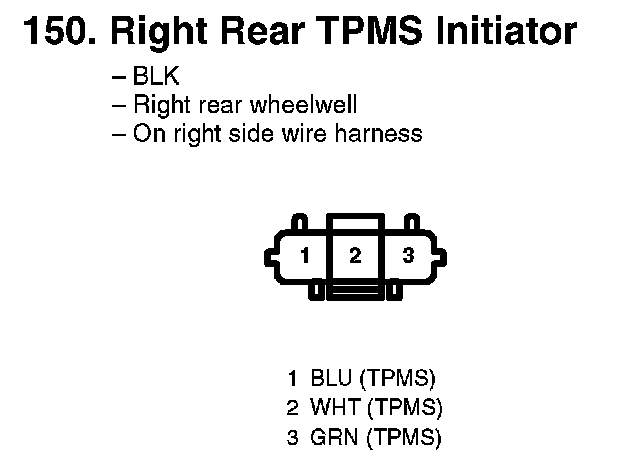

150. Right Rear TPMS Initiator:
