Control Module HVAC

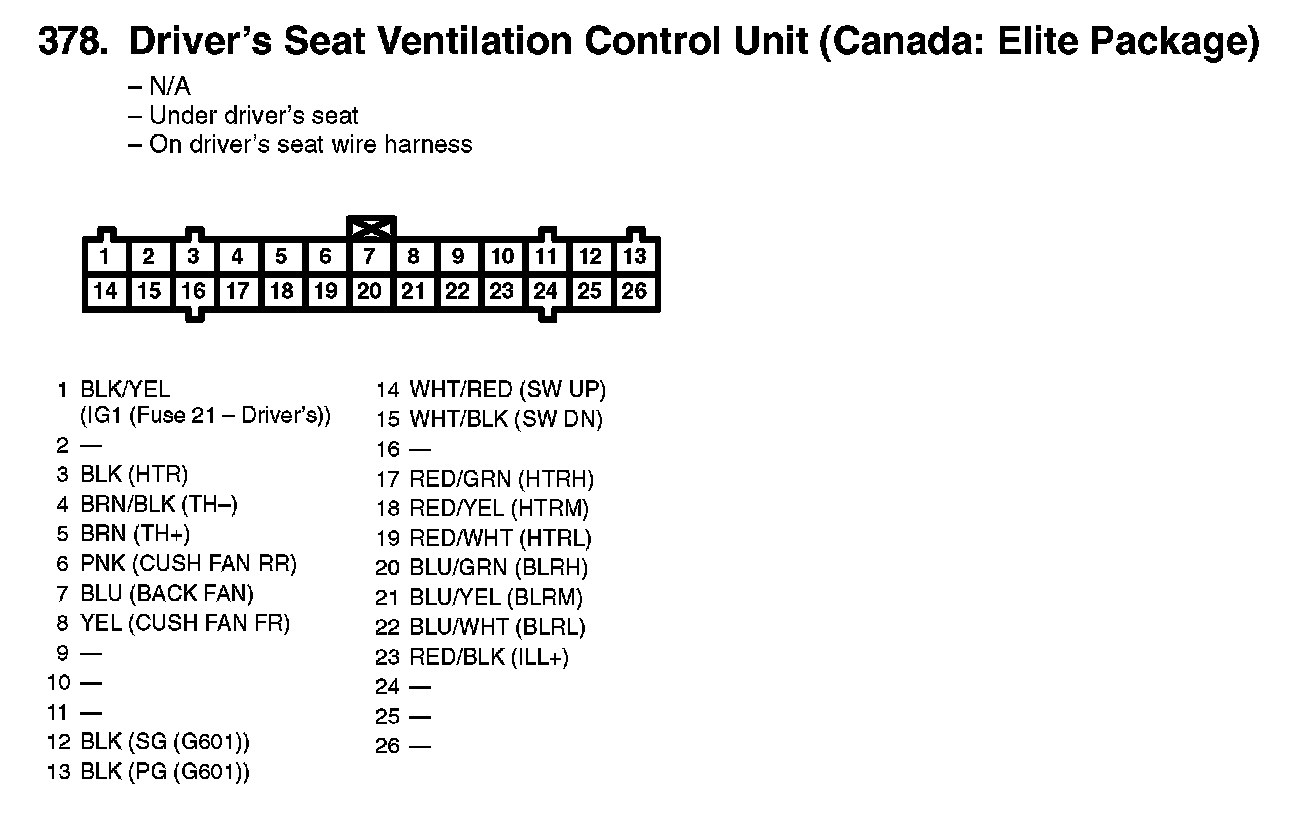

378. Driver's Seat Ventilation Control Unit (Canada: Elite Package):

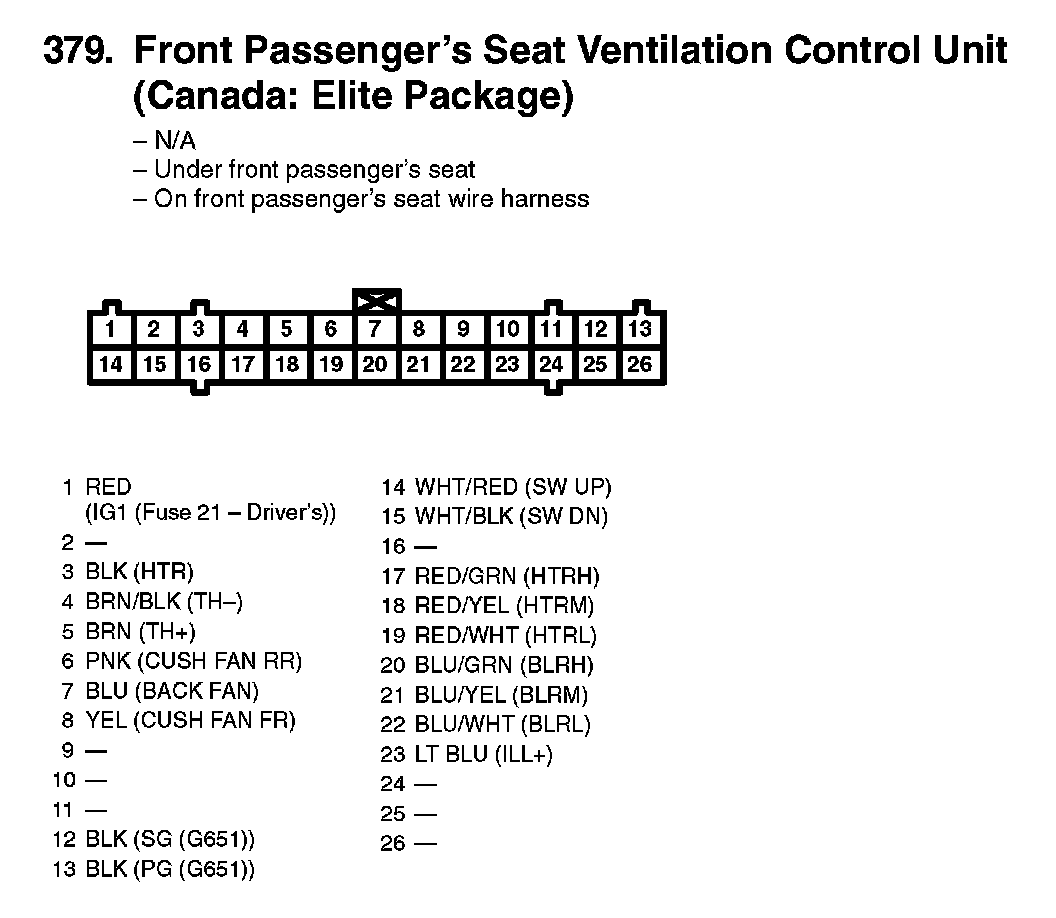

379. Front Passenger's Seat Ventilation Control Unit (Canada: Elite Package):
