Electronic Brake Control Module

VSA Modulator-Control Unit Inputs And Outputs For 47P Connector (Connector Attached To The VSA Modulator-Control Unit. Backprobe The Terminals When Testing.)

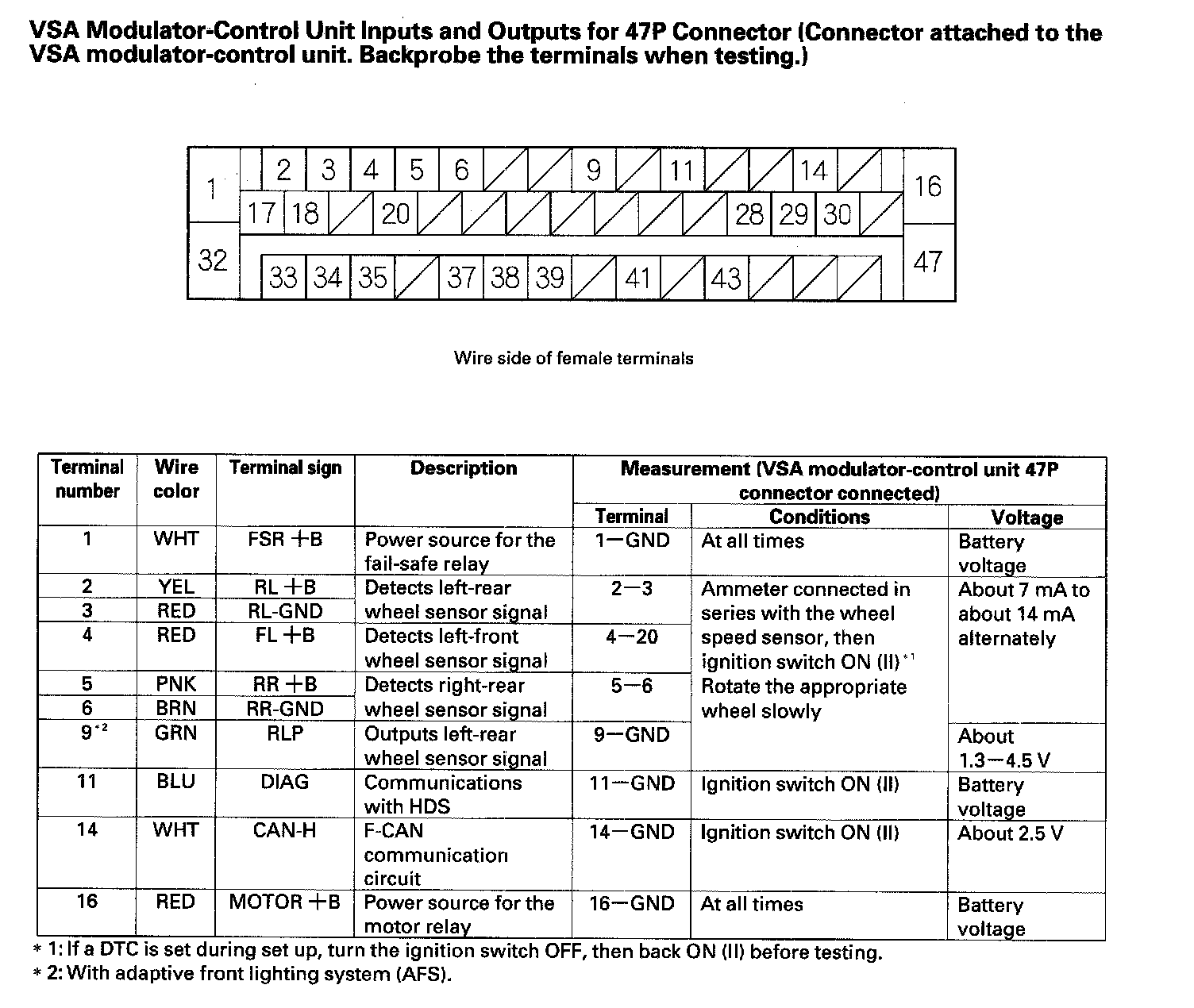

VSA Modulator-Control Unit Inputs And Outputs For 47P Connector (Connector Attached To The VSA Modulator-Control Unit. Backprobe The Terminals When Testing.) (Part 1):

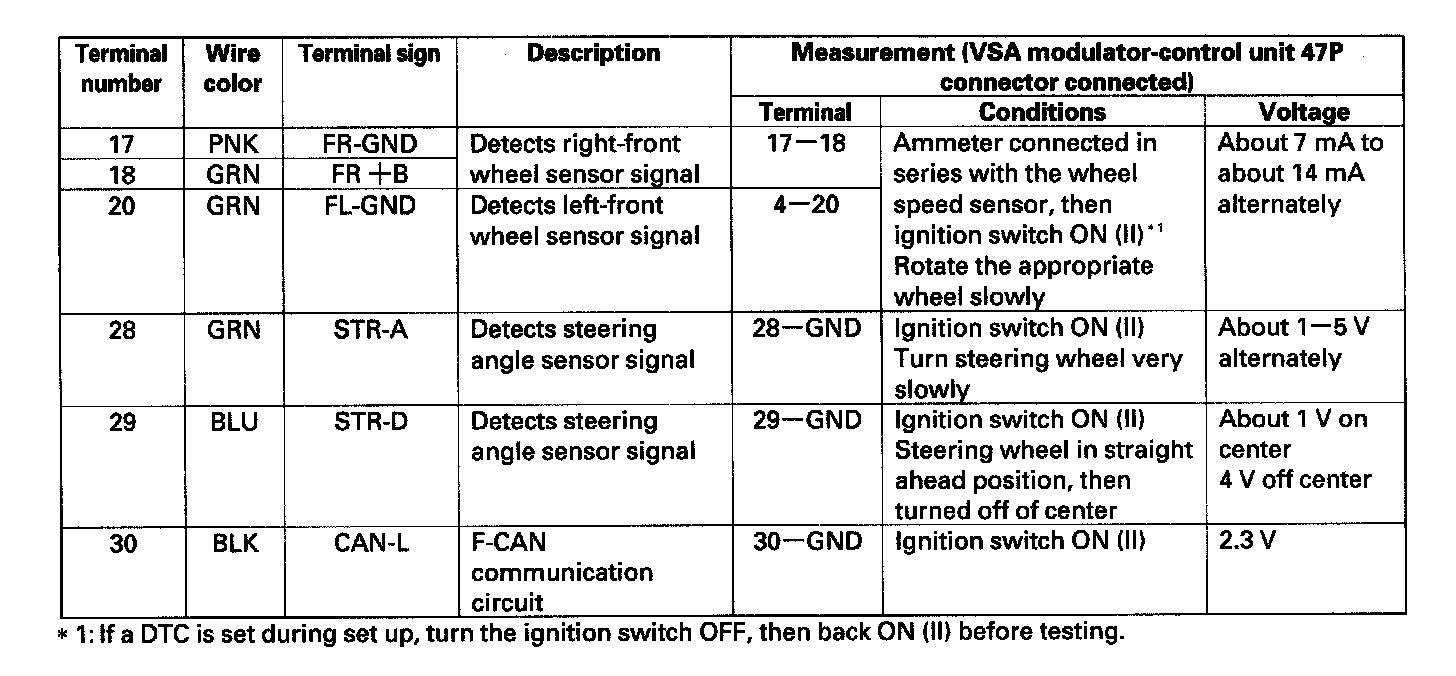

VSA Modulator-Control Unit Inputs And Outputs For 47P Connector (Connector Attached To The VSA Modulator-Control Unit. Backprobe The Terminals When Testing.) (Part 2):

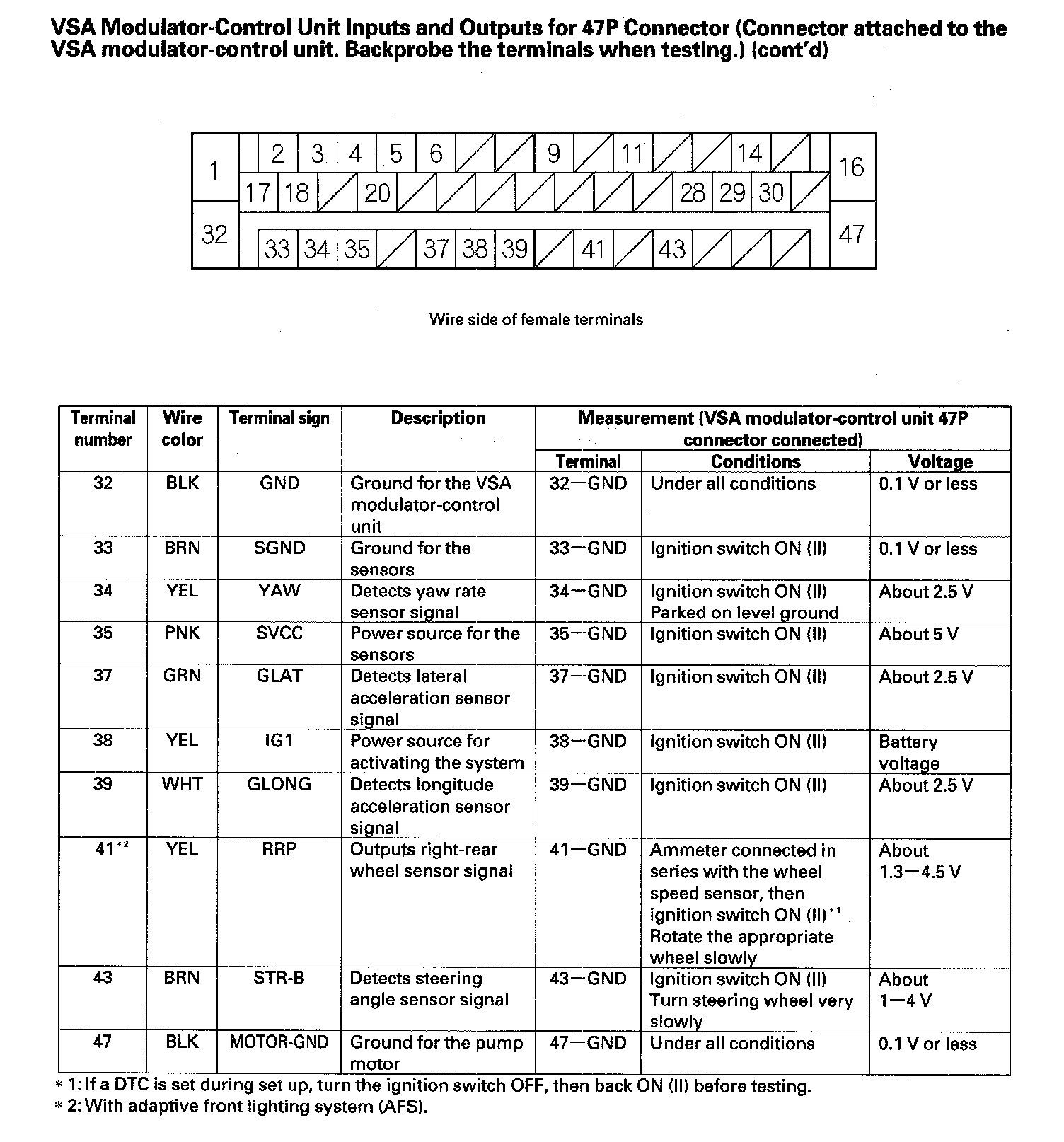

VSA Modulator-Control Unit Inputs And Outputs For 47P Connector (Connector Attached To The VSA Modulator-Control Unit. Backprobe The Terminals When Testing.) (Part 3):
