Repair and Diagnosis (Single Page)
>>
Steering
>>
Power Steering
>>
Power Steering System & Electronic Power Steering System
>>
Electronically Controlled Power Steering System
>>
System Description
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

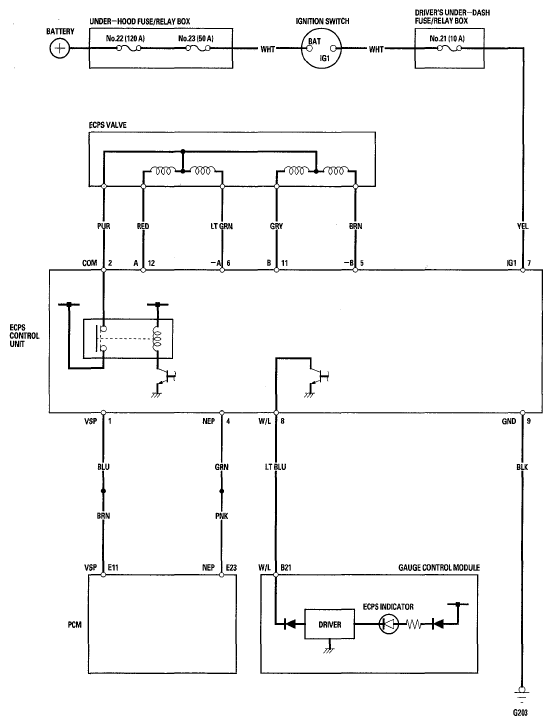

Fig 1: Electronically Controlled Power Steering System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
