Keyless Buzzer Replacement

  1. Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the keyless buzzer (B).

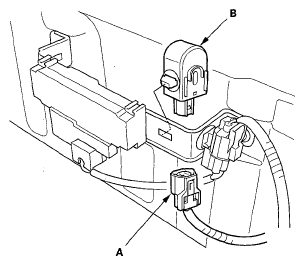

    Fig 1: Identifying 2P Connector And Keyless Buzzer
    G05497437Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the buzzer in the reverse order of removal.
