Audio-HVAC Subdisplay Unit Connector Inputs and Outputs (With navigation)
WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

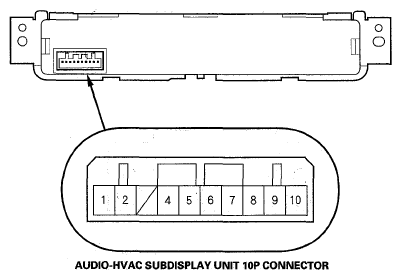

When replacing an audio-HVAC subdisplay unit connector, match the wires to the cavities listed in the following table.
With Navigation
CONNECTOR TERMINAL WIRE SPECIFICATIONS
| Cavity | Wire | Connects to | ||
|---|---|---|---|---|
| 1 | BLK | GND (G503) | ||
| 2 | BLU/ORN | SD+B | ||
| 4 | YEL/RED | INH | ||
| 5 | YEL | CL | ||
| 6 | BLU/RED | DI | ||
| 7 | BLU | CE (LOAD) | ||
| 8 | BRN/BLK(1) | SH GND | ||
| 9 | ORN | LCD BL (-) | ||
| 10 | PUR | LCD BL (+) | ||
|
||||
