Auxiliary Jack Assembly Connector for Inputs and Outputs
WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

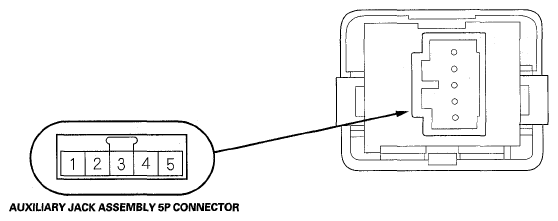

When replacing an auxiliary jack assembly connector, match the wires to the cavities listed in the following table.
CONNECTOR TERMINAL WIRE SPECIFICATIONS
| Cavity | Wire | Connect to |
|---|---|---|
| 1 | WHT | Audio Unit (AUX DET) |
| 2 | BLU | Audio Unit (AUX GND) |
| 3 | BRN | Audio Unit (AUX SGND) |
| 4 | YEL | Audio Unit (AUX L) |
| 5 | GRIM | Audio Unit (AUX R) |
