Component Location Index

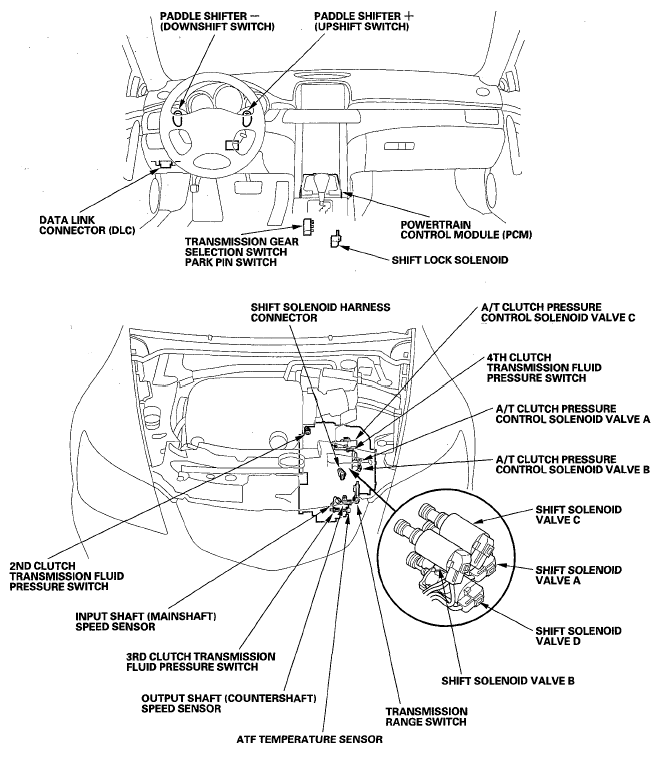

Fig 1: Identifying Automatic Transmission System Components Location
G05495390Courtesy of AMERICAN HONDA MOTOR CO., INC.
