AcuraLink Reprogramming (C832) Connector End View

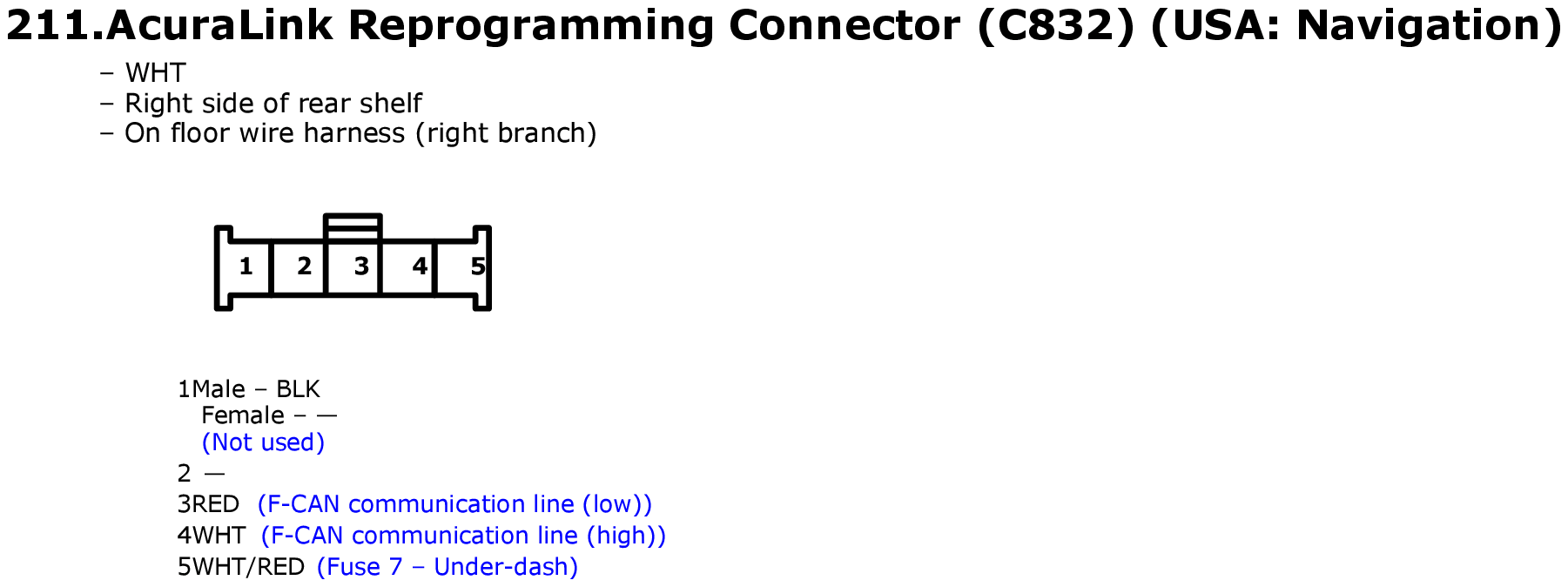

Fig 1: AcuraLink Reprogramming (C832) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
