Exploded View: Notes

Replace the pump as an assembly if any of the parts indicated with an asterisk (*) are worn or damaged.

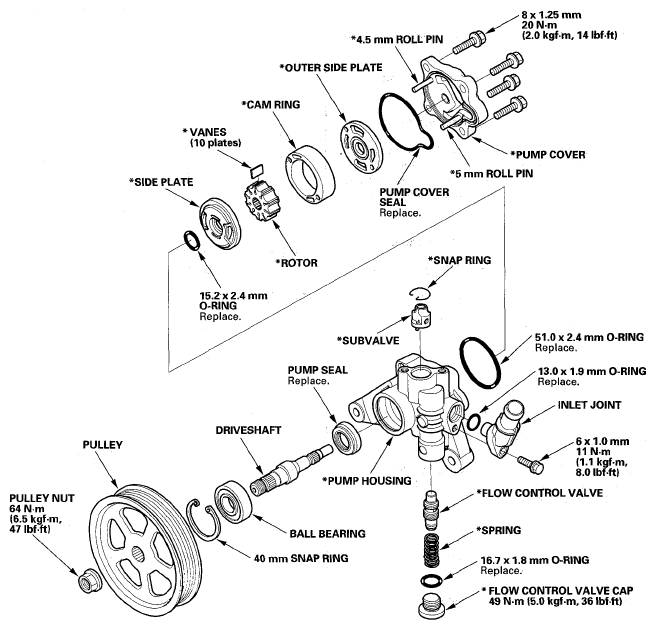

Fig 1: Exploded View Of Pump Overhaul Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Pulley holder 07ZAB-S5A0100
