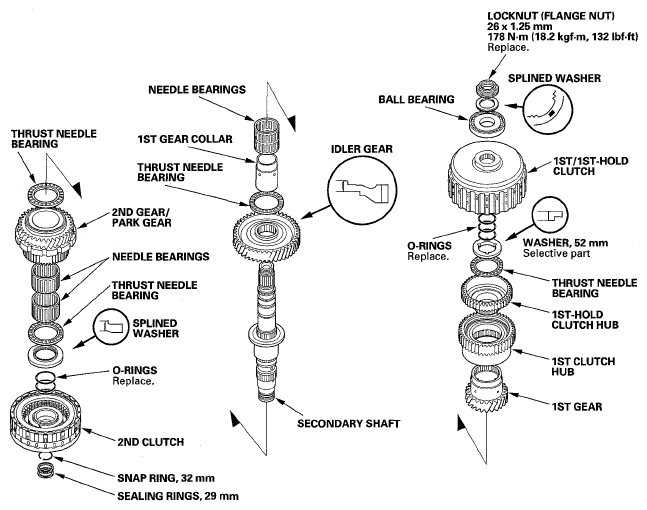

Exploded View
Special Tools Required
Wrench, 40 x 42 mm 07XAA-002010A
NOTE:
Refer to the Exploded View as needed during the following procedure.
- Cut the lock tab (A) of the secondary shaft locknut (B) using a chisel (C).NOTE: Keep all of the chiseled particles out of the secondary shaft.
- Place a V-block (A) on the back of a vise (B), and clamp the wrench, 40 x 42 mm in the vise jaws (C).
- Place the secondary shaft (D) on the block, and attach the 1st clutch guide (E) to the wrench, 40 x 42 mm. Loosen the locknut, and remove it. Remove any burrs from the splines on the shaft and the spline washer.
- Place the idler gear (A) on press bases (B), and place a shaft protector (C) between the secondary shaft (D) and the press to prevent damaging the secondary shaft.
- Support the secondary shaft with one hand, then press the secondary shaft out of the press-fitted bearing (E). The secondary shaft will drop down after pressing it out of the press-fitted bearing.
- Remove the 1st/1st-hold clutch, the 52 mm washer, the thrust needle bearing, the 1st gear assembly, the needle bearing, the 1st gear collar, the thrust needle bearing, and the idler gear.
- Remove the 32 mm snap ring, and remove the 2nd clutch, the splined washer, the thrust needle bearing, the needle bearing, the 2nd gear/park gear, and the thrust needle bearing.
- Inspect the bearing for galling and rough movement.
- Check the shaft bearing surfaces for scoring and excessive wear, and check the shift splines for excessive wear and damage.
- Check the 1st gear axial clearance (see SECONDARY SHAFT 1ST GEAR AXIAL CLEARANCE INSPECTION ), the 1st gear one-way clutch (see 1ST GEAR ONE-WAY CLUTCH INSPECTION ), and the secondary shaft installation height (see SECONDARY SHAFT INSTALLATION HEIGHT INSPECTION/ADJUSTMENT ).
