Navigation Module: Locations

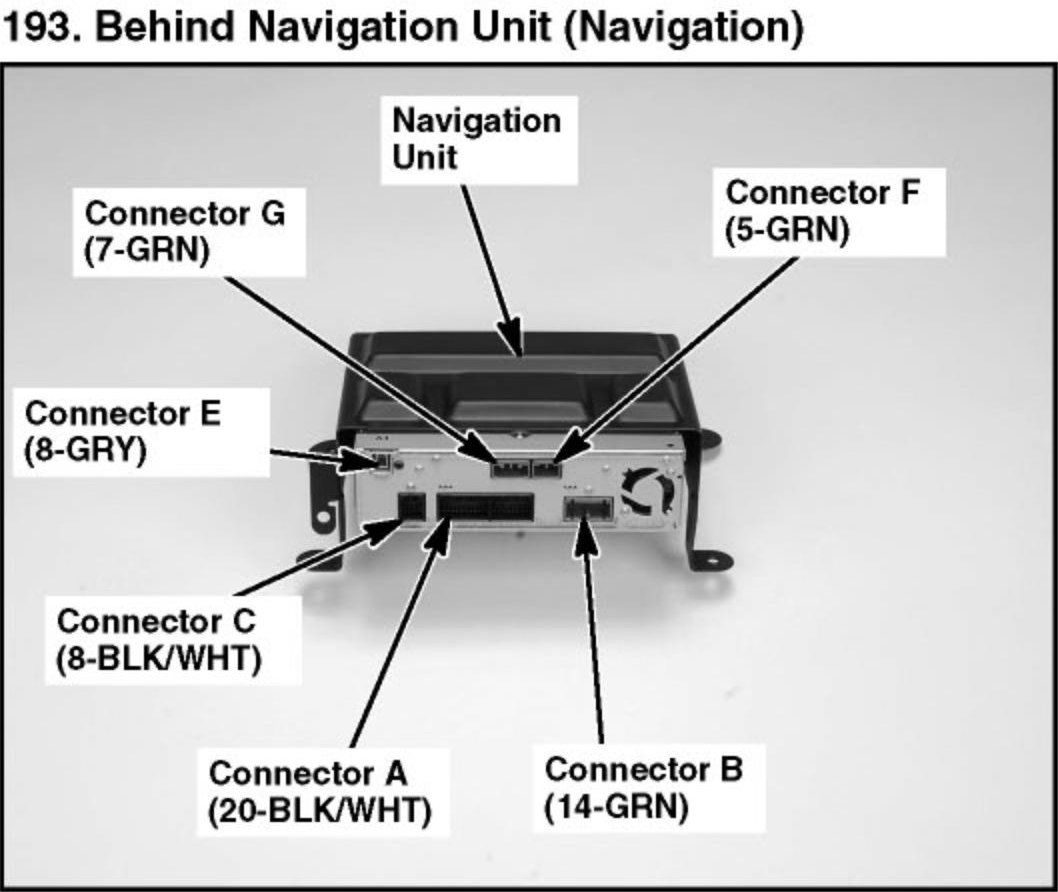

193. Behind Navigation Unit (Navigation):

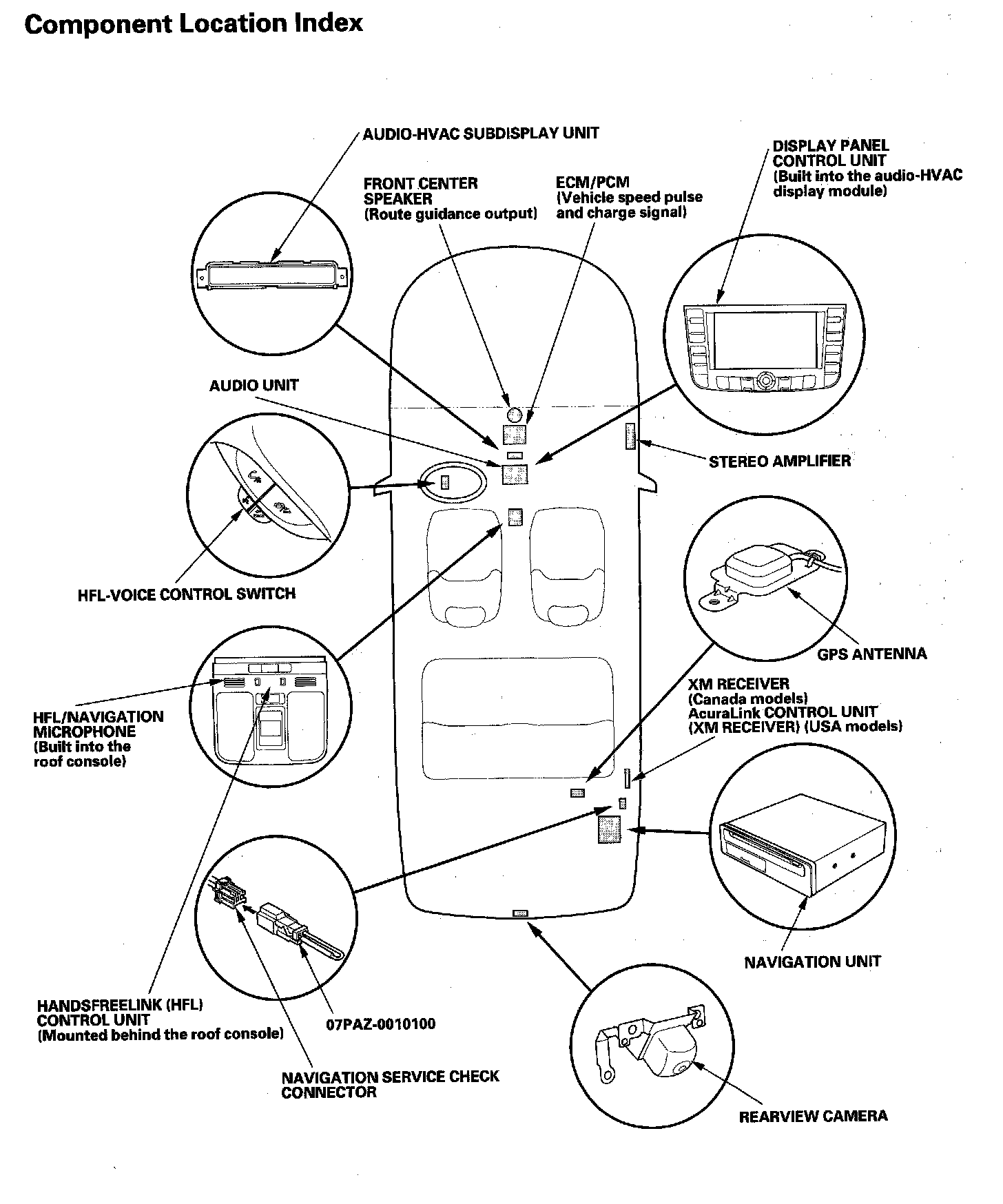

Navigation System Component Location Index:



AcuraLink Component Location Index:

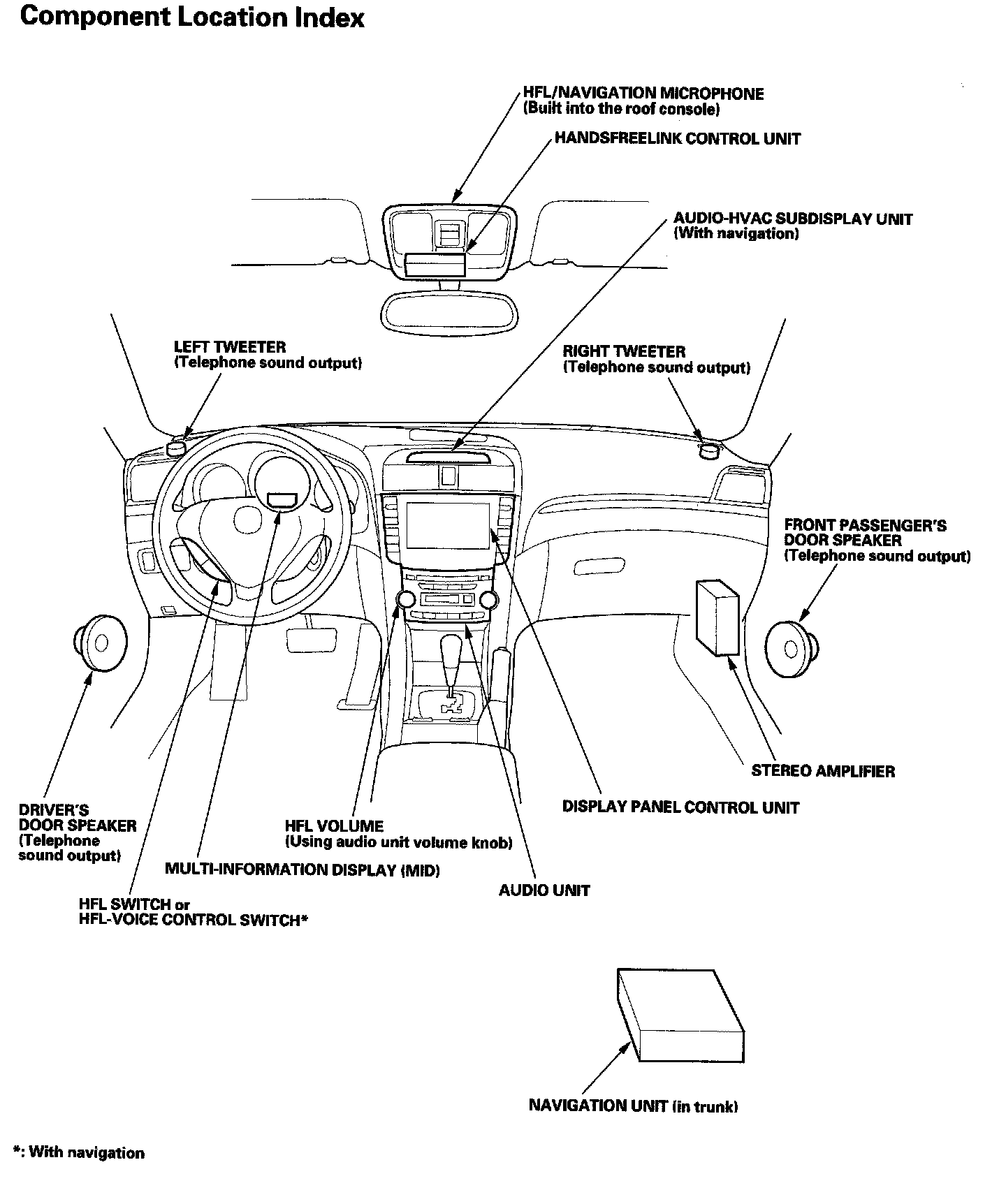

HandsFreeLink System Component Location Index:

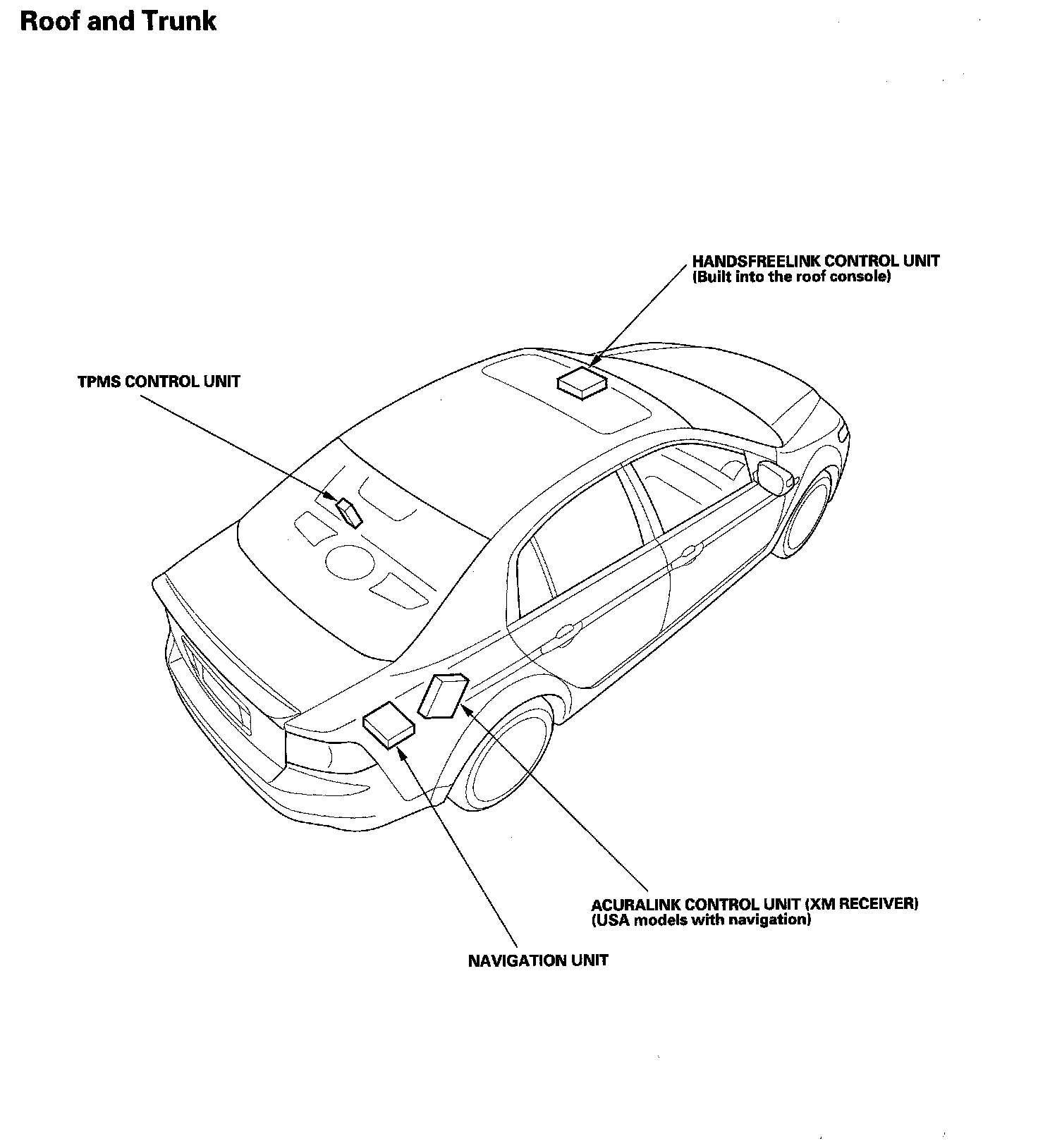

Relay and Control Unit Locations Roof And Trunk:
