Subframe: Service and Repair

Subframe Replacement

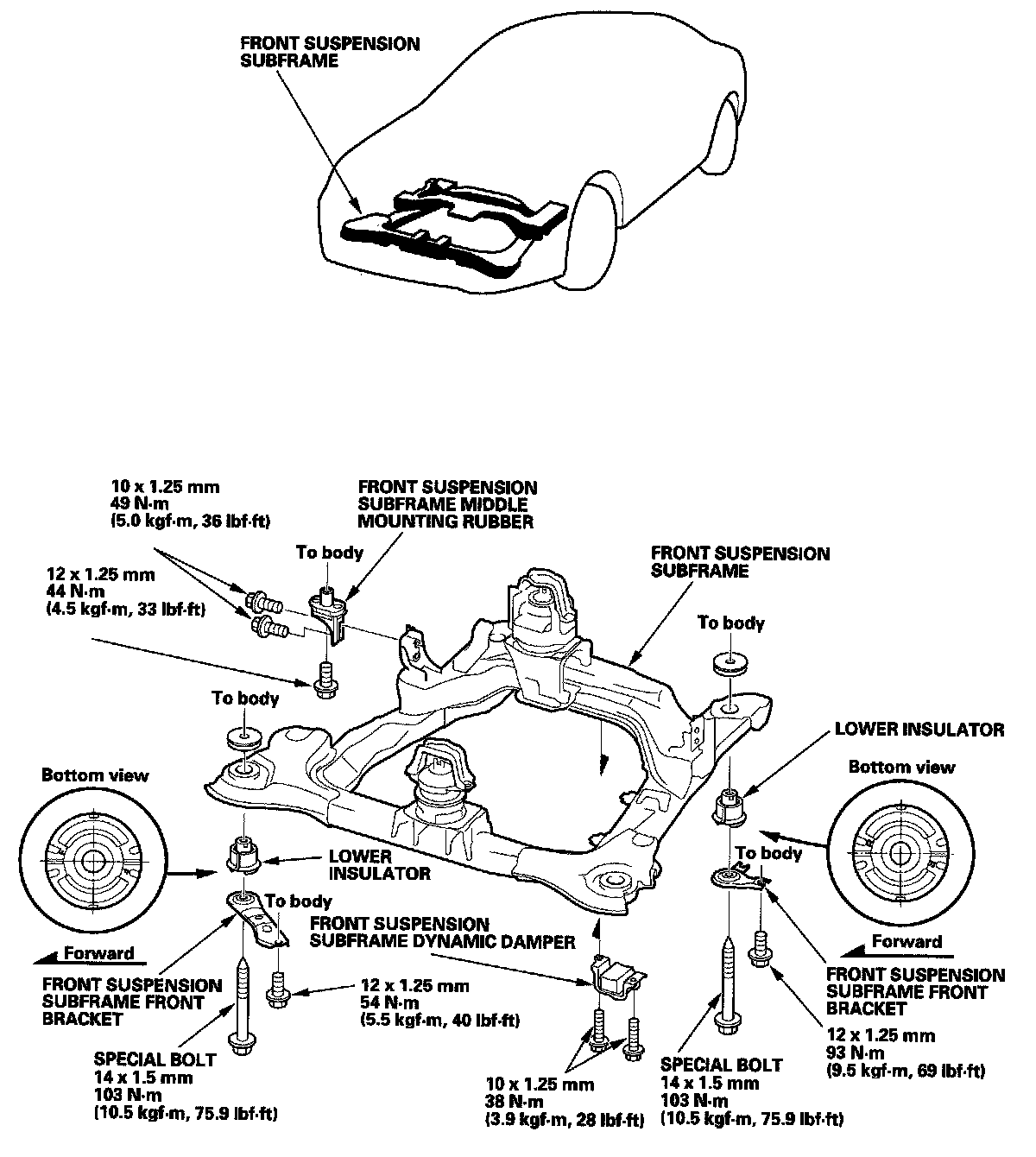

Front Subframe Torque






NOTE:
- After removing the subframe mounting bolts, be sure to replace them with new ones.
- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
- After mounting the subframe and brackets loosely, align the reference marks with the edge of the rear brackets then tighten each bolts.

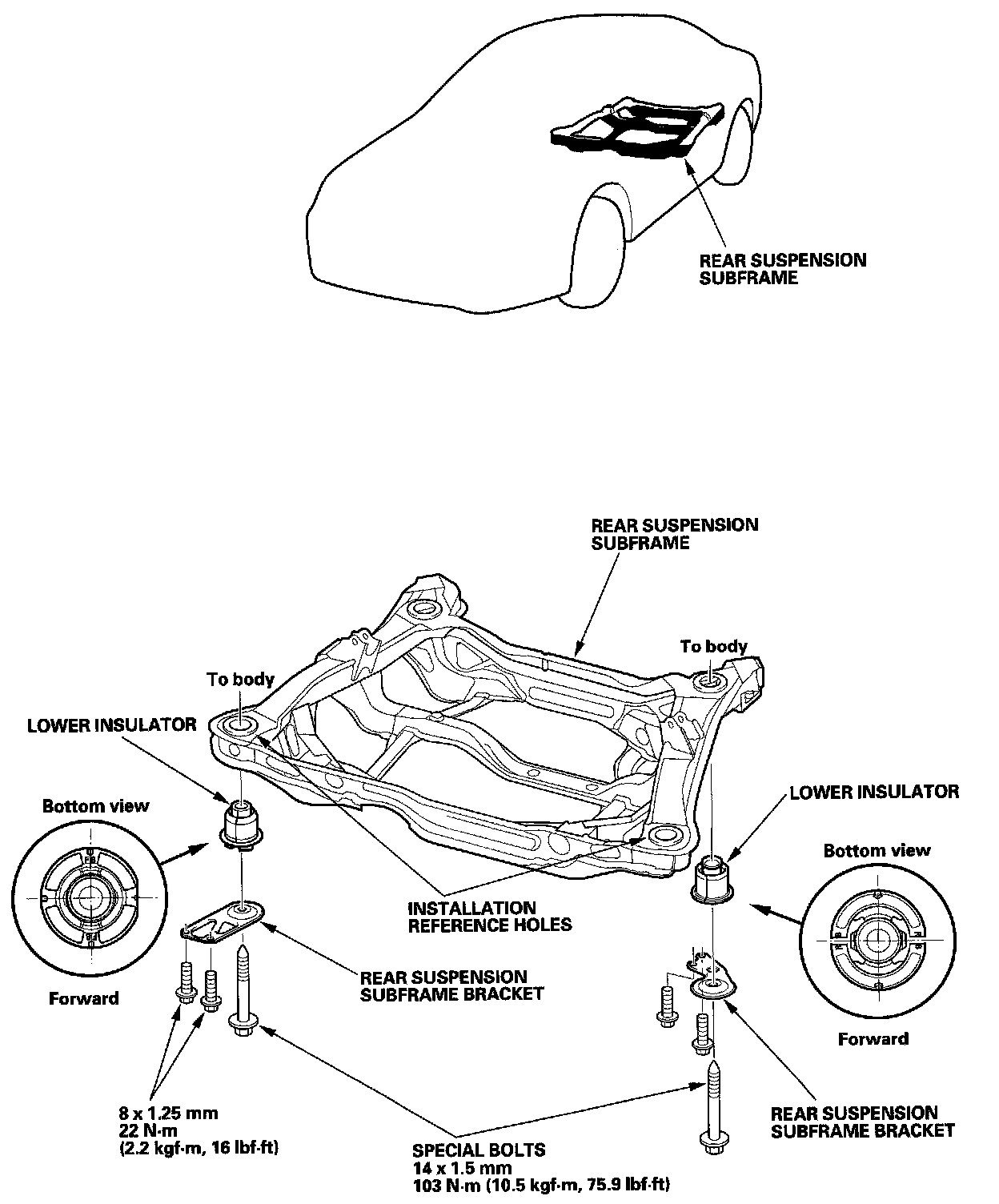

Rear Subframe Torque




After removing the subframe mounting bolts, be sure to replace them with new ones.
