Keyless Entry Receiver: Locations

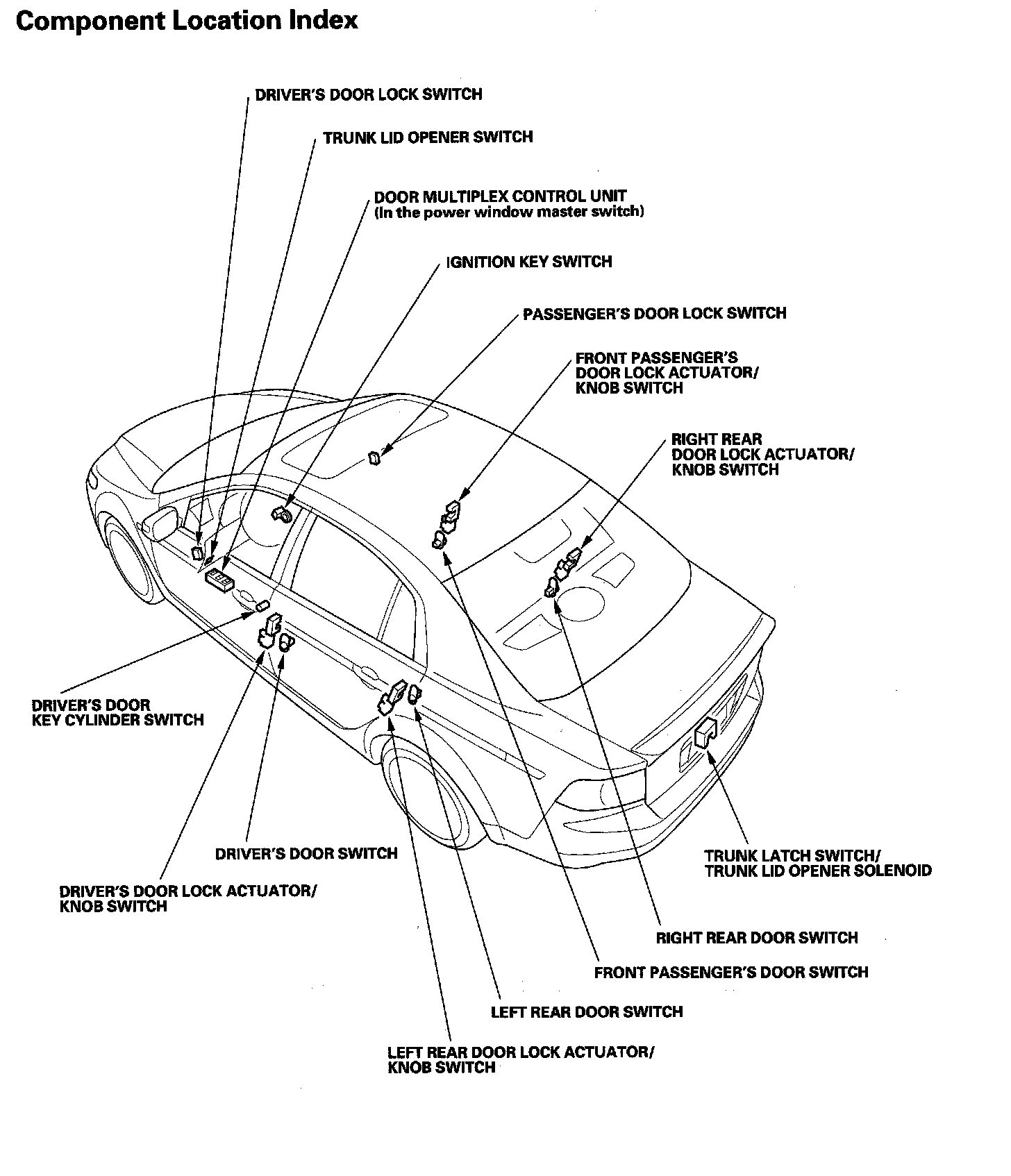

Keyless/Power Door Locks/Security System Component Location Index:

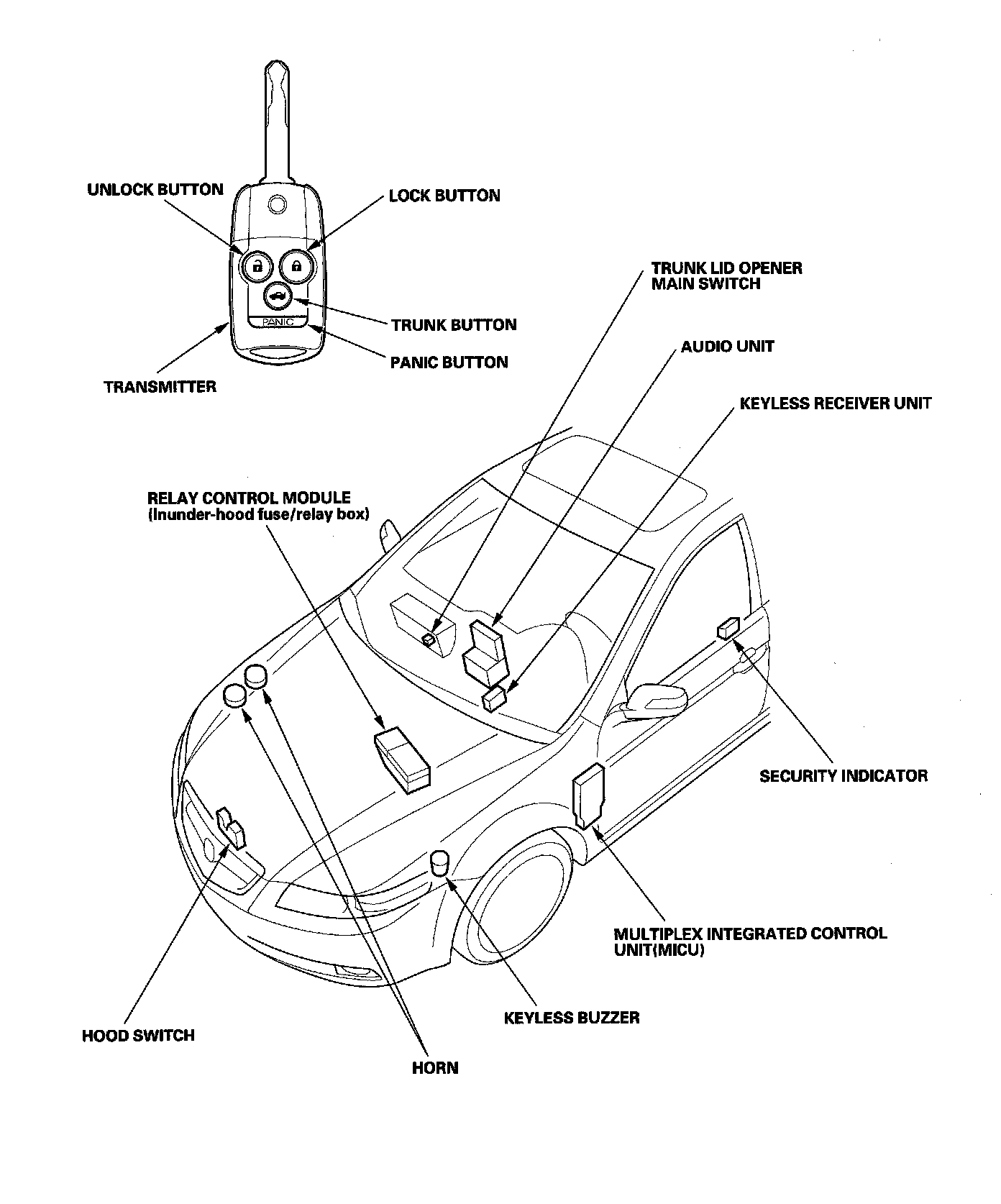

Keyless/Power Door Locks/Security System Component Location Index:

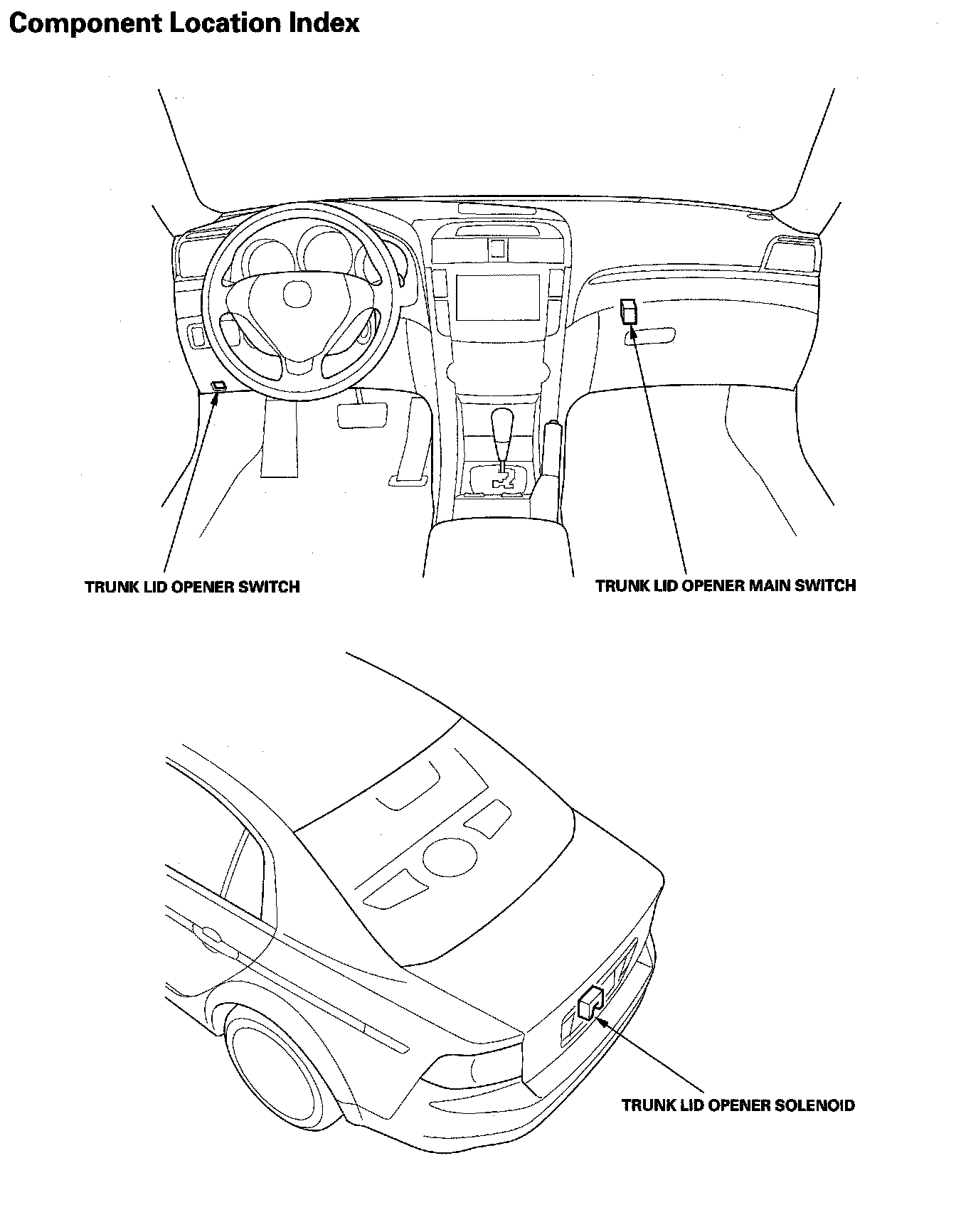

Trunk Lid Opener Component Location Index:

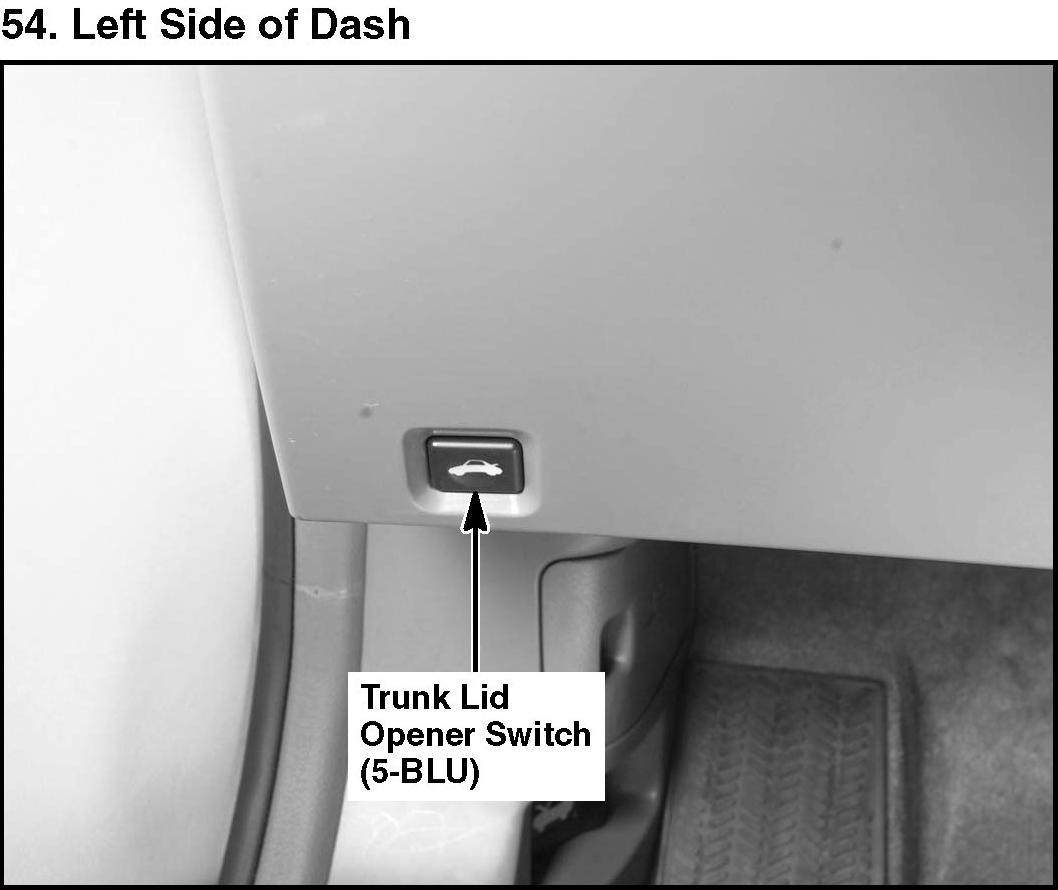

54. Left Side Of Dash:

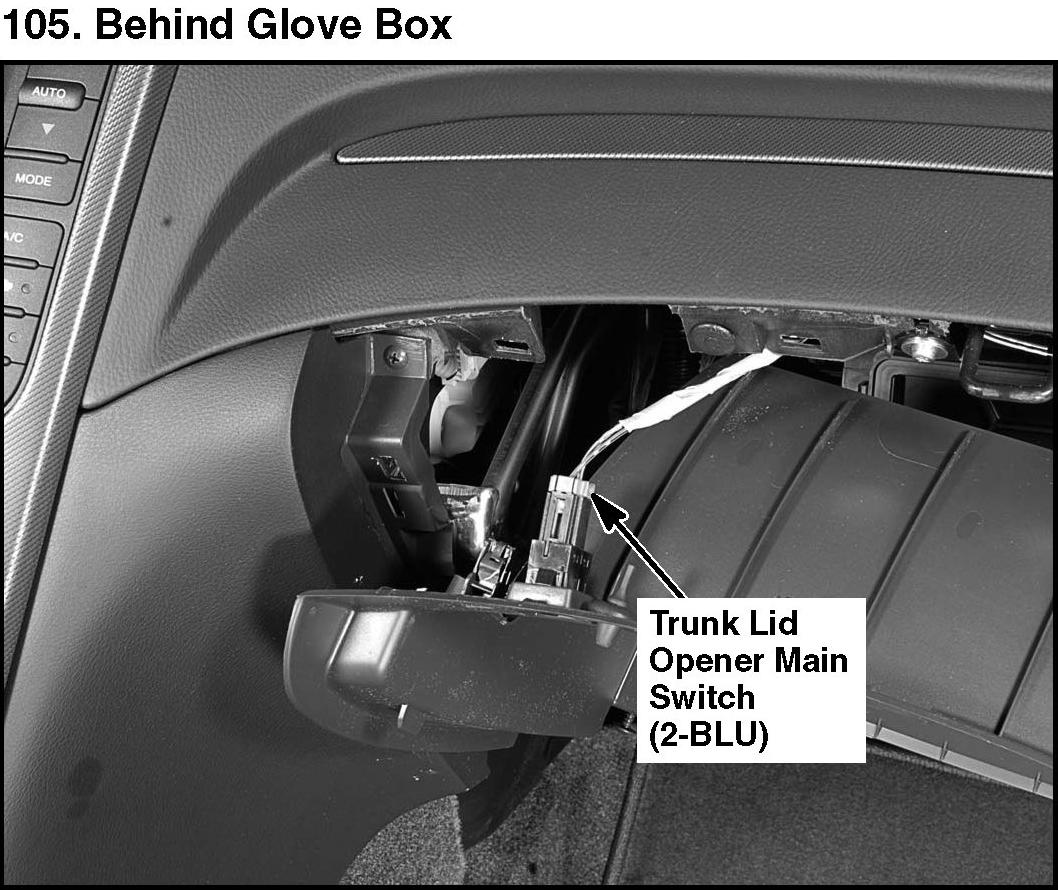

105. Behind Glove Box:
