Security Indicator Test

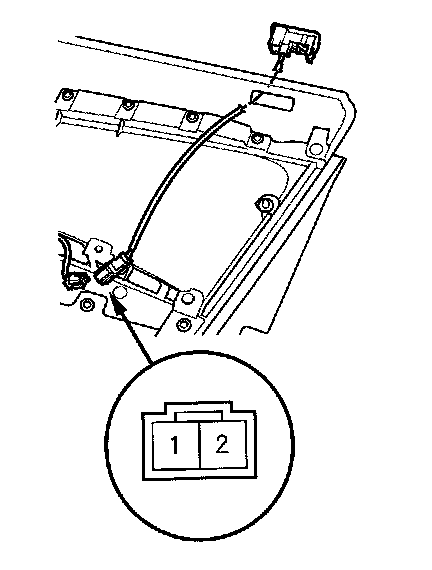

Security Indicator Test

1. Remove the driver's door panel.




2. Disconnect the 2P connector from the security indicator.
3. The LED should come on when power is connected to terminal No. 2, and ground is connected to terminal No. 1.
4. If the LED does not work as specified, replace the security indicator.
