Power Window Switch

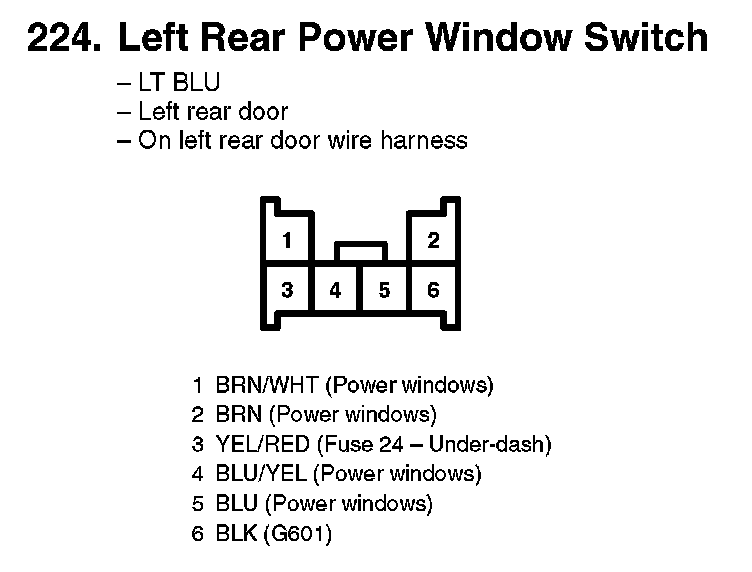

224. Left Rear Power Window Switch:

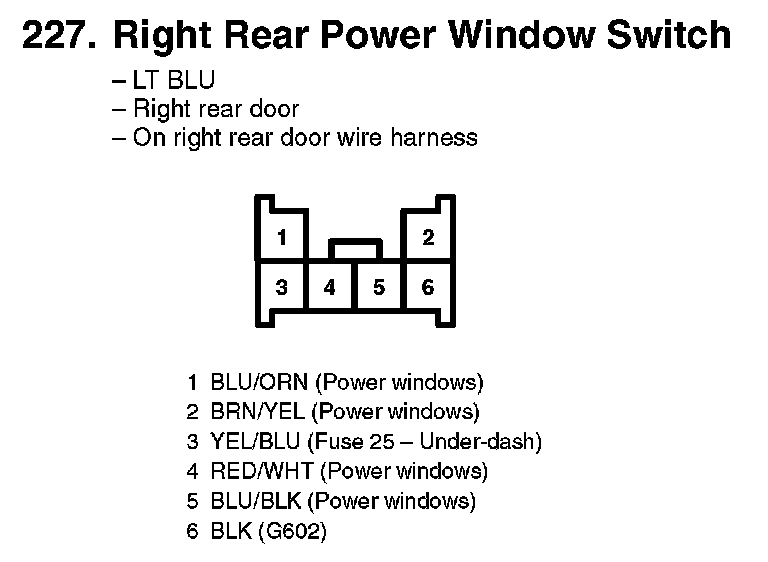

227. Right Rear Power Window Switch:



264. Front Passenger's Power Window Switch (Door Multiplex Control Unit):



318. Power Window Master Switch (Door Multiplex Control Unit):
