Cylinder Block Assembly

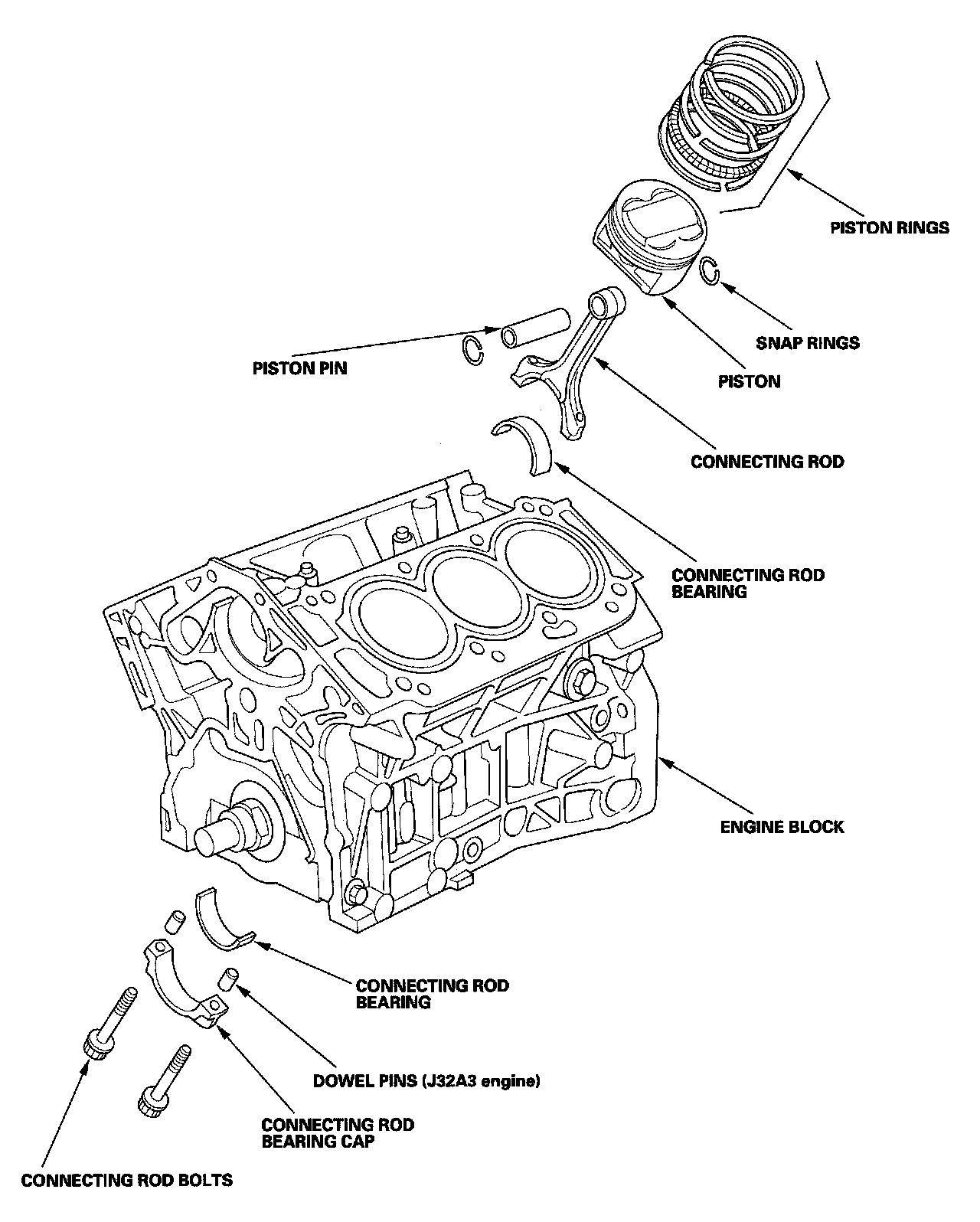

Engine Block Component Location Index (Part 1):

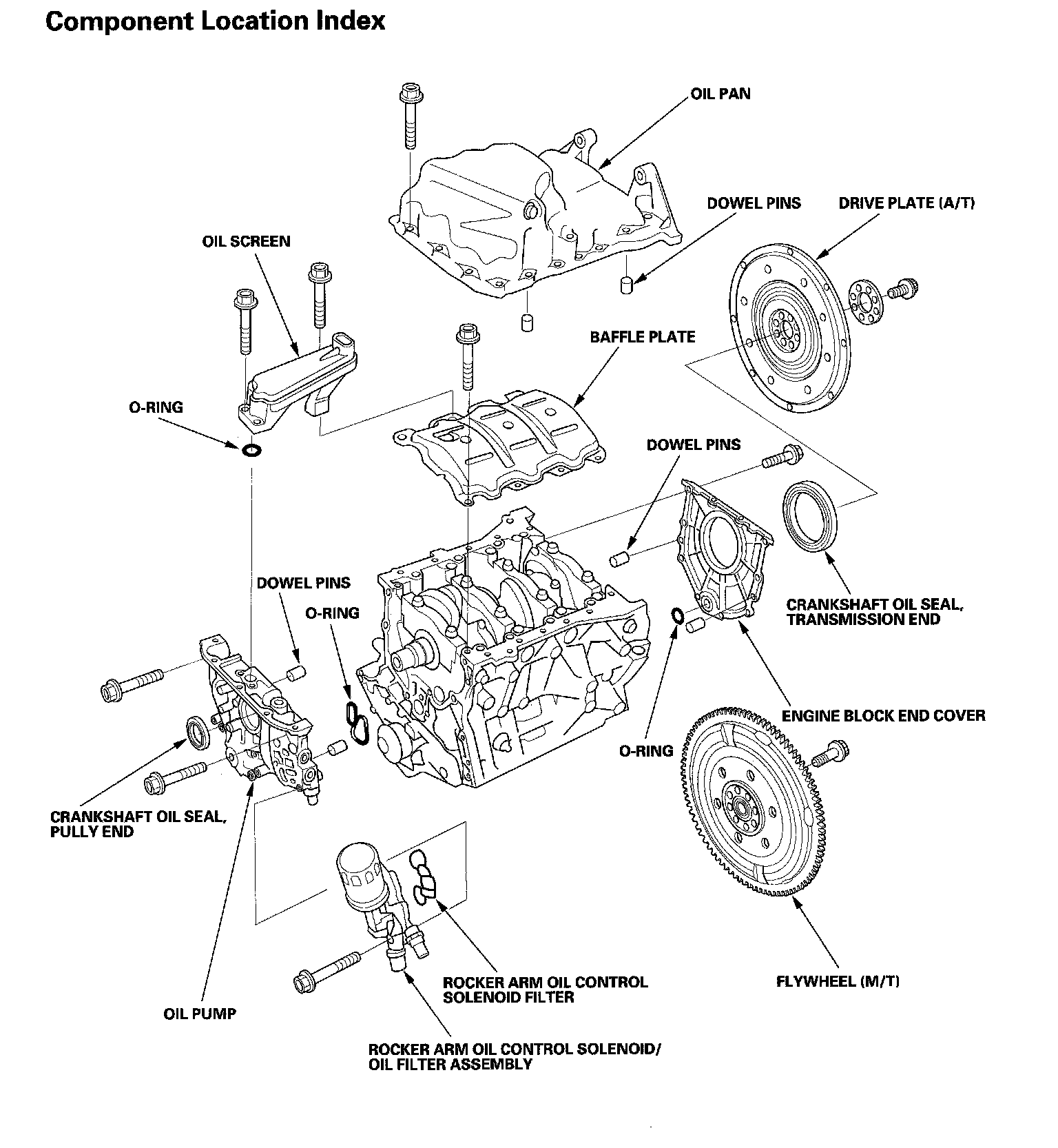

Engine Block Component Location Index (Part 2):

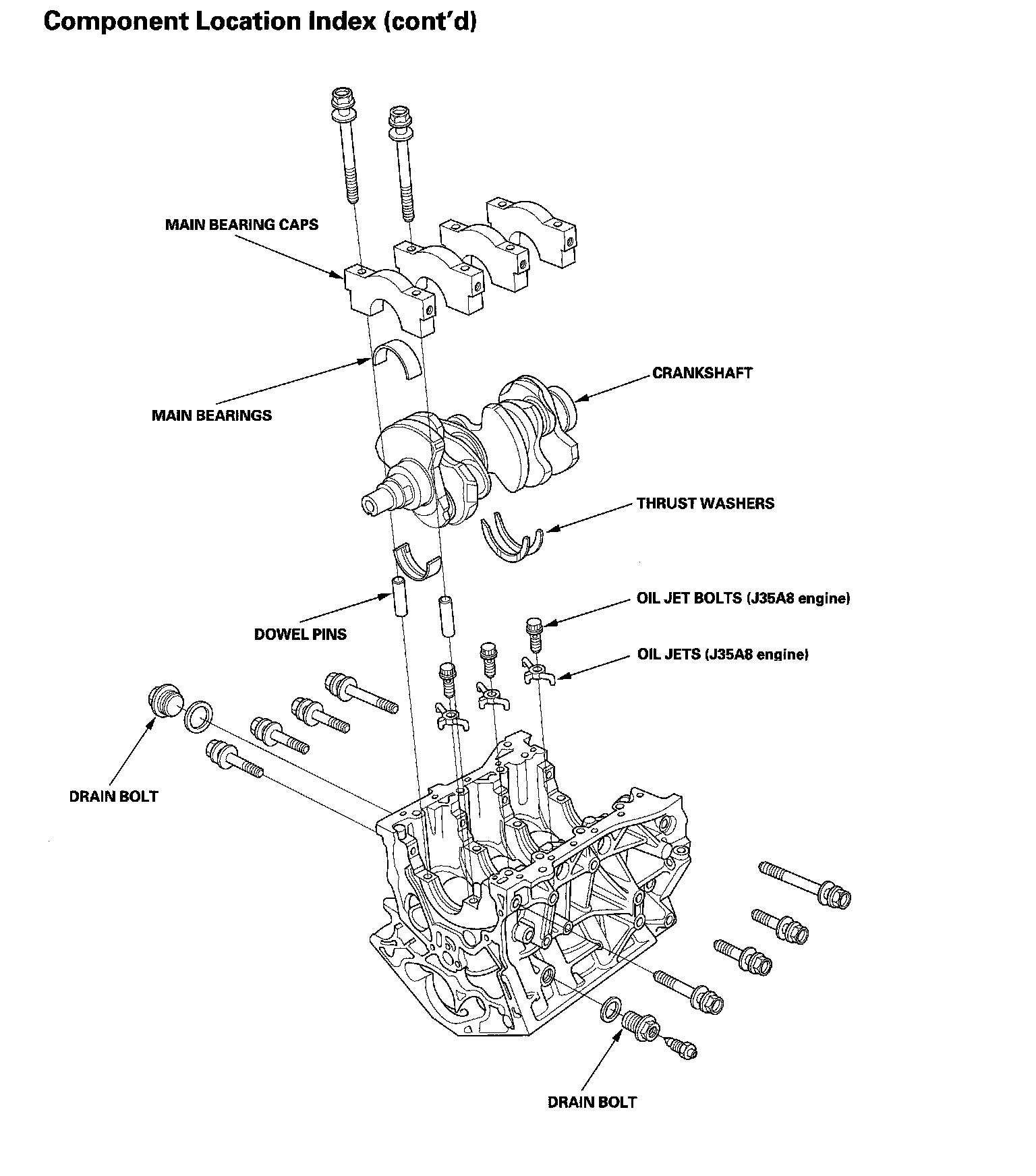

Engine Block Component Location Index (Part 3):
