Electronic Throttle Control Module: Locations

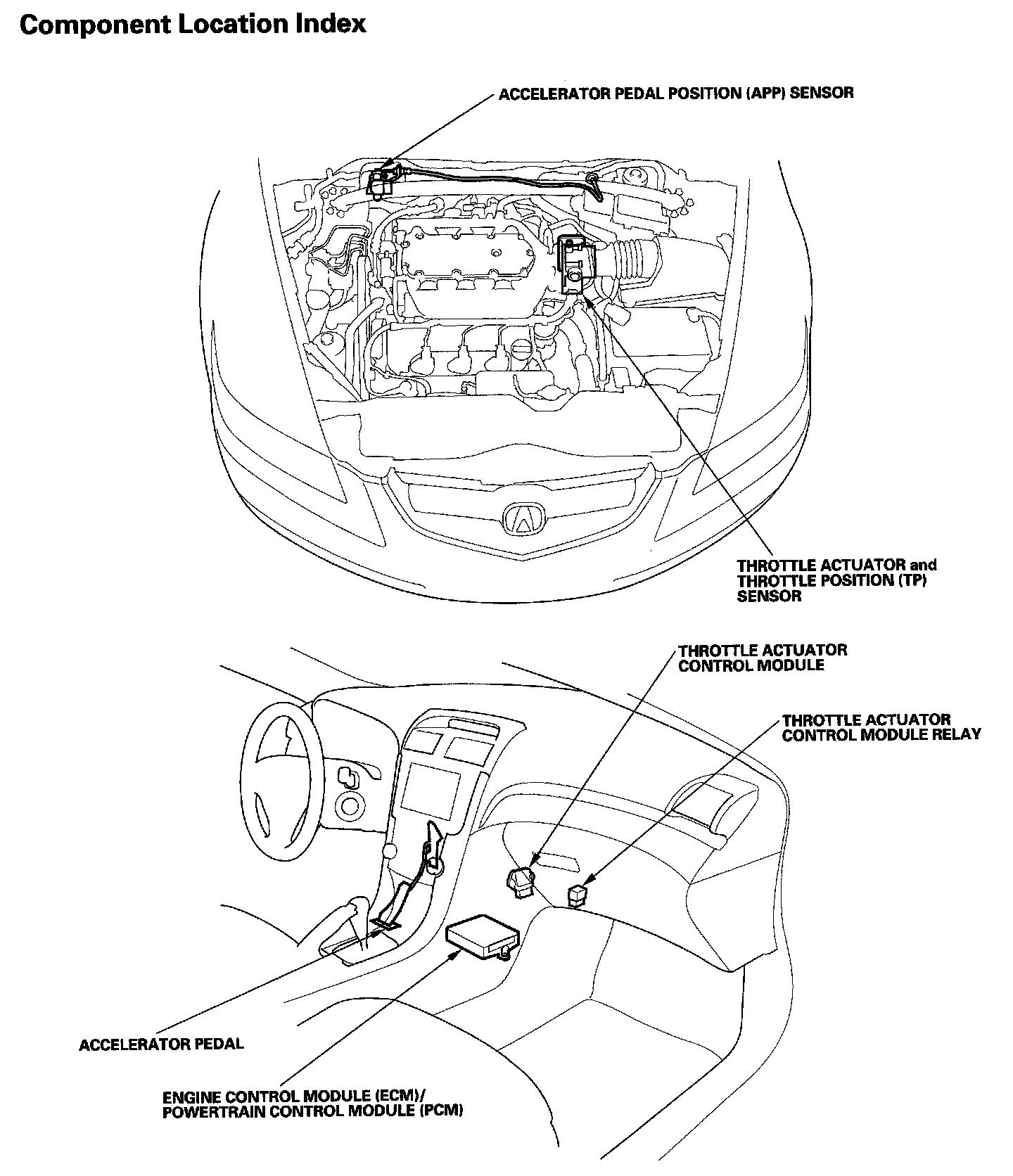

Electronic Throttle Control System Component Location Index:

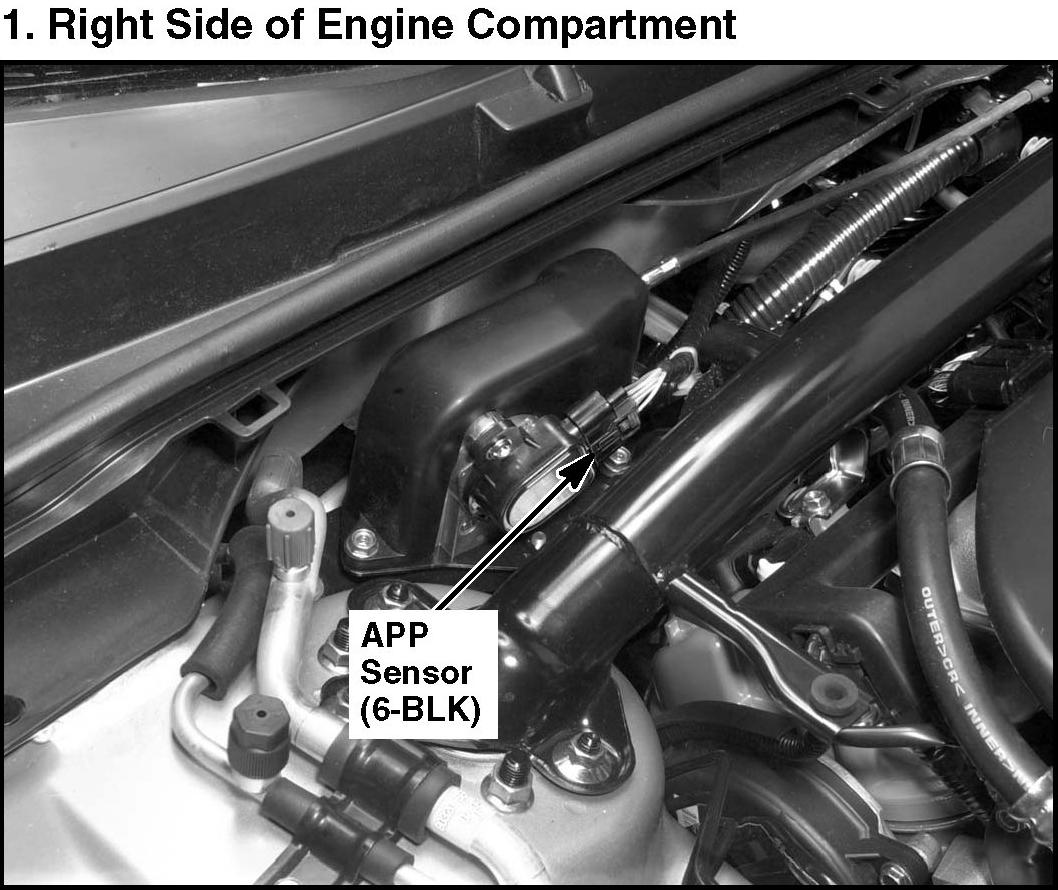

1. Right Side Of Engine Compartment:
