Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

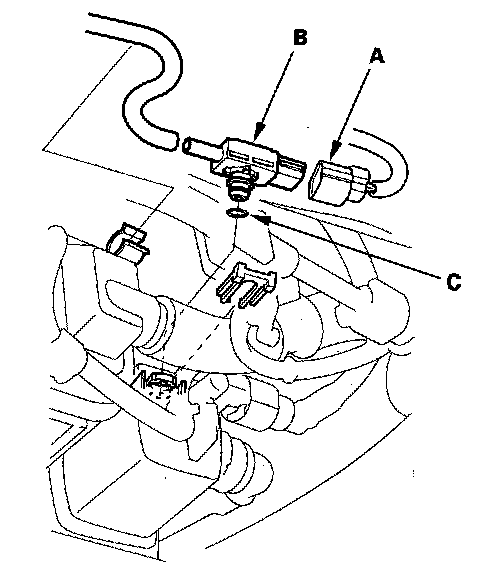

1. Disconnect FTP sensor 3P connector (A).
2. Remove the FTP sensor (B).
3. Install the parts in the reverse order of removal with a new O-ring (C).
