Firing Order: Specifications



*Hint - See Vehicle Emissions Label for Engine Type

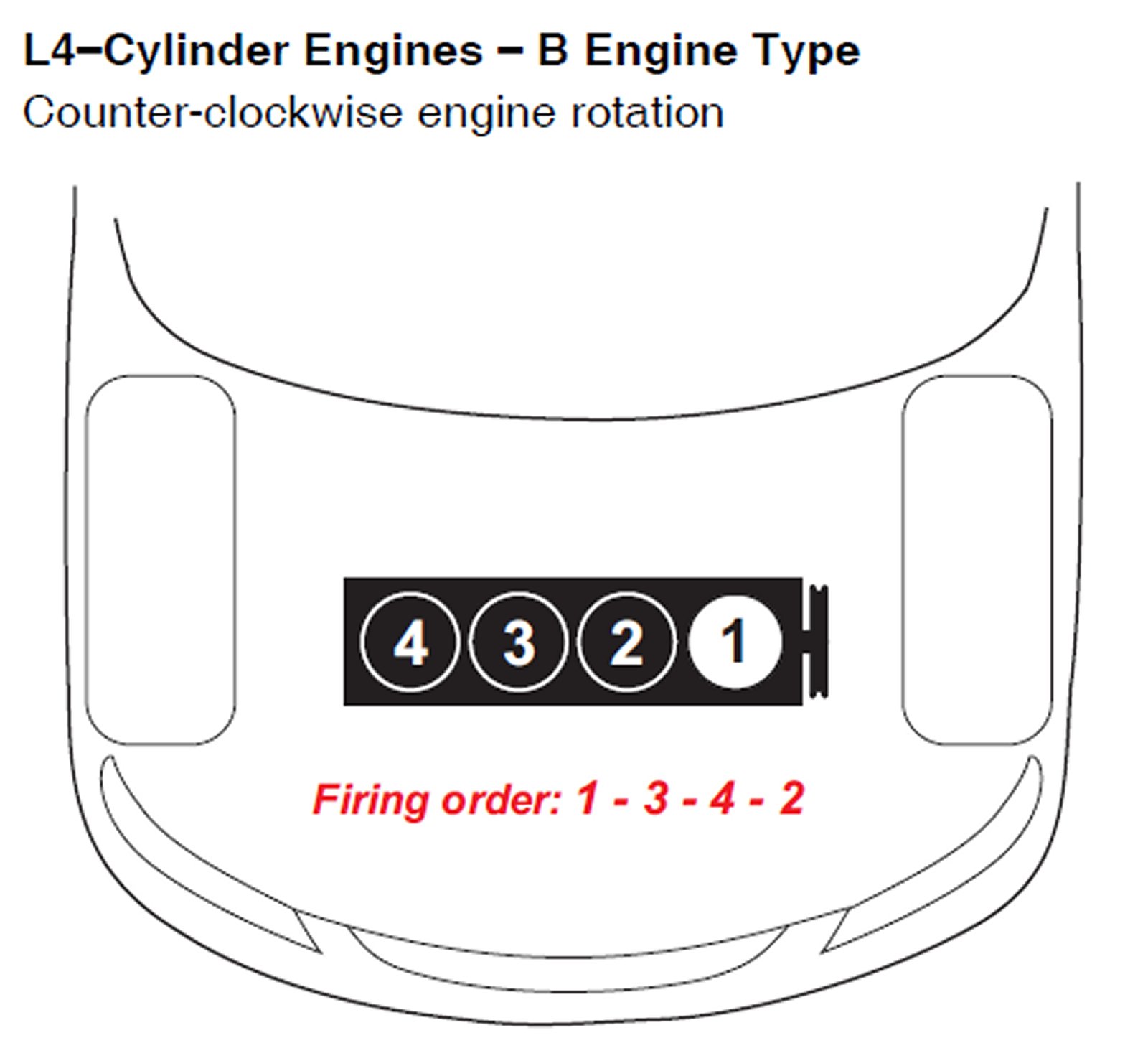

B Engine Type:

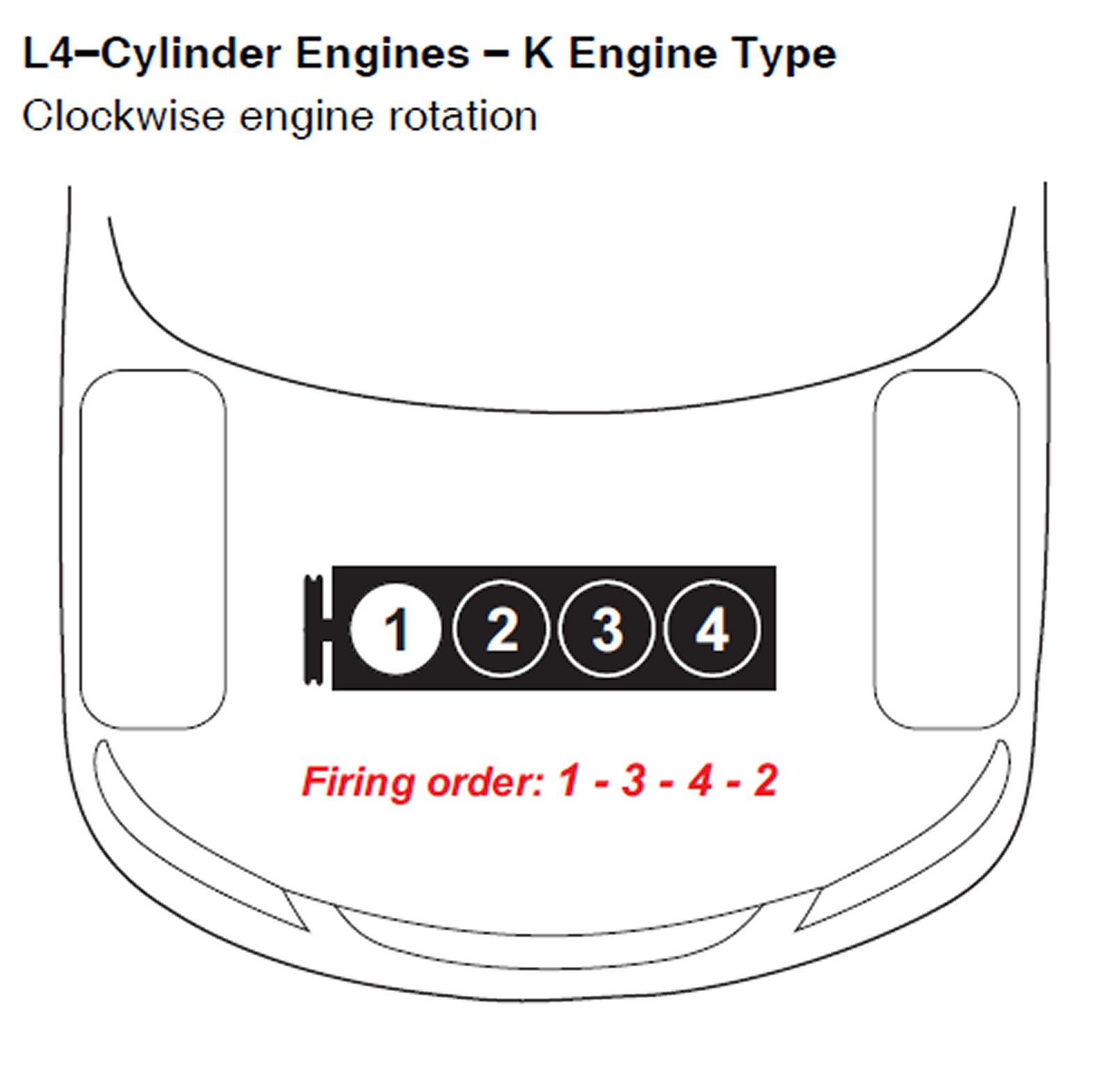

K Engine Type:

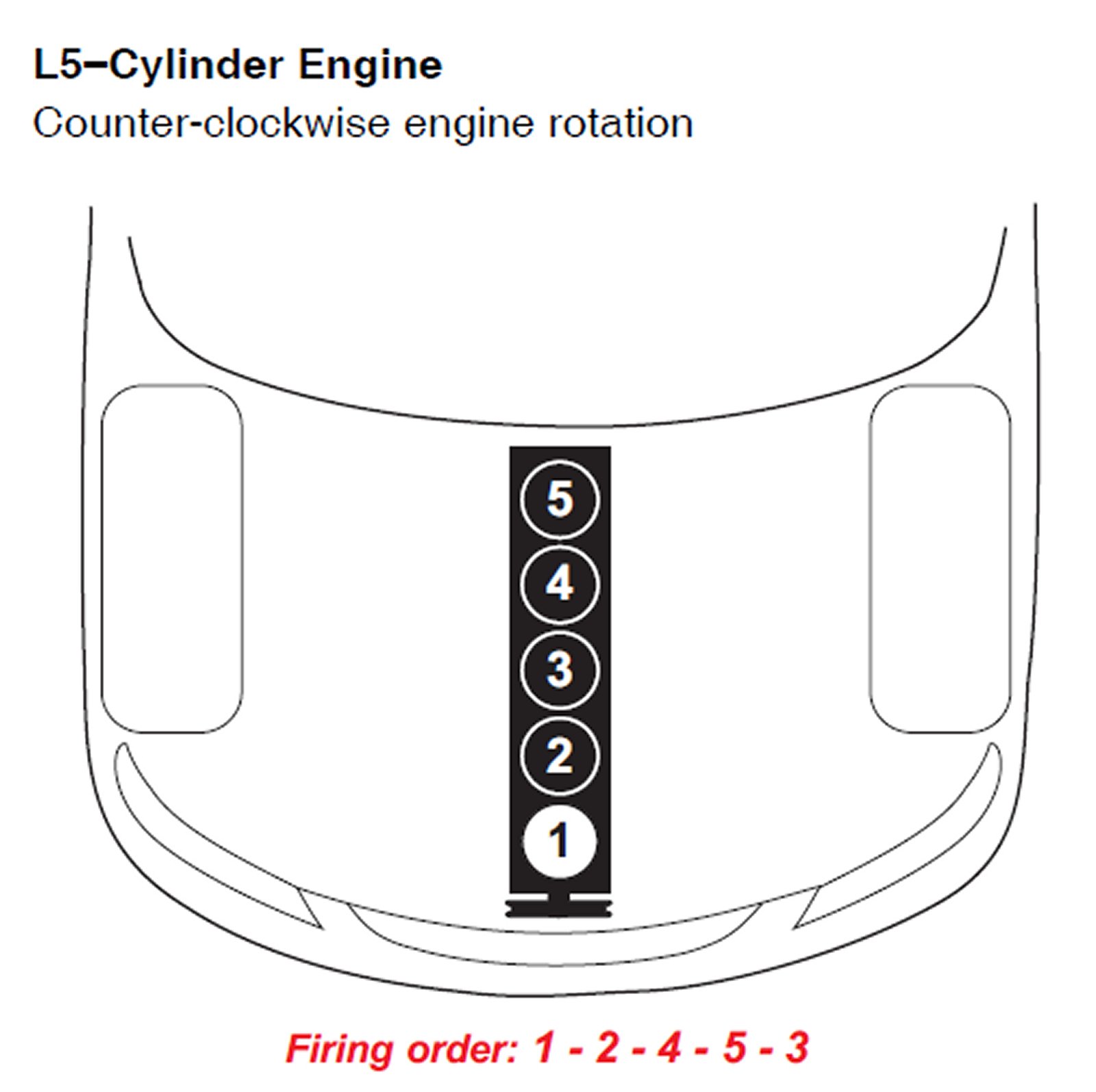

L5 Engine:

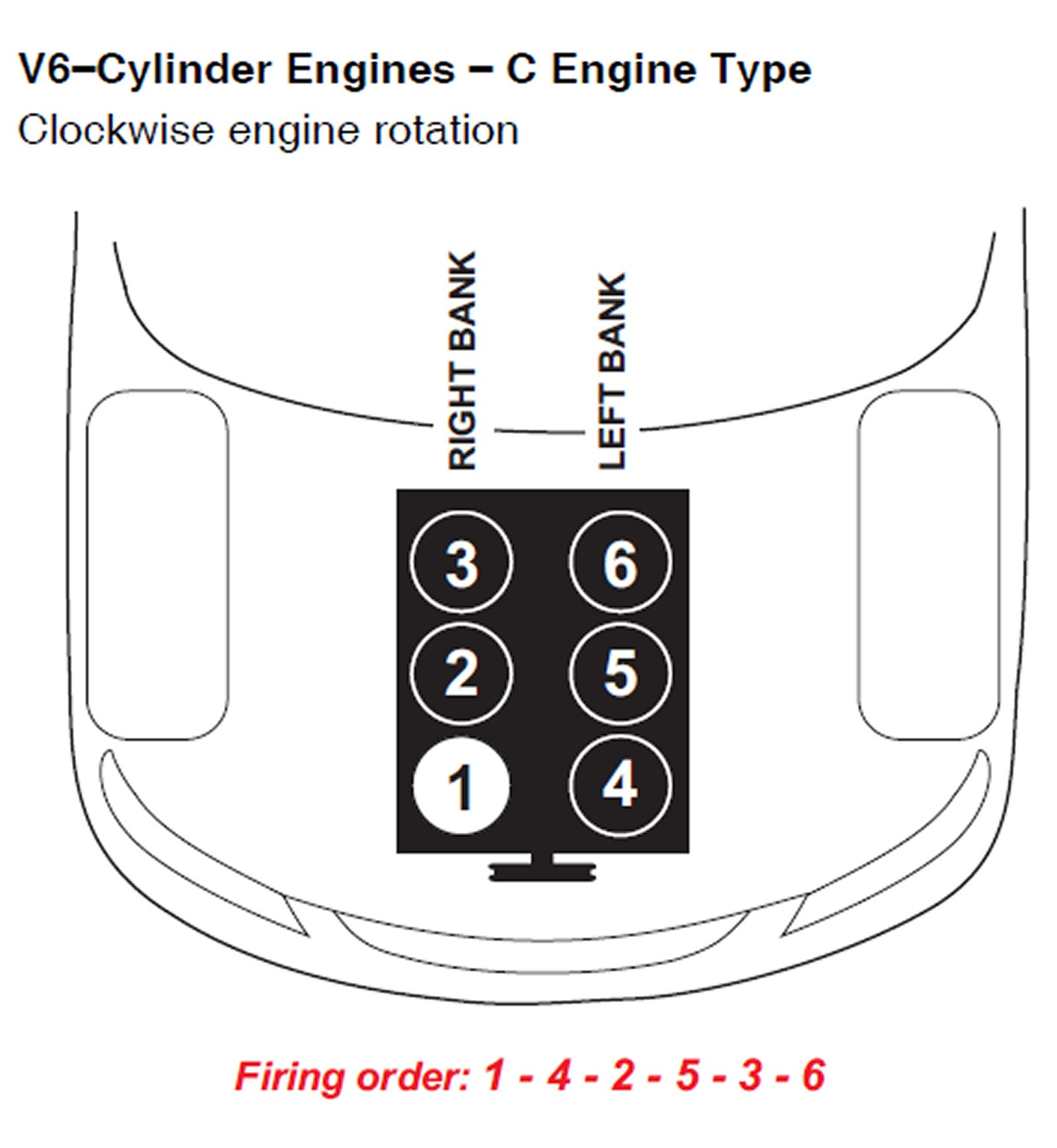

C Engine Type Horizontally Opposed:

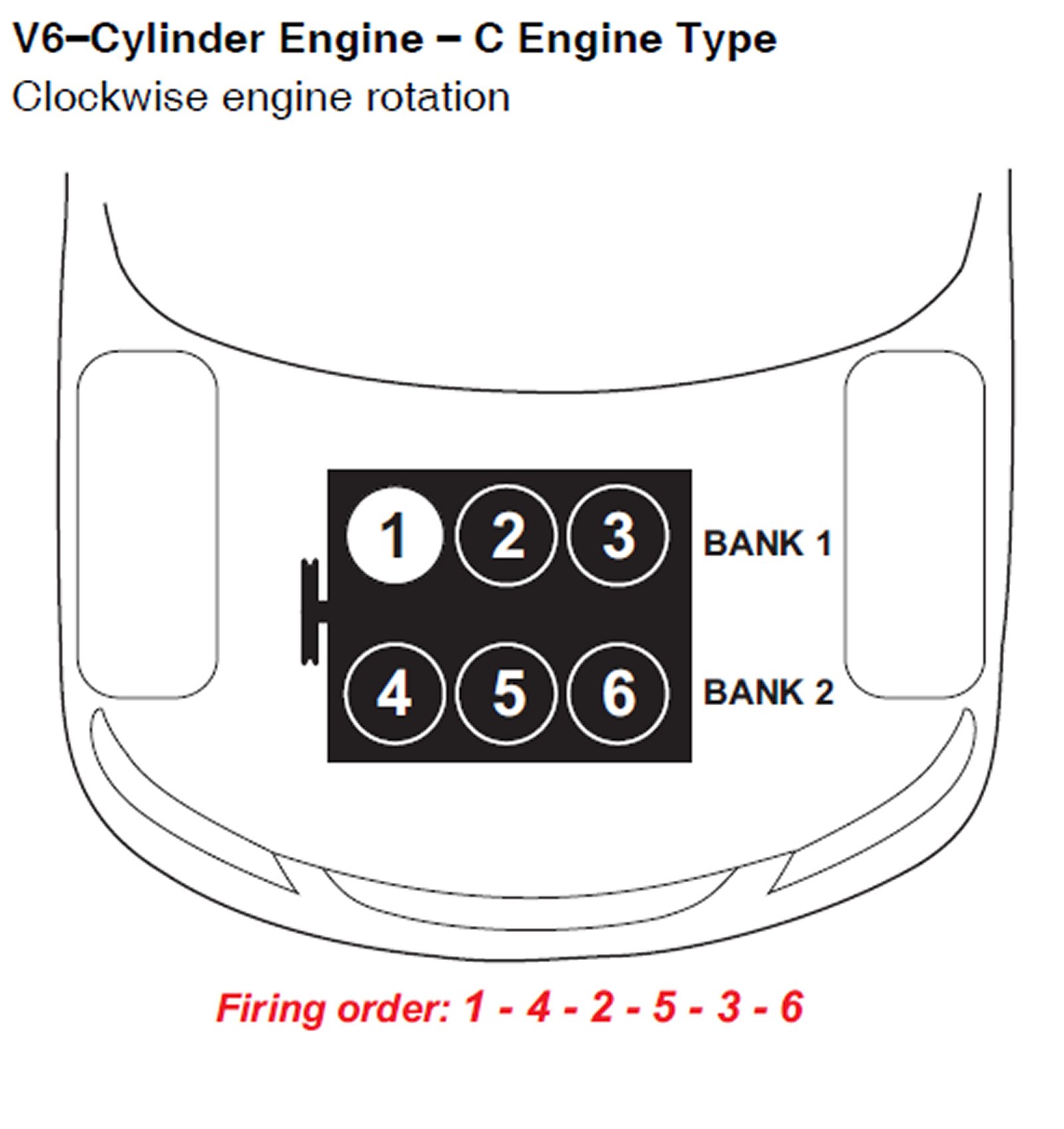

C Engine Type Rear Wheel Drive:

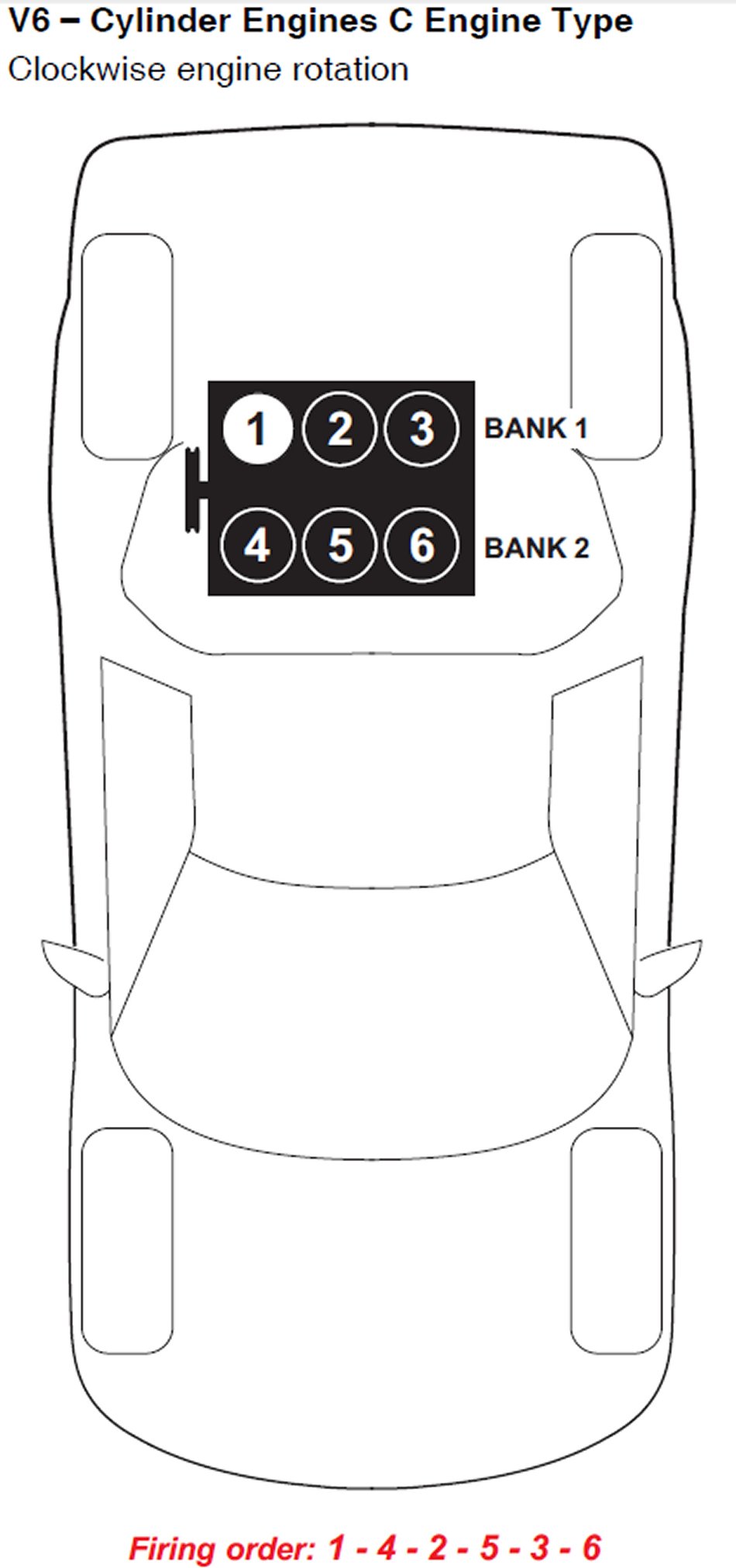

C Engine Type Midship:

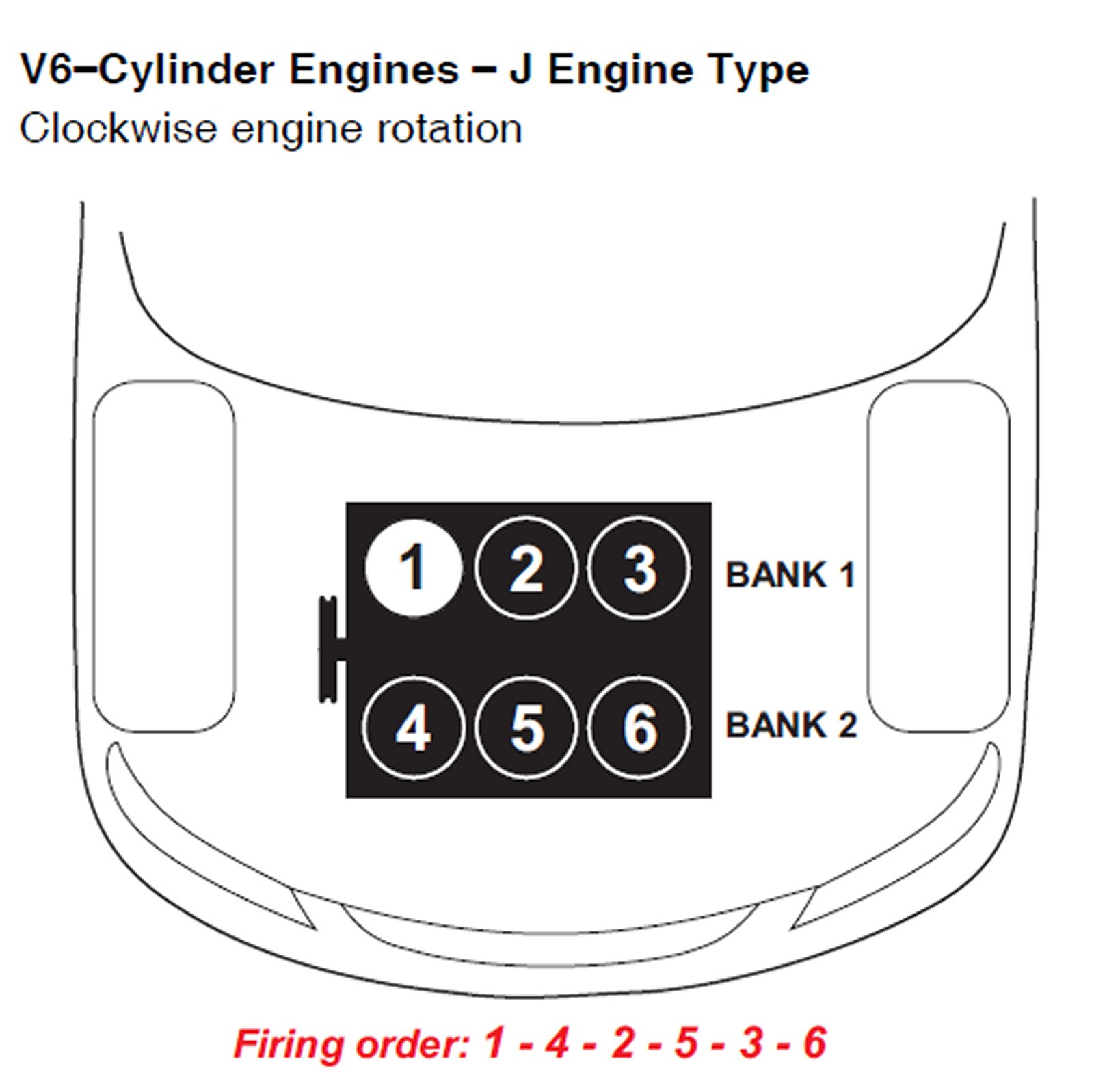

J Engine Type:

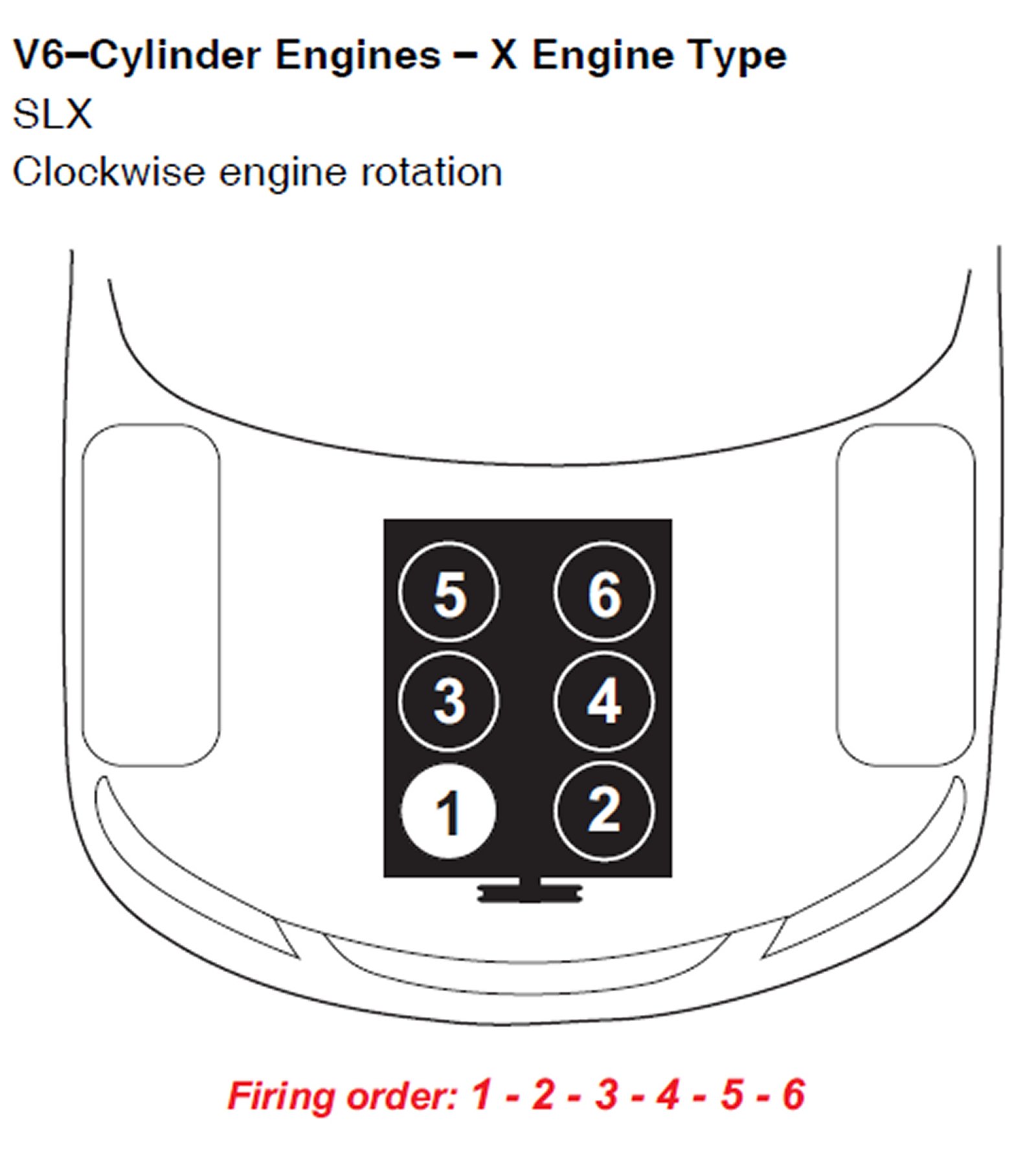

X Engine Type:
