Alarm Module: Locations

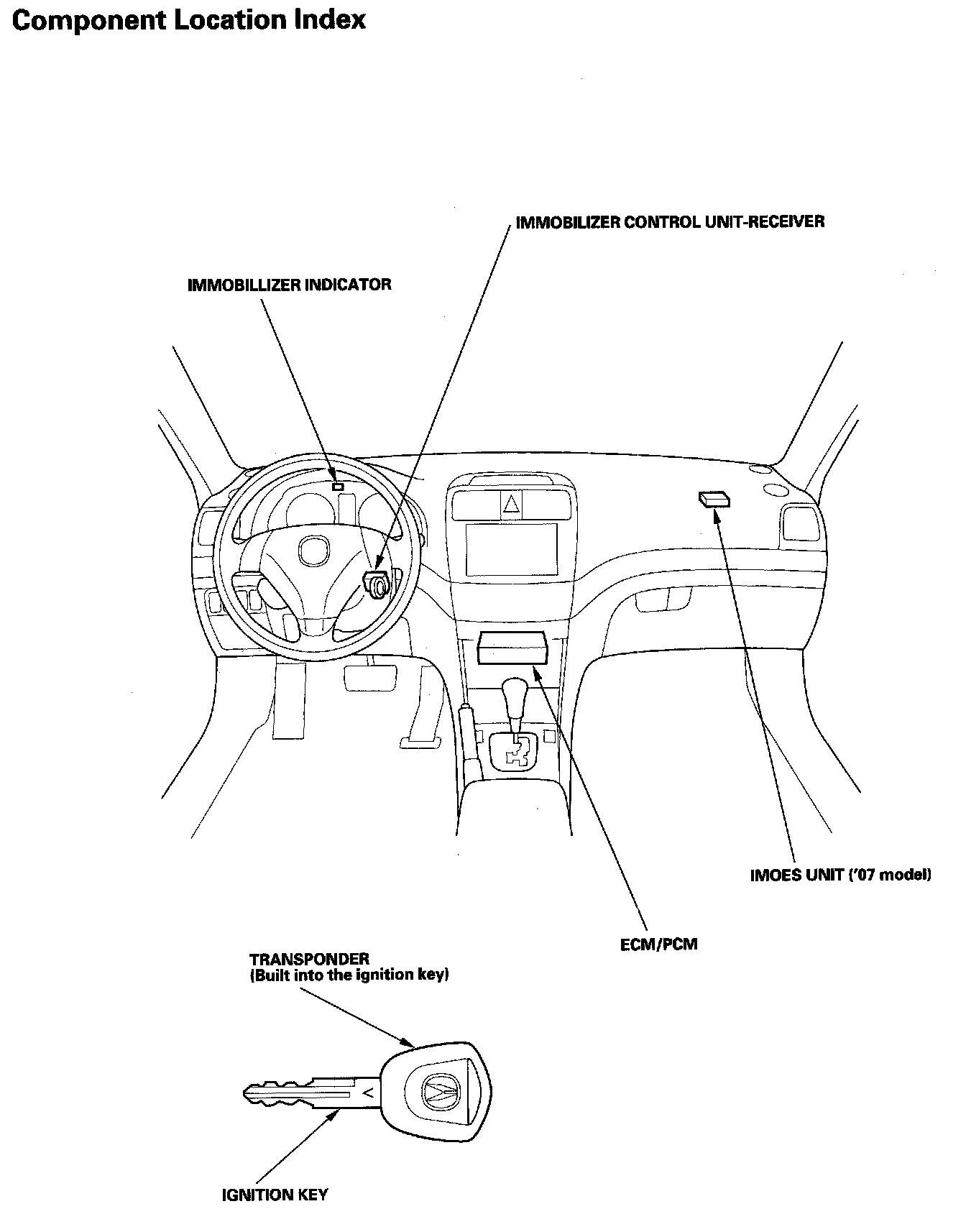

Immobilizer System Component Location Index:

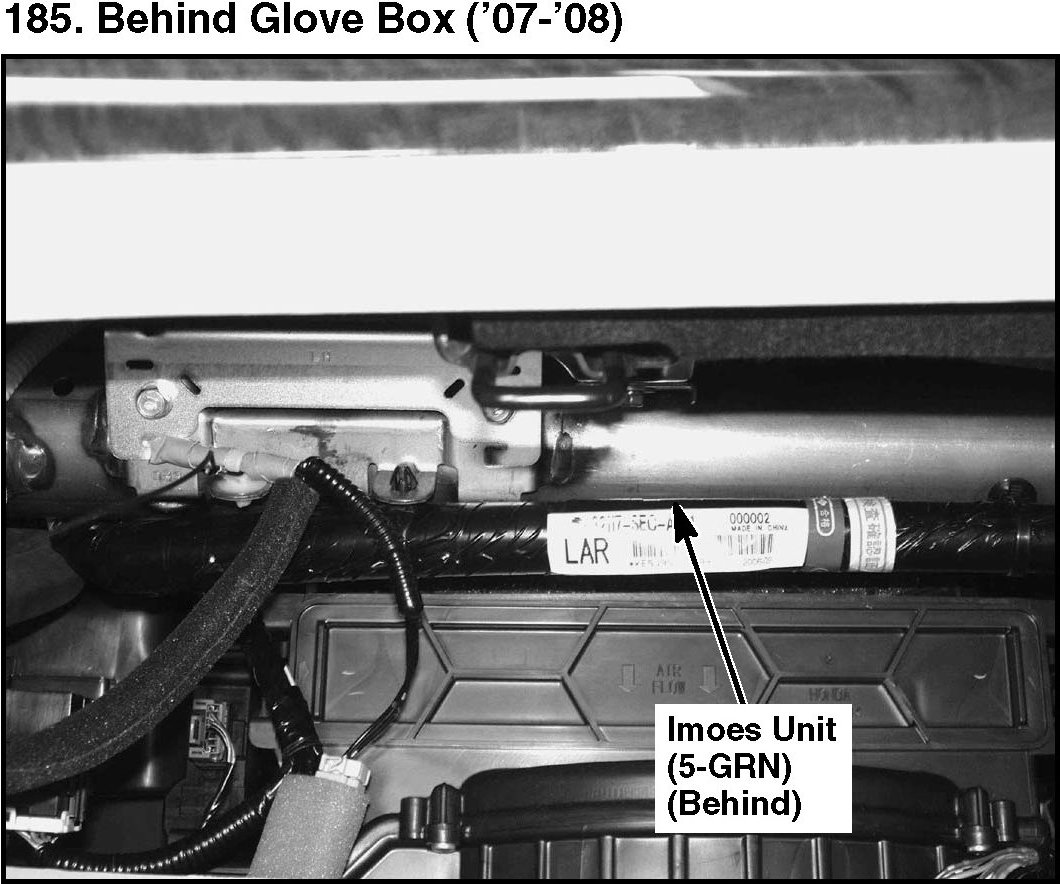

185. Behind Glove Box:

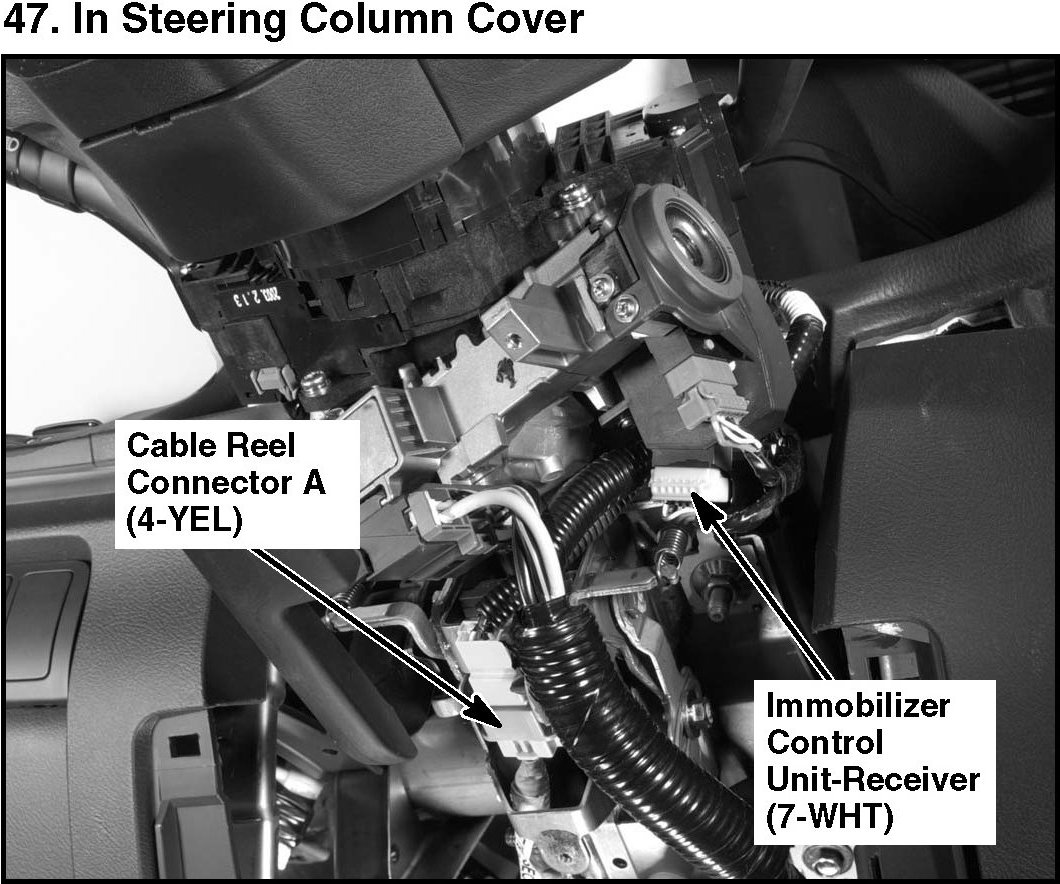

47. In steering Column Cover:
