Navigation Module: Locations

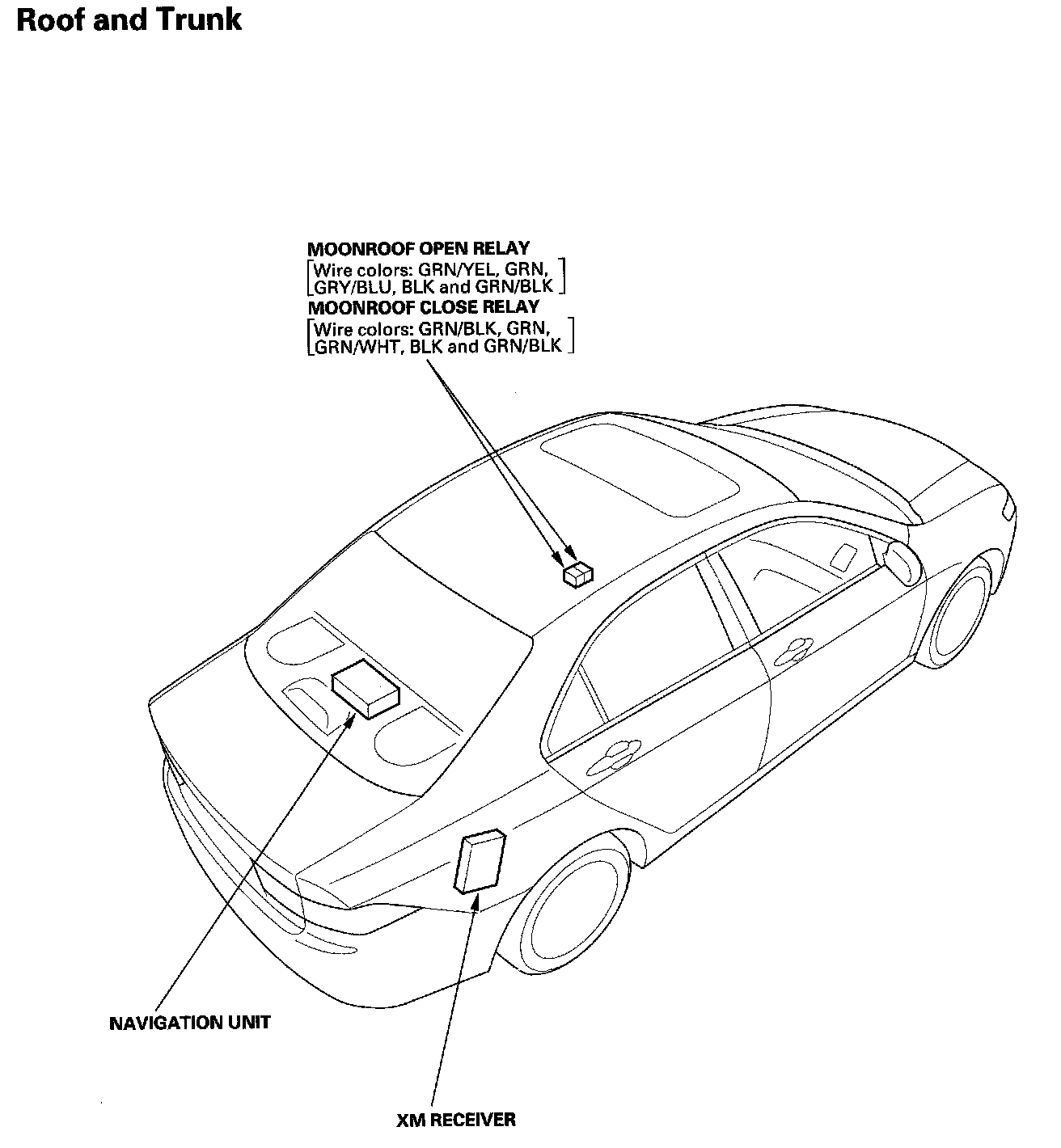

Relay And Control Unit Locations Roof And Trunk:

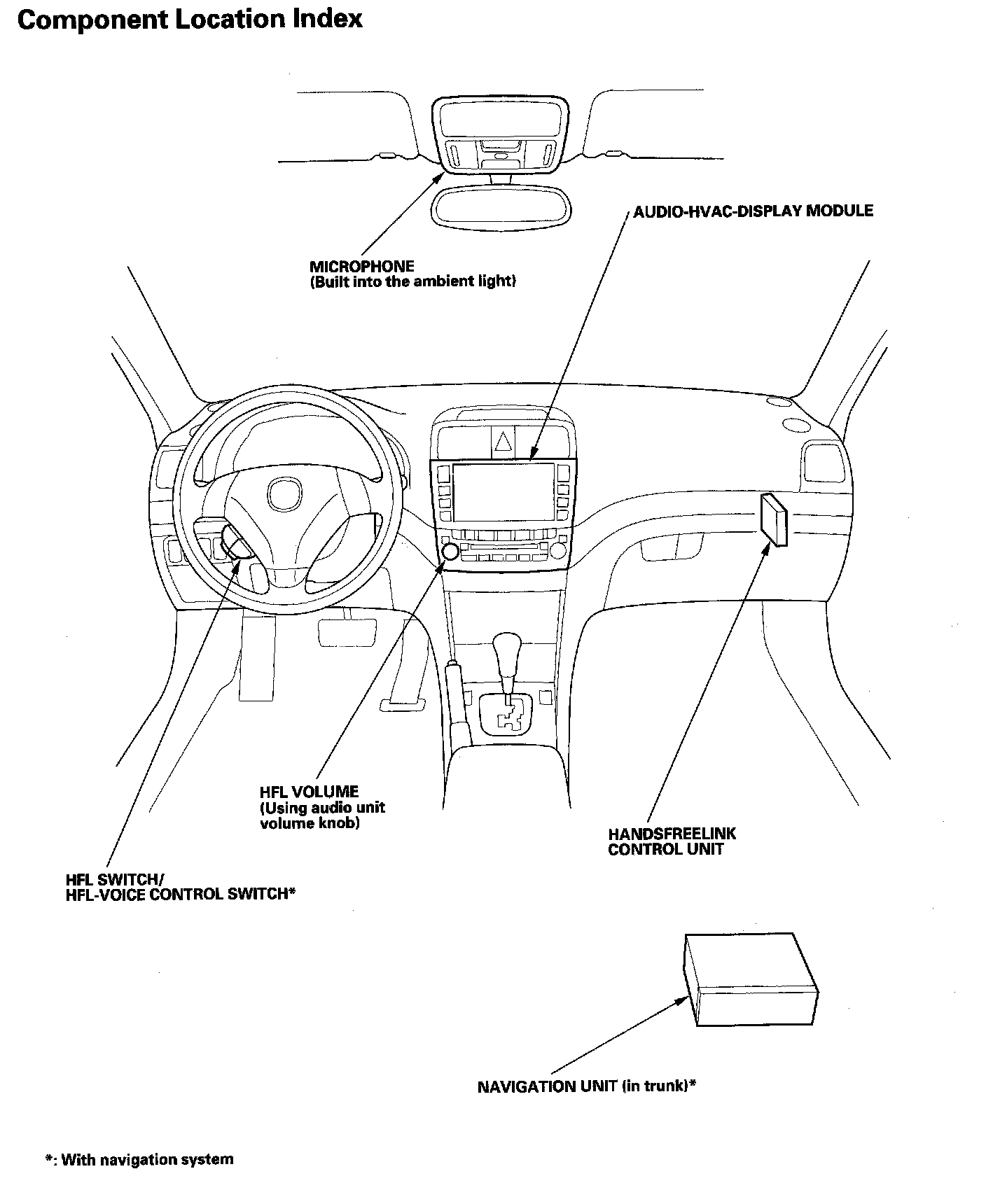

HandsFreeLink System Component Location Index:

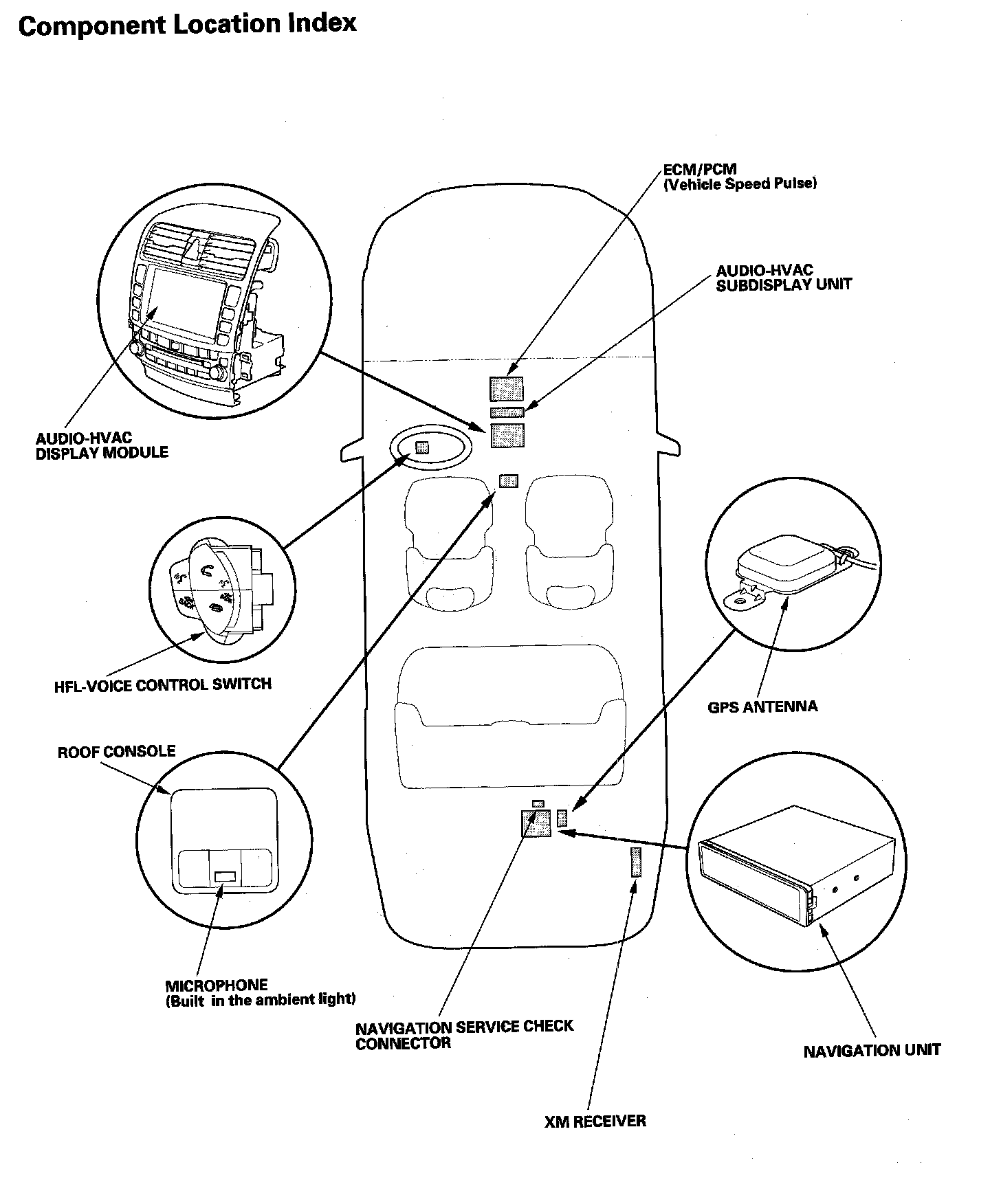

Navigation System Component Location Index:

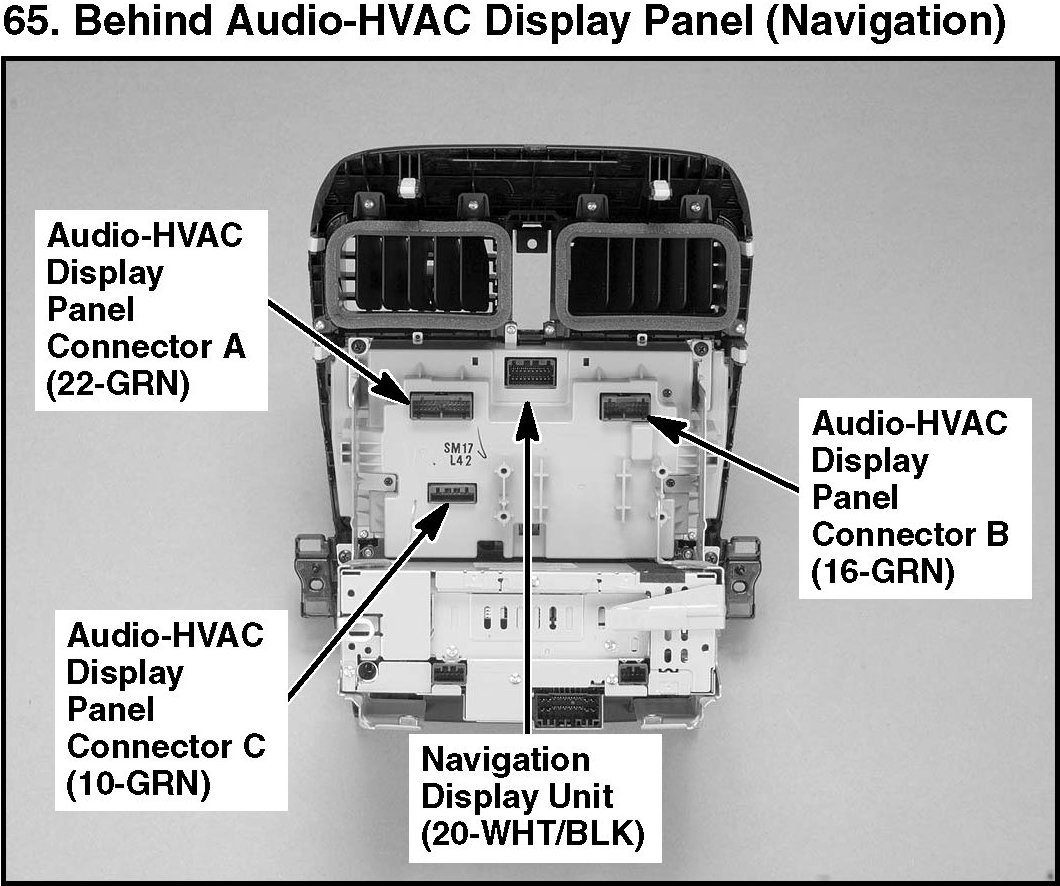

65. Behind Audio-HVAC Display Panel (Navigation):

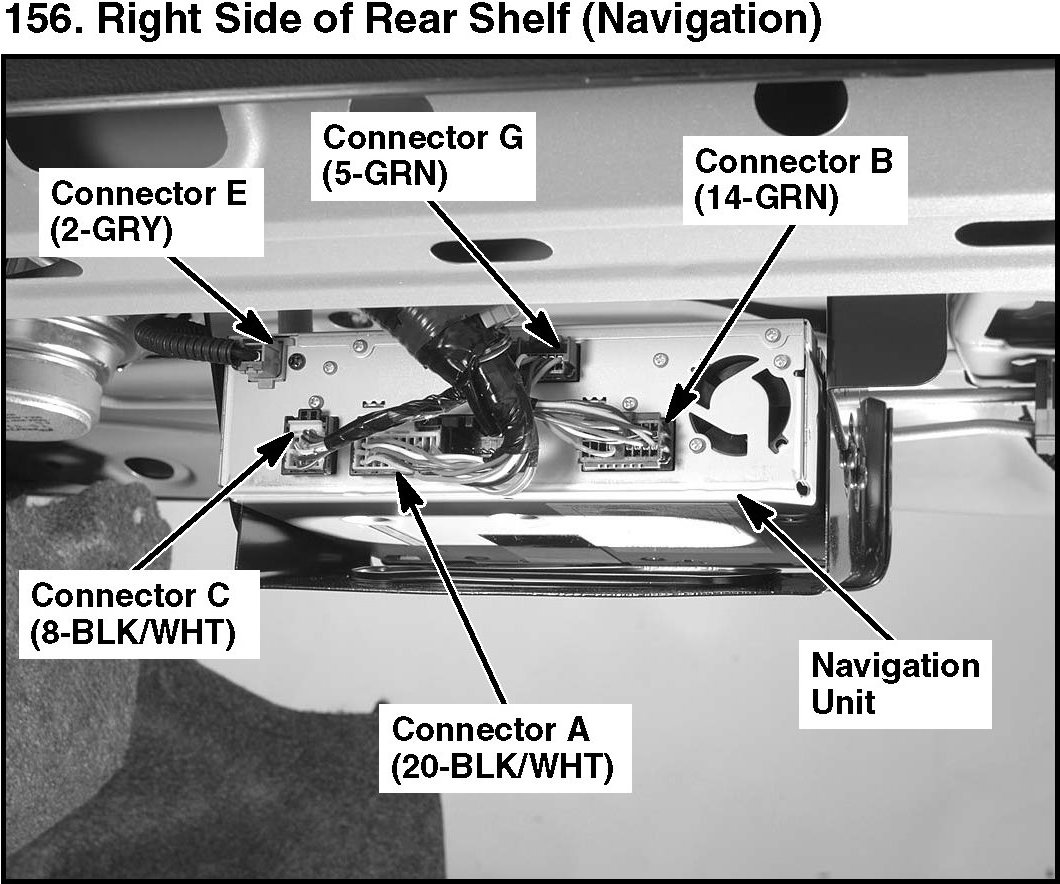

156. Right Side Of Rear Shelf (Navigation):
