Cruise Control Switch: Service and Repair

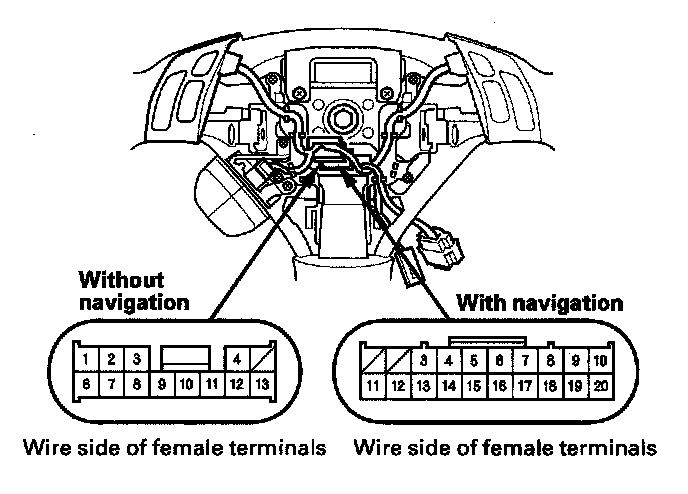

Cruise Control Combination Switch Test/Replacement

'06-07 Models

SRS components are located in this area. Review the SRS component location index and precautions and procedures in the SRS before testing the solenoid.




1. Remove the driver's airbag.

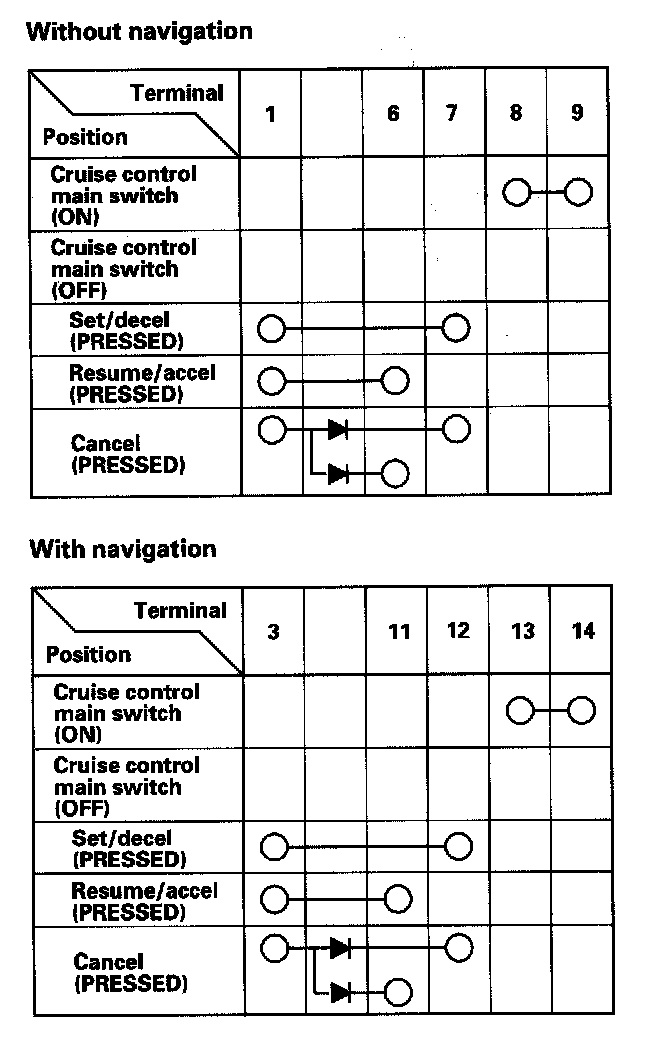

2. Check for continuity between the terminals according to the table.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
