Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Control Module
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

Electronic Throttle Control Module

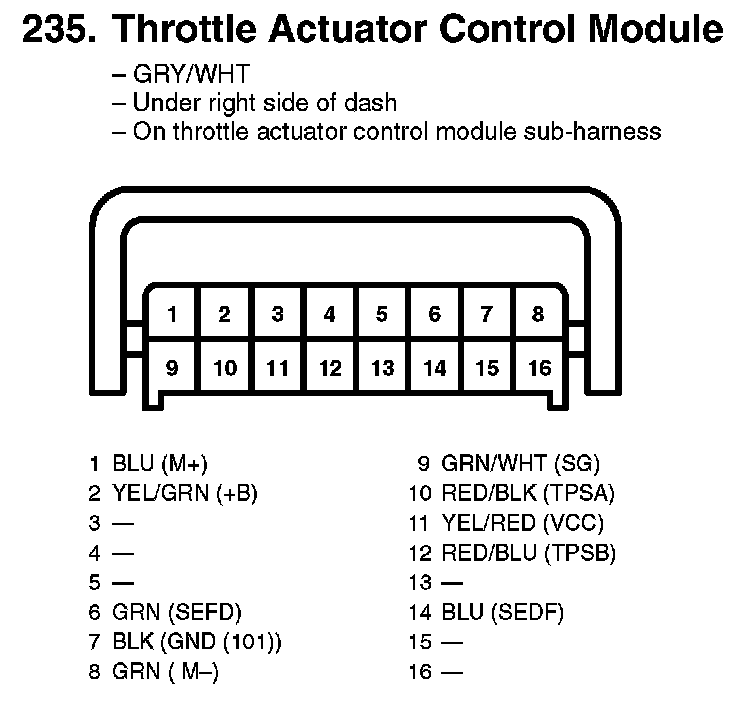

235. Throttle Actuator Control Module:
