Fuse Block

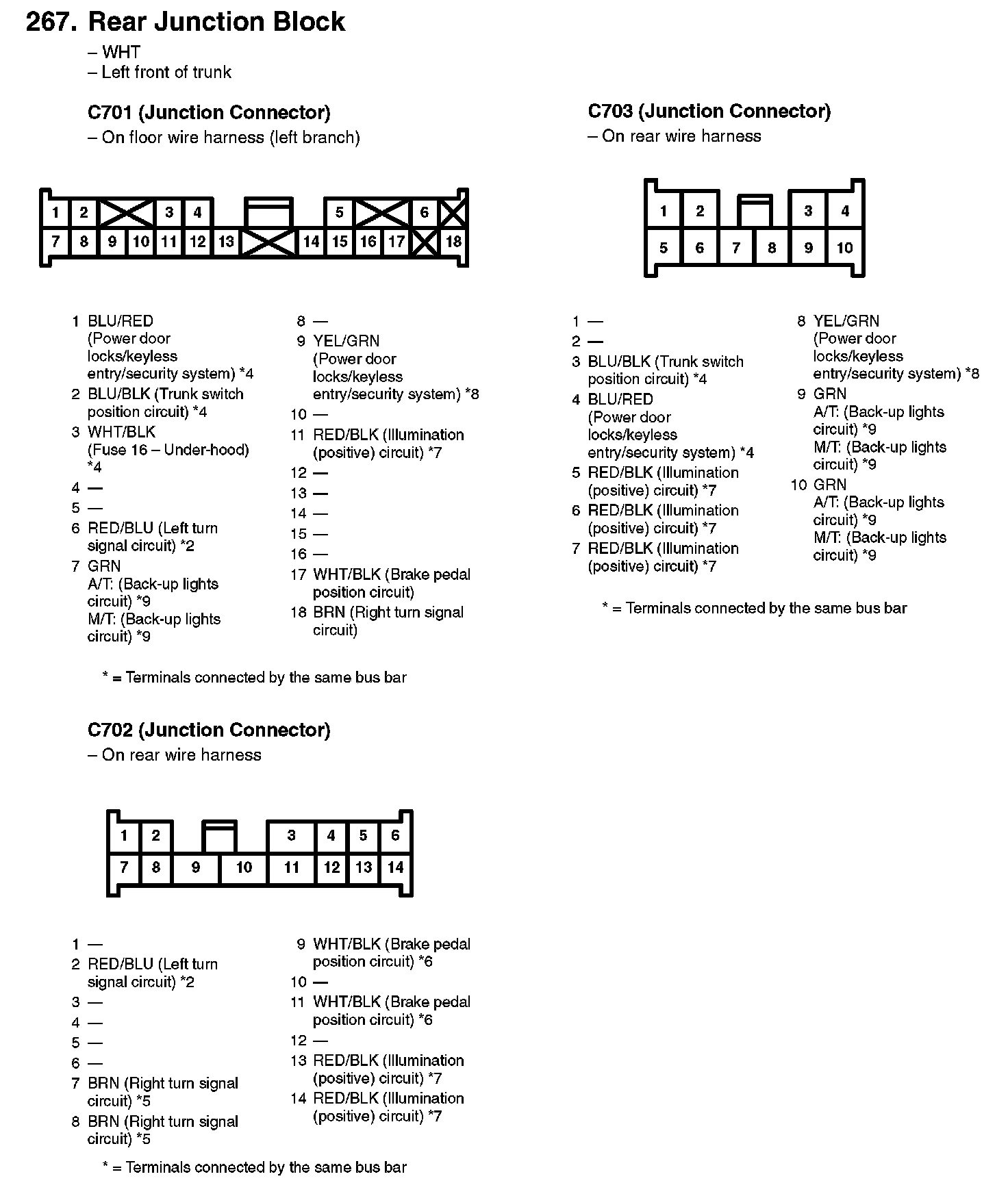

267. Rear Junction Block:

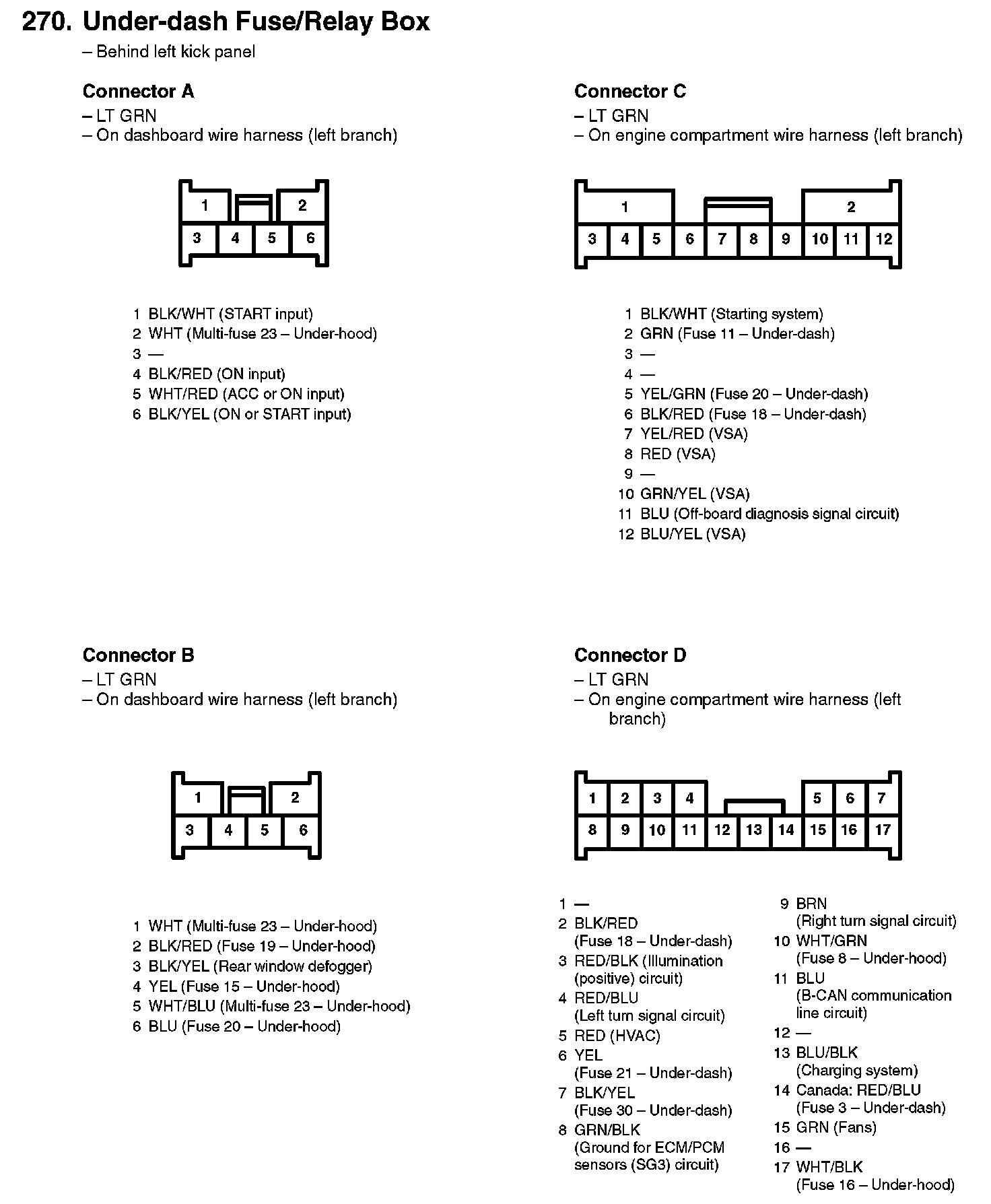

270. Under-dash Fuse/Relay Box:

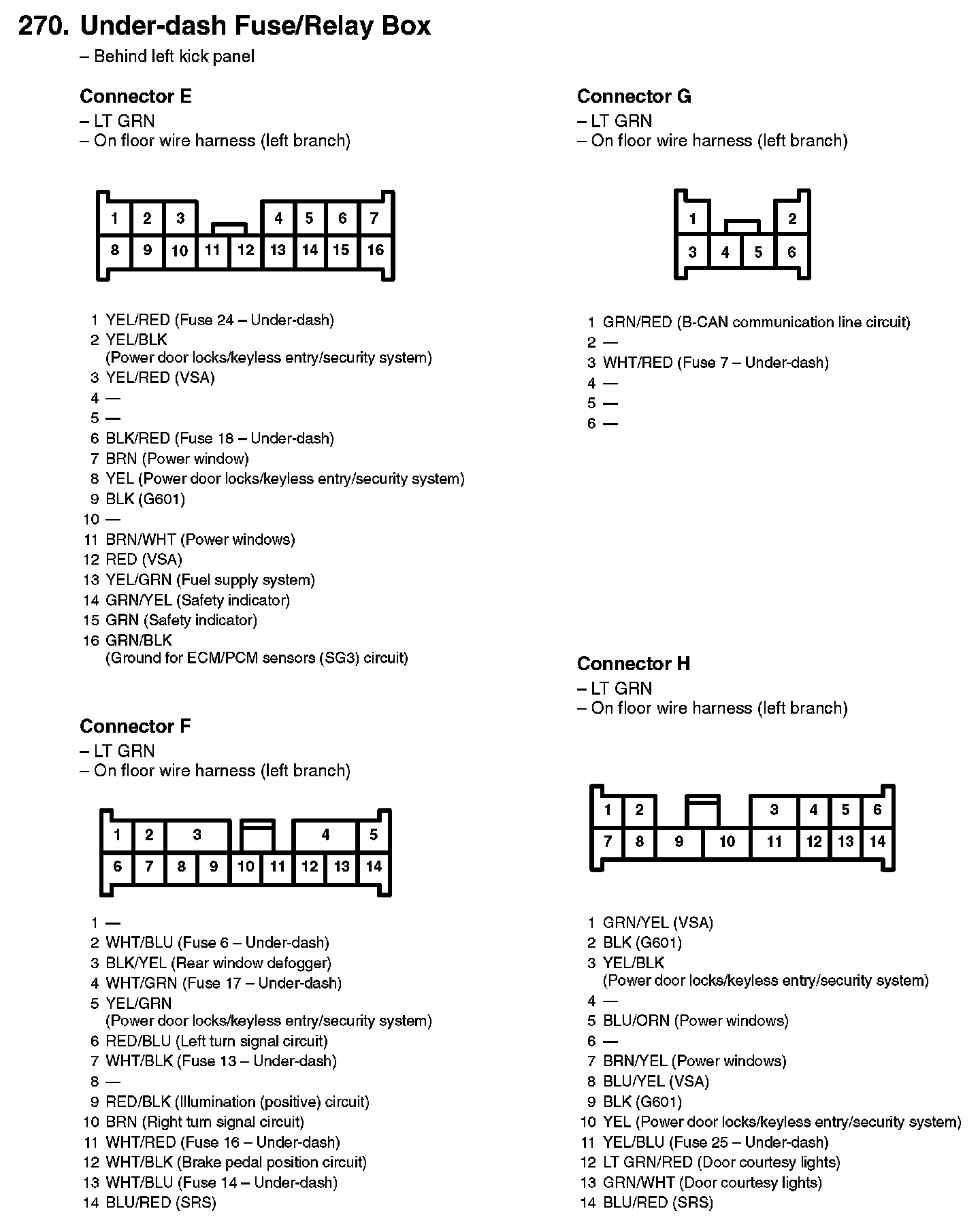

270. Under-dash Fuse/Relay Box:

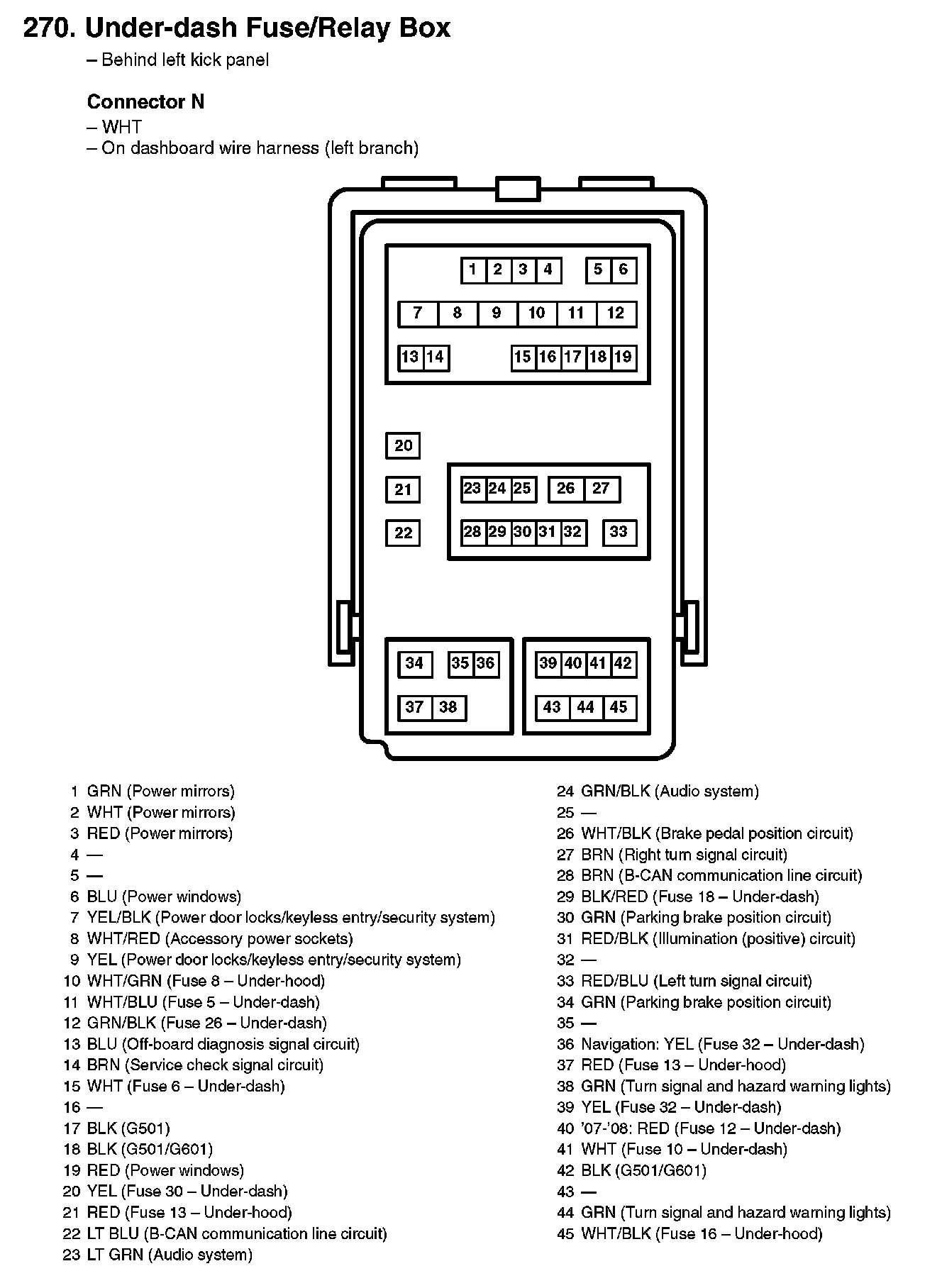

270. Under-dash Fuse/Relay Box:

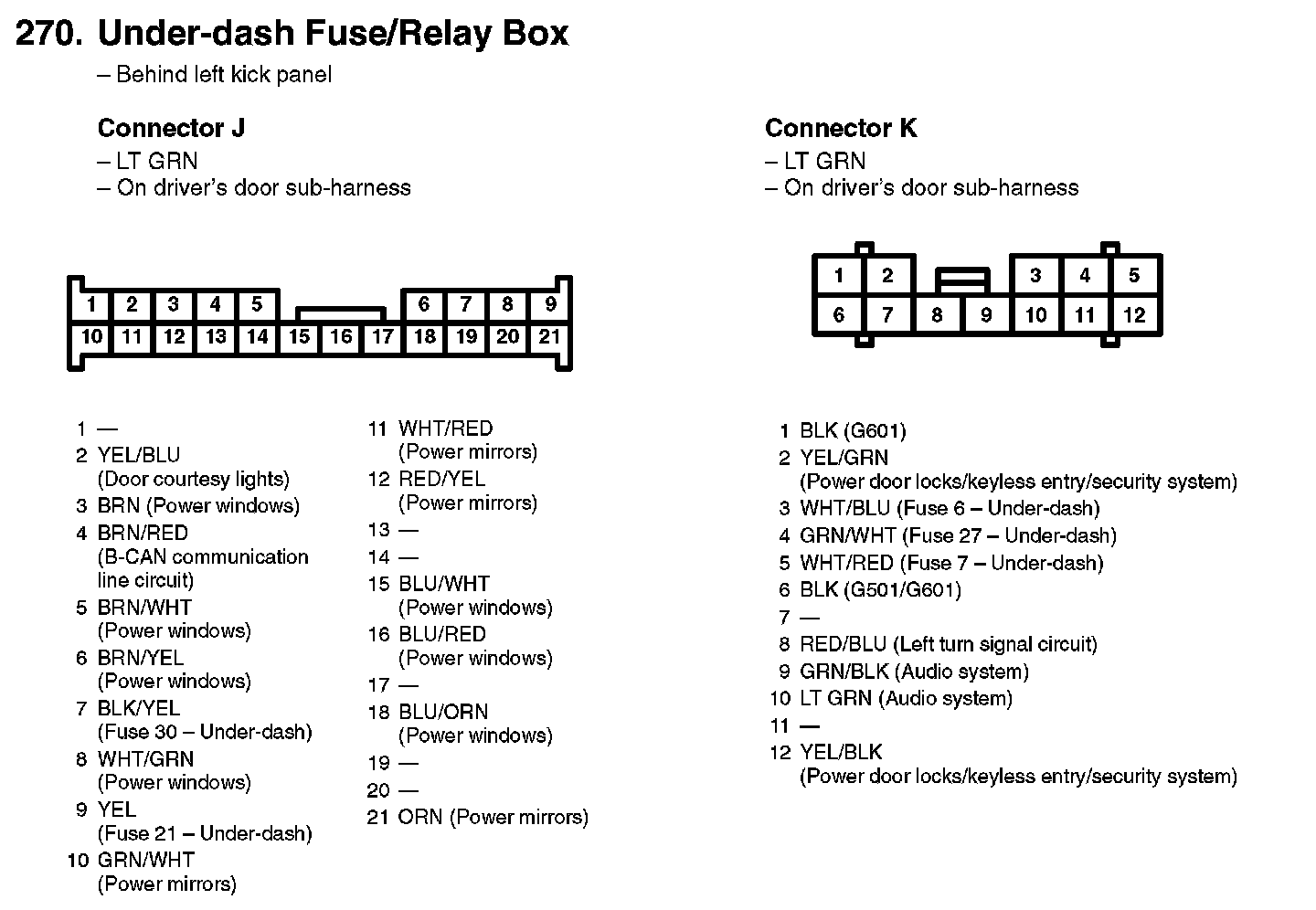

270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:

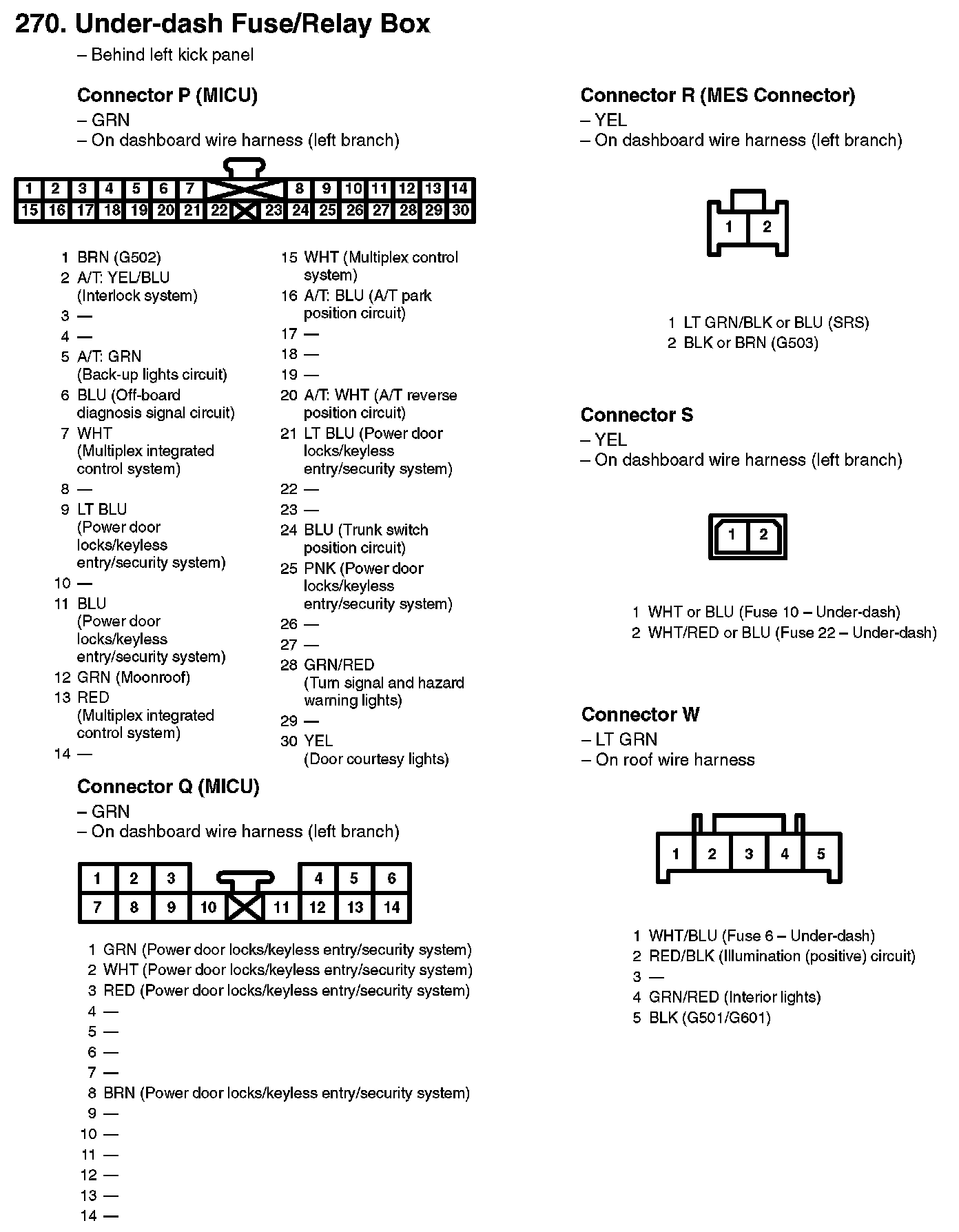

270. Under-dash Fuse/Relay Box:

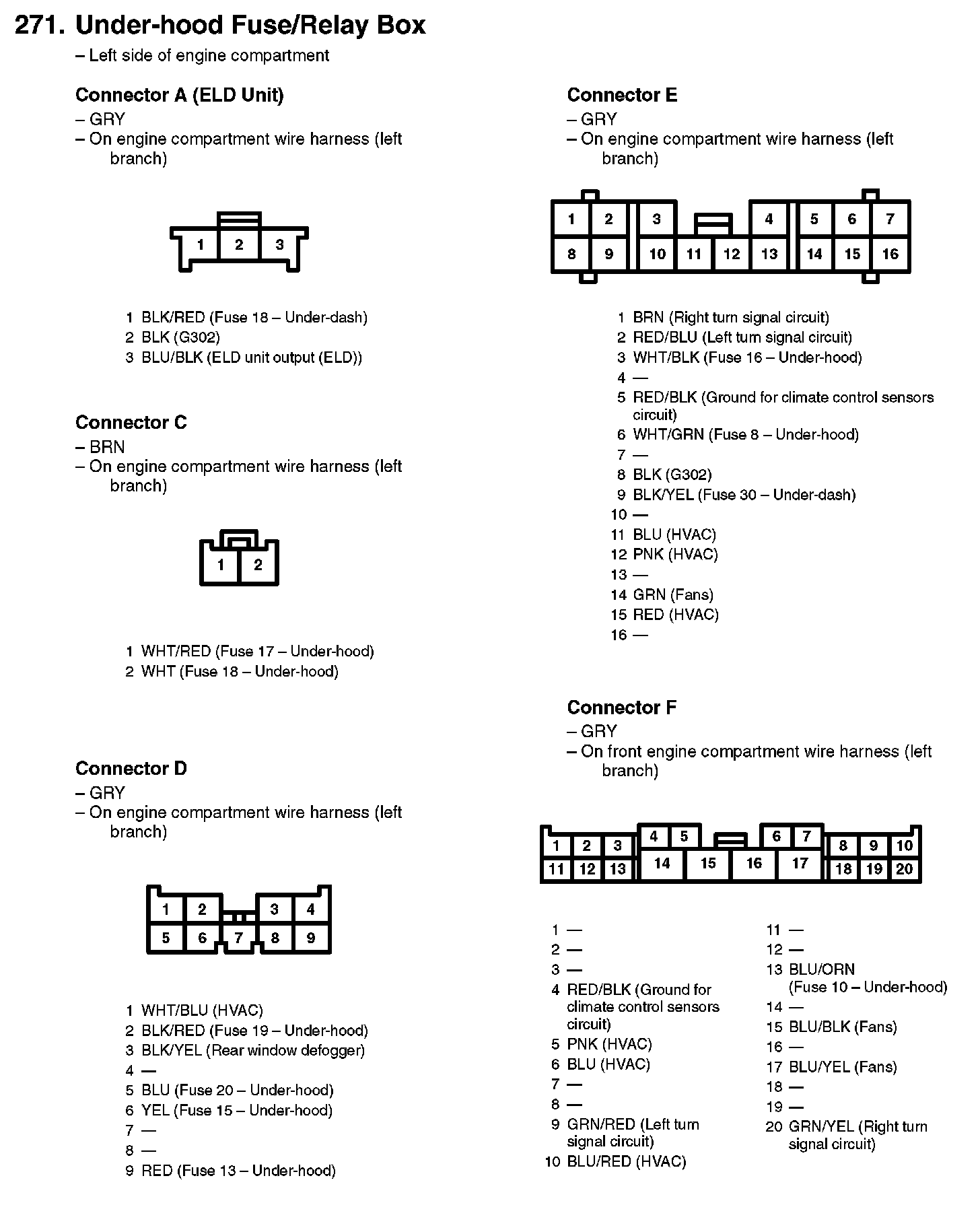

271. Under-hood Fuse/Relay Box:

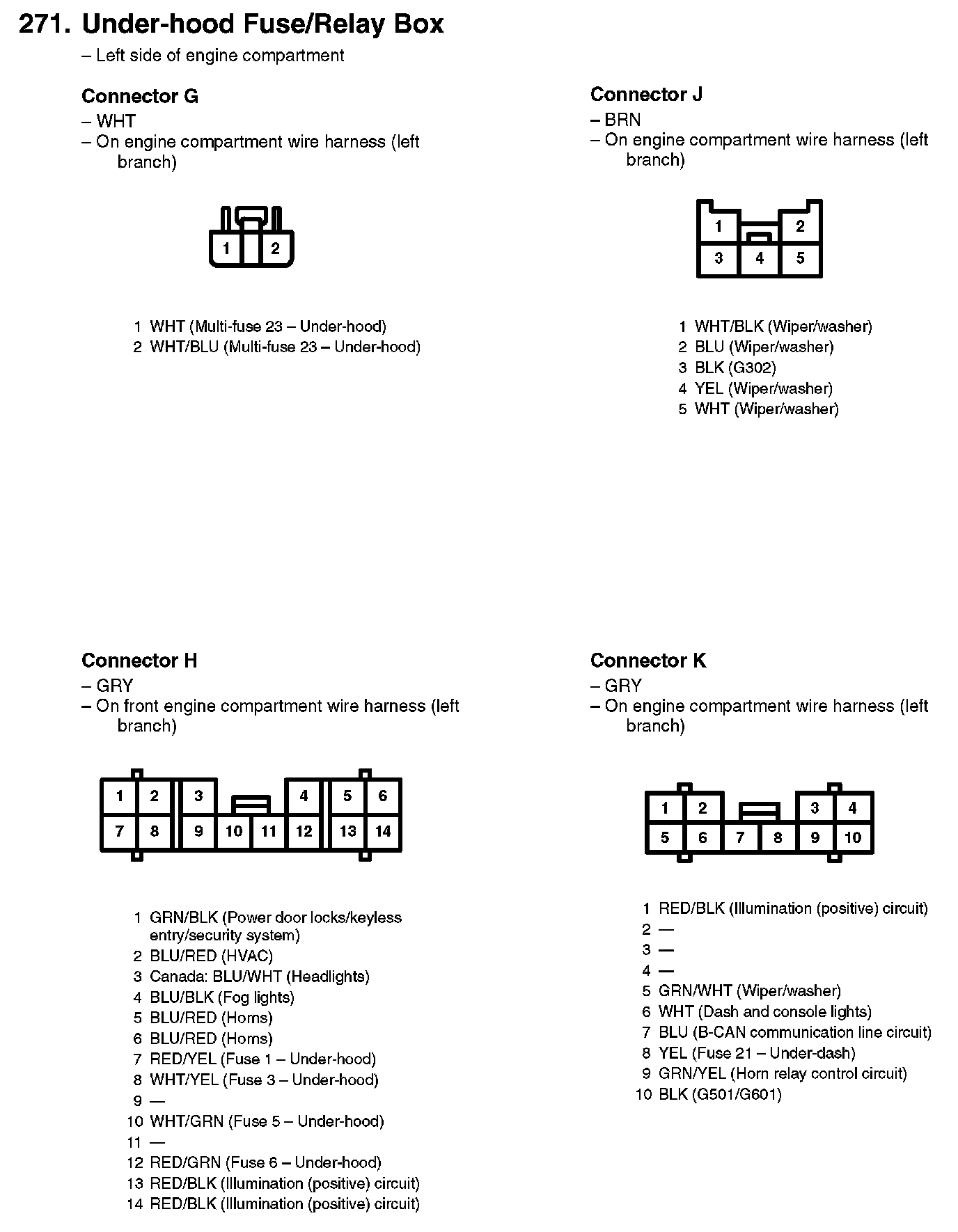

271. Under-hood Fuse/Relay Box:
