Navigation Unit Inputs and Outputs

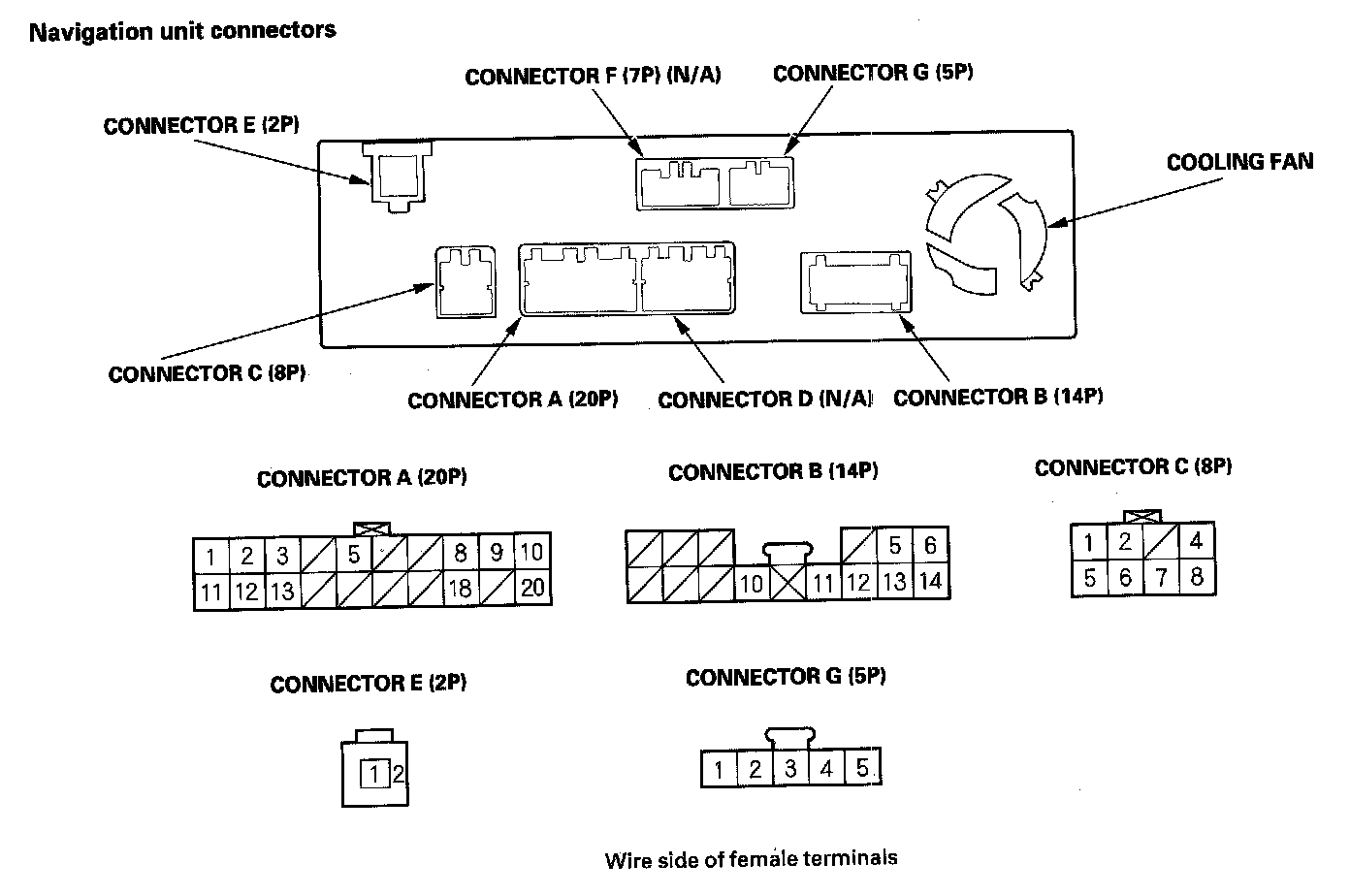

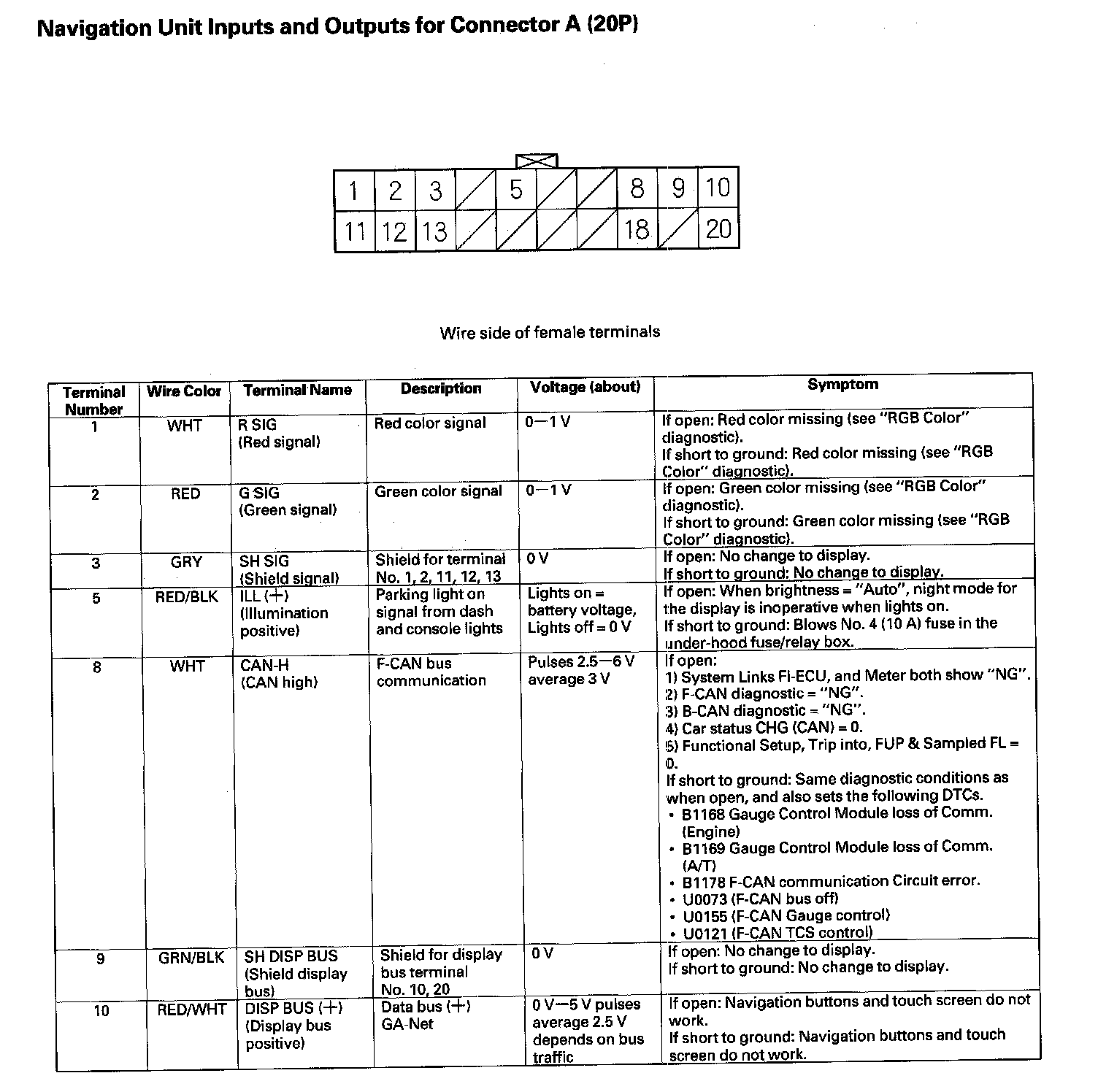

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:
Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

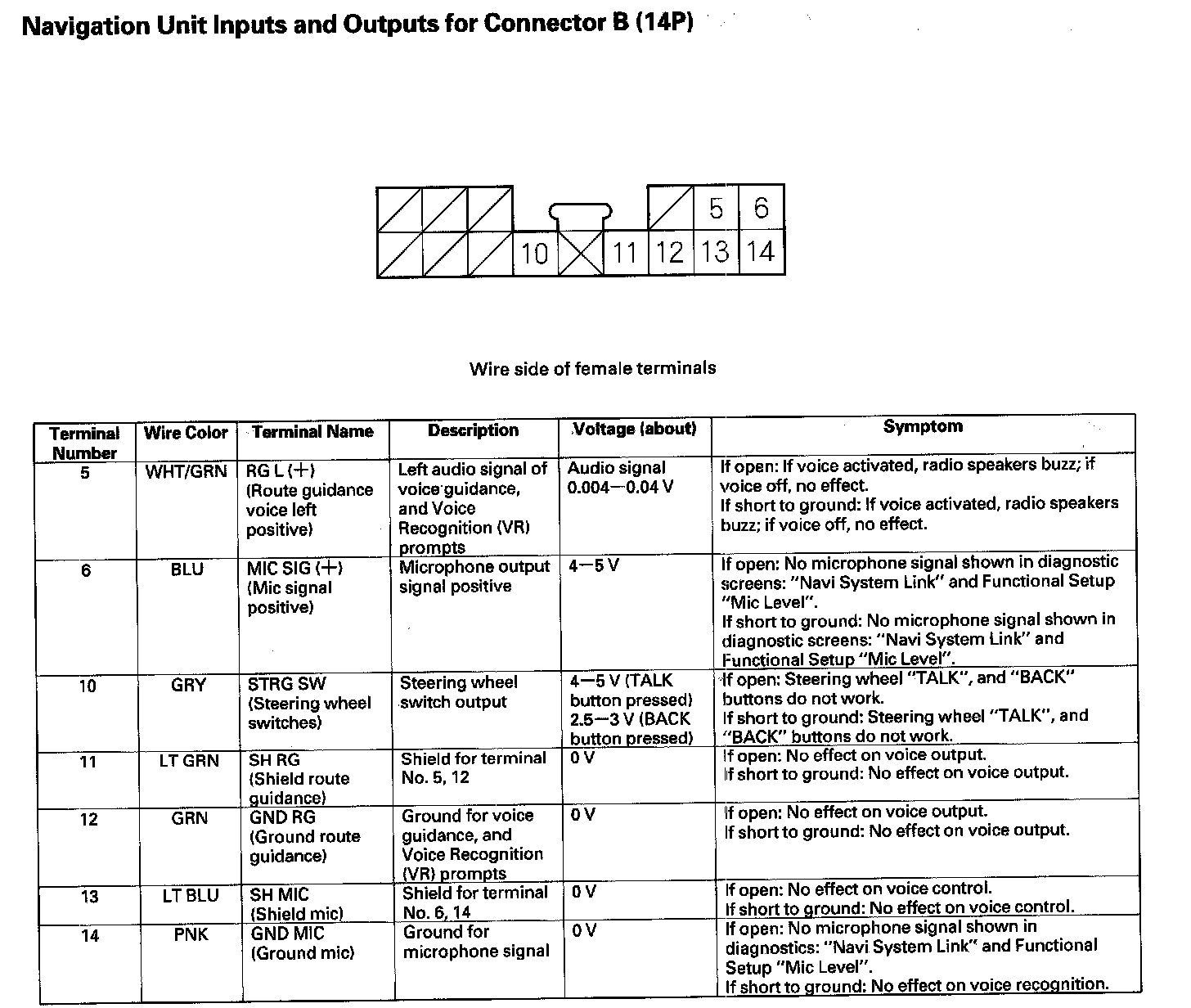

Navigation Unit Inputs And Outputs For Connector B (14P):

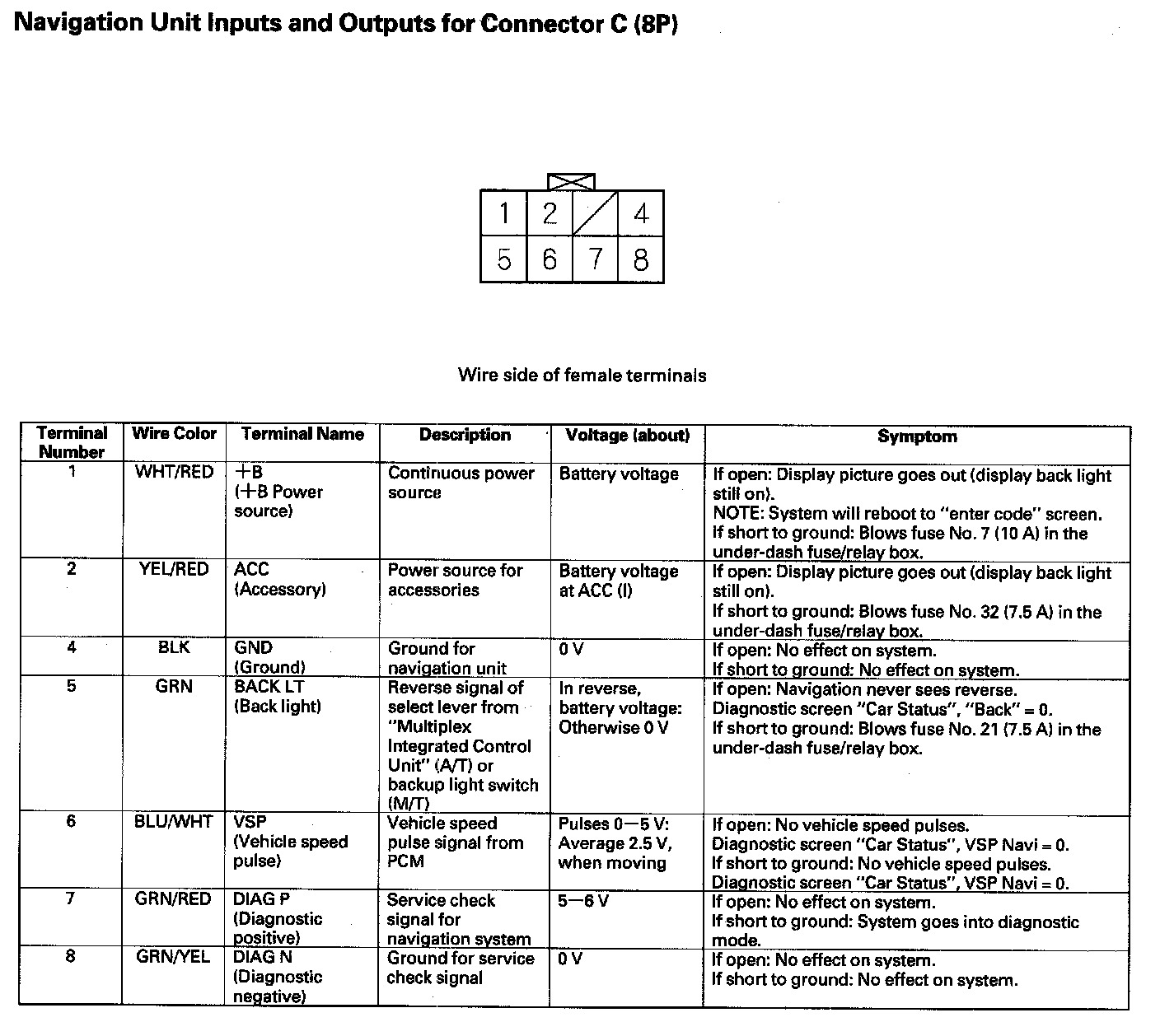

Navigation Unit Inputs And Outputs For Connector C (8P):

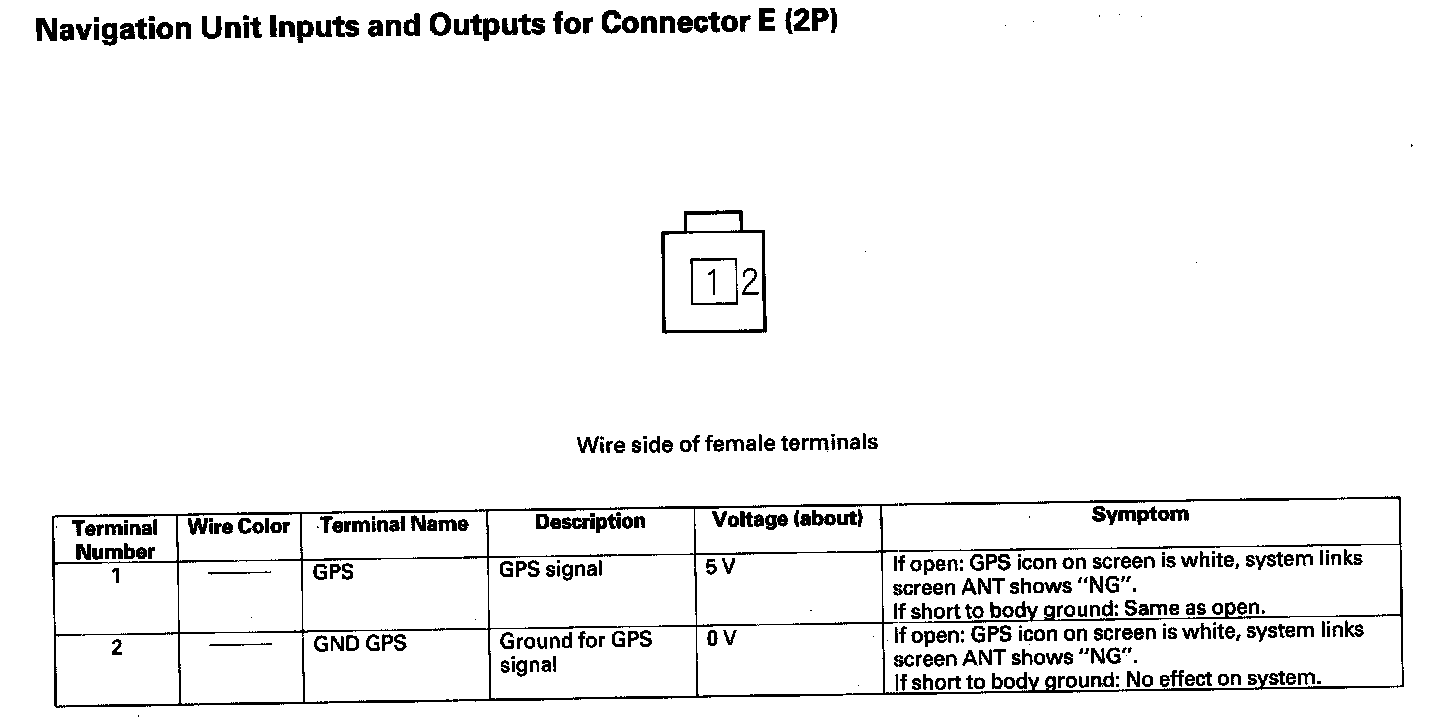

Navigation Unit Inputs And Outputs For Connector E (2P):

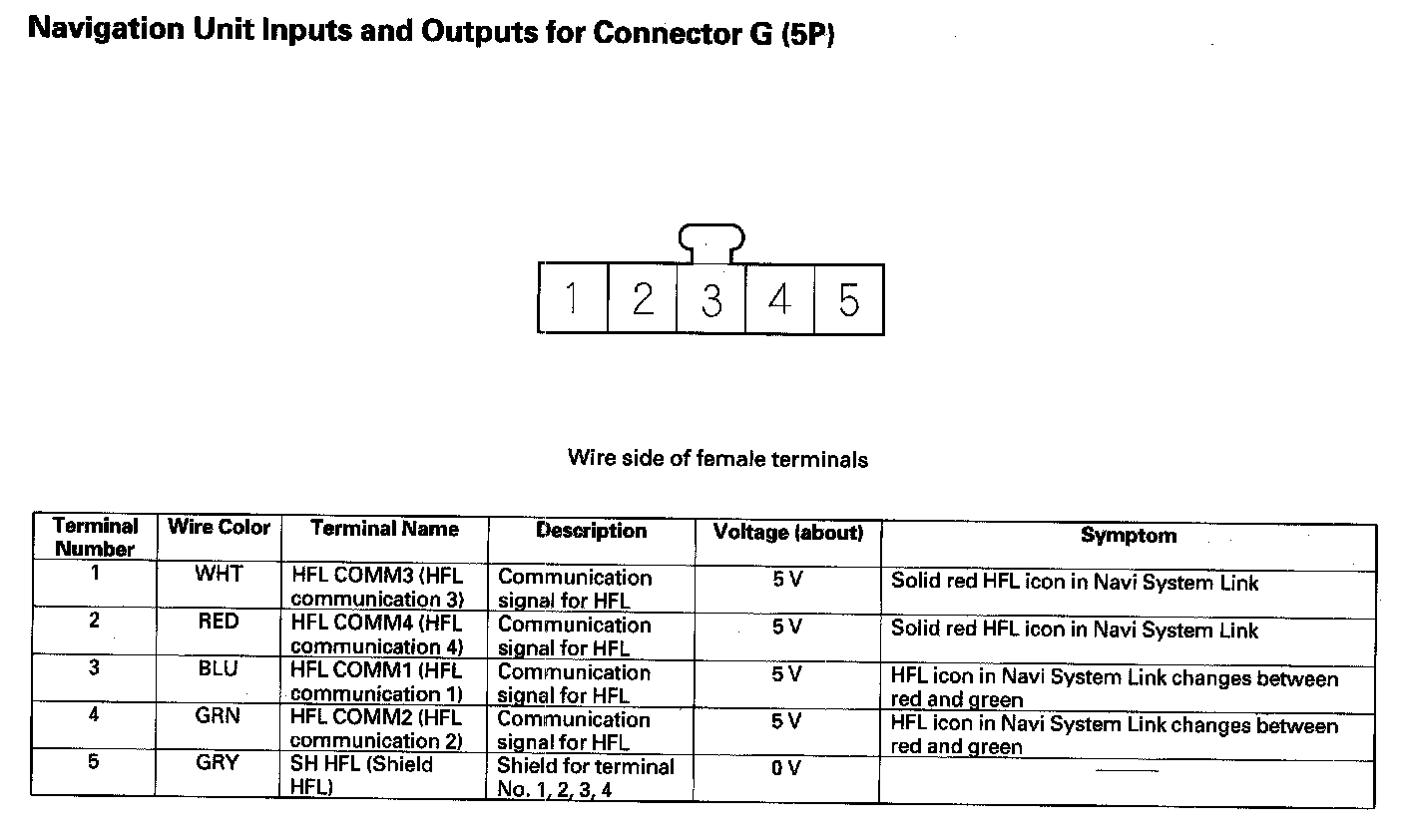

Navigation Unit Inputs And Outputs For Connector G (5P):

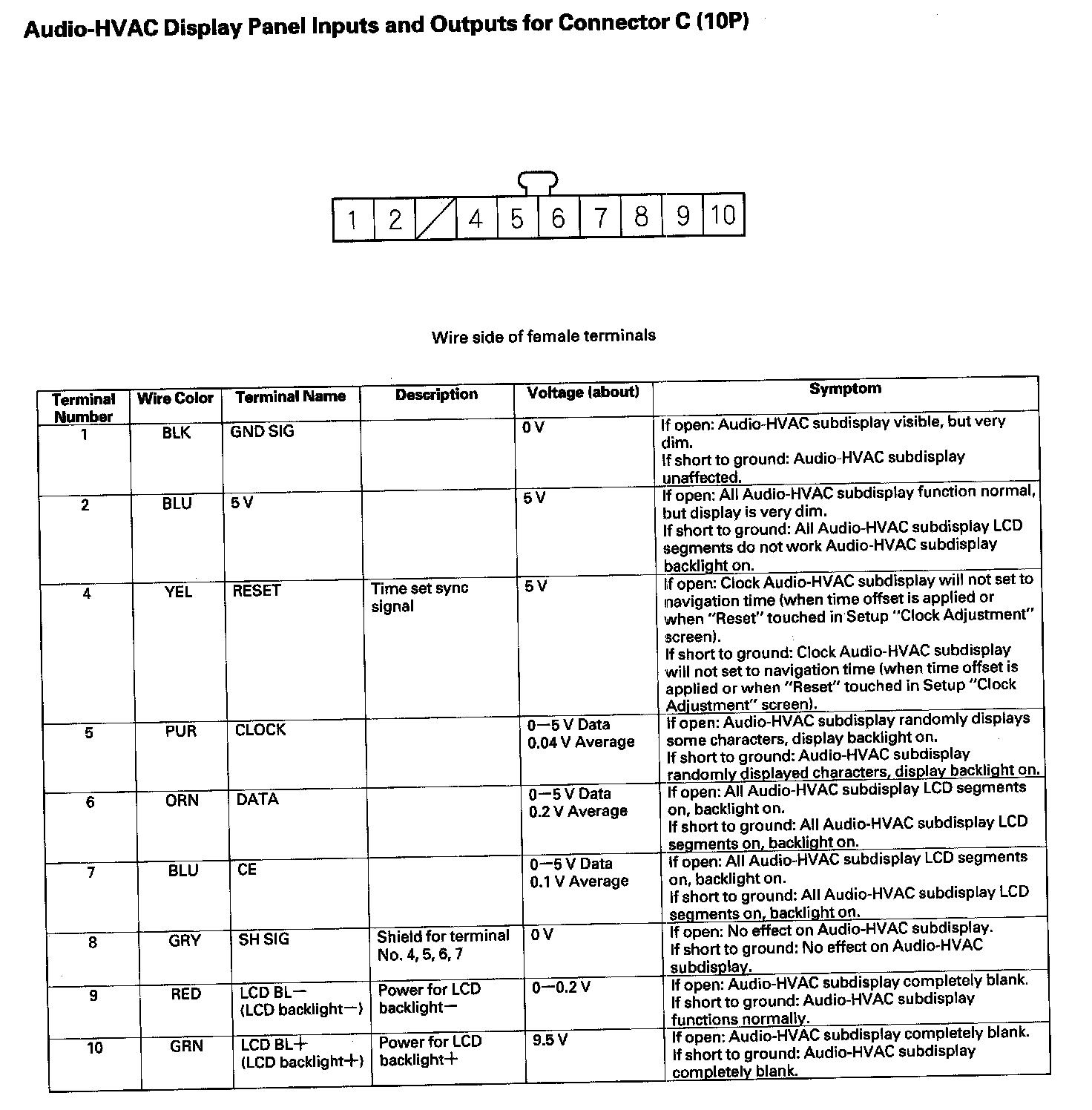

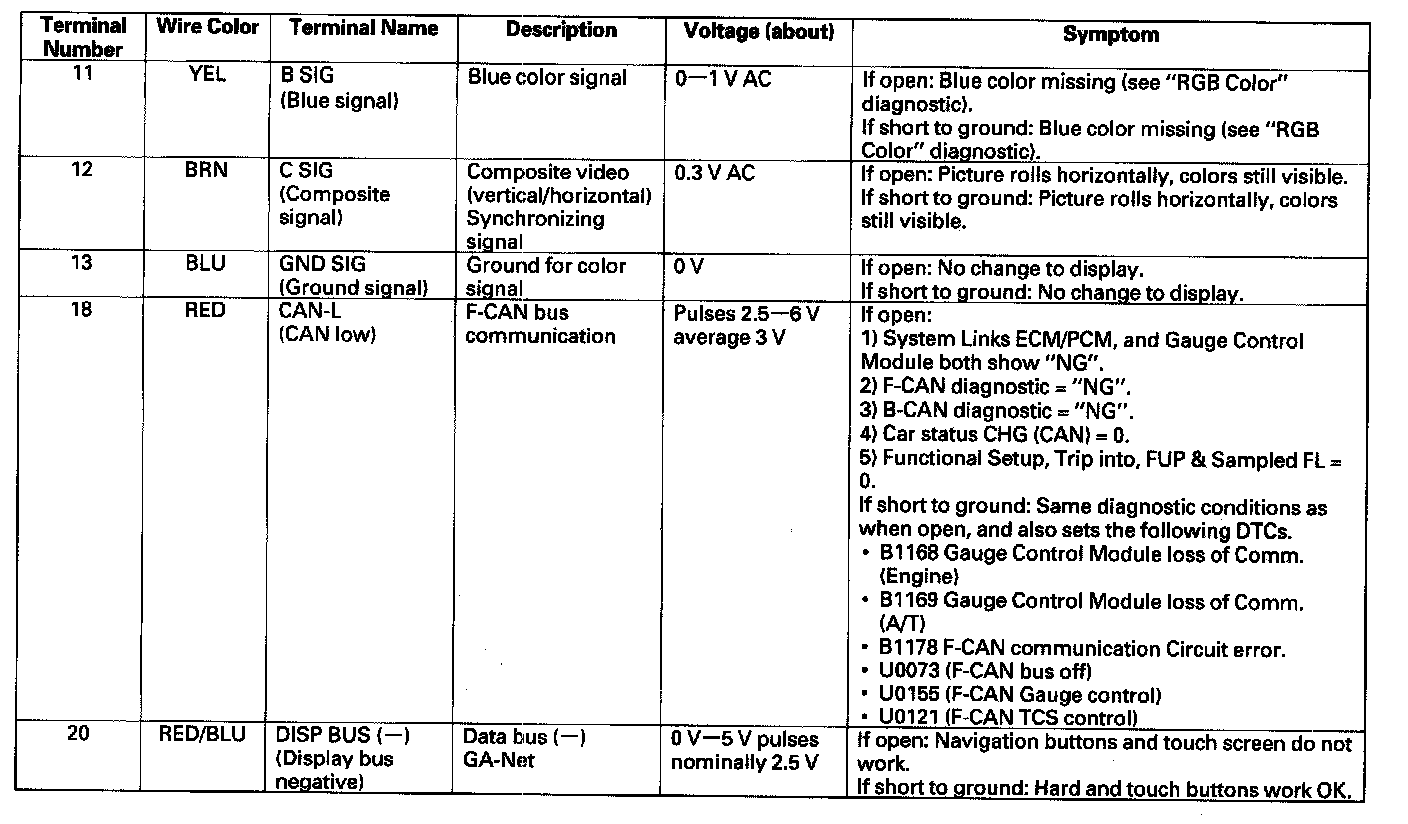

Audio-HVAC Display Panel Inputs And Outputs For Connector C (10P):

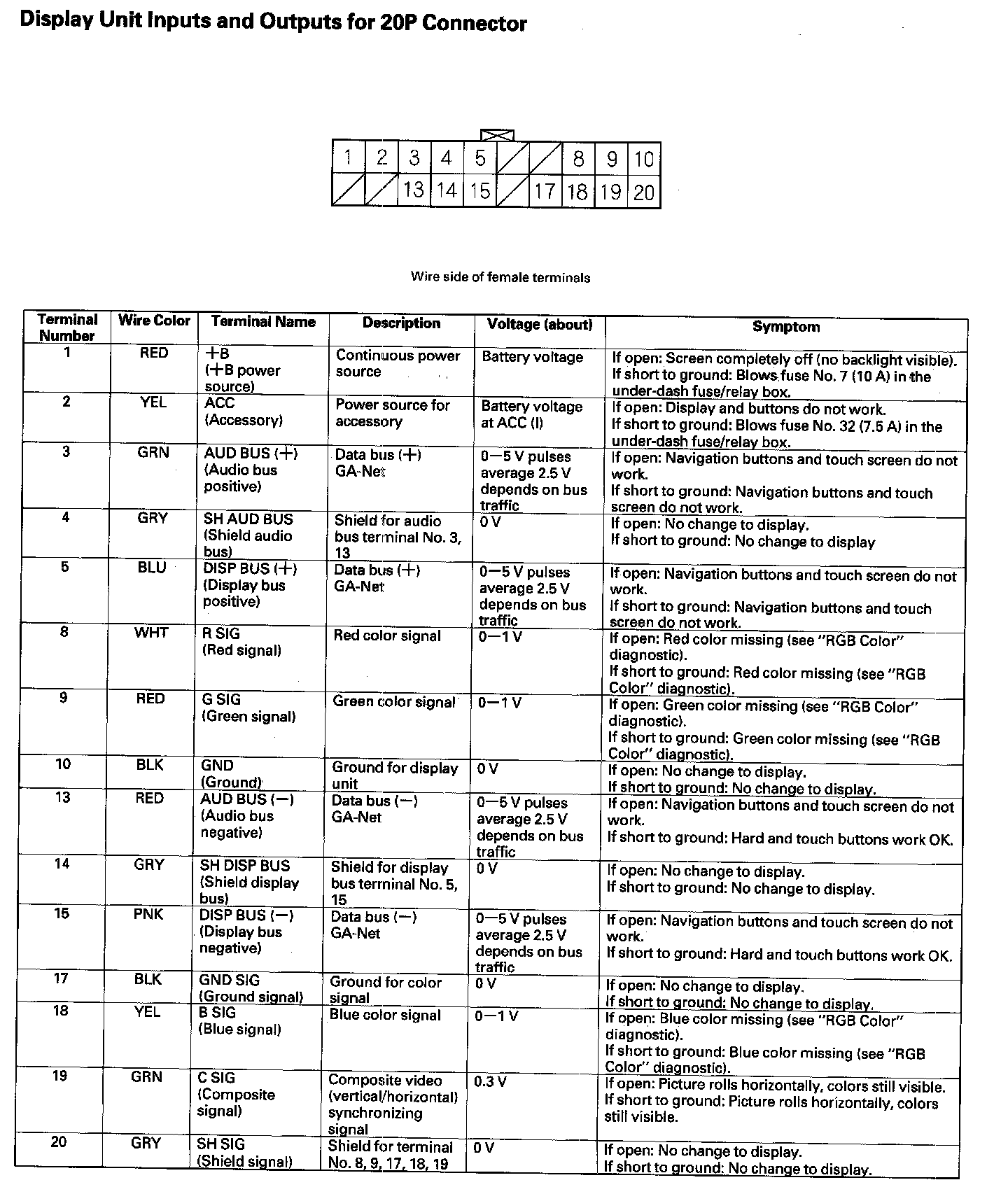

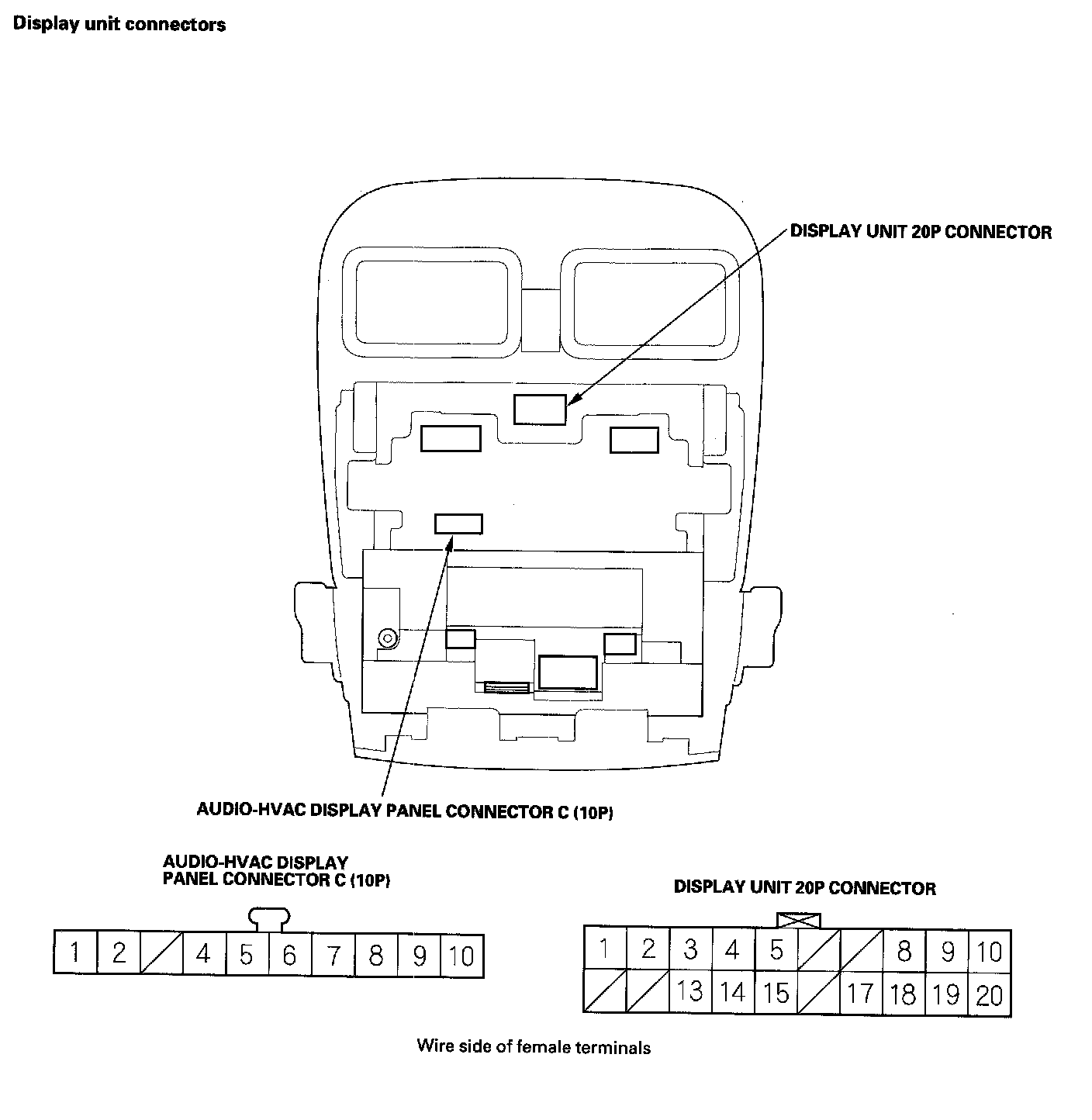

Display Unit Inputs And Outputs For 20P Connector:

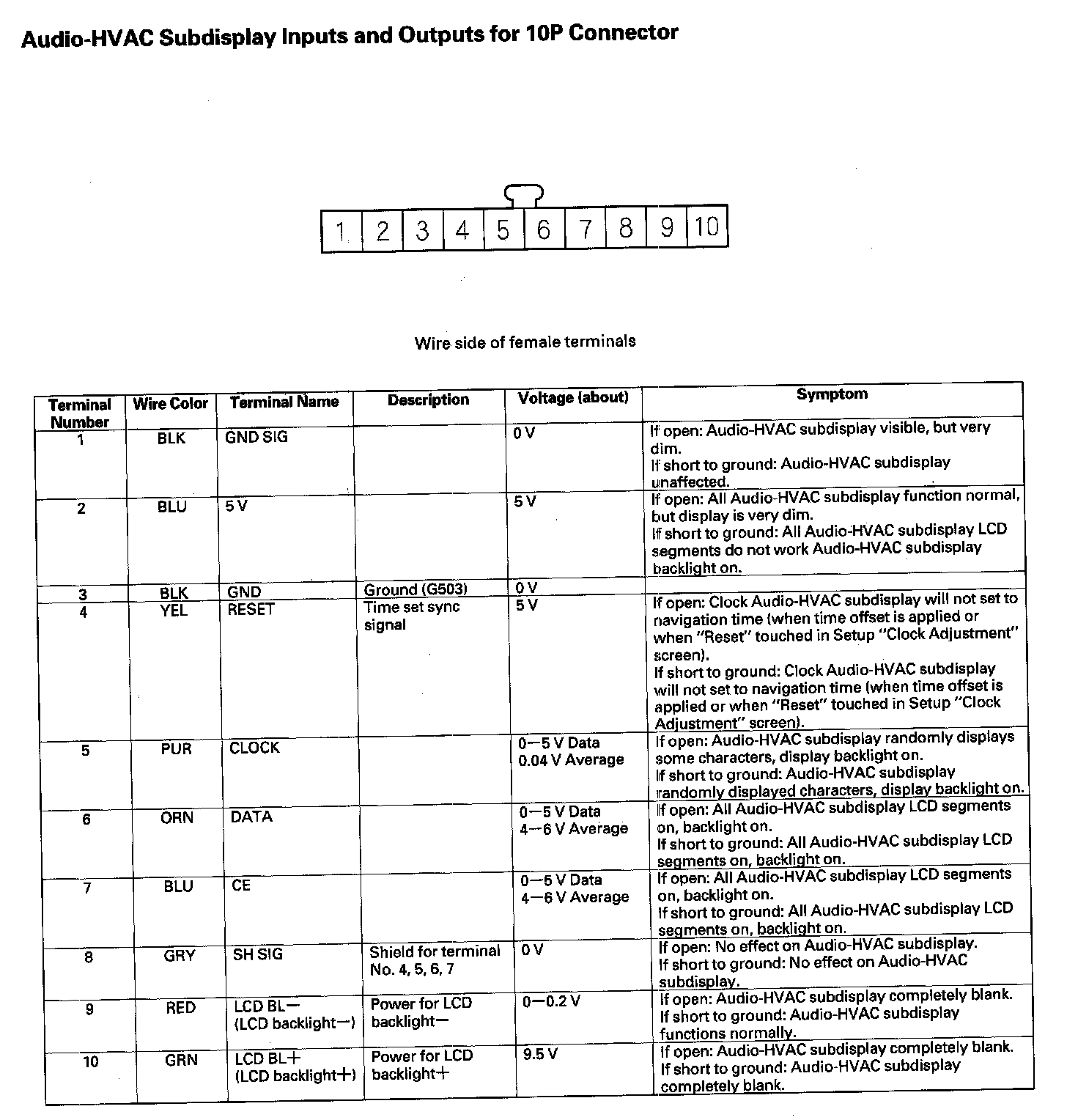

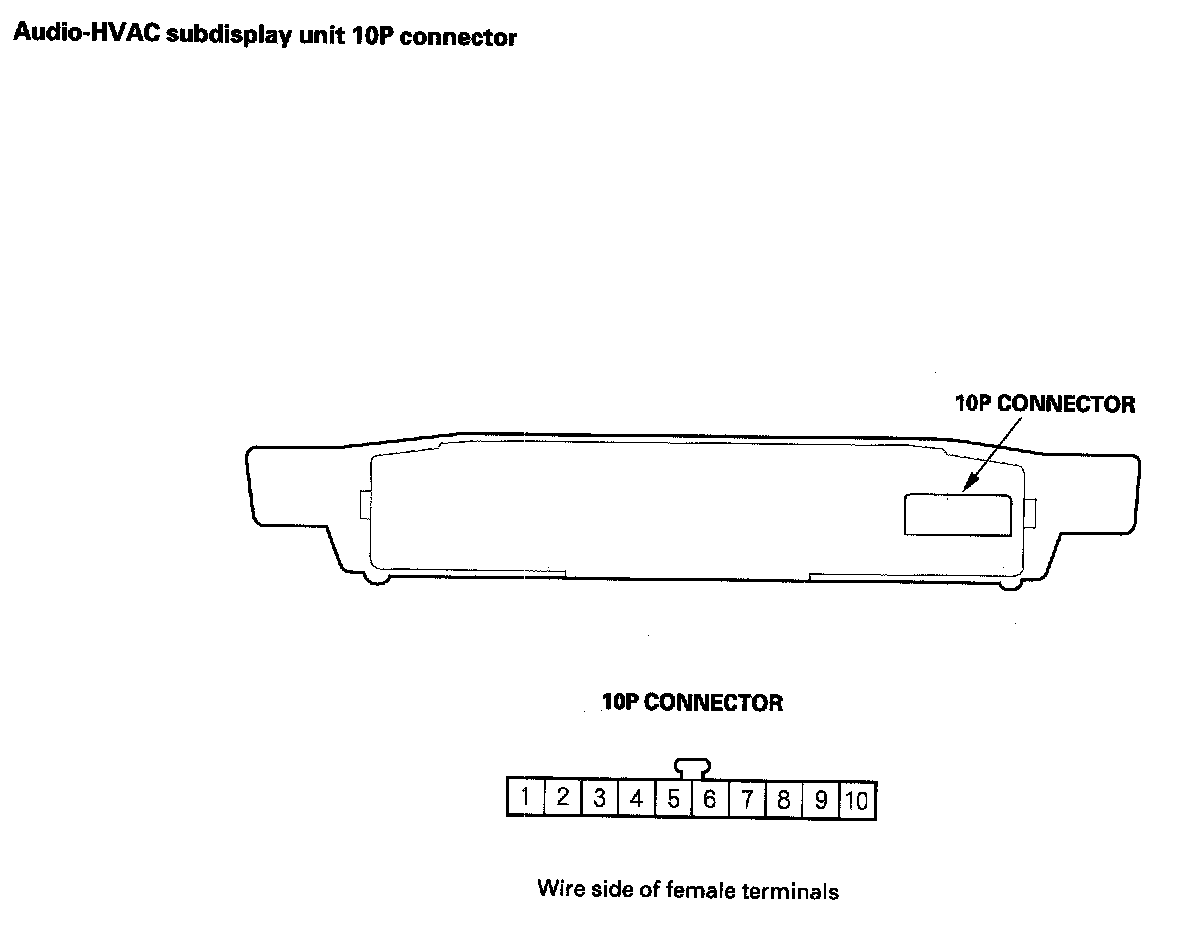

Audio-HVAC Subdispaly Inputs And Outputs For 10P Connector:
Navigation System Circuit Diagram Part 3:
Navigation System Circuit Diagram Part 4:
Navigation System Circuit Diagram Part 5:
