Relay Box

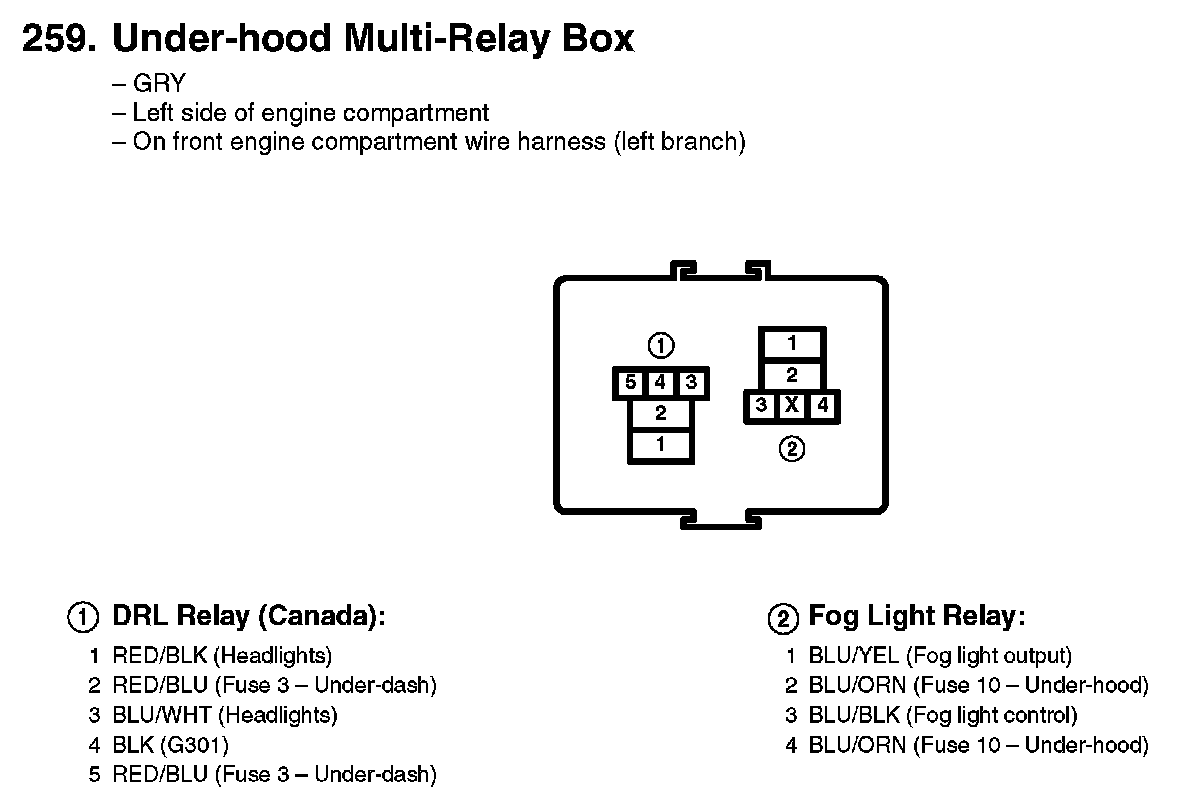

259. Under-hood Multi-Relay Box:



270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:



271. Under-hood Fuse/Relay Box:



271. Under-hood Fuse/Relay Box:
