VTEC/VTC Component

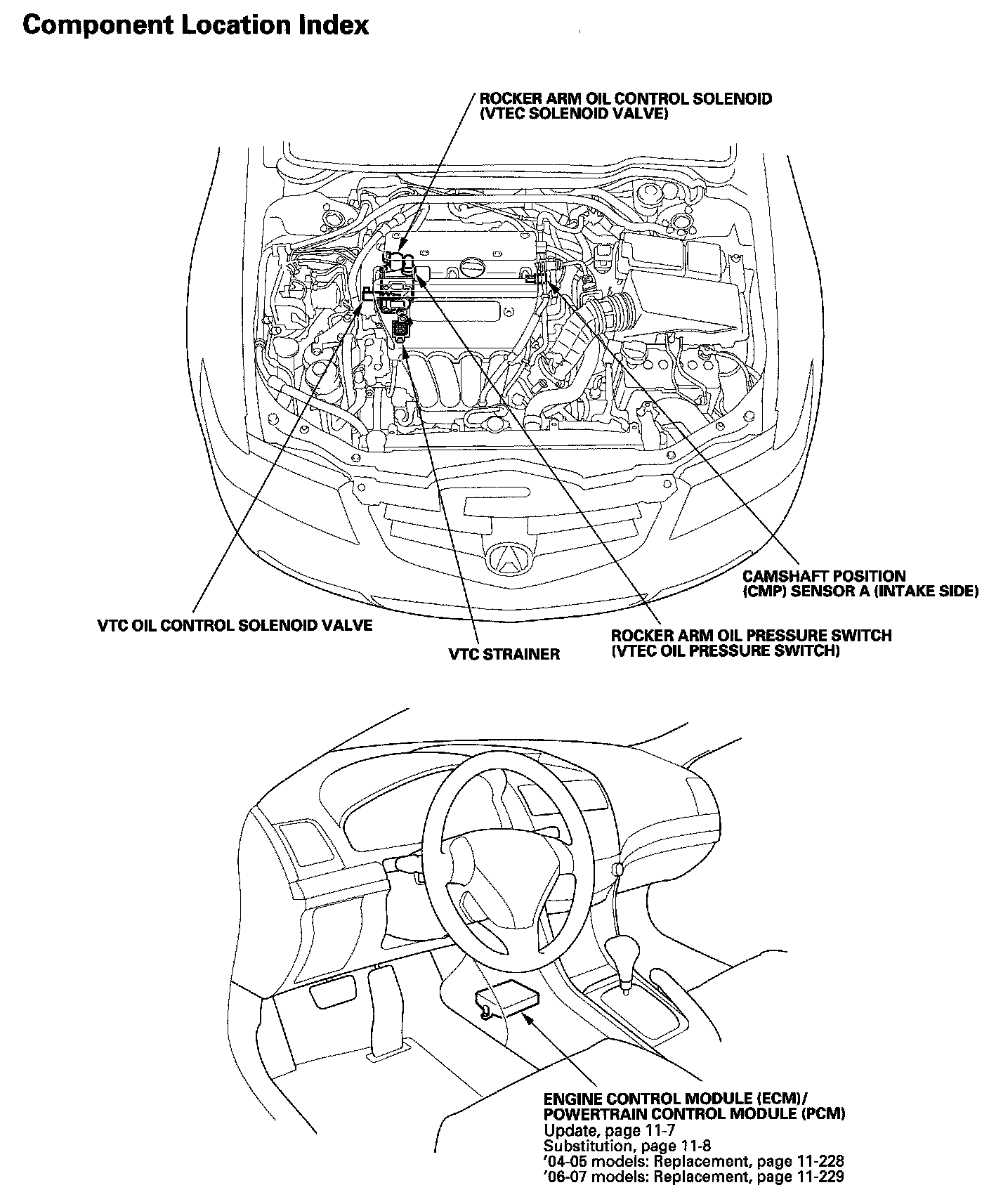

VTEC/VTC Component Location Index:

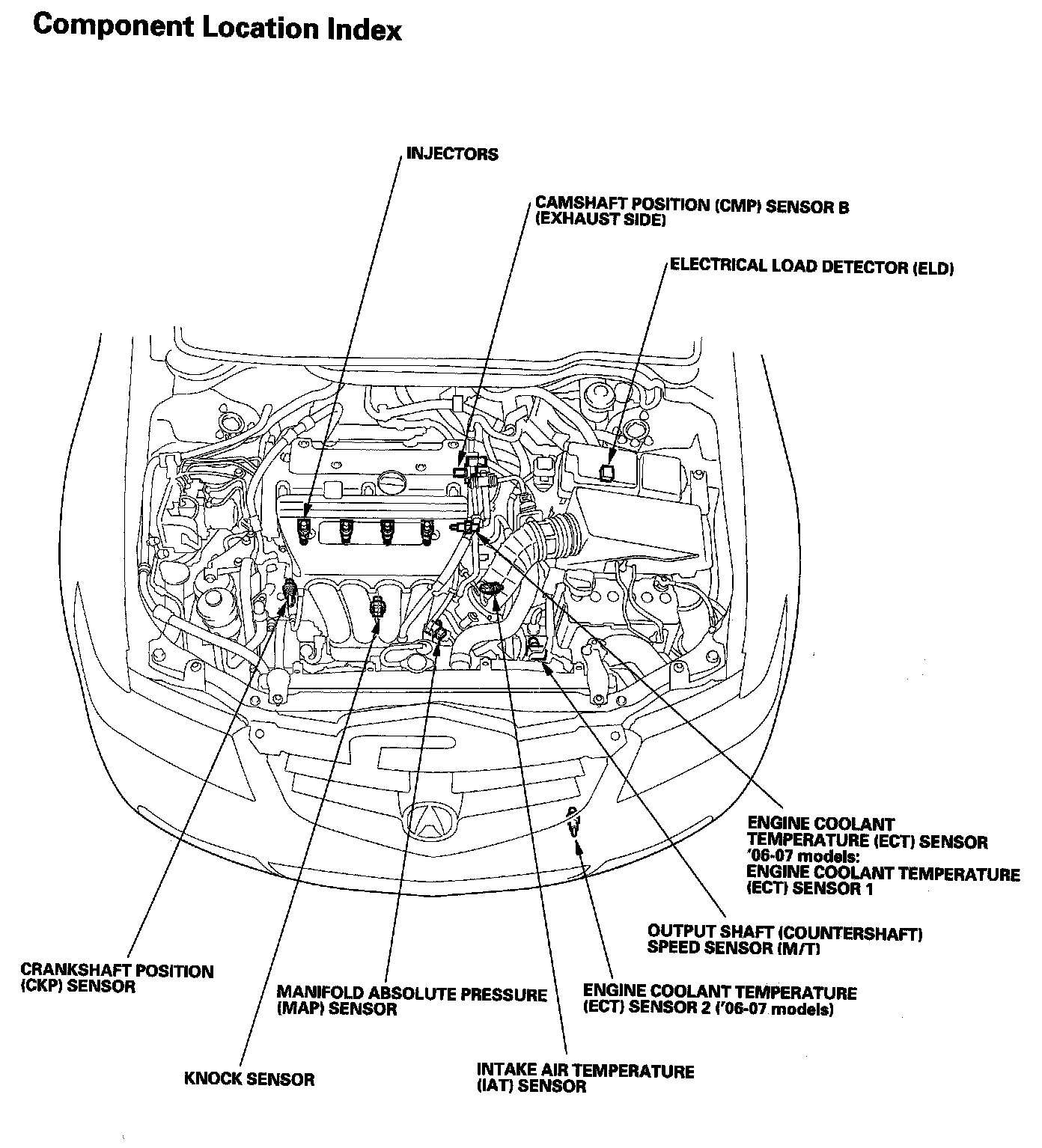

PGM-FI System Component Location Index Part 1:

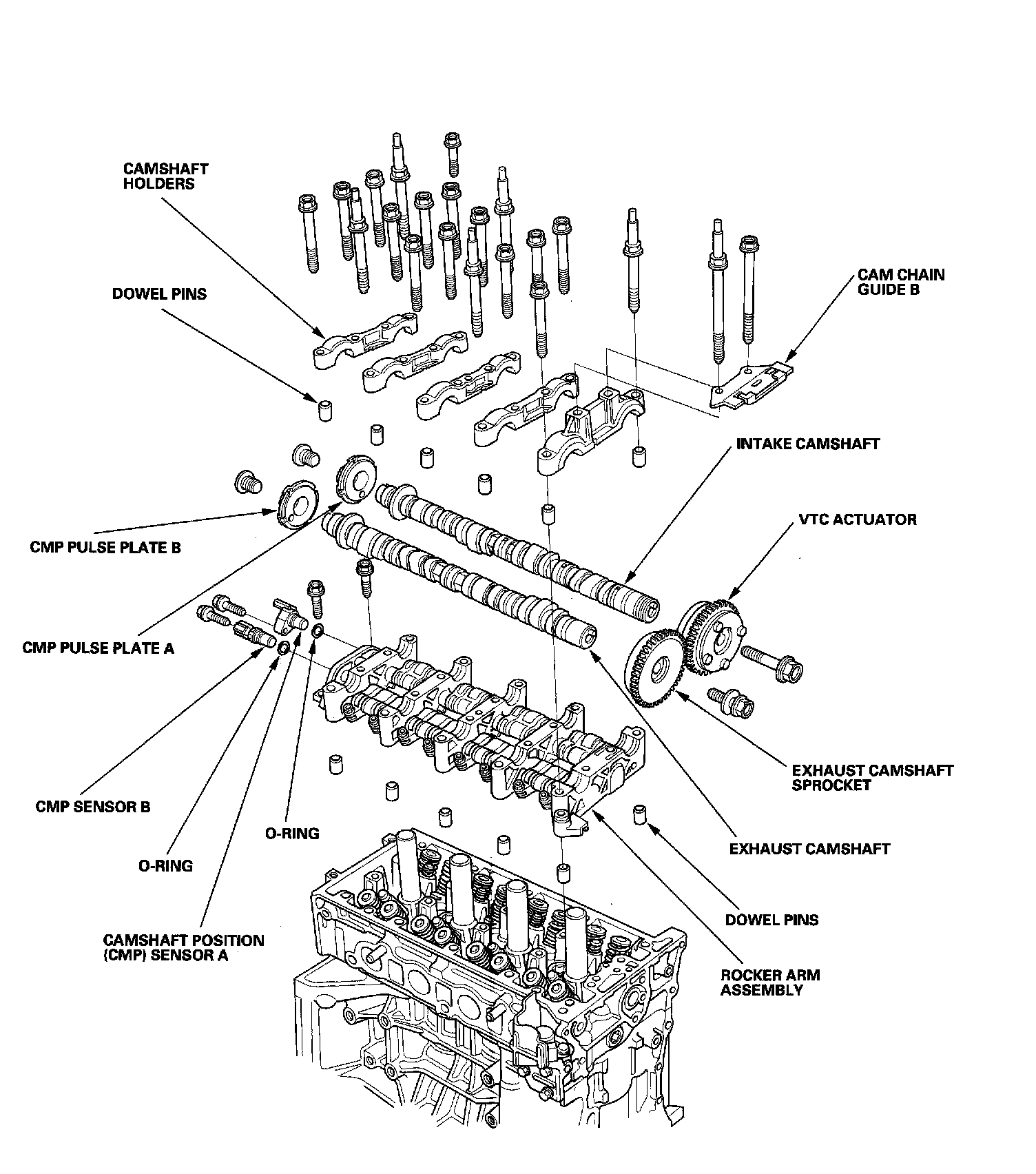

Cylinder Head Component Location Index (part 2):

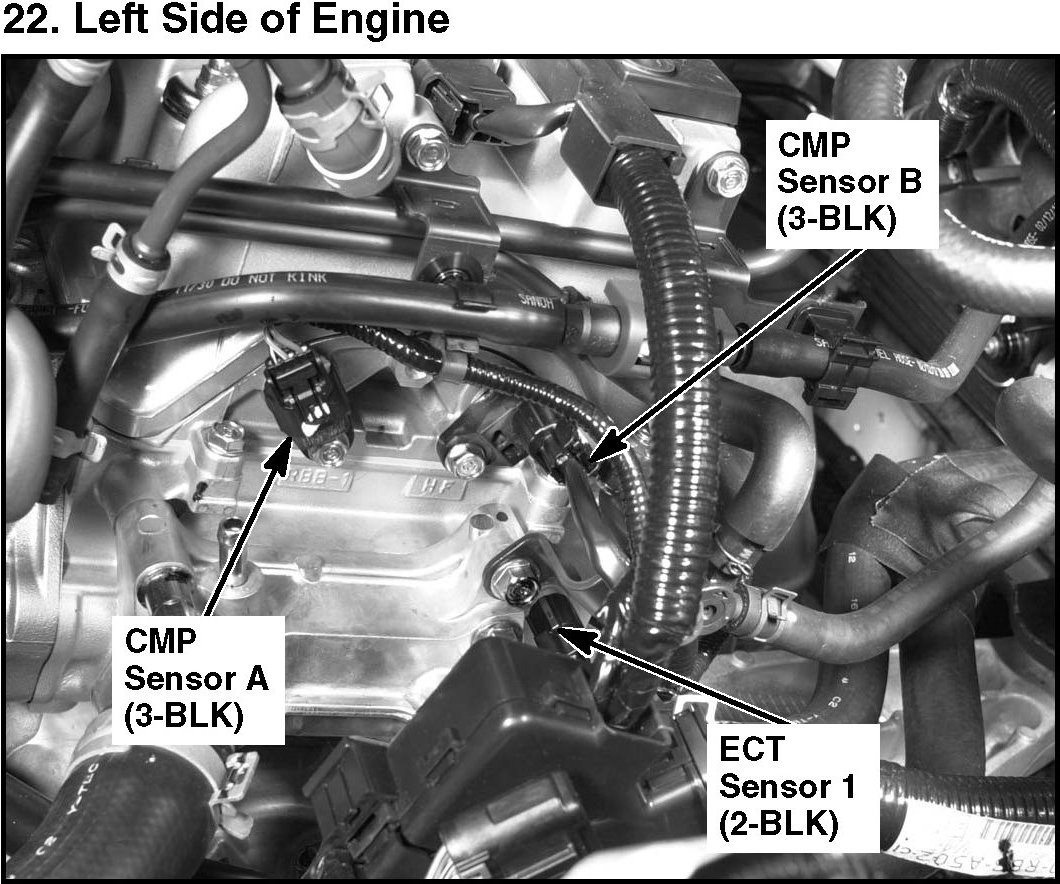

22. Left Side Of Engine:
