Intake Manifold

Intake Manifold

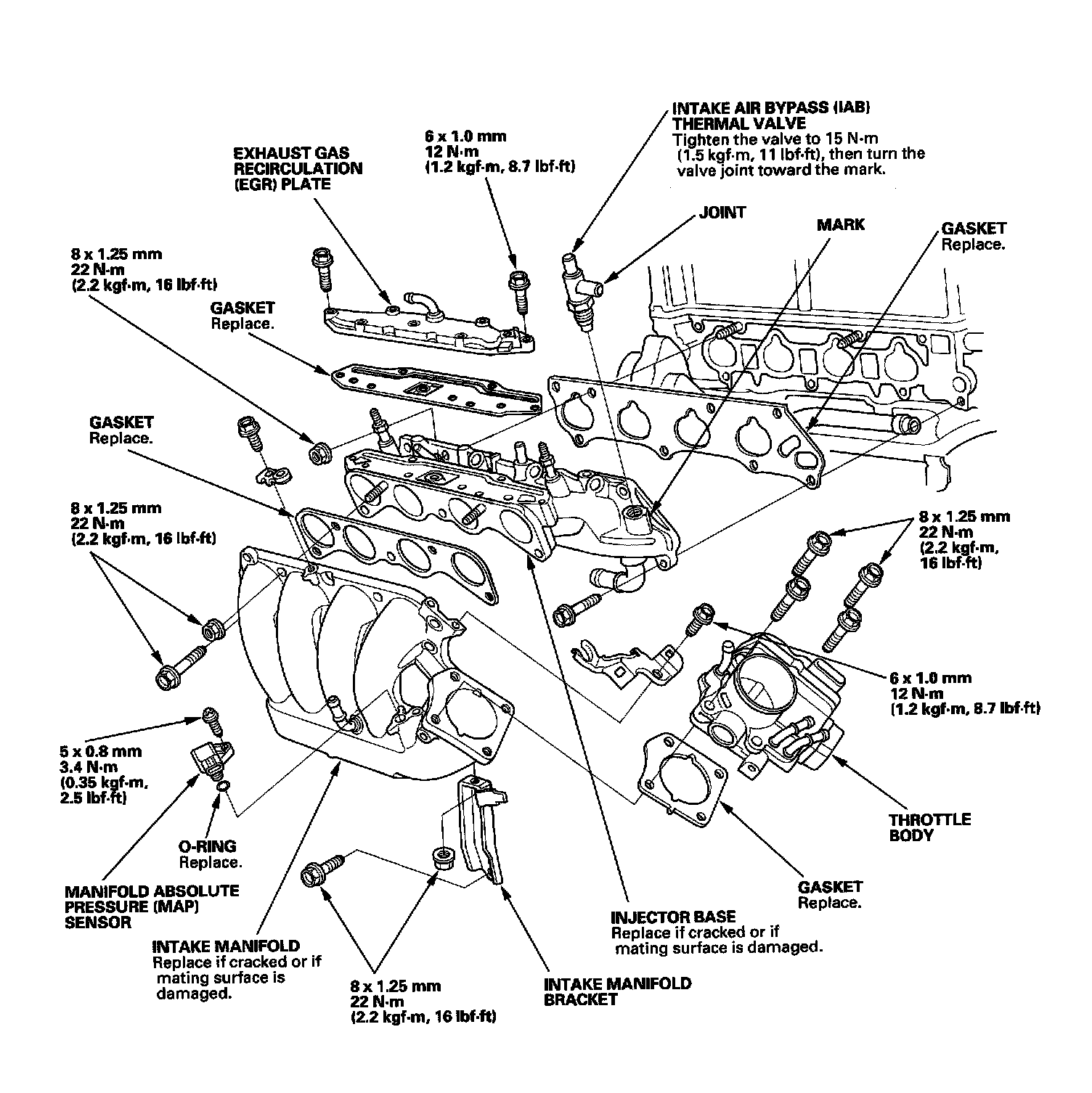

Intake Manifold 2006 Model:





Install the intake manifold (A) with a new gasket (B), and tighten the bolts/nuts in a crisscross pattern in two or three steps, beginning with the inner bolt.
