Power Window Switch: Locations

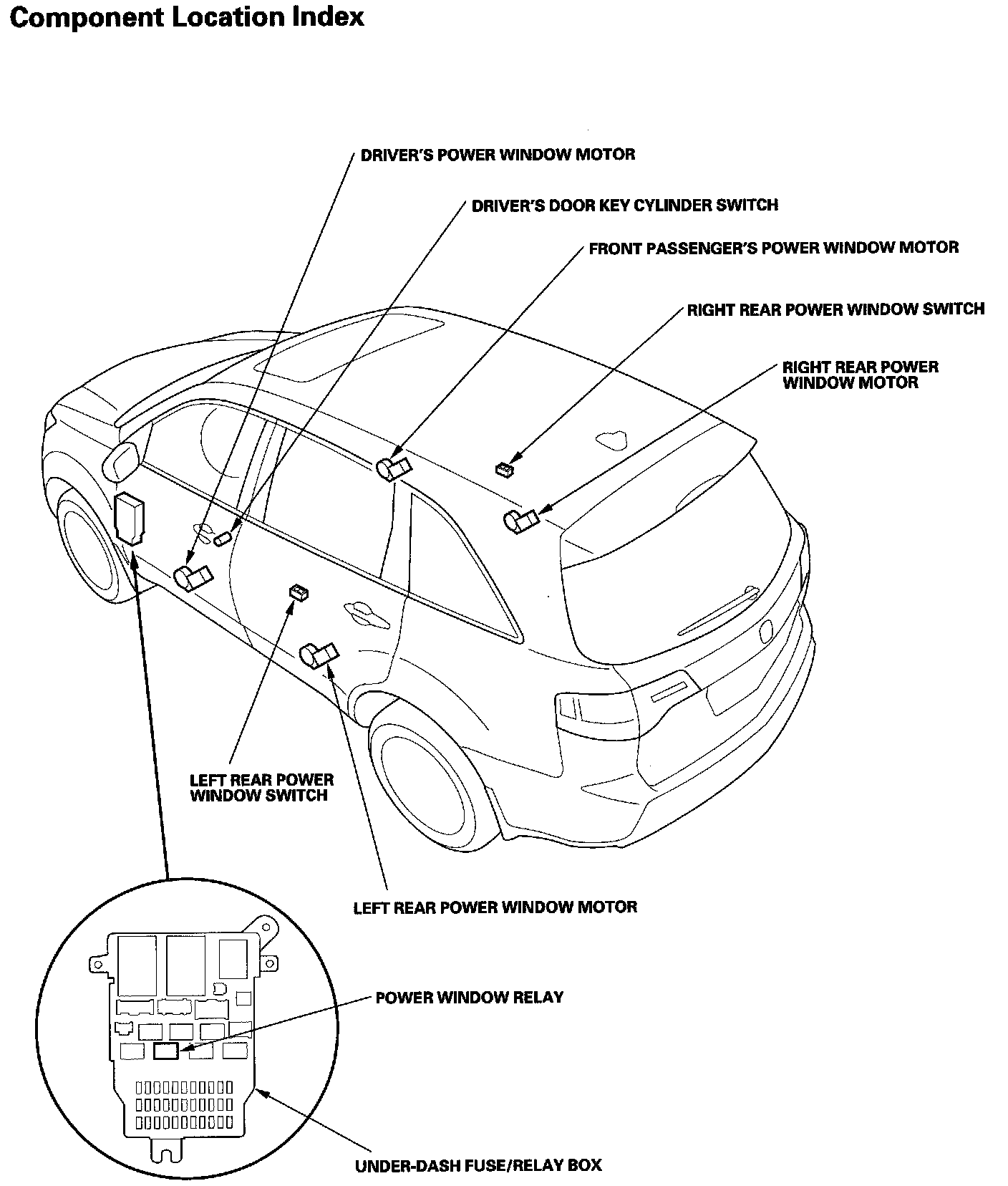

Power Windows Component Location Index:



Power Windows Component Location Index:

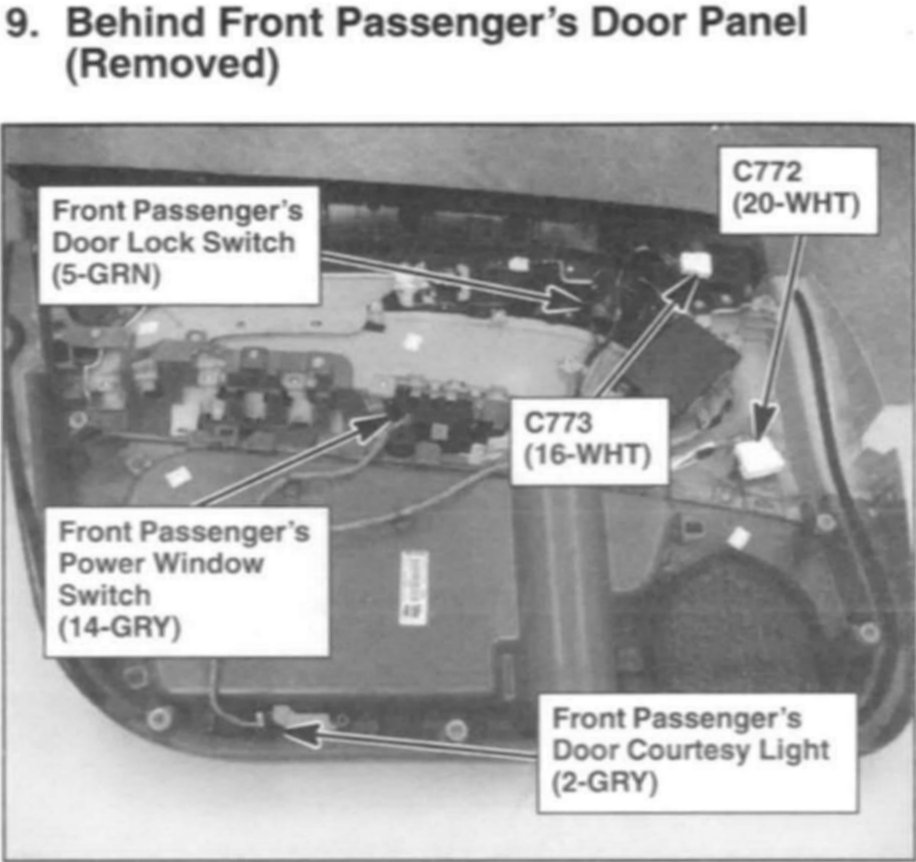

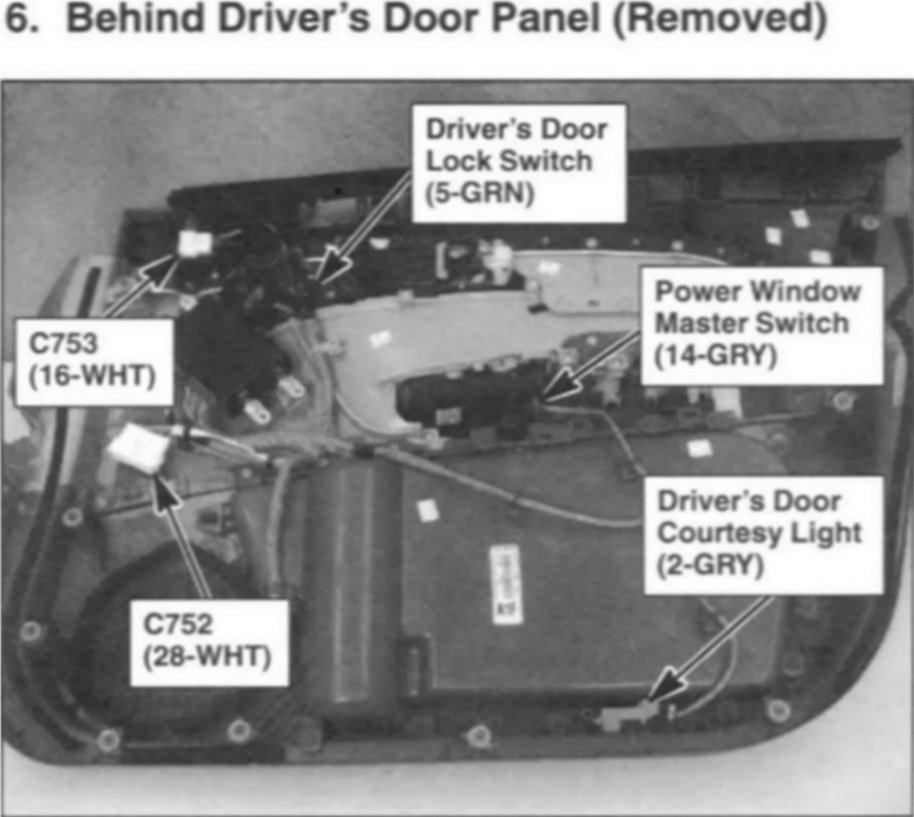

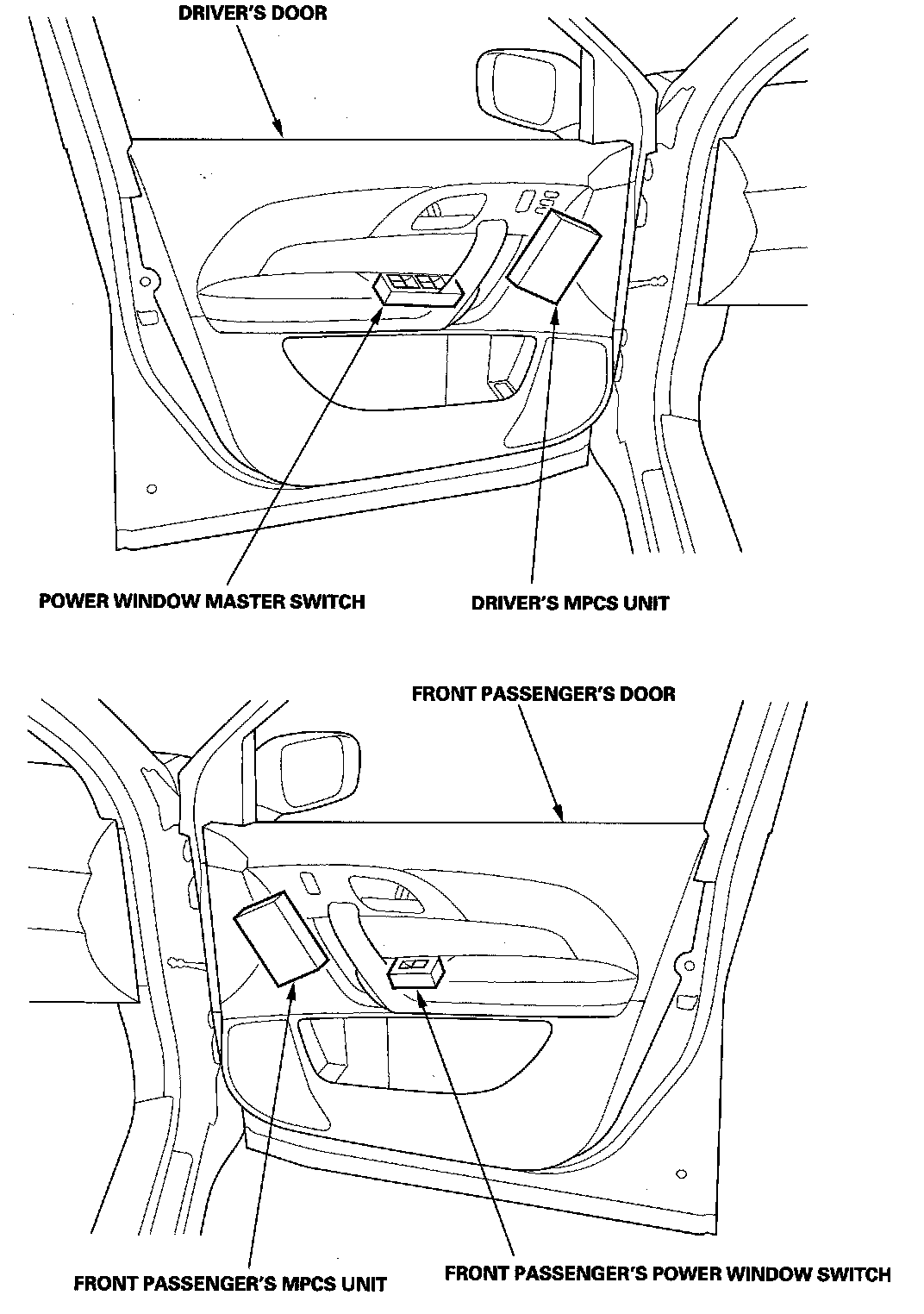

Front Door Component Location Index (Part 1):

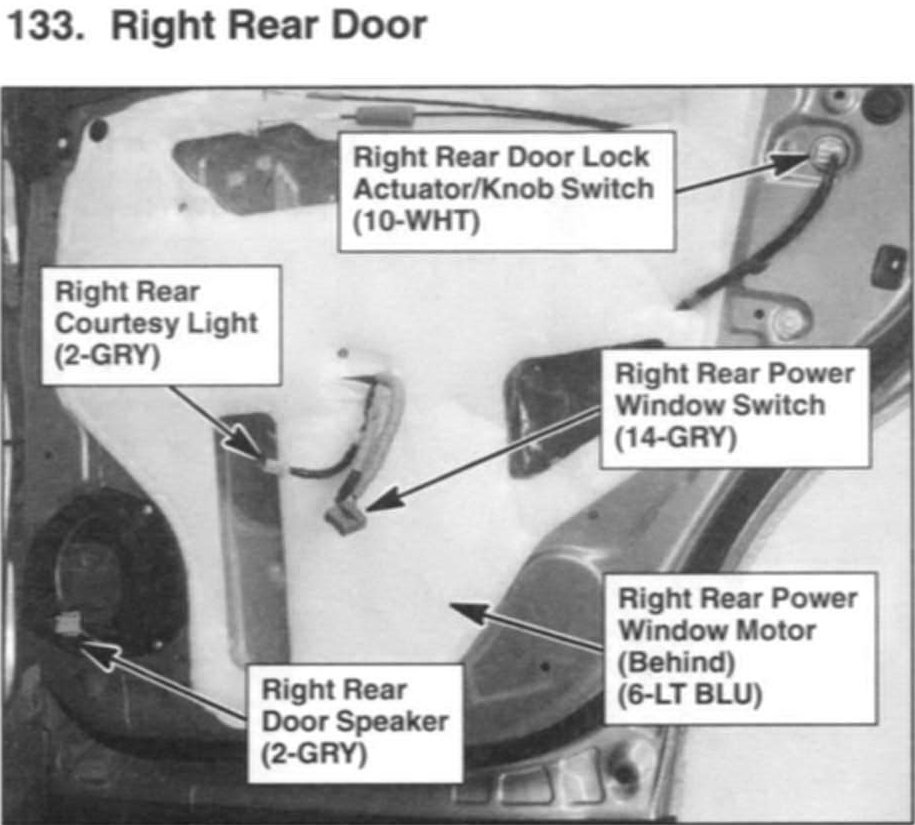

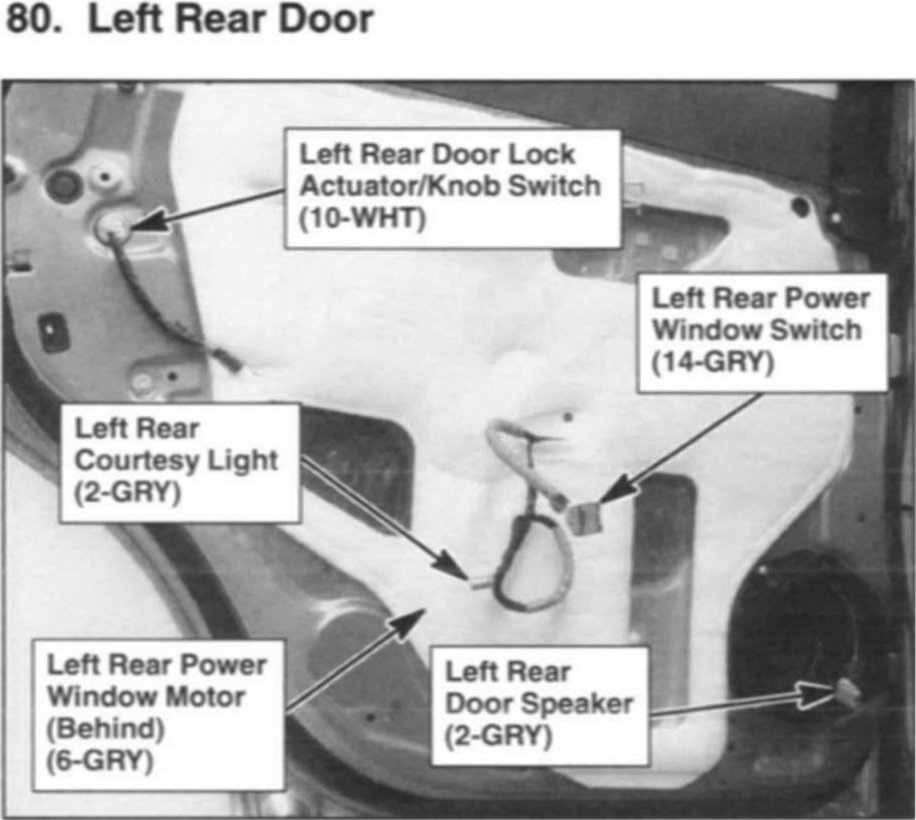

Rear Door Component Location Index (Part 1):
