Component Locations

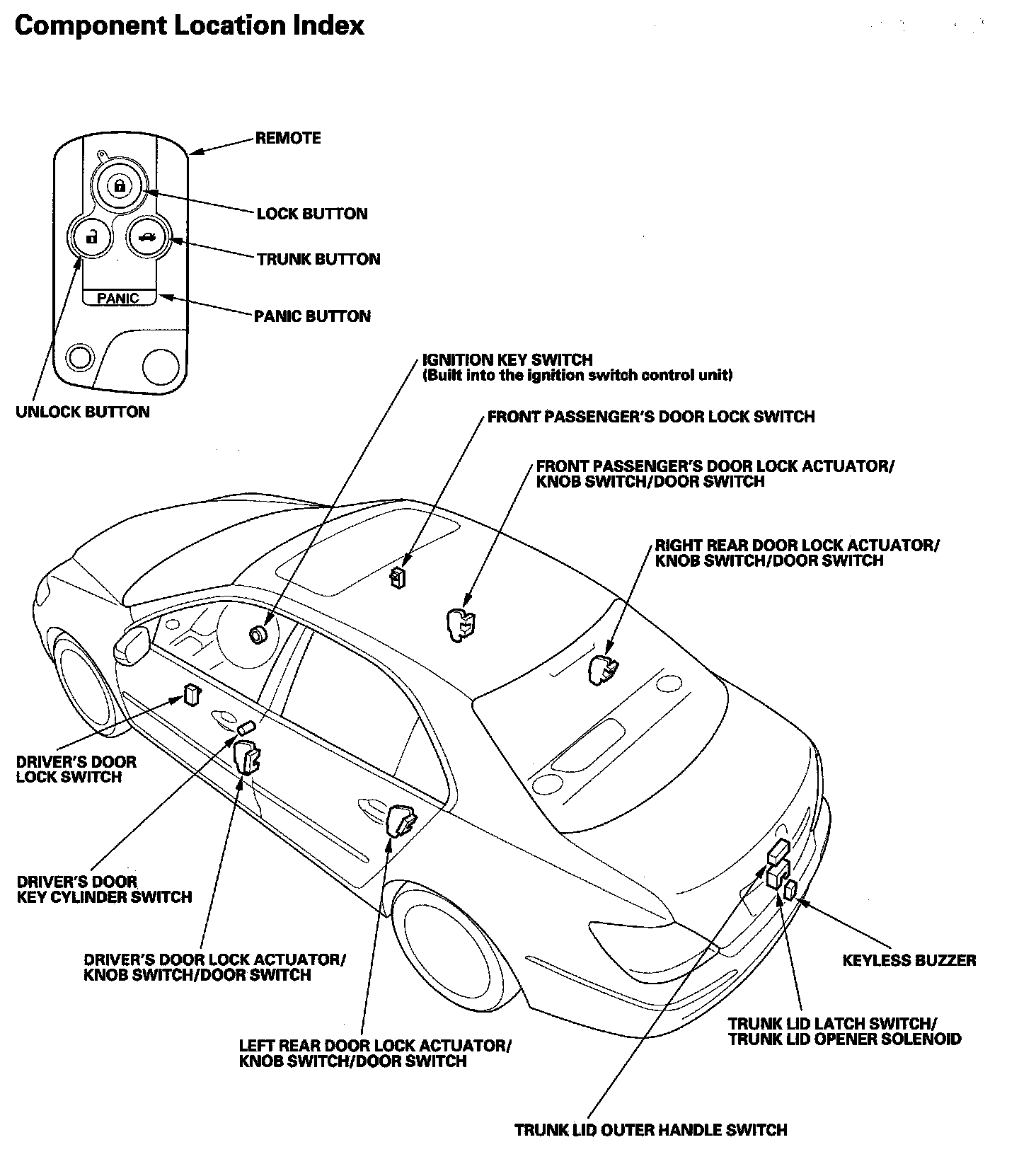

Keyless/Power Door Locks/Security System Component Location Index:



Interior Lights Component Location Index:



Interior Lights Component Location Index:

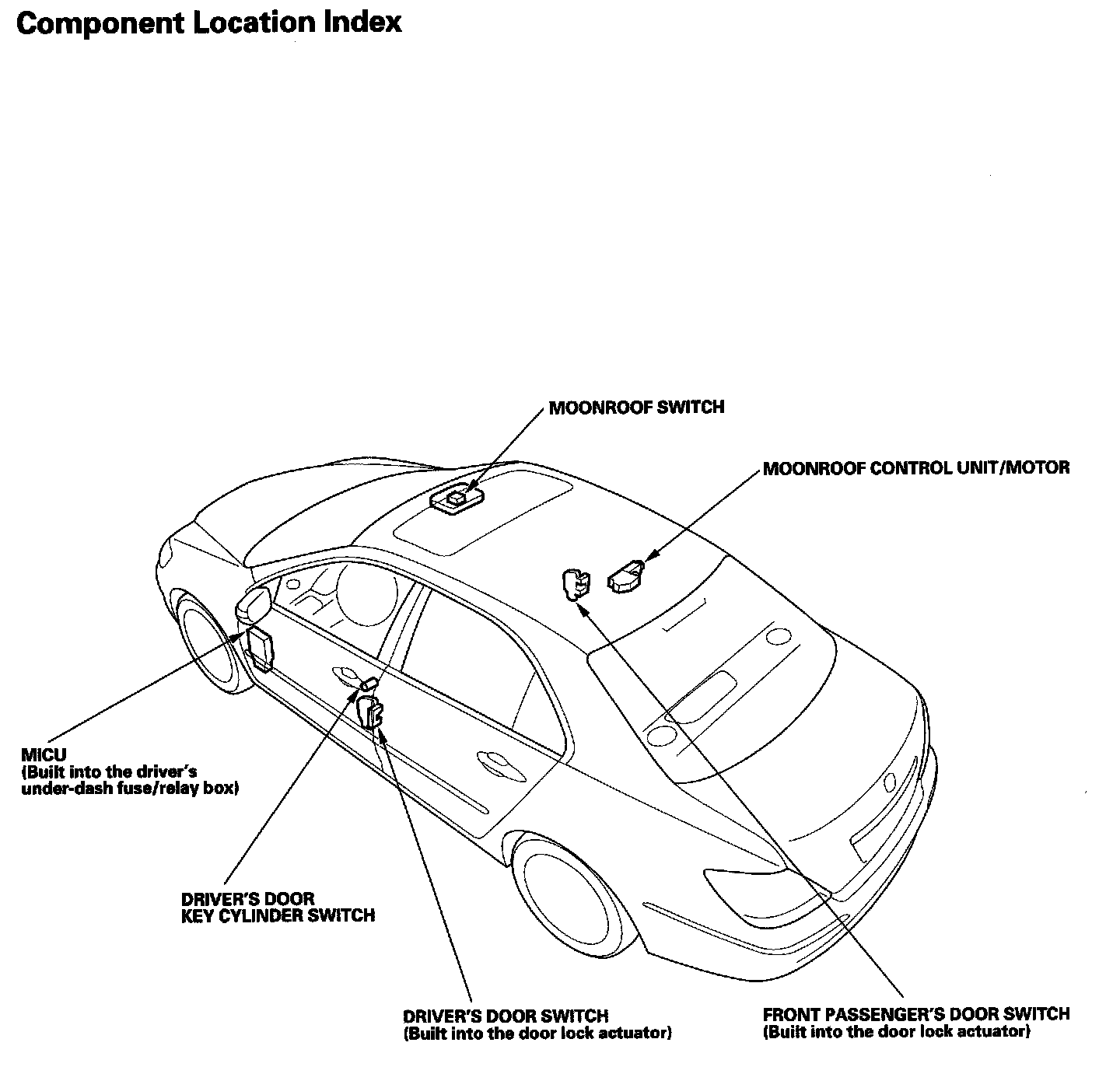

Moonroof Component Location Index:
