Electronic Brake Control Module

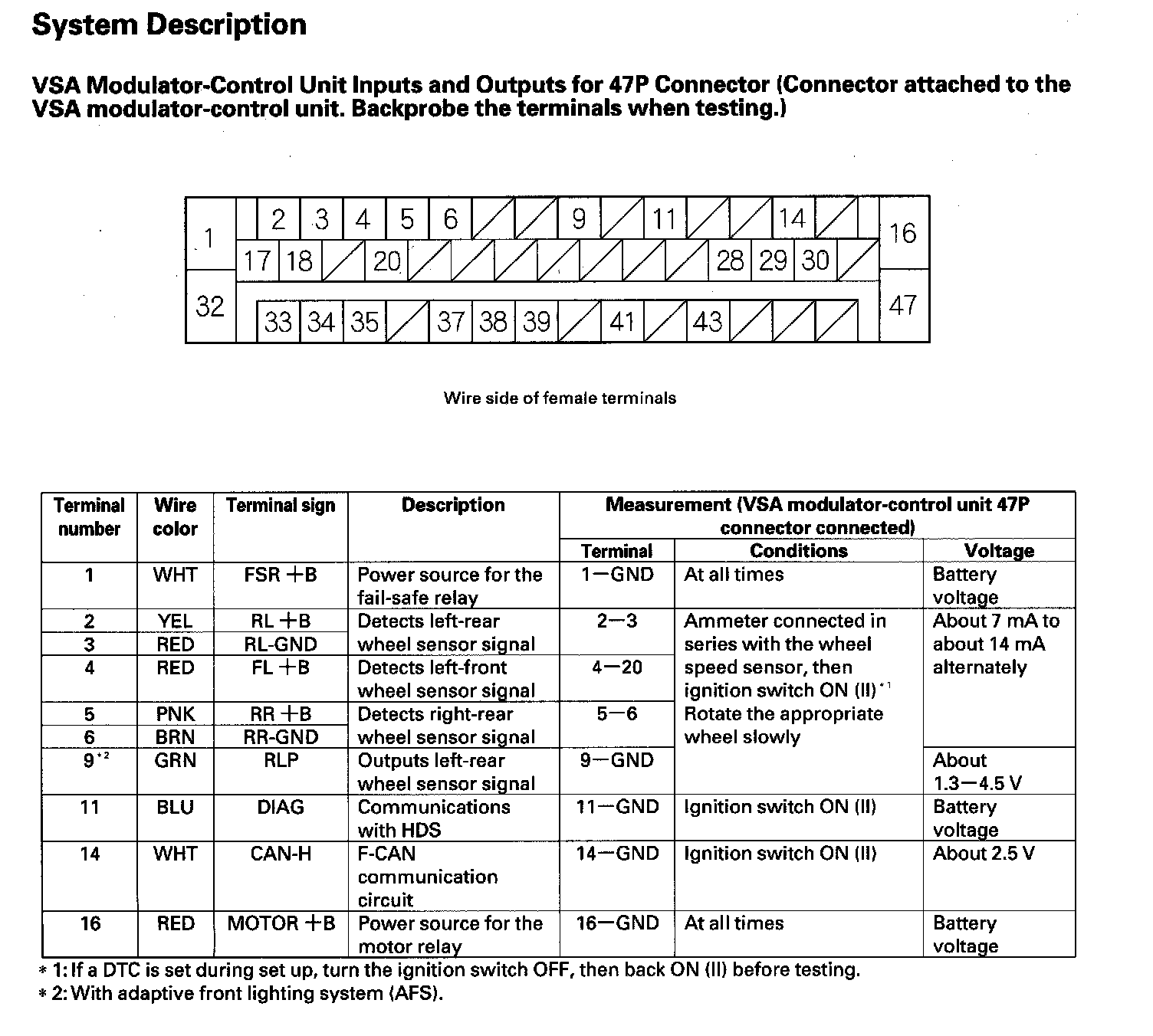

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Connector attached to the VSA modulator-control unit. Back probe the terminals when testing.)VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Part 1):

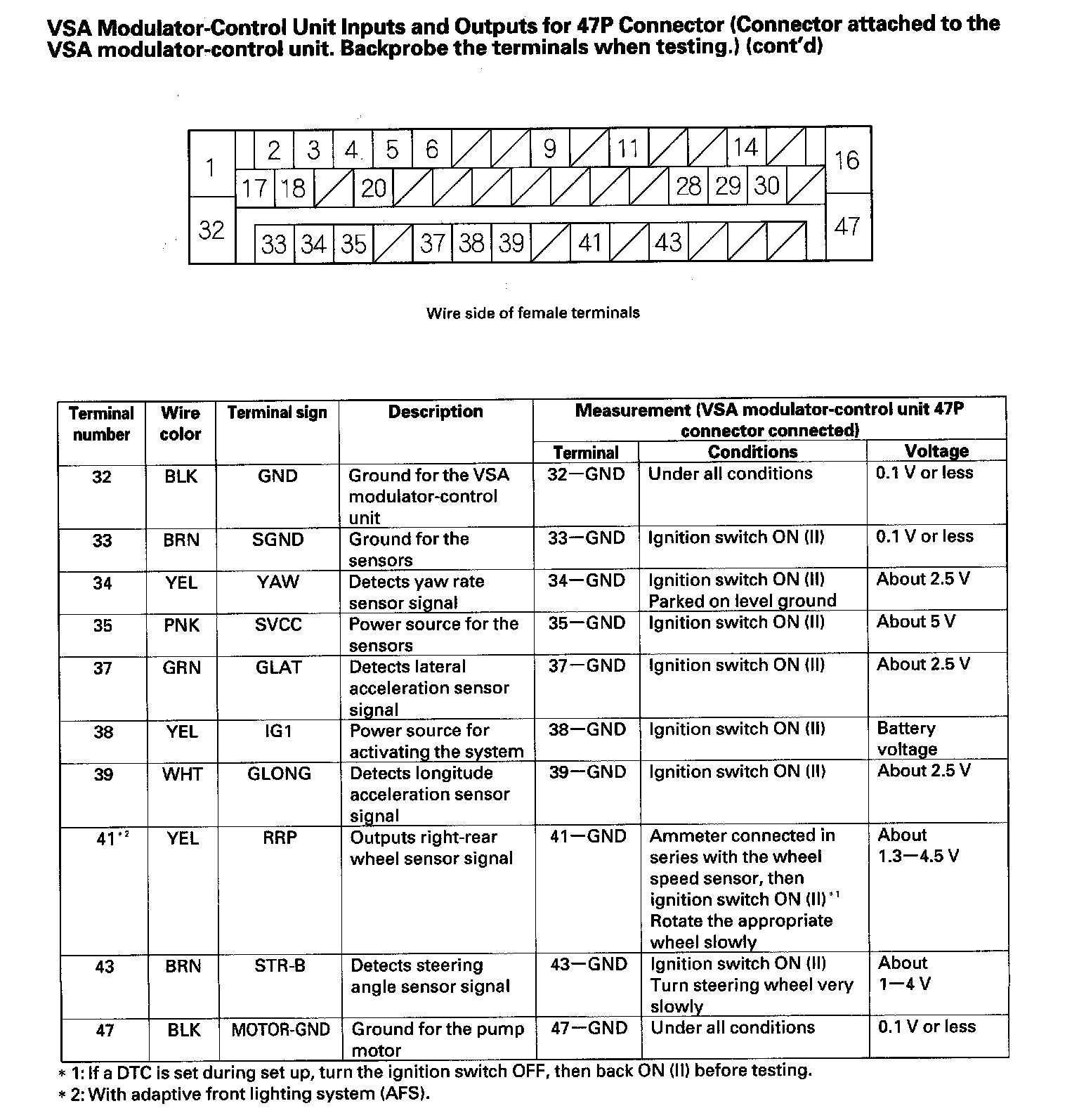

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Part 2):

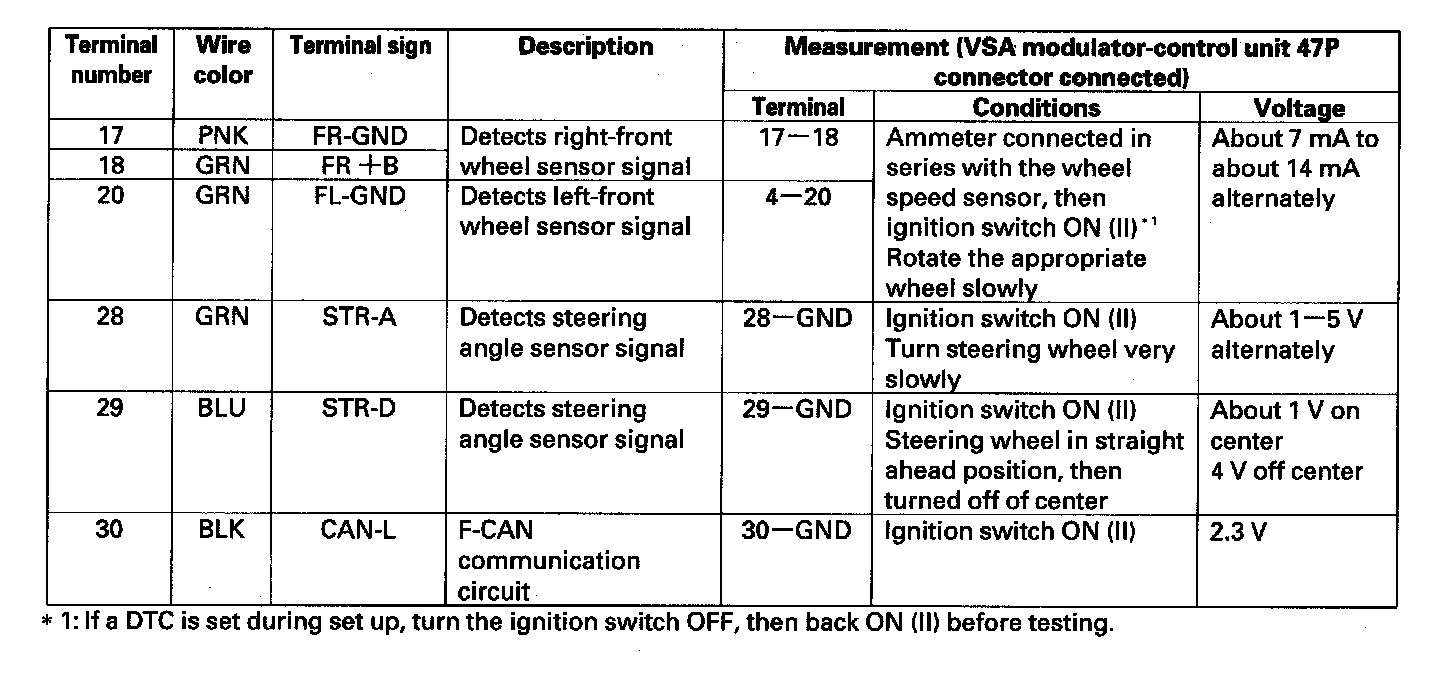

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Part 3):
