Fuse Block

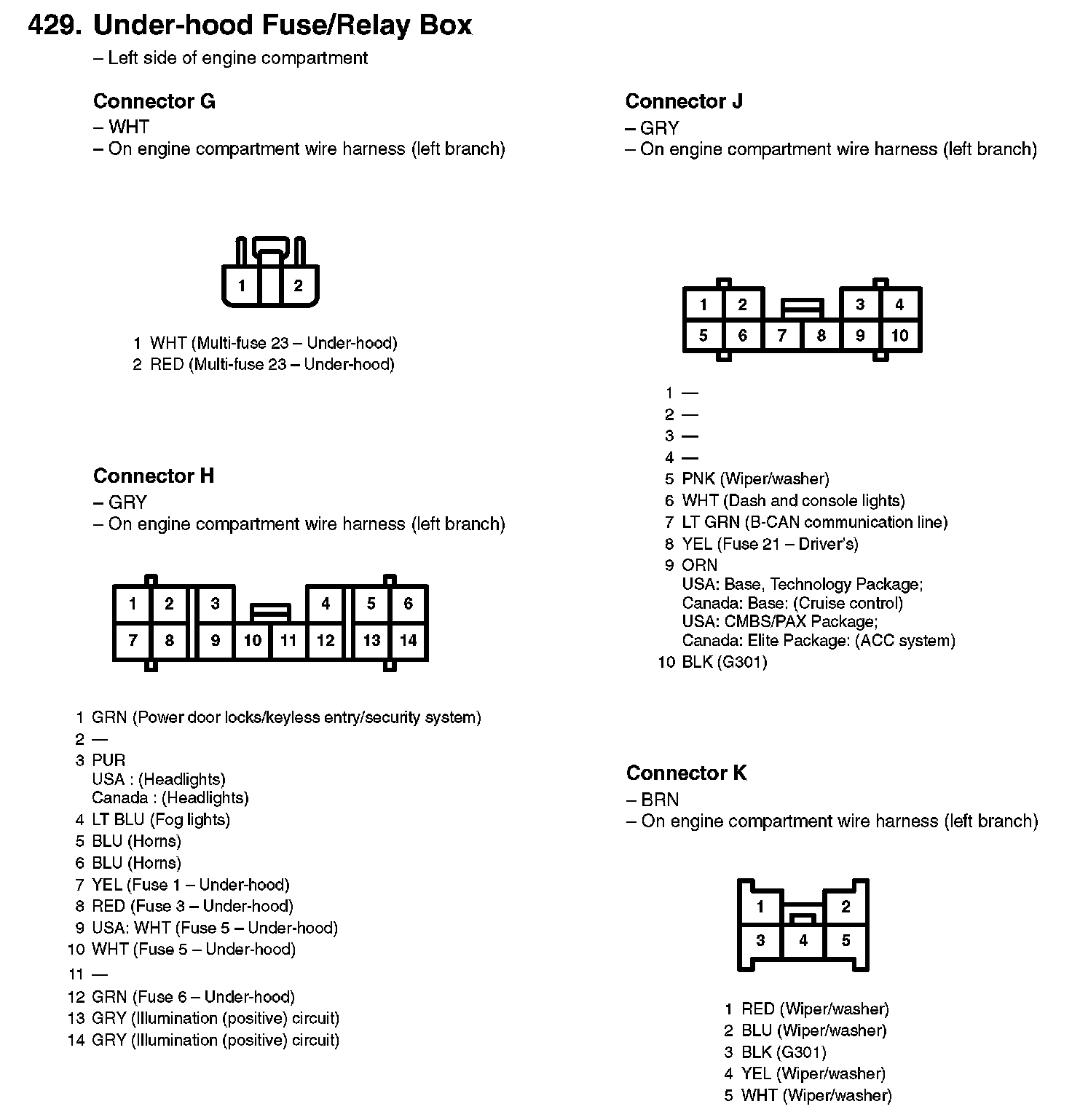

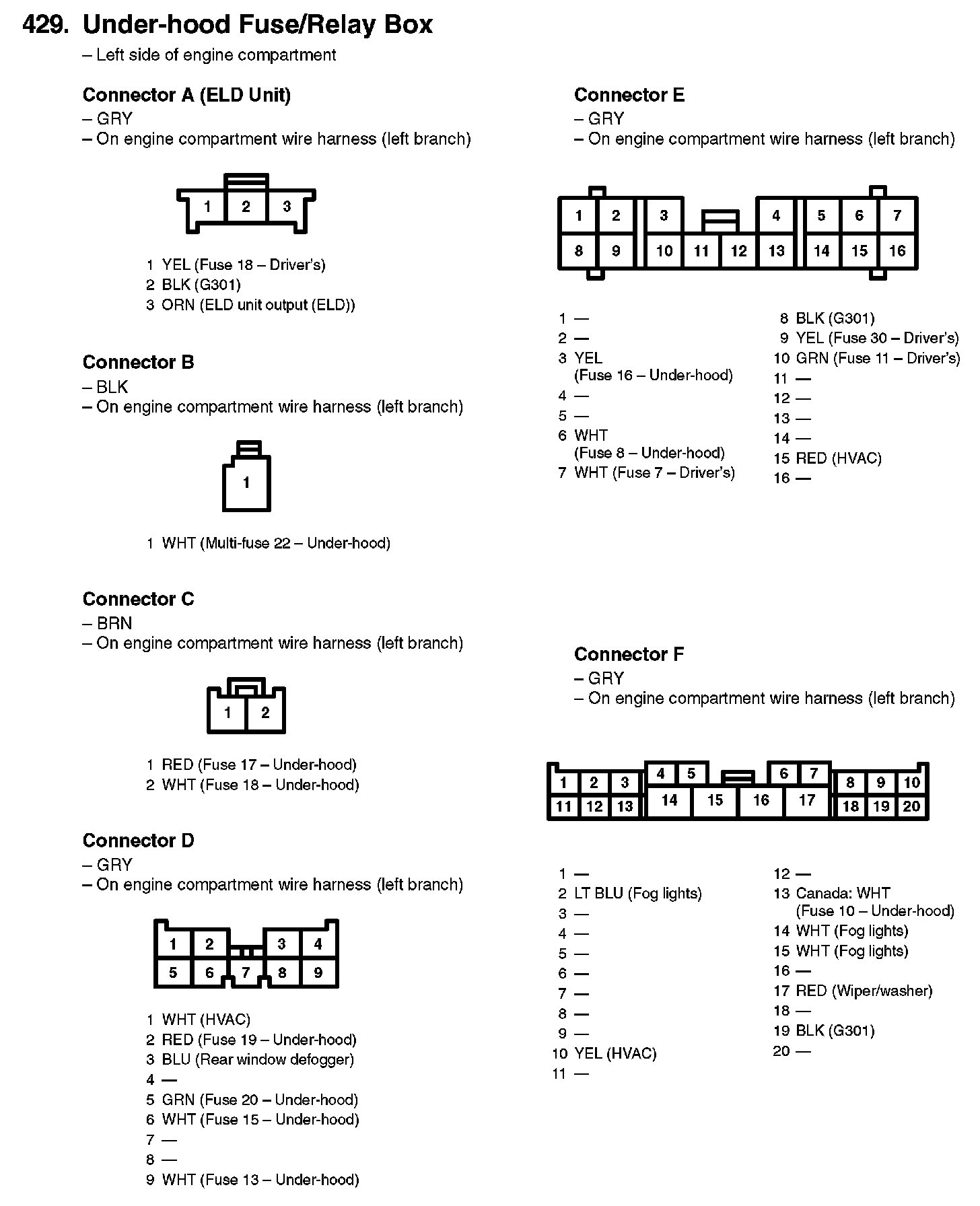

429. Under-hood Fuse/Relay Box:

429. Under-hood Fuse/Relay Box:

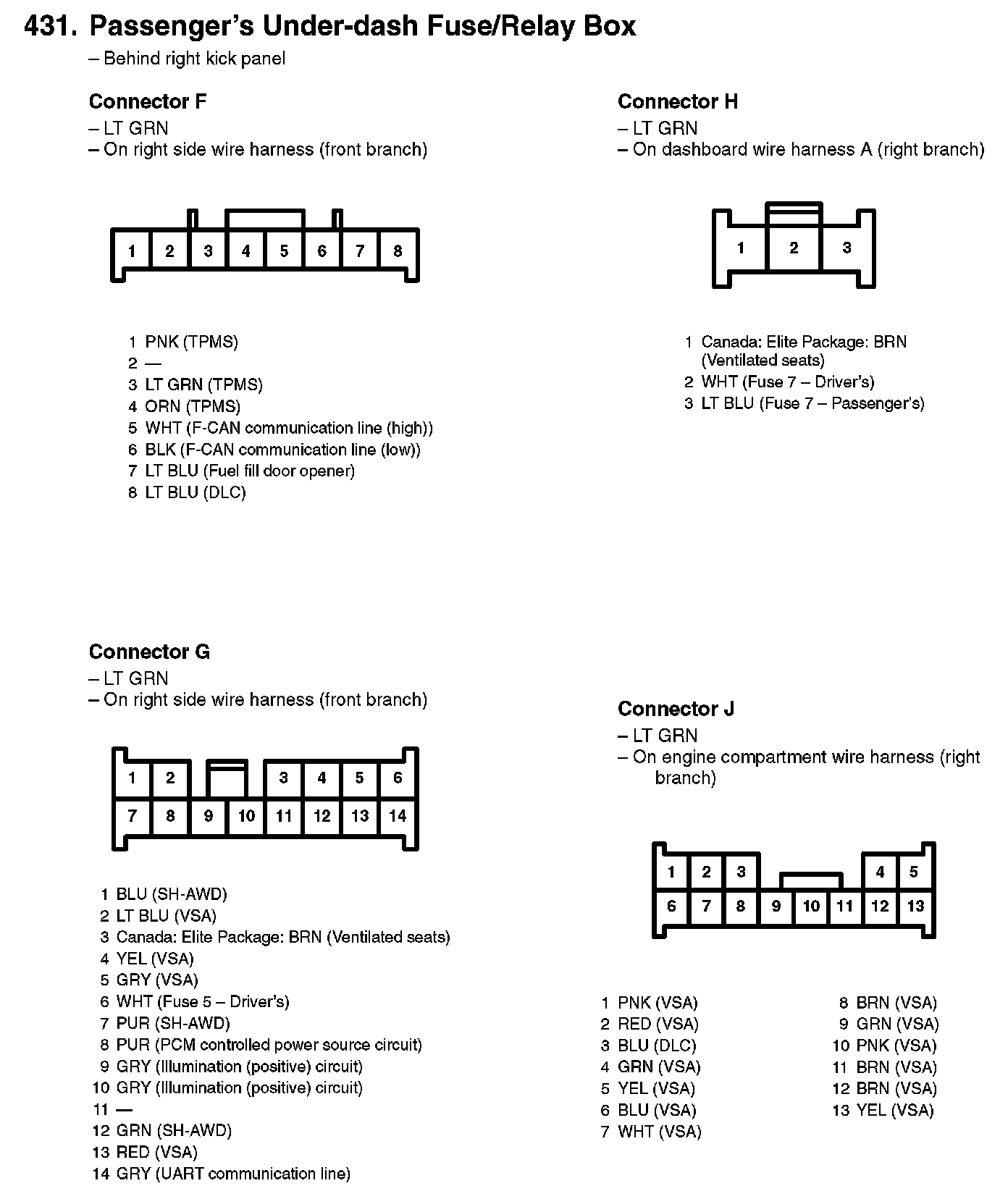

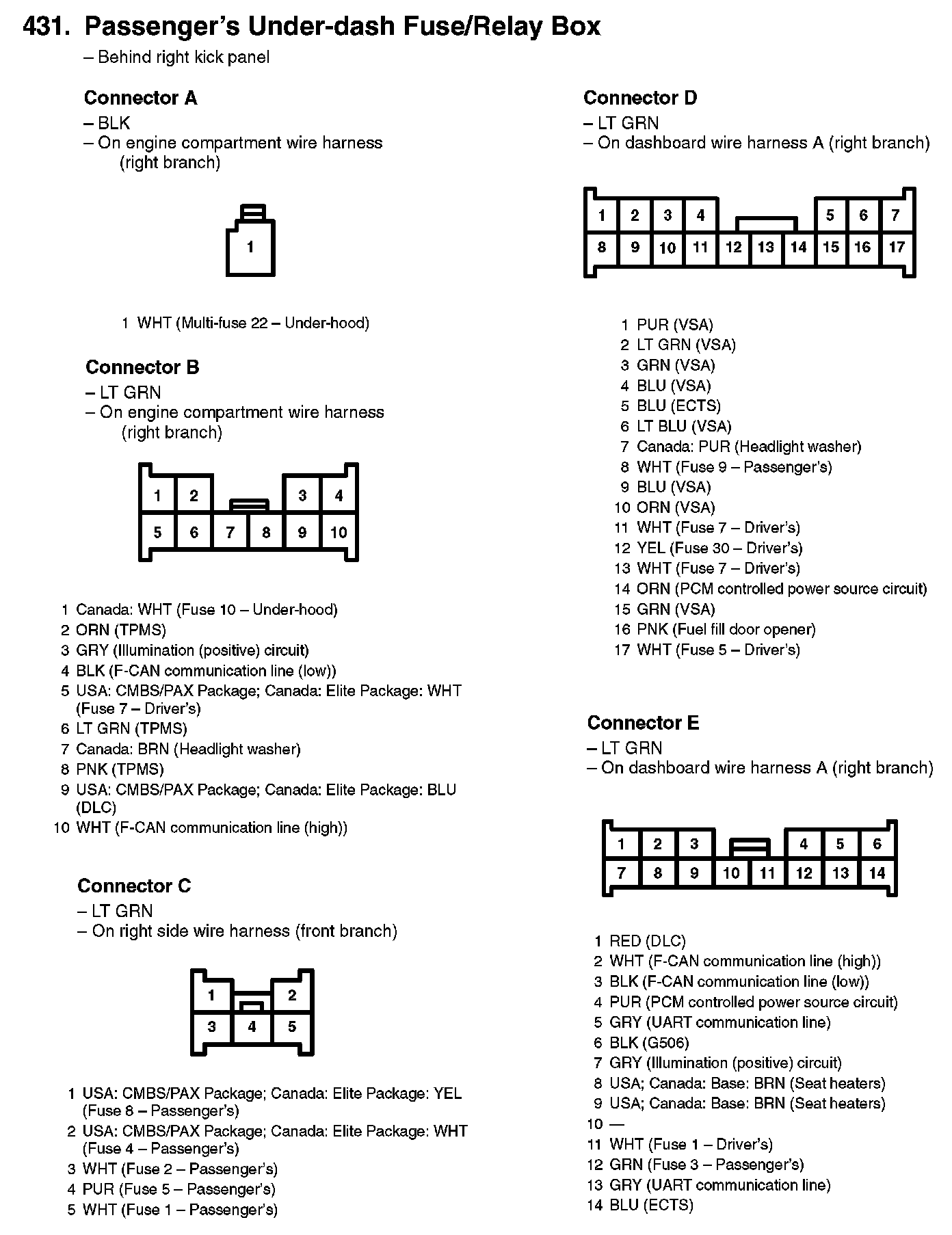

431. Passenger's Under-dash Fuse/Relay Box:

431. Passenger's Under-dash Fuse/Relay Box:

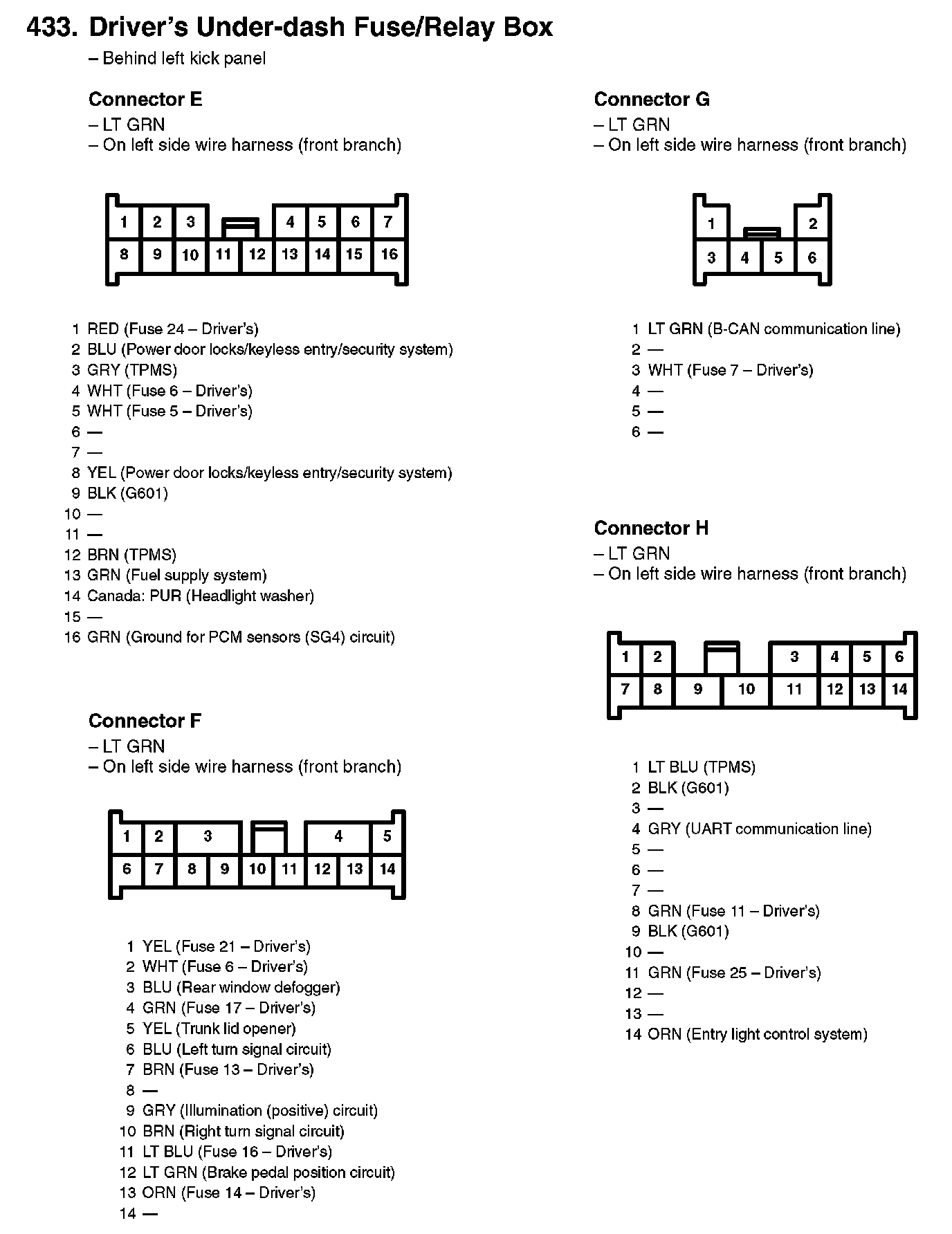

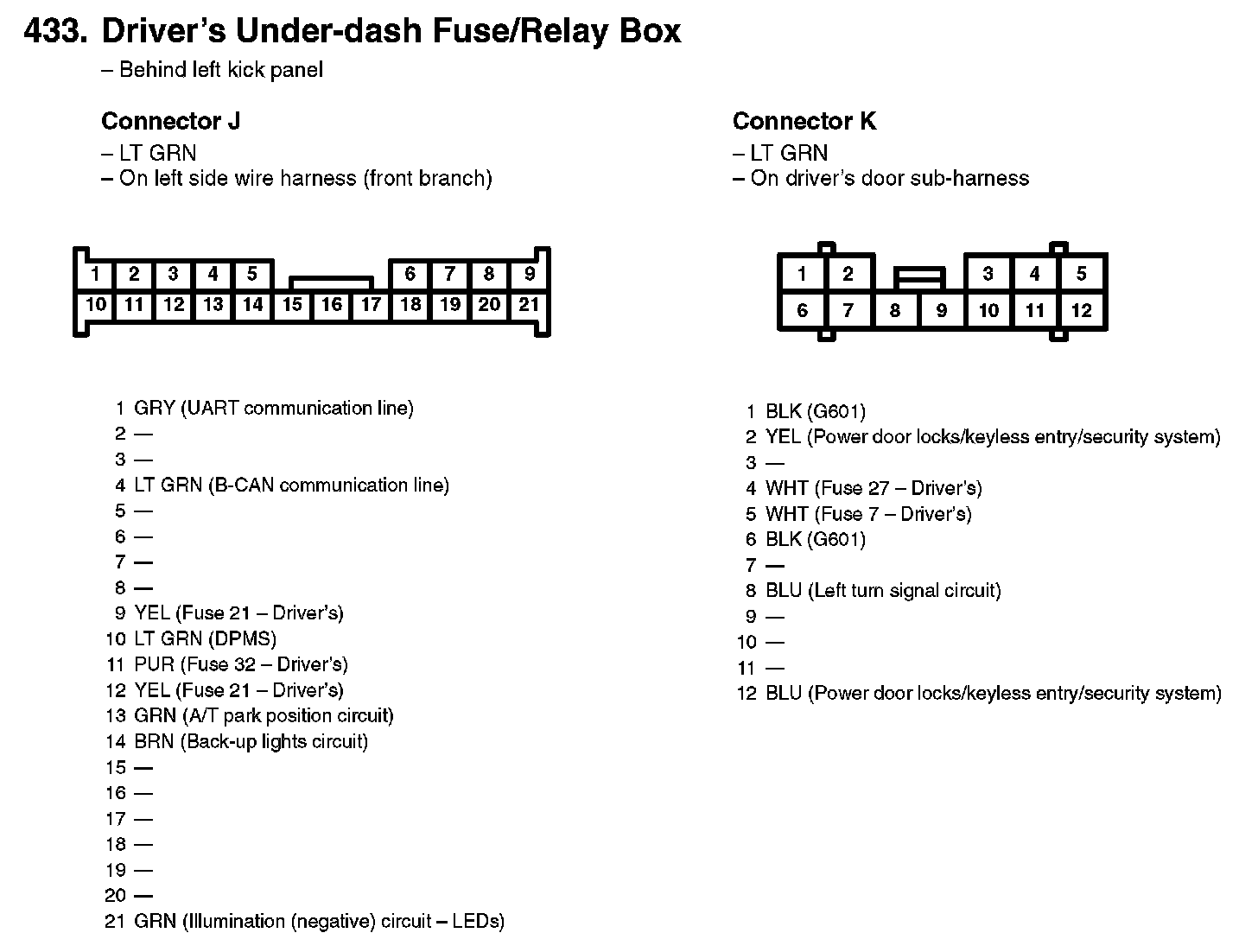

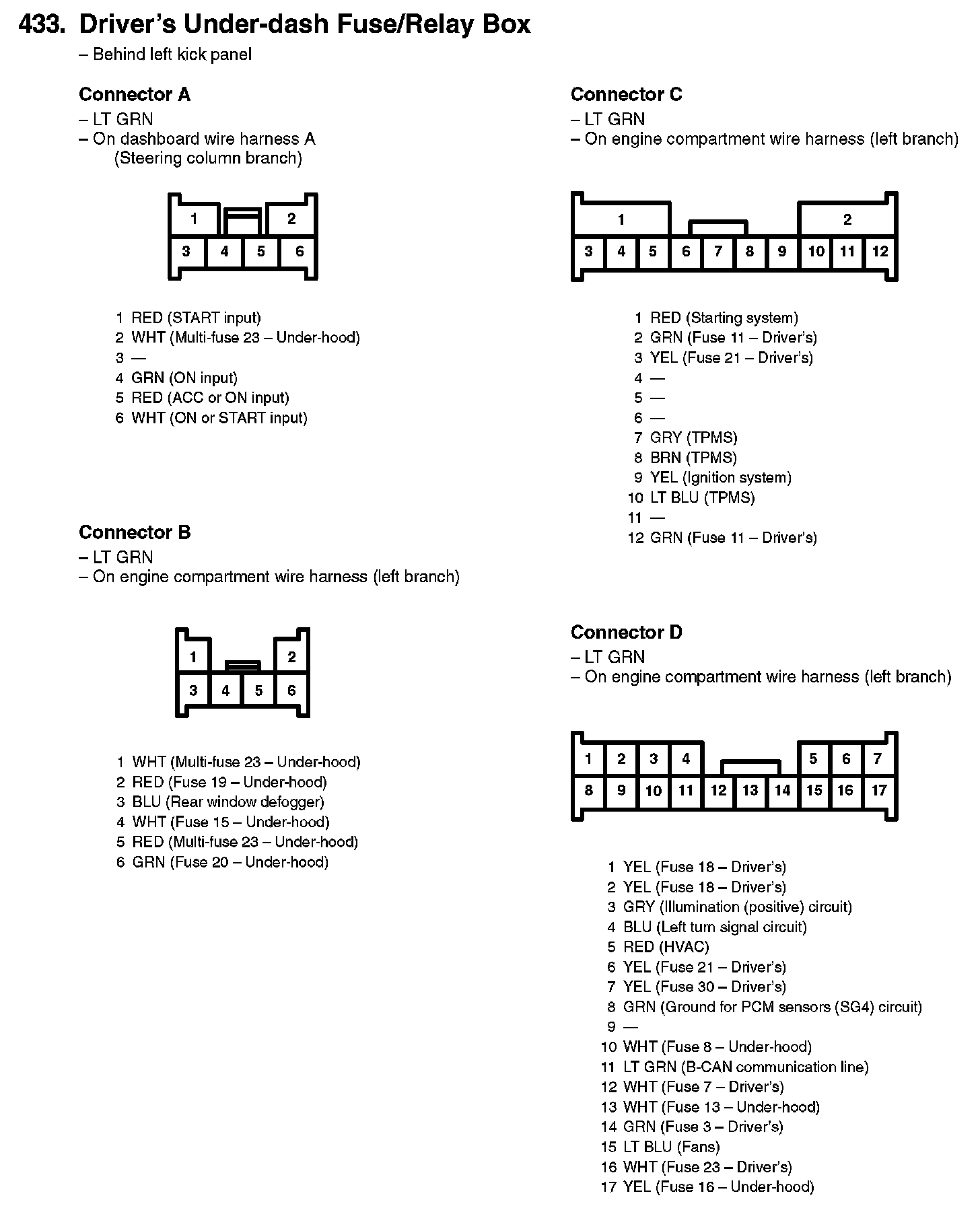

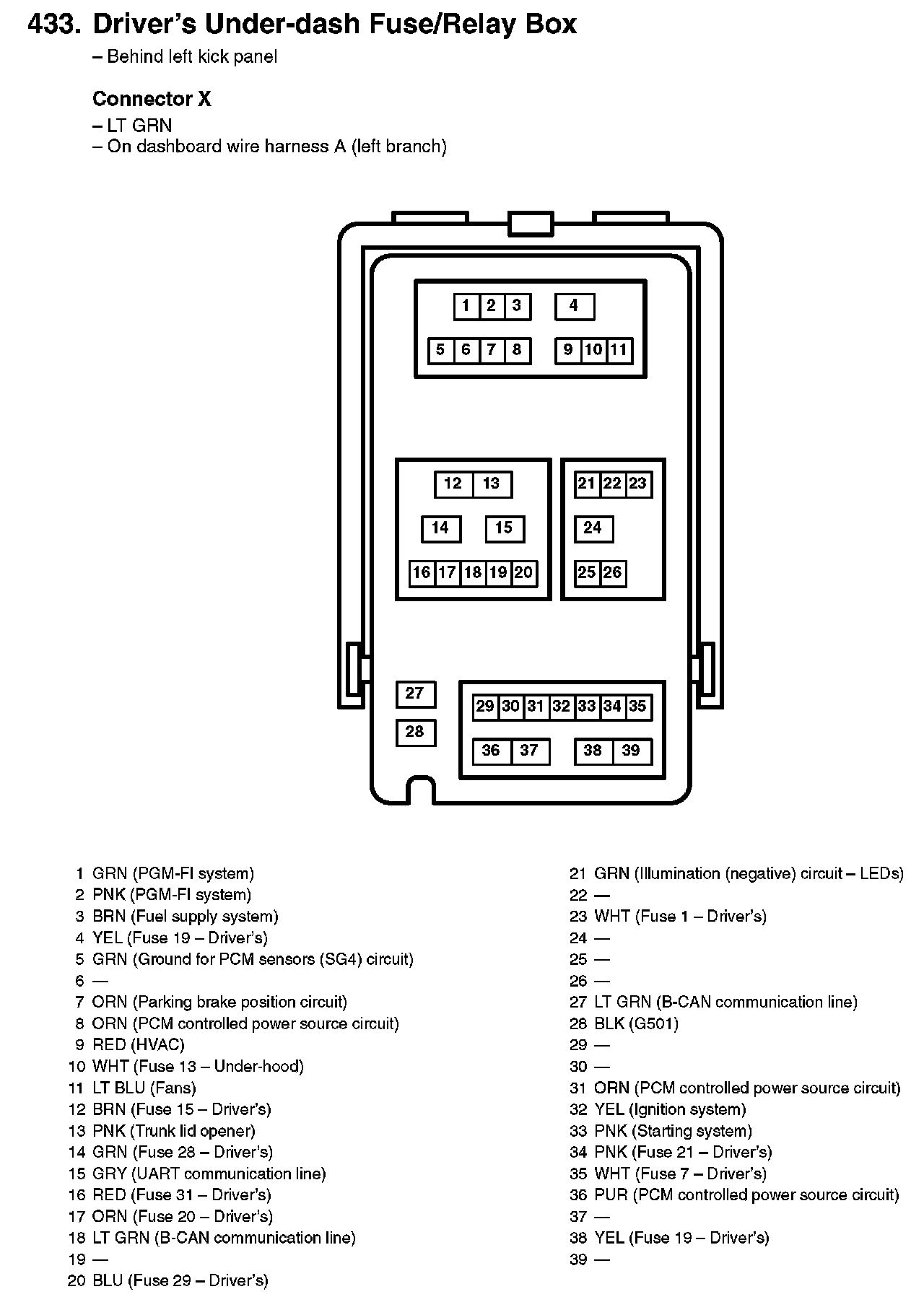

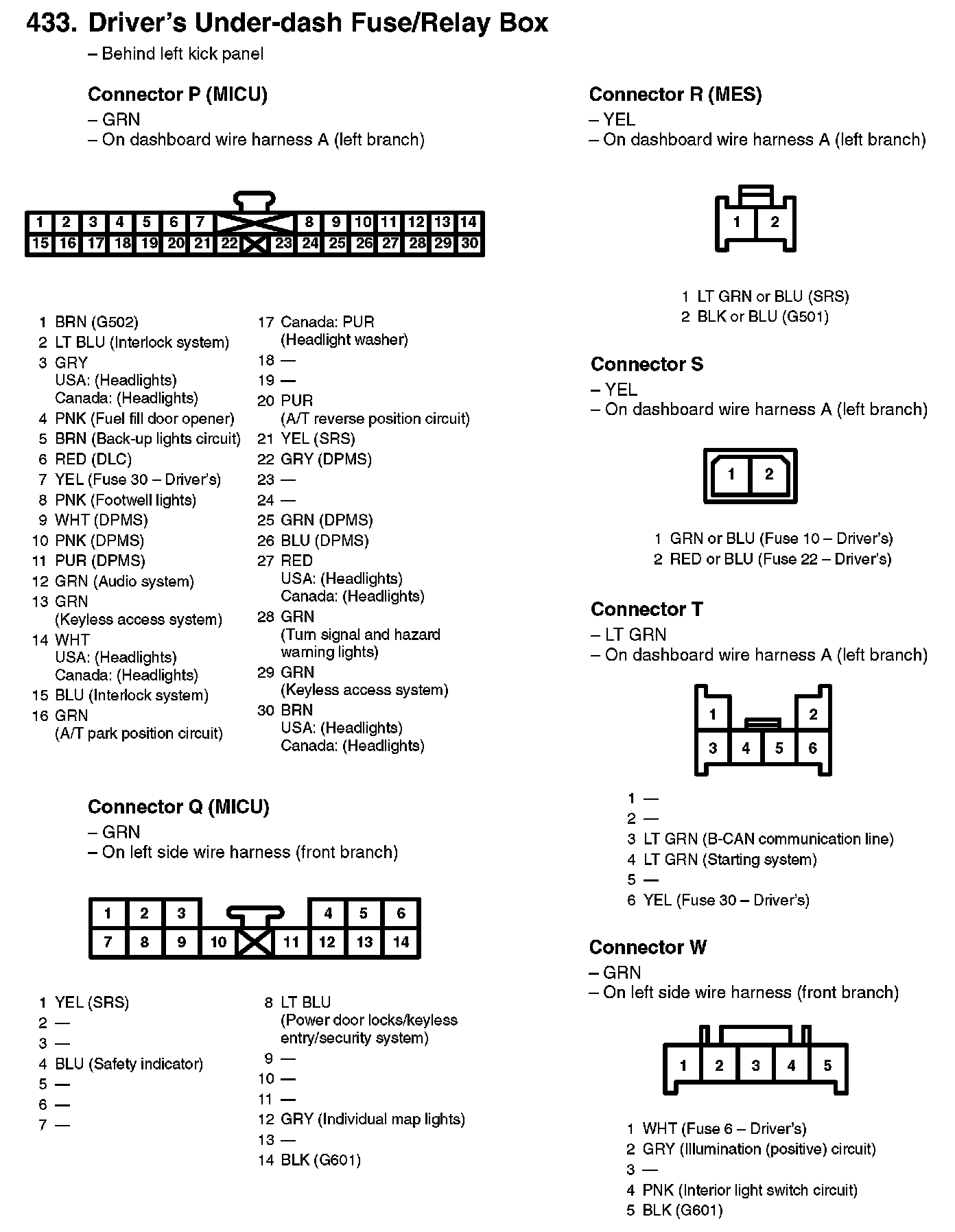

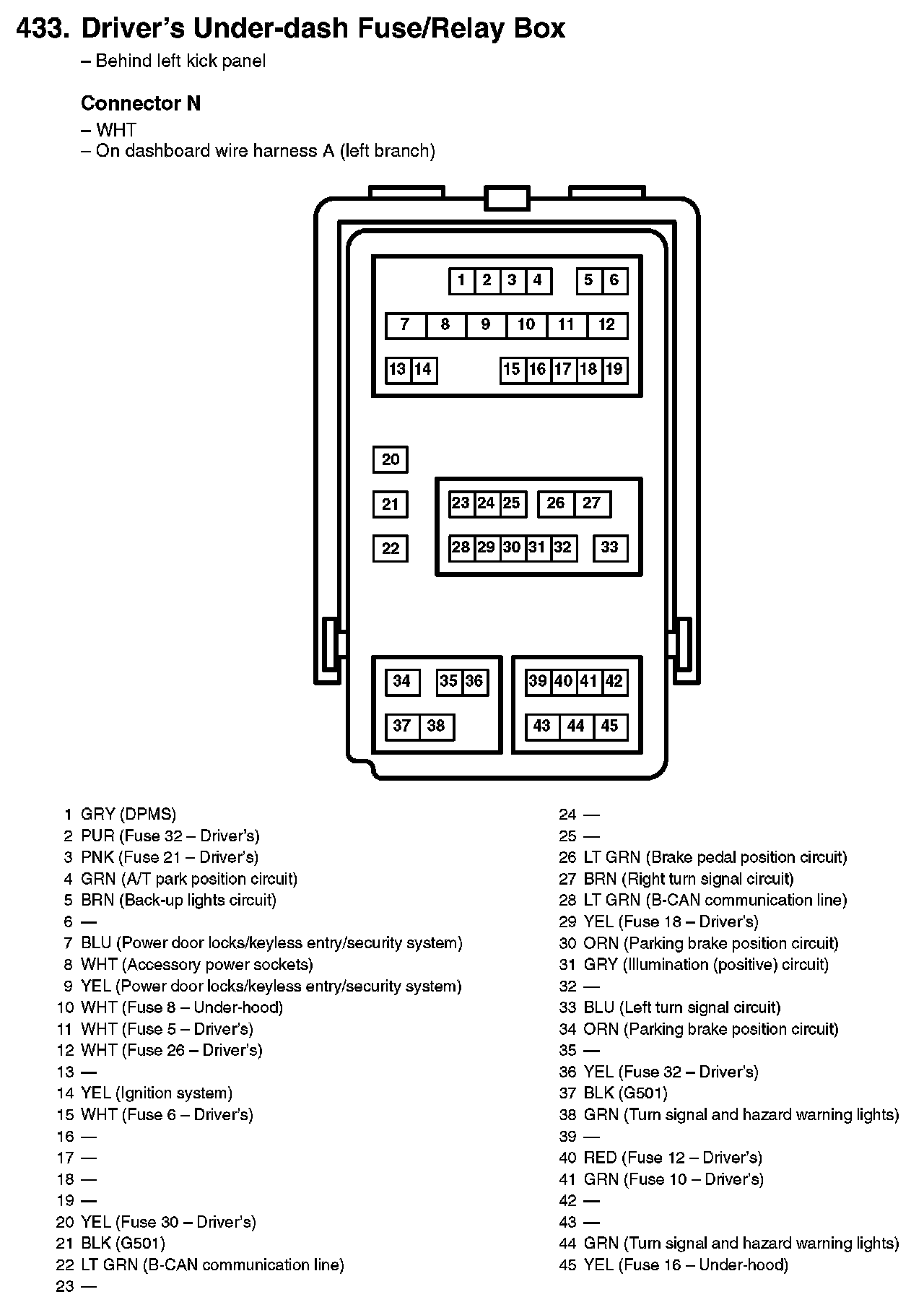

433. Driver's Under-dash Fuse/Relay Box:

433. Driver's Under-dash Fuse/Relay Box:

433. Driver's Under-dash Fuse/Relay Box:

433. Driver's Under-dash Fuse/Relay Box:

433. Driver's Under-dash Fuse/Relay Box:

433. Driver's Under-dash Fuse/Relay Box:
