Seat Temperature Control Module

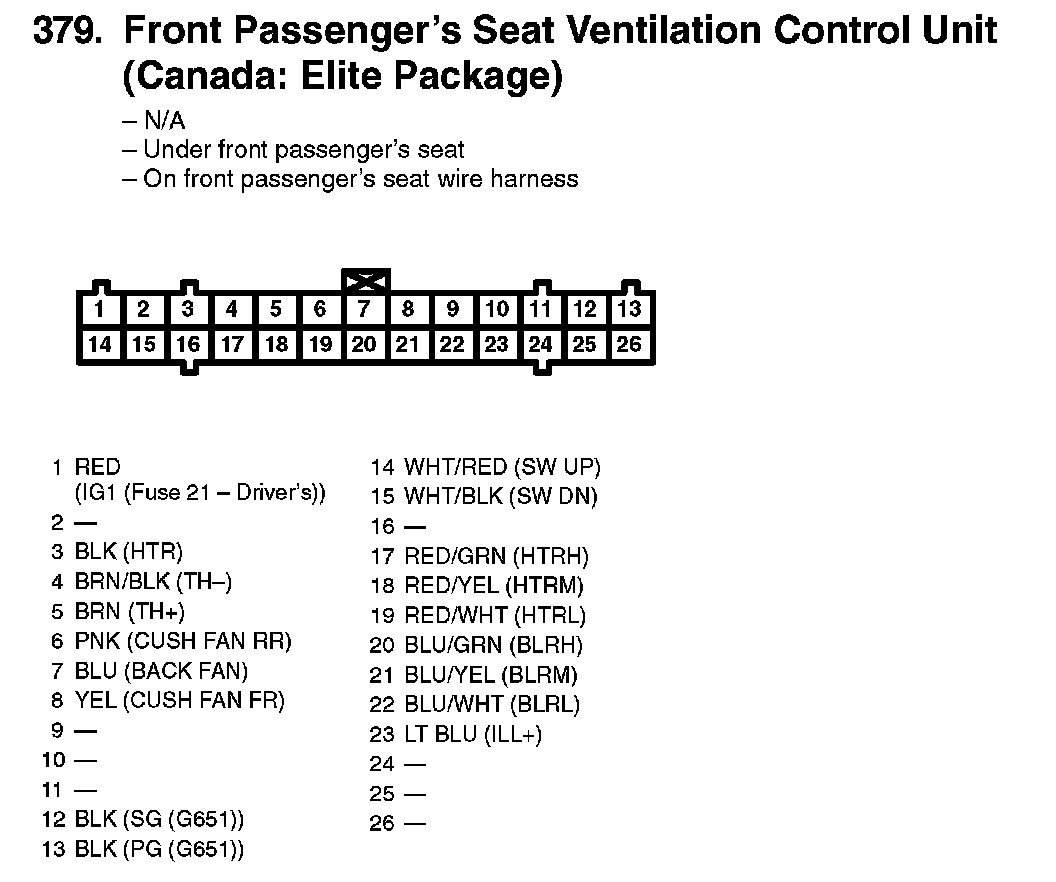

379. Front Passenger's Seat Ventilation Control Unit (Canada: Elite Package):

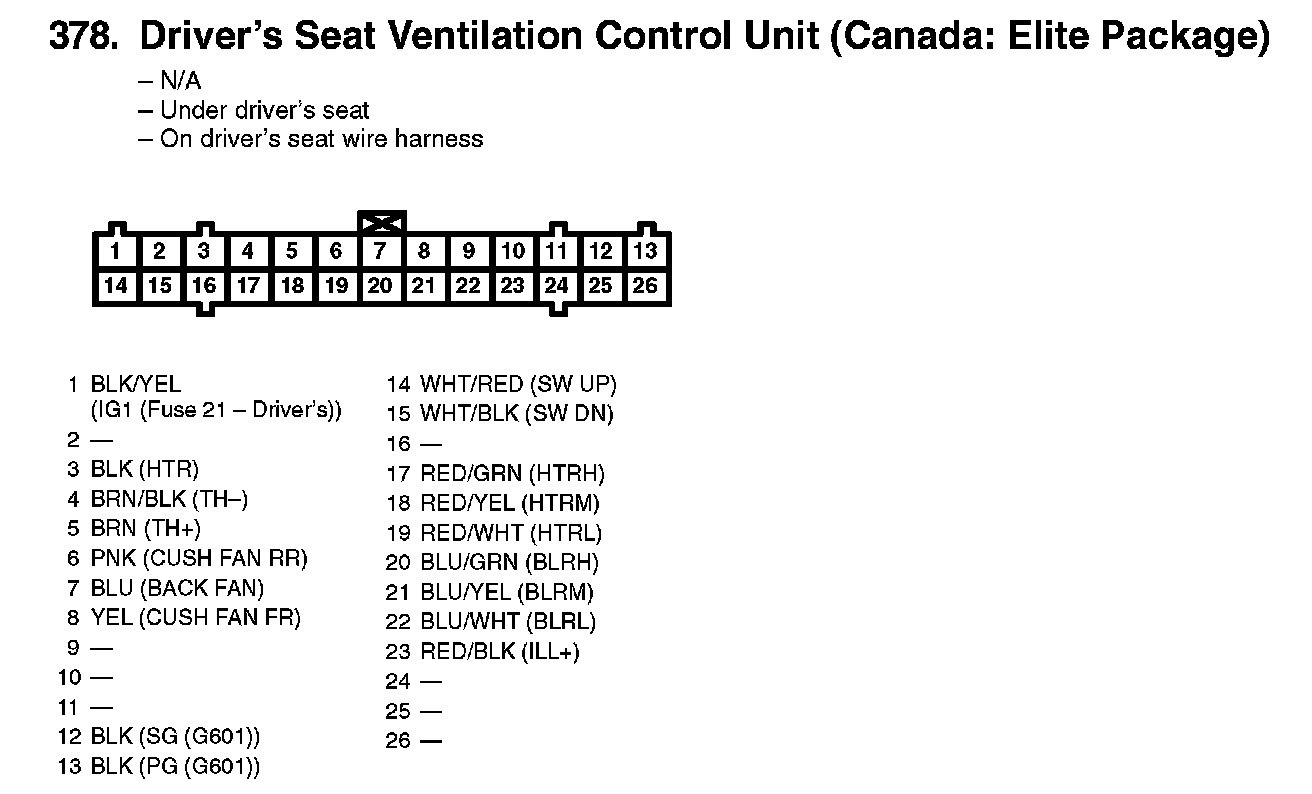

378. Driver's Seat Ventilation Control Unit (Canada: Elite Package):
