Seat Temperature Switch

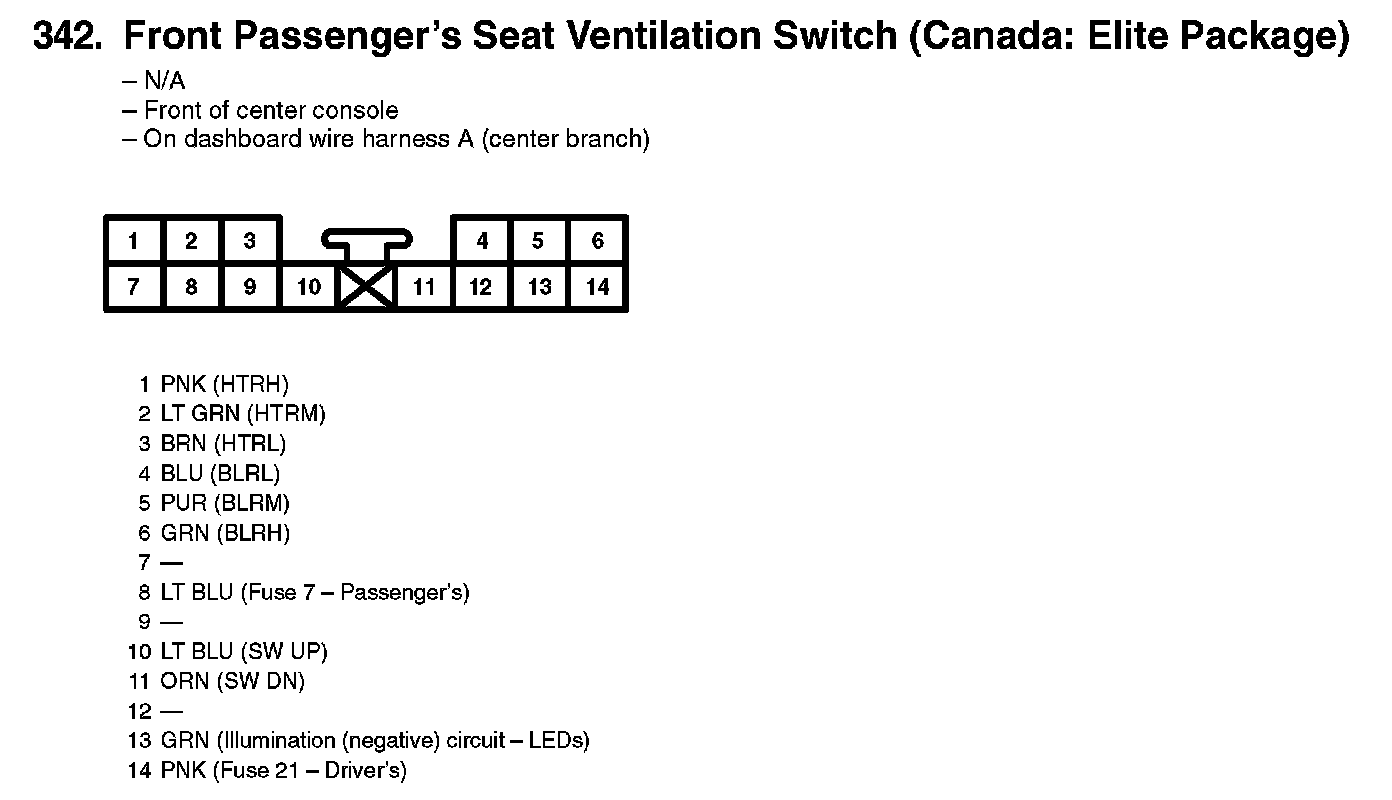

342. Front Passenger's Seat Ventilation Switch (Canada: Elite Package):

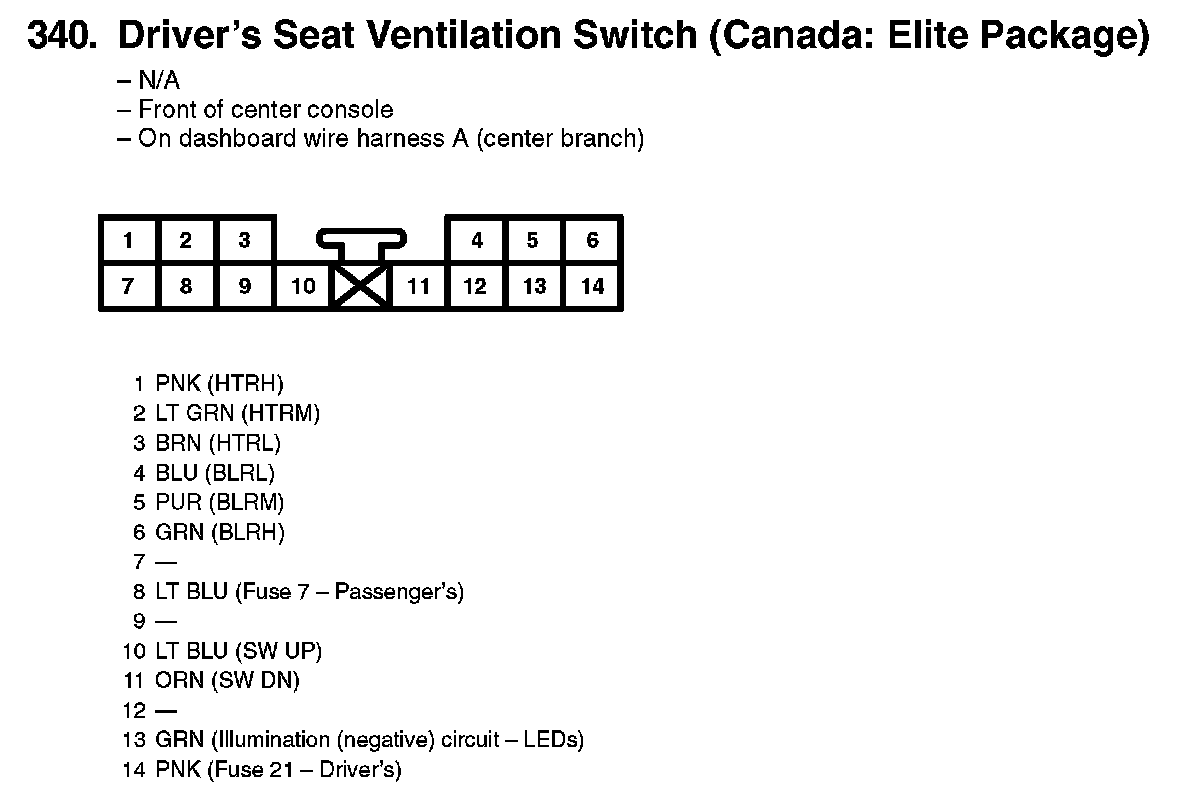

340. Driver's Seat Ventilation Switch (Canada: Elite Package):

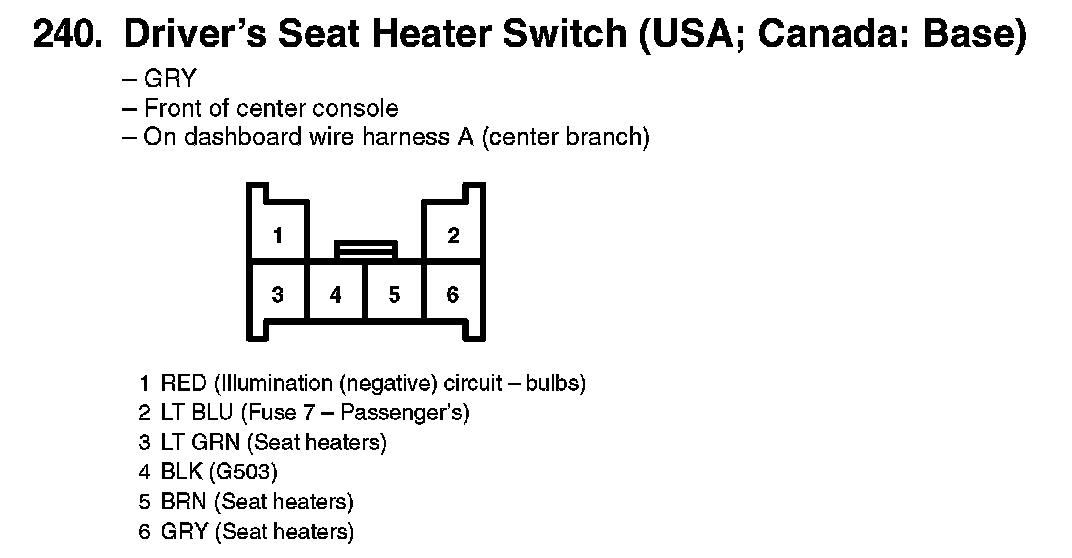

240. Driver's Seat Heater Switch (USA; Canada: Base):

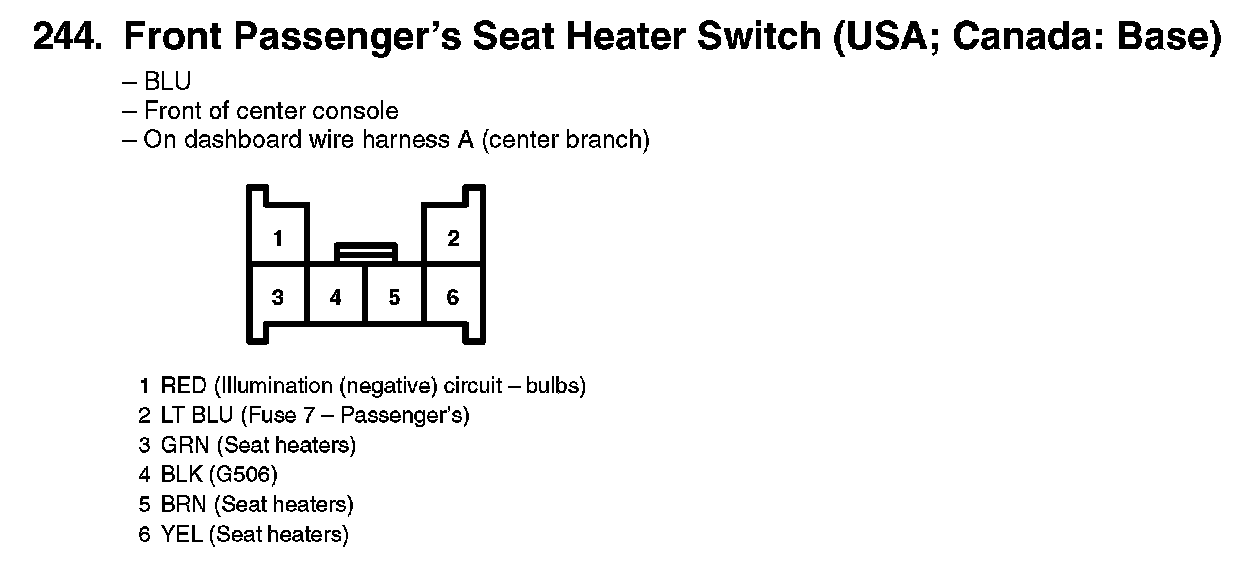

244. Front Passenger's Seat Heater Switch (USA; Canada: Base):
