ECT Sensor 2

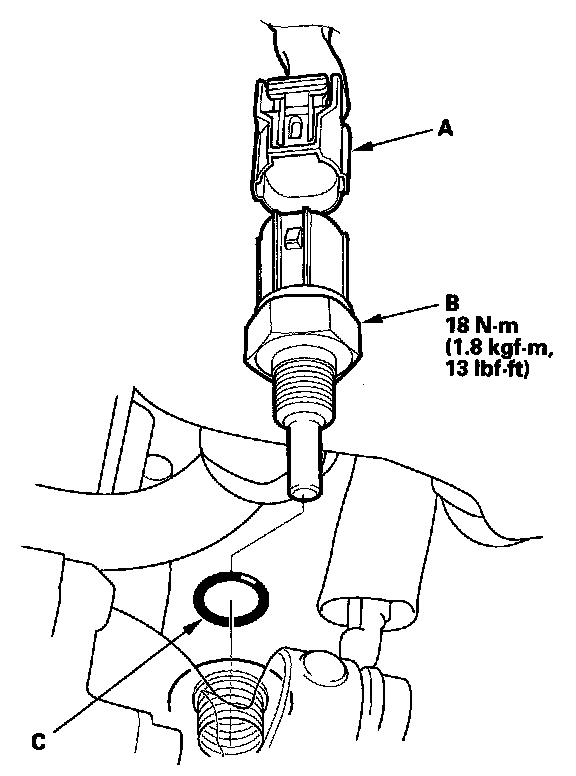

ECT Sensor 2 Replacement

1. Remove the throttle body.
2. Disconnect the ECT sensor 2 connector (A).






3. Remove ECT sensor 2 (B).
4. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant.
