Instrument Panel Control Module: Locations

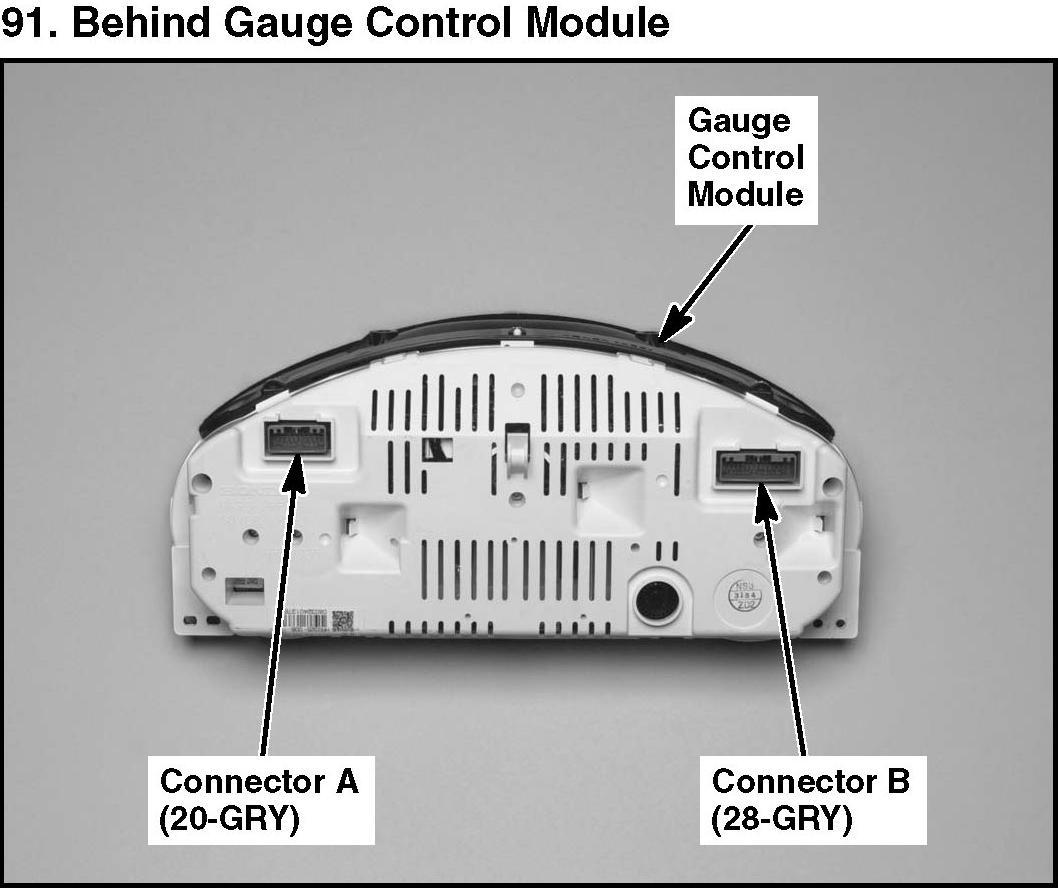

91. Behind Gauge Control Module:



Relay And Control Unit Locations Dashboard:

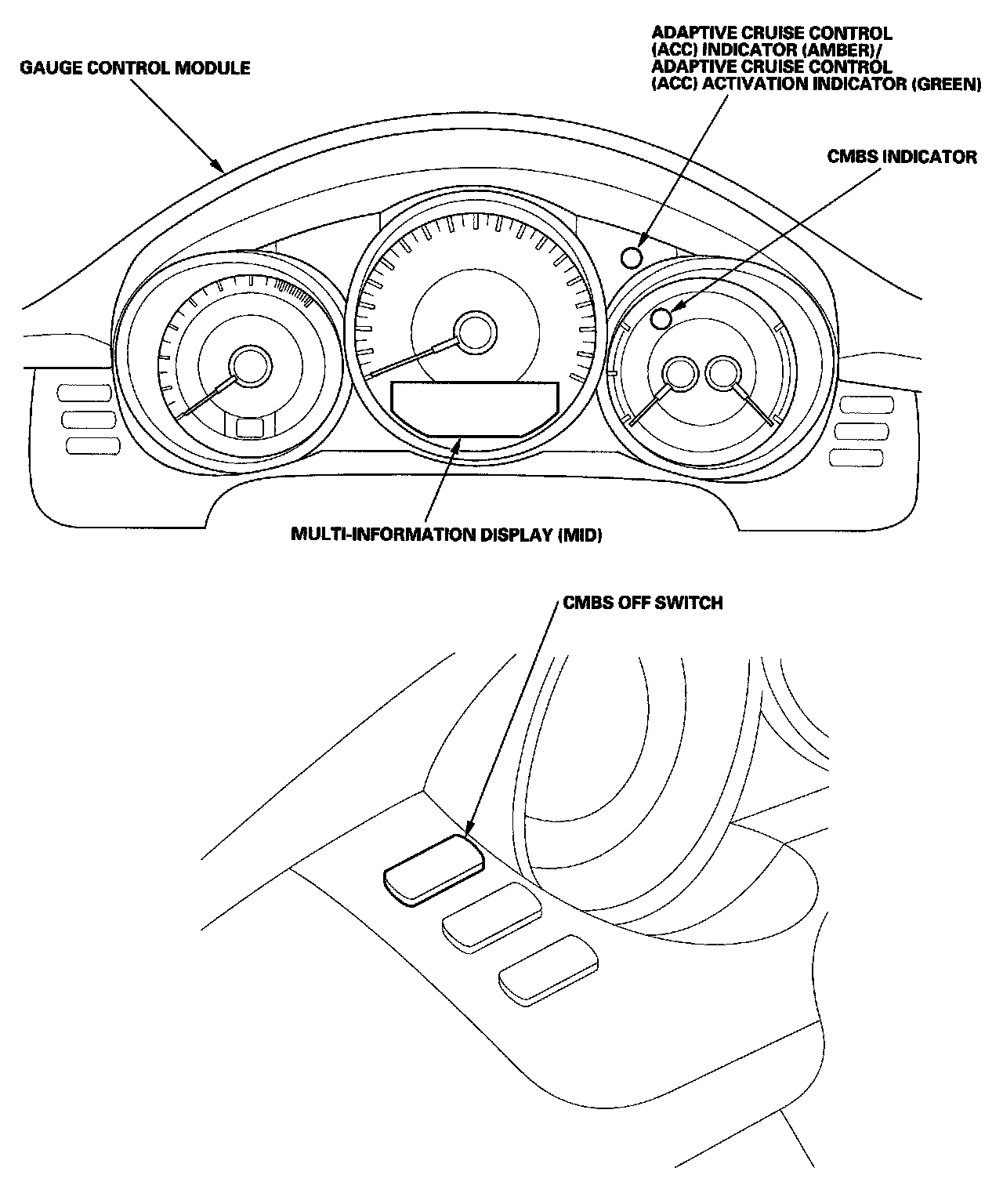

Collision Mitigation Brake System (CMBS) Component Location Index:
