General Specifications

Surface Variation

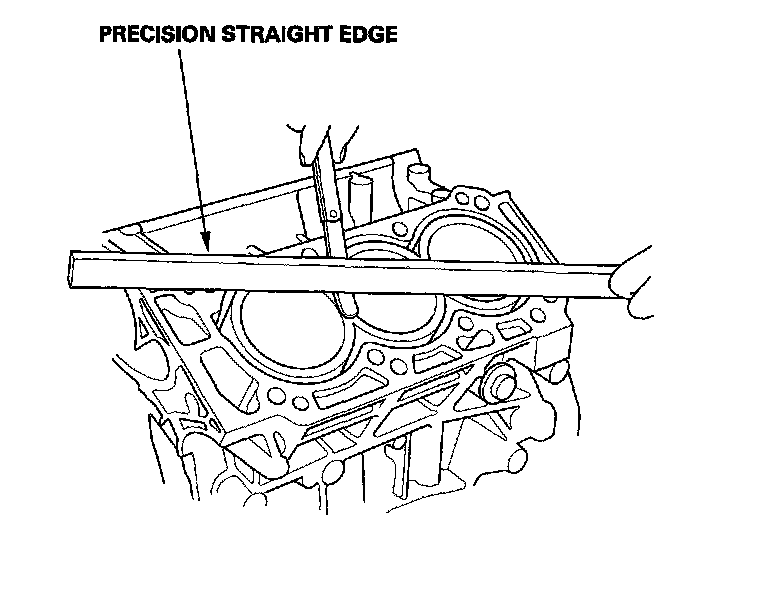

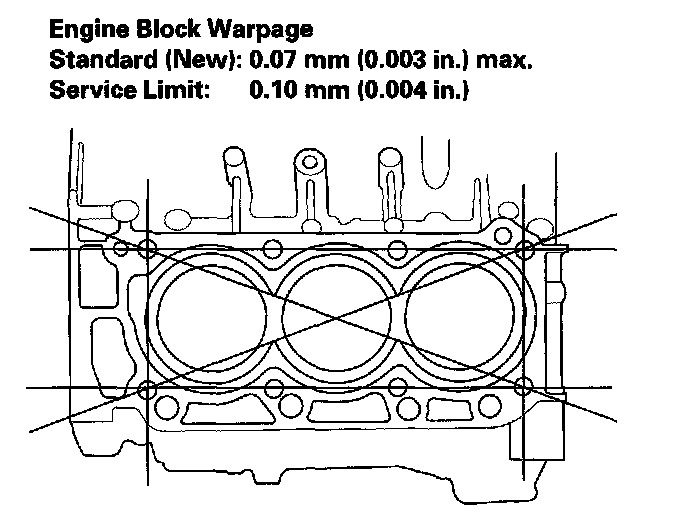

Cylinder Bore





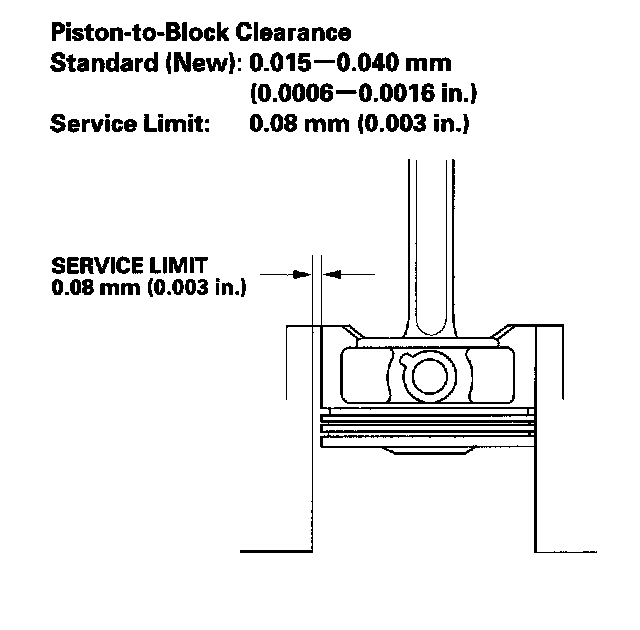

Cylinder-to-Piston Clearance

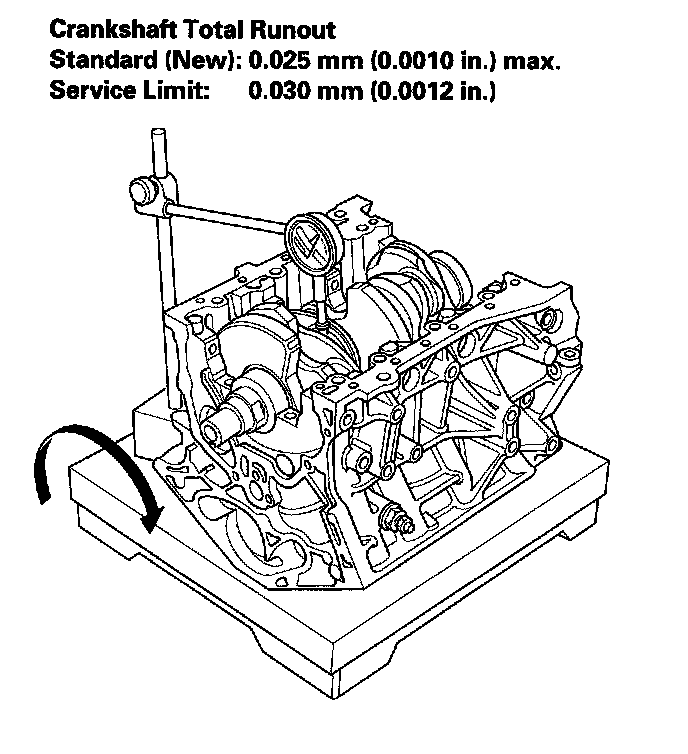

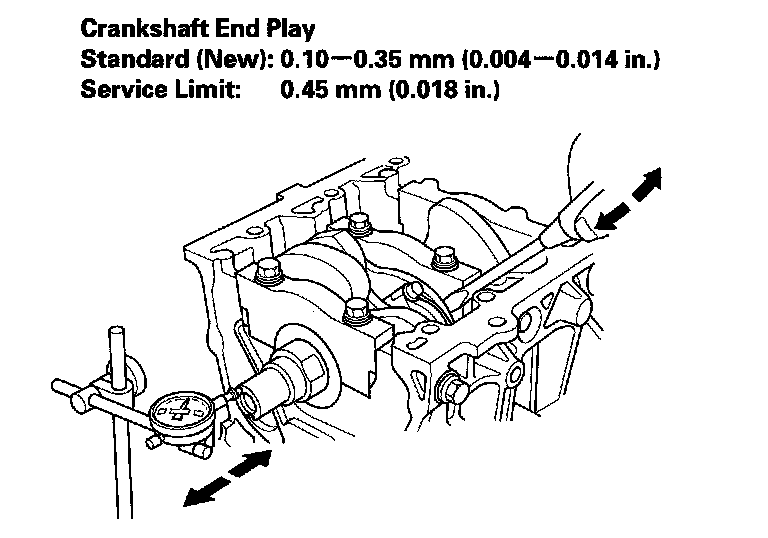

Crankshaft

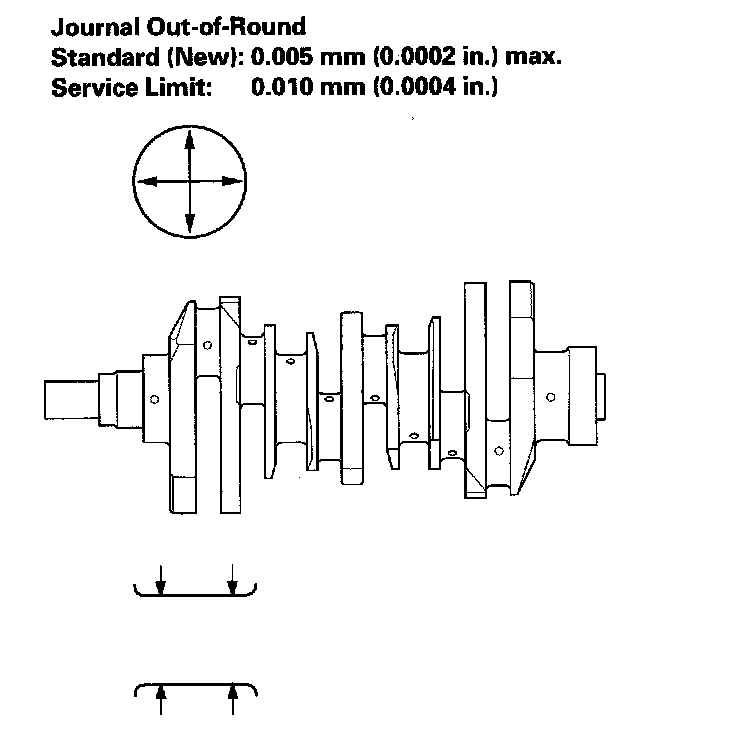

Journal Taper

Standard (New) 0.005 mm (0.0002 in.) max.

Service Limit 0.010 mm (0.0004 in.)

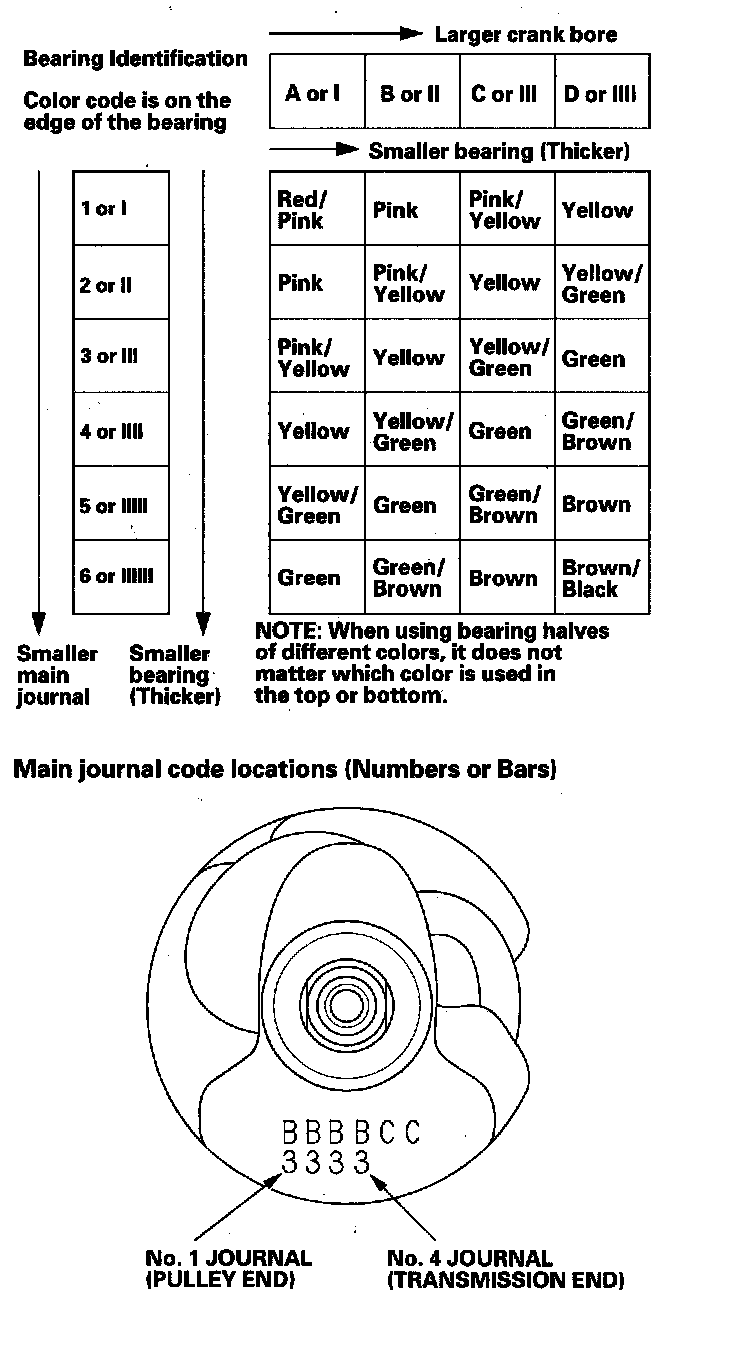

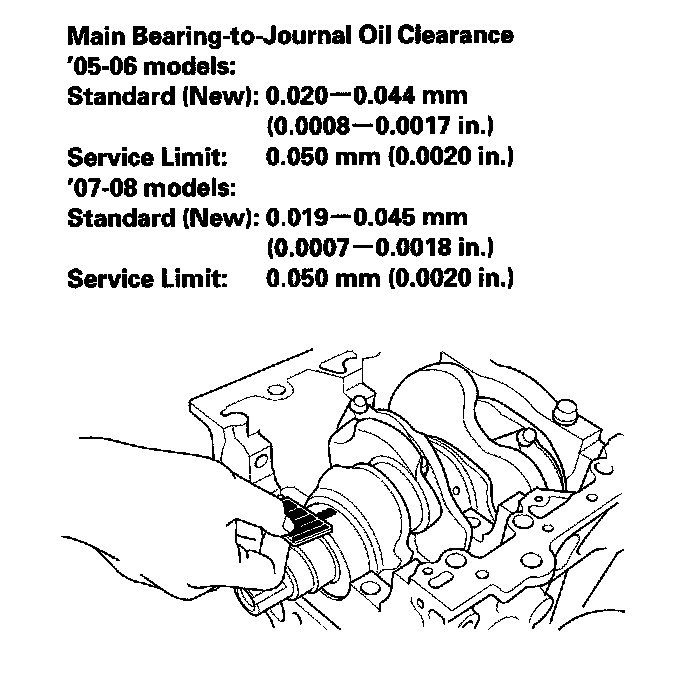

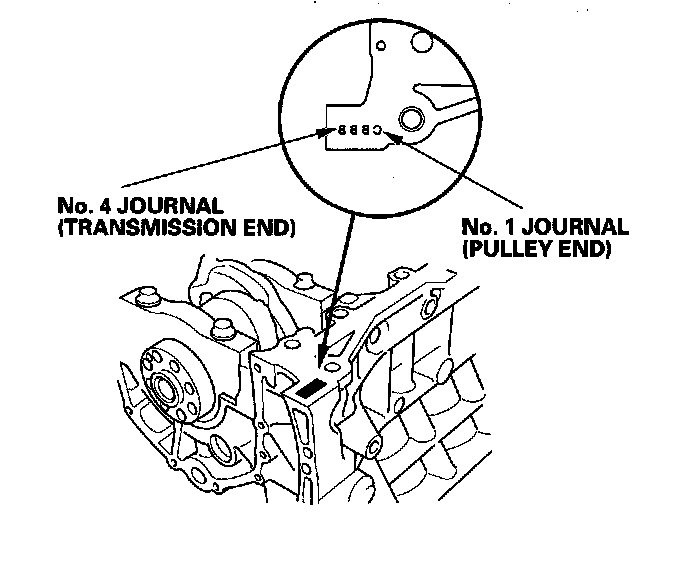

Main Bearing

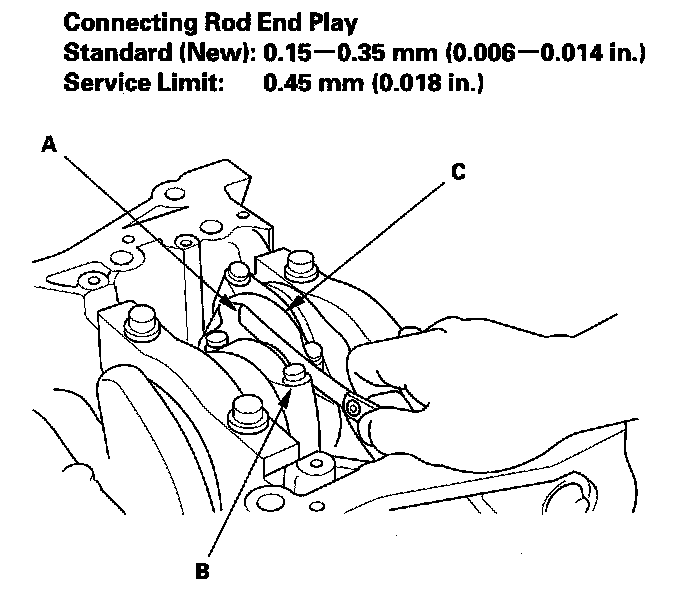

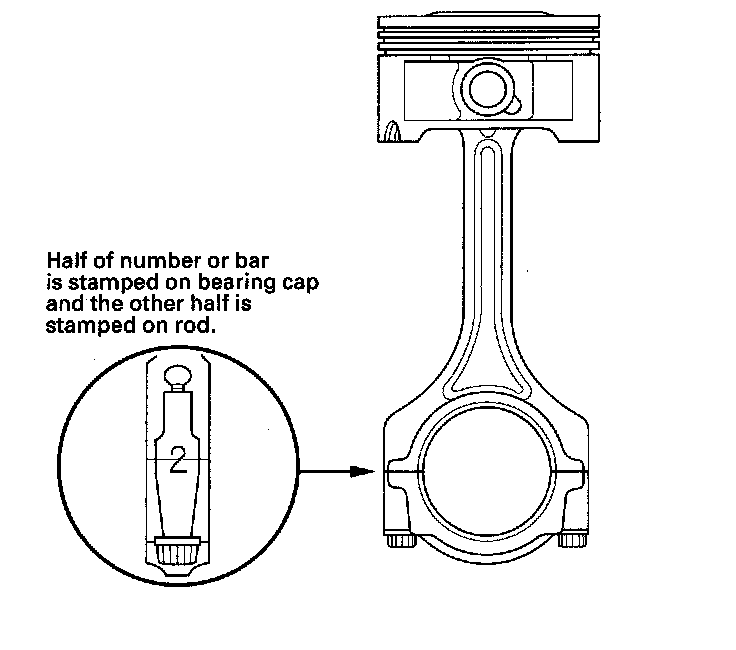

Connecting Rod

Normal Bore Size 58.0 mm (2.28 in.)

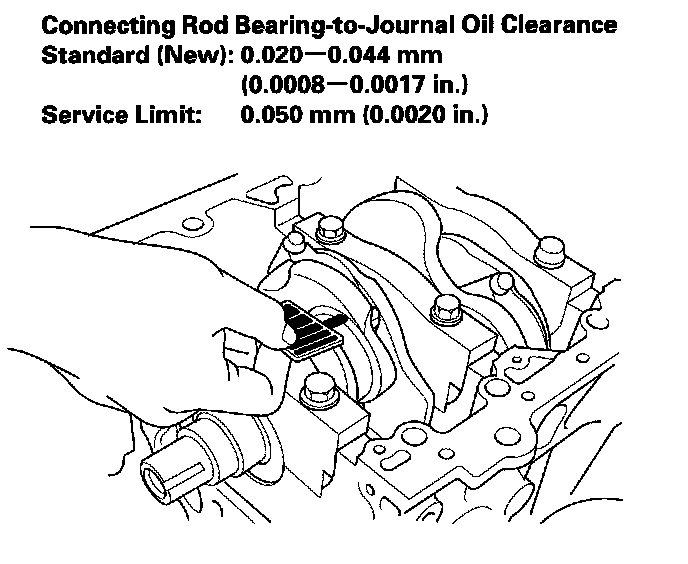

Rod Bearing Clearance





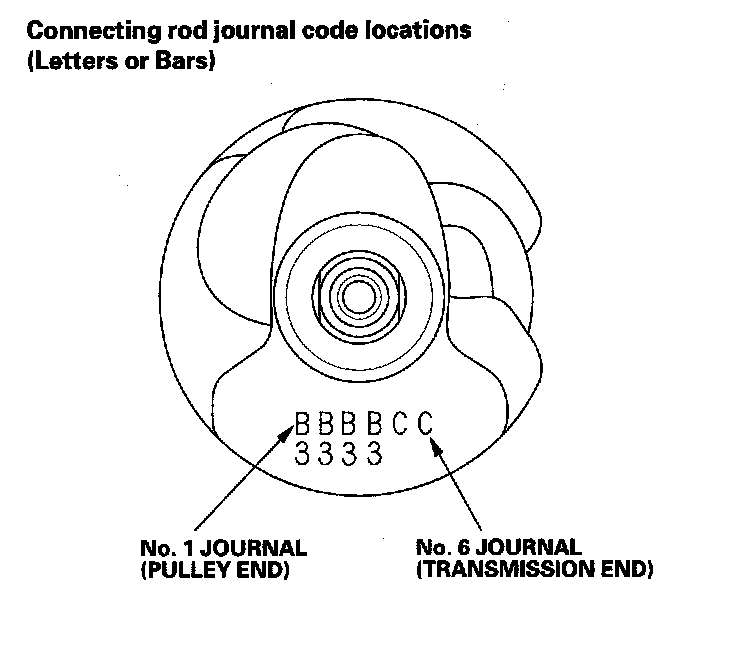

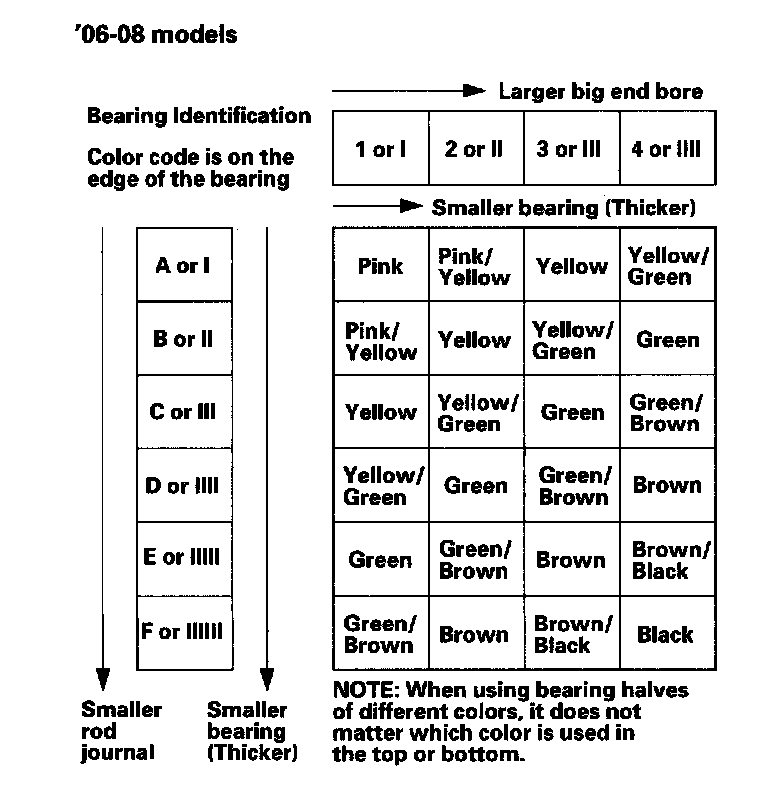

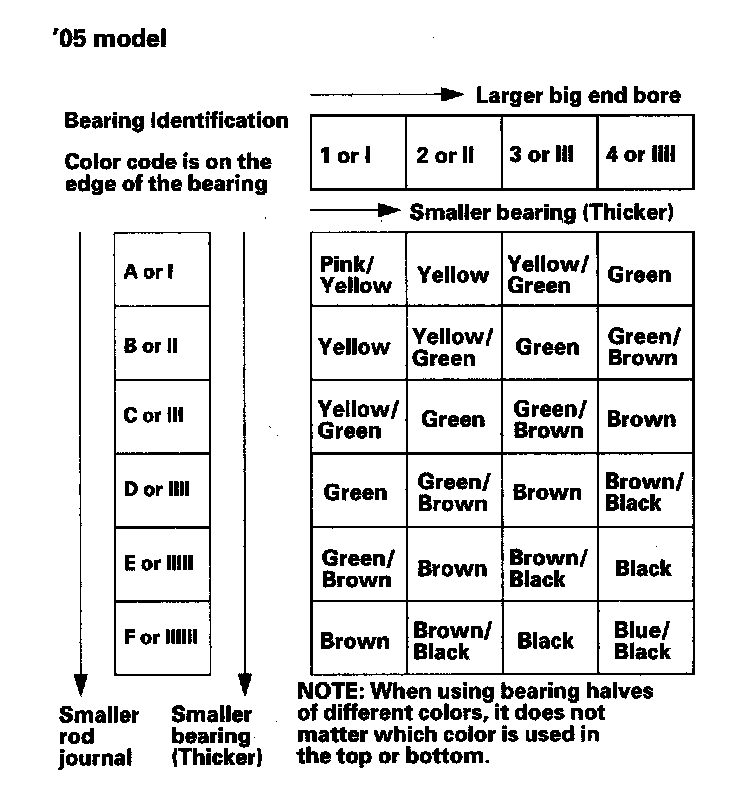

Rod Bearing

Torque the bolts (B) 20 N-m (2.0 kgf-m, 14 lbf-ft) +90°

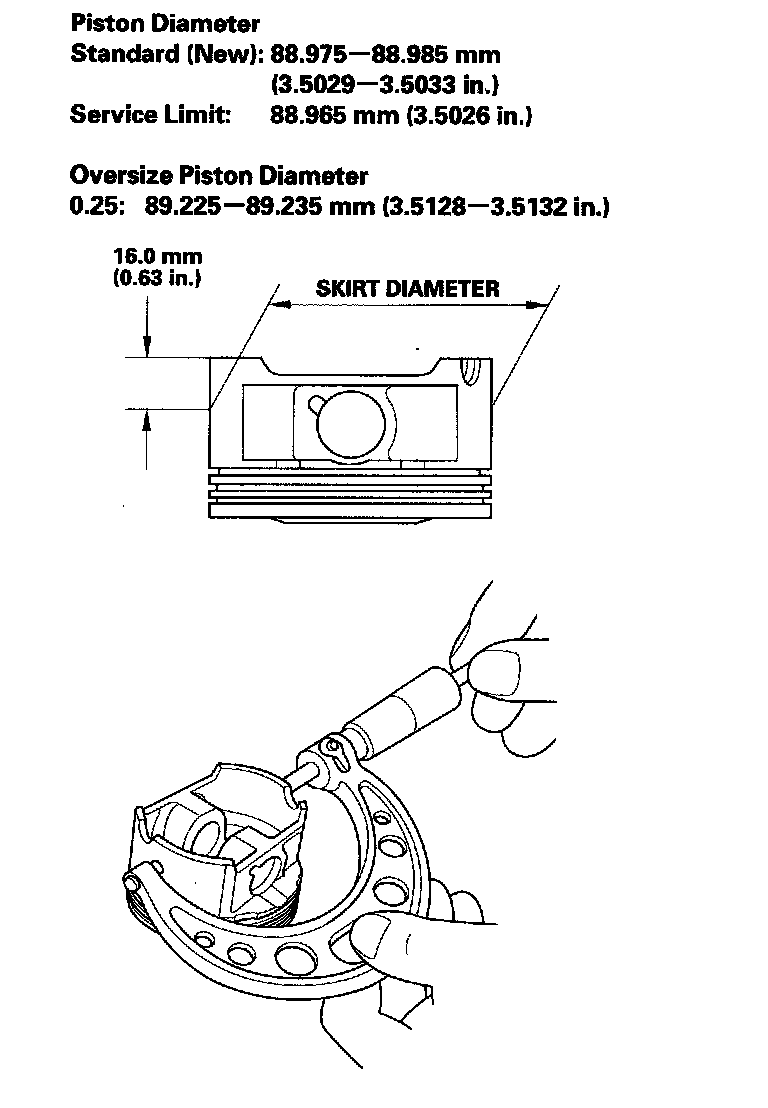

Piston





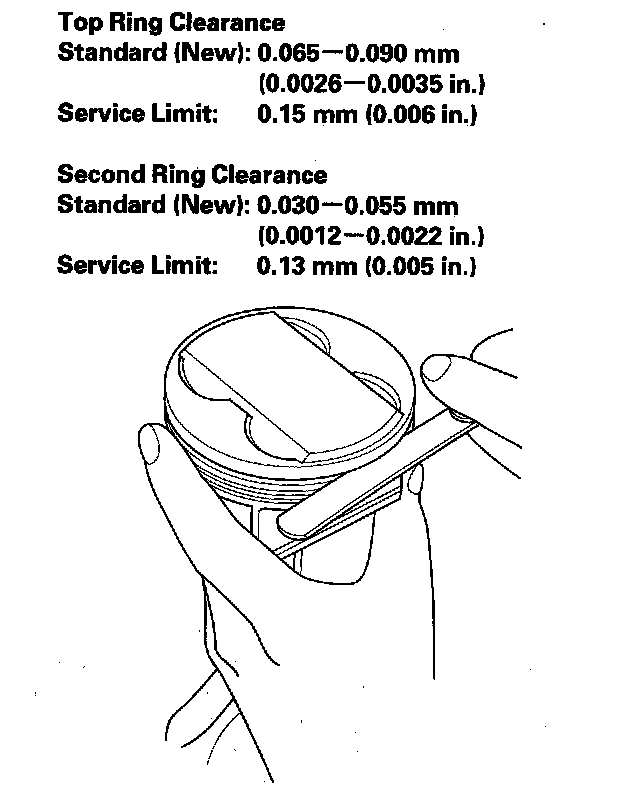

Piston Ring

Piston Ring End-Gap

Top Ring

Standard (Now) 0.20 - 0.35 mm (0.008 - 0.014 in.)

Service Limit 0.60 mm (0.024 in.)

Second Ring

Standard (New) 0.40 - 0.55 mm (0.016 - 0.022 in.)

Service Limit 0.70 mm (0.028 in.)

Oil Ring

Standard (New) 0.20 - 0.70 mm (0.008 - 0.028 in.)

Service Limit 0.80 mm (0.031 in.)





Crankshaft Pulley

Torque 64 N-m (6.5 kgf-m, 47 lbf-ft) +60°
