System Specifications

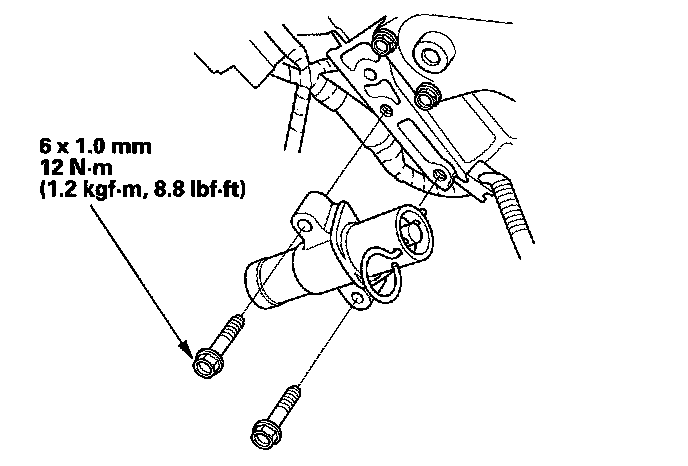

Timing Belt Tensioner

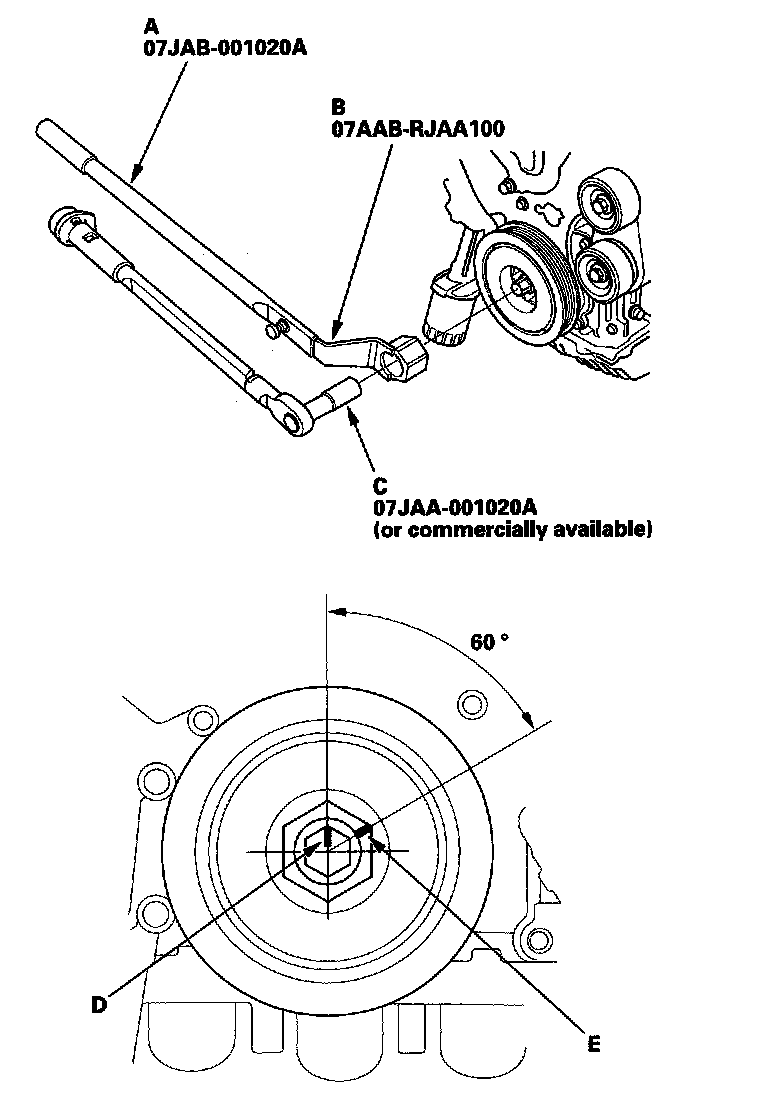

Crankshaft Pulley

Torque 64 N-m (6.5 kgf-m, 47 lbf-ft) +60°

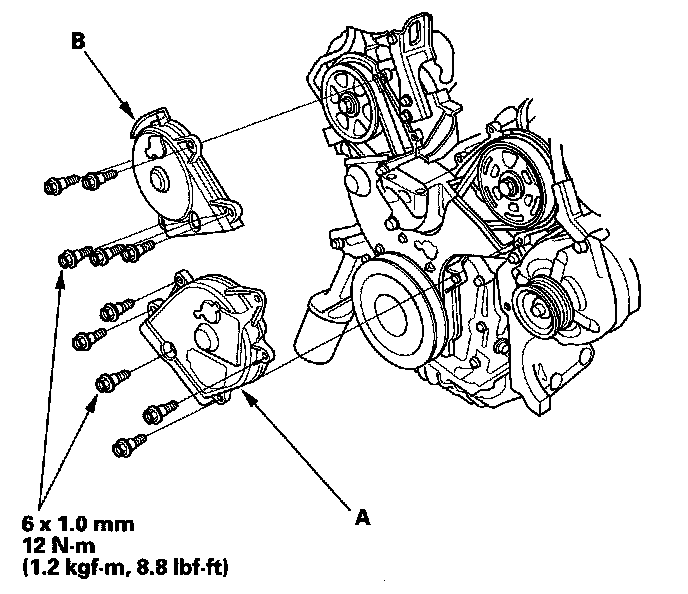

Timing Cover
