Air Cleaner Removal/Installation

Remove the bolts (A) and clamps (B).

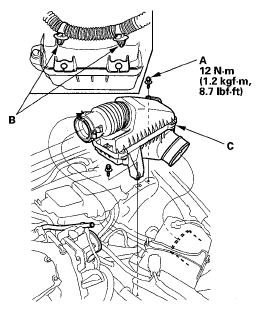

Fig 1: Air Cleaner Bolts And Clamps With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (C).
Install the parts in the reverse order of removal.
