Keyless Entry Receiver: Service and Repair

Keyless Buzzer Test/Replacement

1. Remove the left inner fender.

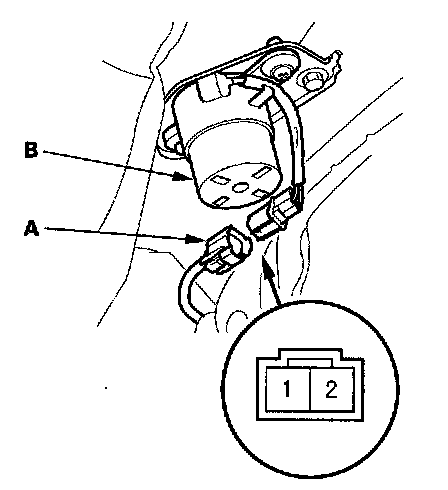

2. Disconnect the 2P connector (A) from the keyless buzzer (B).






3. Test the buzzer by connection battery power to the No. 1 terminal and grounding the No. 2 terminal of the buzzer momentarily; the buzzer should sound.

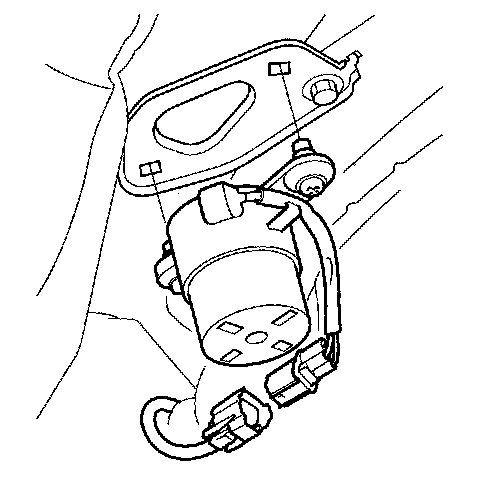

4. If the buzzer does not replace the keyless buzzer by releasing the hooks.
