Refrigerant Pressure Sensor / Switch, HVAC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Refrigerant Pressure Sensor / Switch, HVAC

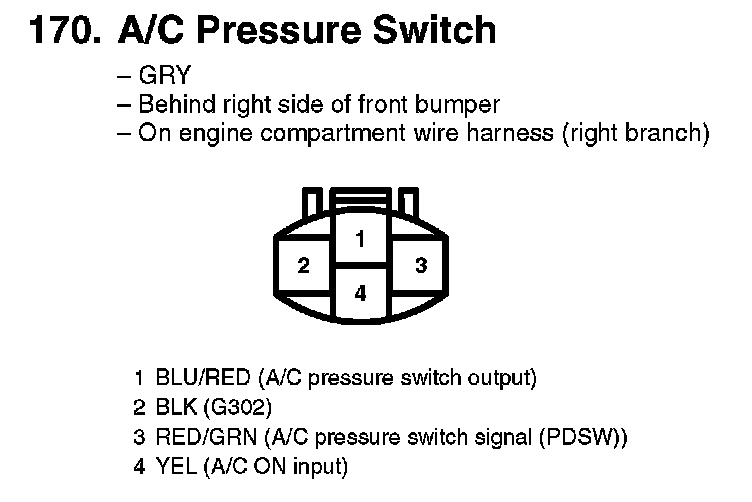

170. A/C Pressure Switch:
