Navigation Module: Locations

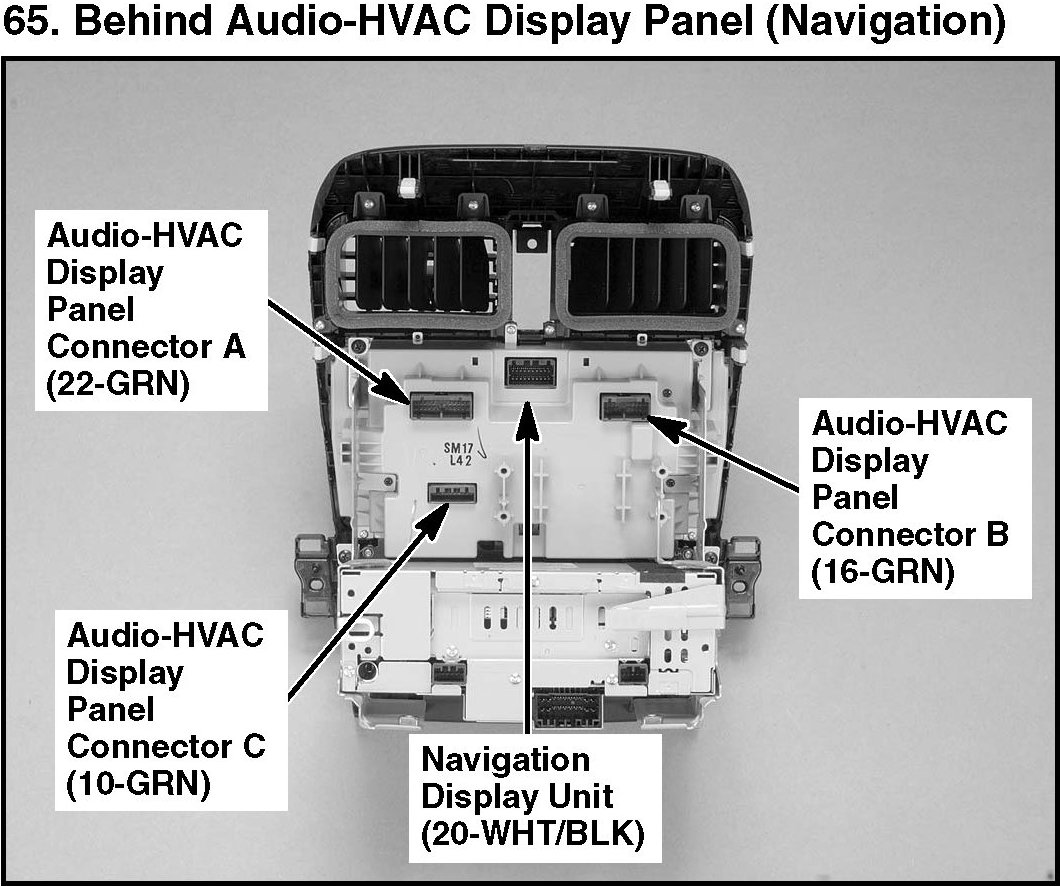

65. Behind Audio-HVAC Display Panel (Navigation):

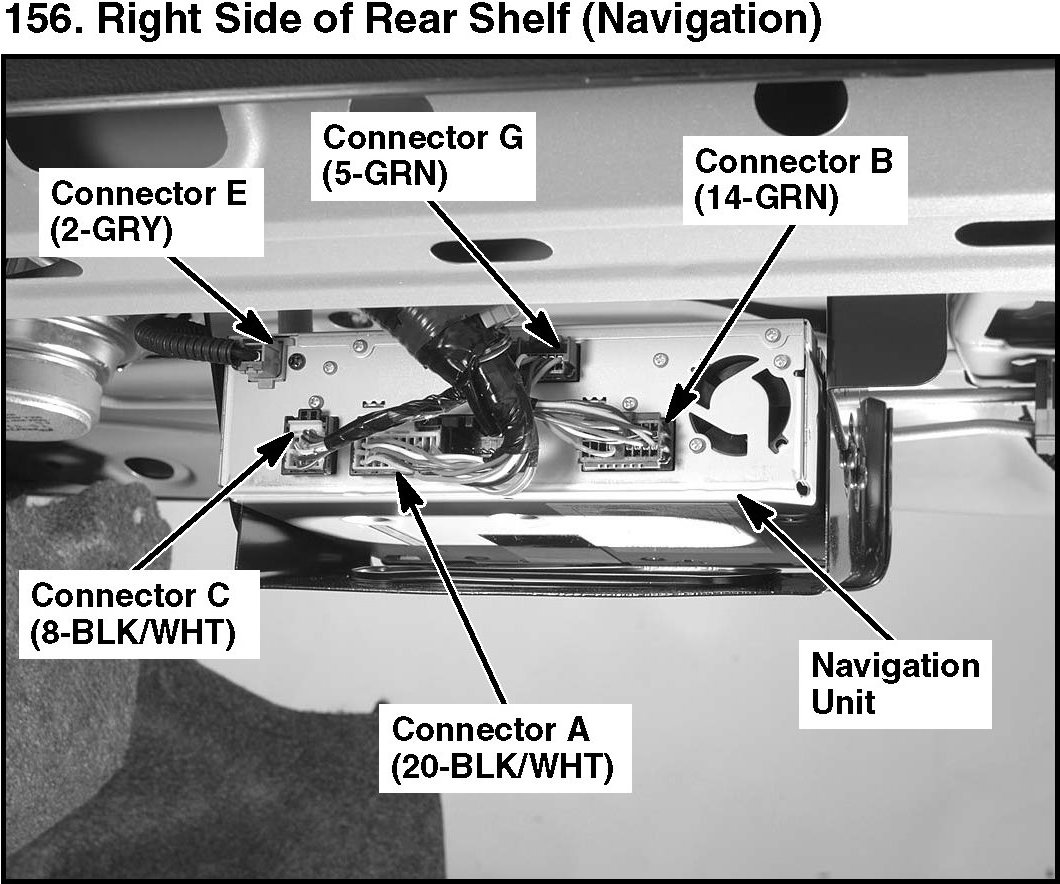

156. Right Side Of Rear Shelf (Navigation):

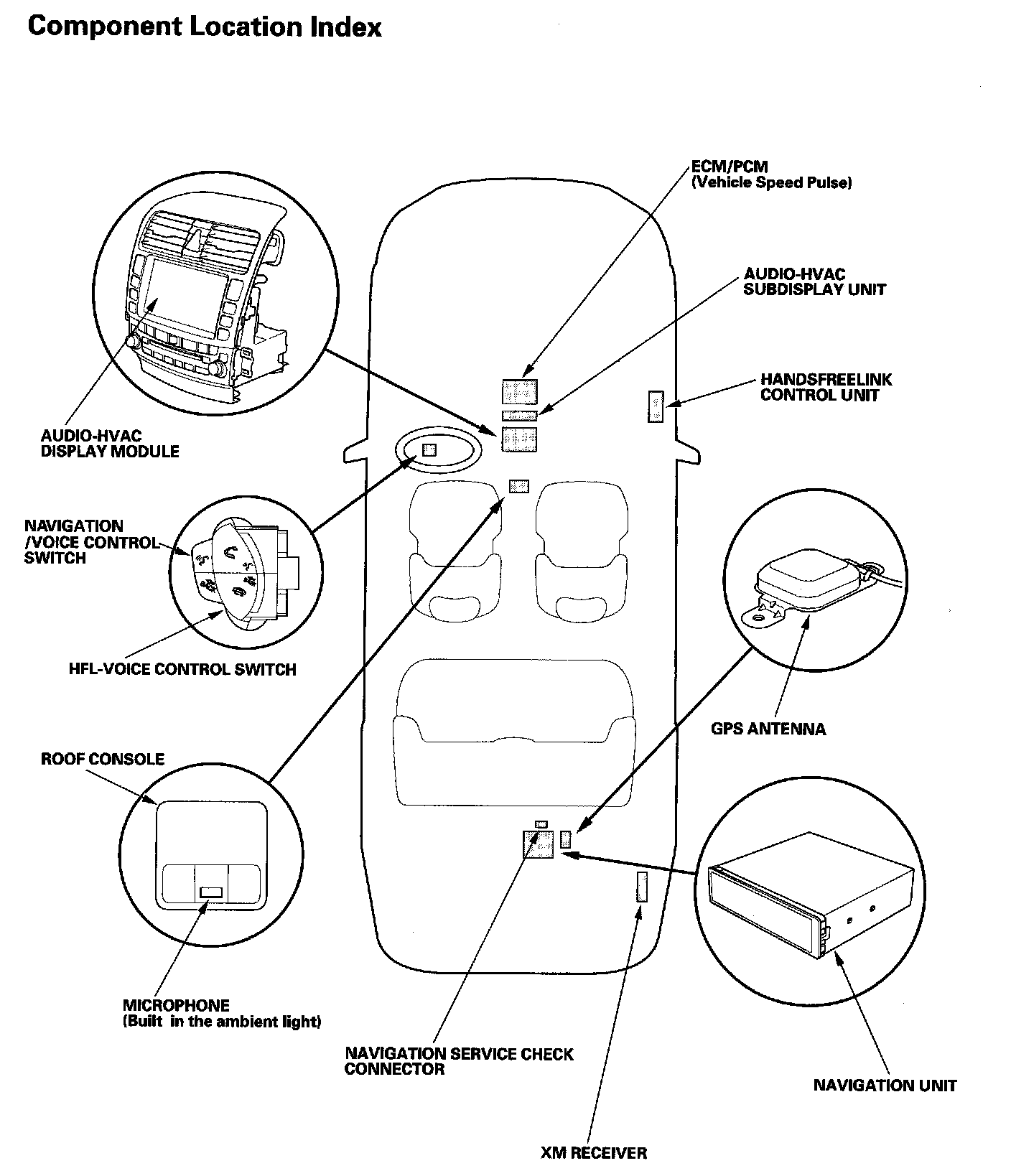

Navigation System Component Location Index:

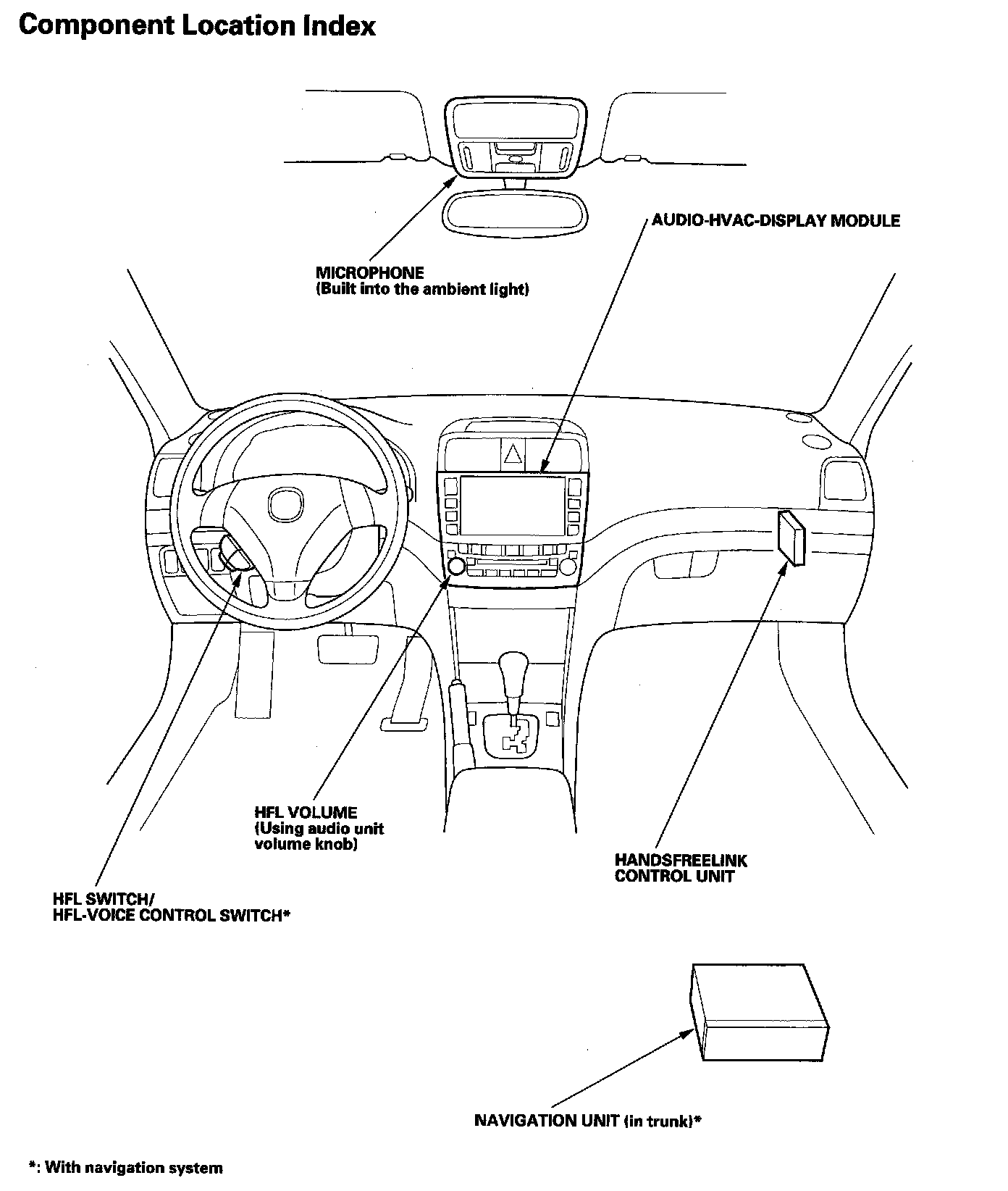

HandsFreeLink System Component Location Index:

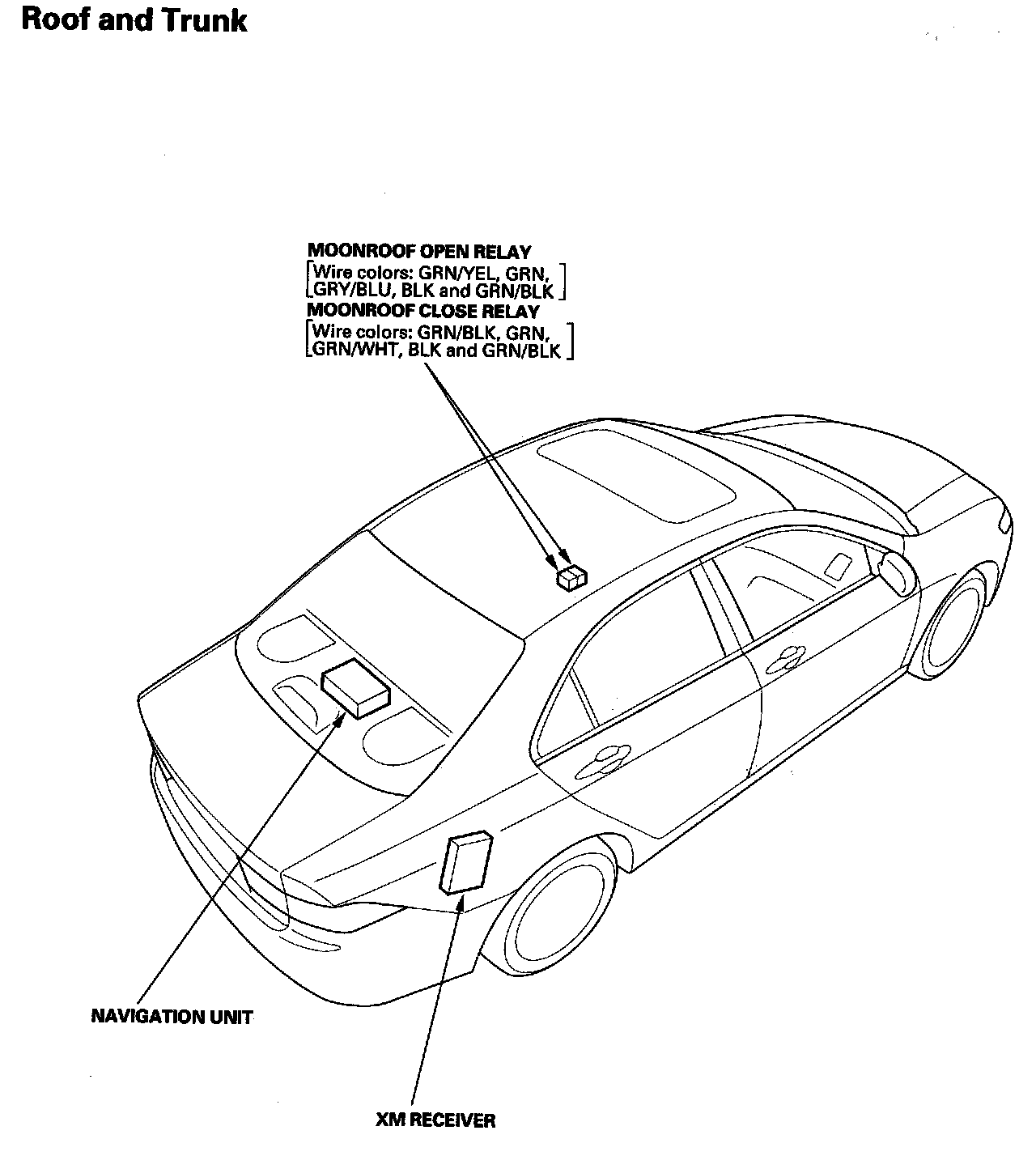

Relay And Control Unit Locations Roof And Trunk:
