Power Seat Control Module: Locations

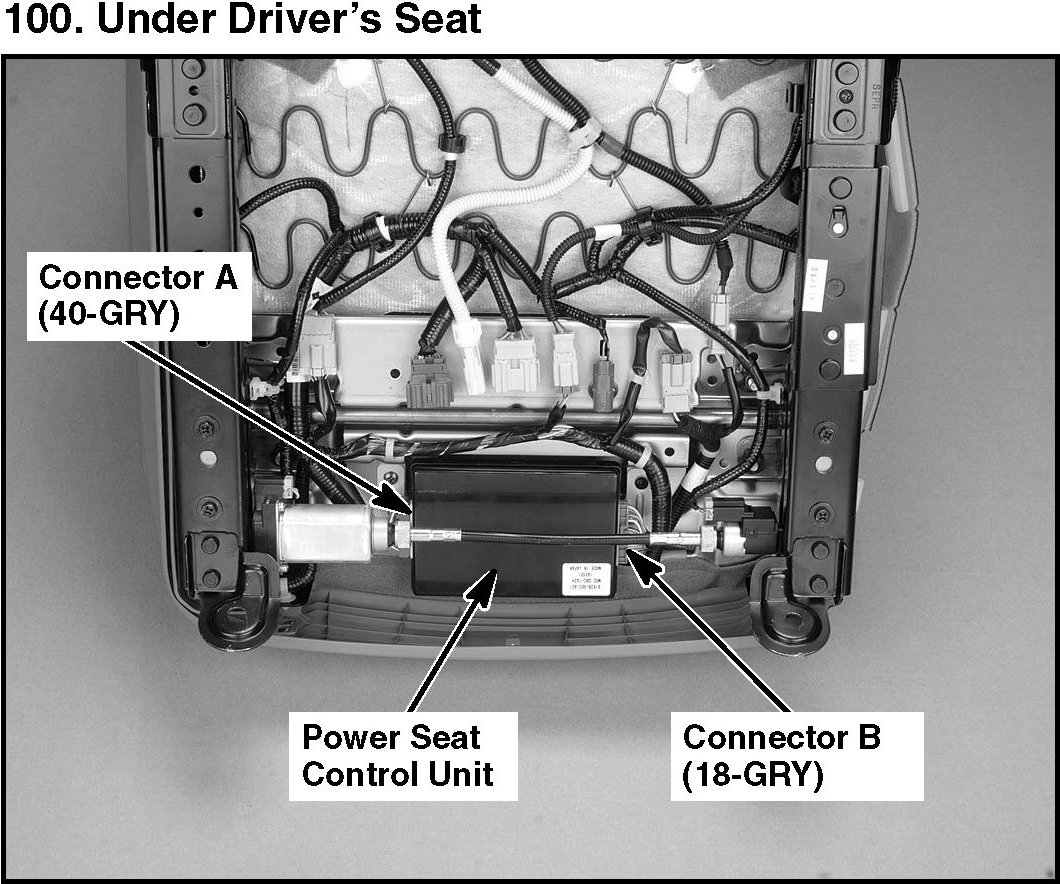

100. Under Driver's Seat:

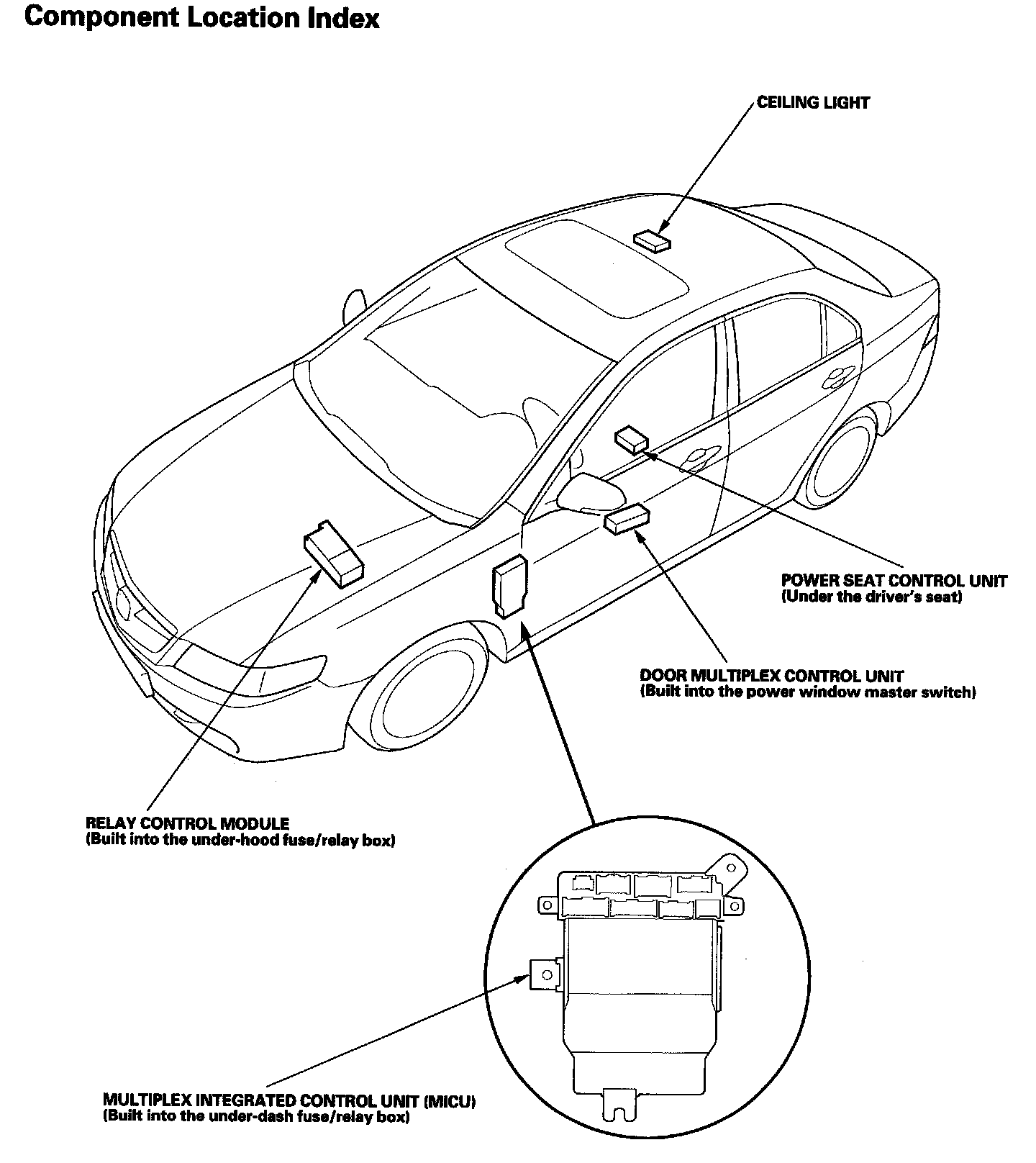

Multiplex Integrated Control System Component Location Index:

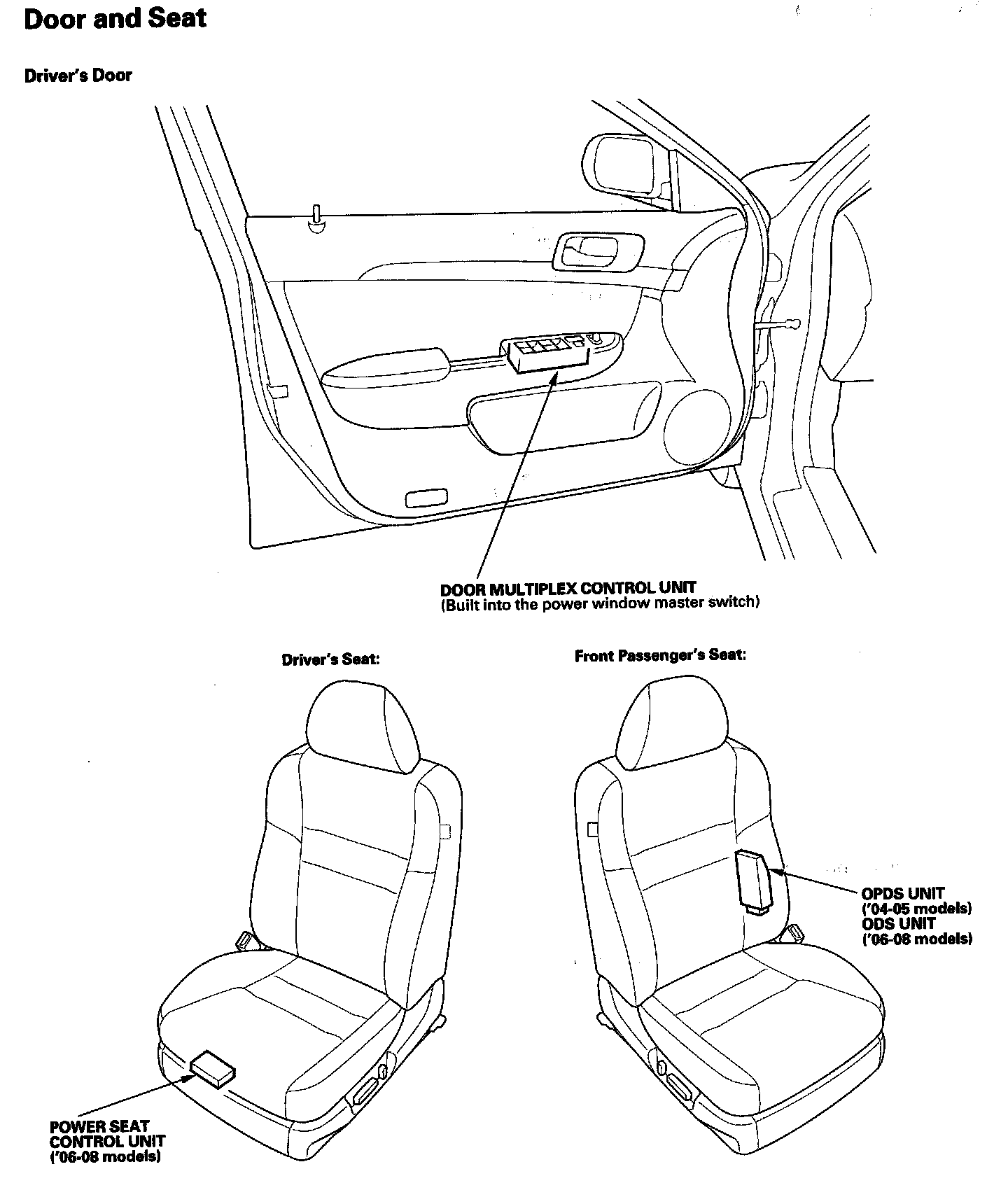

Relay And Control Unit Locations Door And Seat:
